Plan 11758HZ

Three Bedroom Split Layout

Heated S.F.
1,500
Beds
3
Baths
2
Stories
1
Cars
2

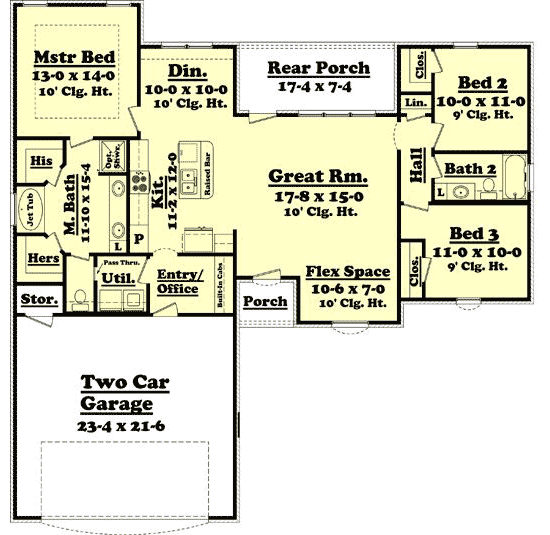

Floor Plan

Plan 11758HZ

Main Level
Main Level

Plan 11758HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 11758HZ: Three Bedroom Split Layout - Floor Plan - Main Level - Acadian, European, French Country, Louisiana-Style, Traditional

Plan Details

  • This plan offers a split floor plan providing privacy for the master bedroom.
  • Masterbedroom has 10'tray ceiling
  • Multiple storage areas, office and flex space that can be used as a sitting area.
  • The roof is stick and has a 8:12 pitch.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

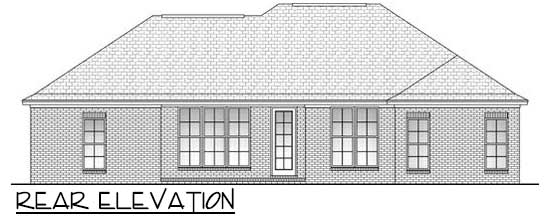

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,500 sq. ft.

1st Floor

1,500 sq. ft.

Porch, Combined

158 sq. ft.

Storage

17 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 8"

Depth

55' 6"

Garage

Type

Attached

Area

524 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Acadian

European

French Country

Louisiana-Style

Traditional

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,500 sq. ft.

1st Floor

1,500 sq. ft.

Porch, Combined

158 sq. ft.

Storage

17 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 8"

Depth

55' 6"

Garage

Type

Attached

Area

524 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Acadian

European

French Country

Louisiana-Style

Traditional

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office

Photo Gallery

USDA Approved
