Plan 64419SC

Three Bedrooms and a Second Floor Loft

Name: Plan 64419SC: Three Bedrooms and a Second Floor Loft
Brand: Architectural Designs
SKU: 64419SC
Price: 1395.0 USD
Availability: InStock

Heated S.F.

1,976

Beds

Baths

2.5

Stories

Cars

Floor Plan

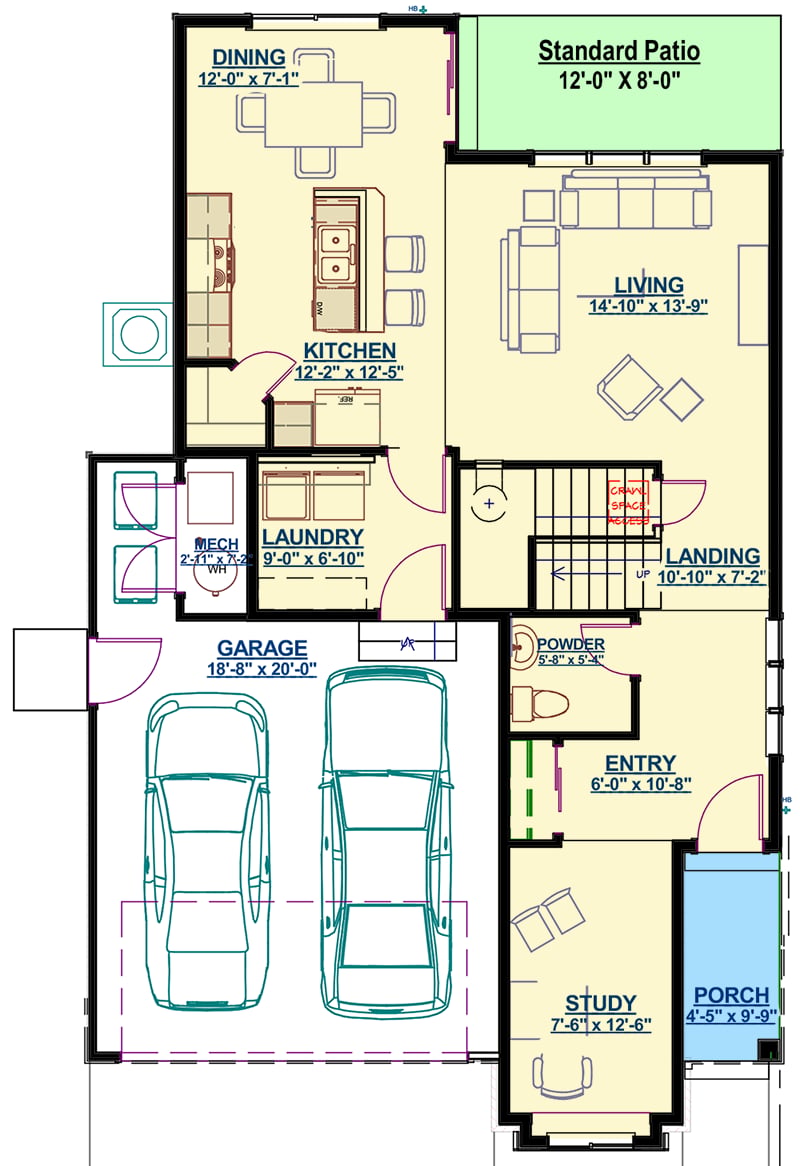

Main Level

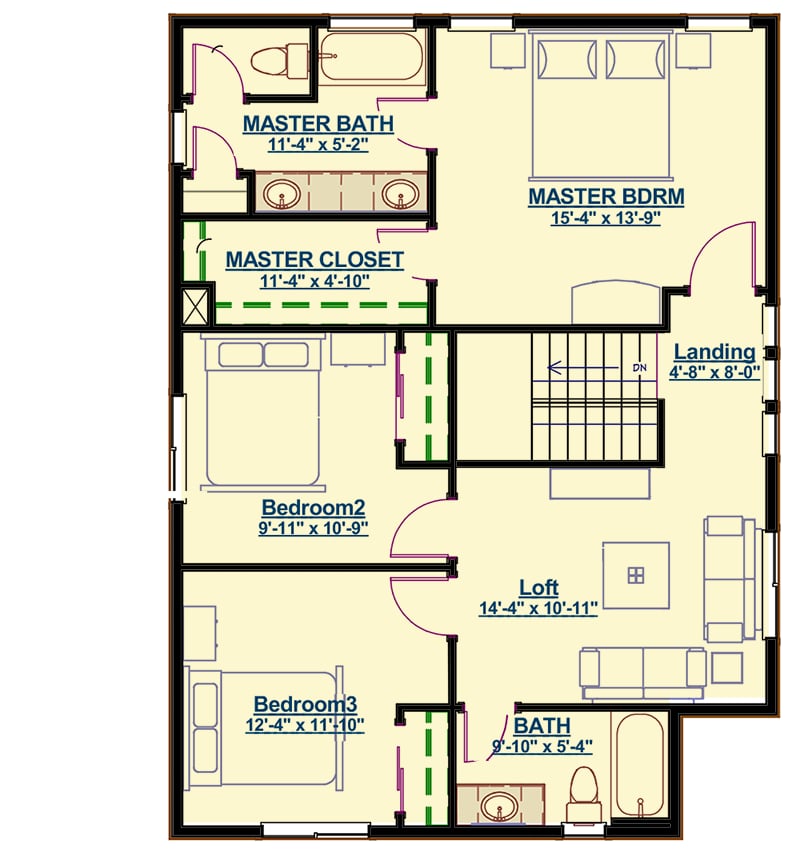

2nd Floor

Plan Details

This well-designed Northwest house plan offers a study right off the foyer and a compact footprint.
The open layout makes the most of the space in the L-shaped living area in back.
Sliding glass doors lead out to a patio where you can grill or sit with a book and watch the kids play.
An eating bar adds to the function of the kitchen island.
On the upper floor, the master bedroom is a comfortable size and has a private bathroom and walk-in closet.
Hang out in the comfy loft area that's big enough for a sectional sofa.
NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
