  • Arched transoms in this Mediterranean house plan not only bring in extra light, they boost the curb appeal.
  • A courtyard entryway leads to the large foyer where you have immediate views of the formal dining room and living room.
  • The informal areas of the home are kept separate and also have a big open floor plan.
  • The split bedroom layout ensures privacy for the large master suite and a quiet study has sliding glass doors to a rear covered patio, one of two patios.
  • The three car garage has storage closets at the back.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

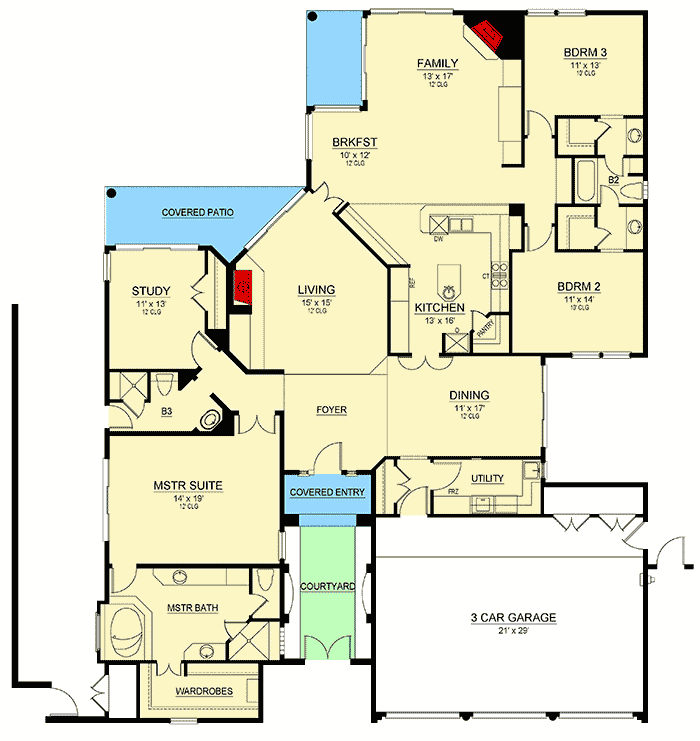

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

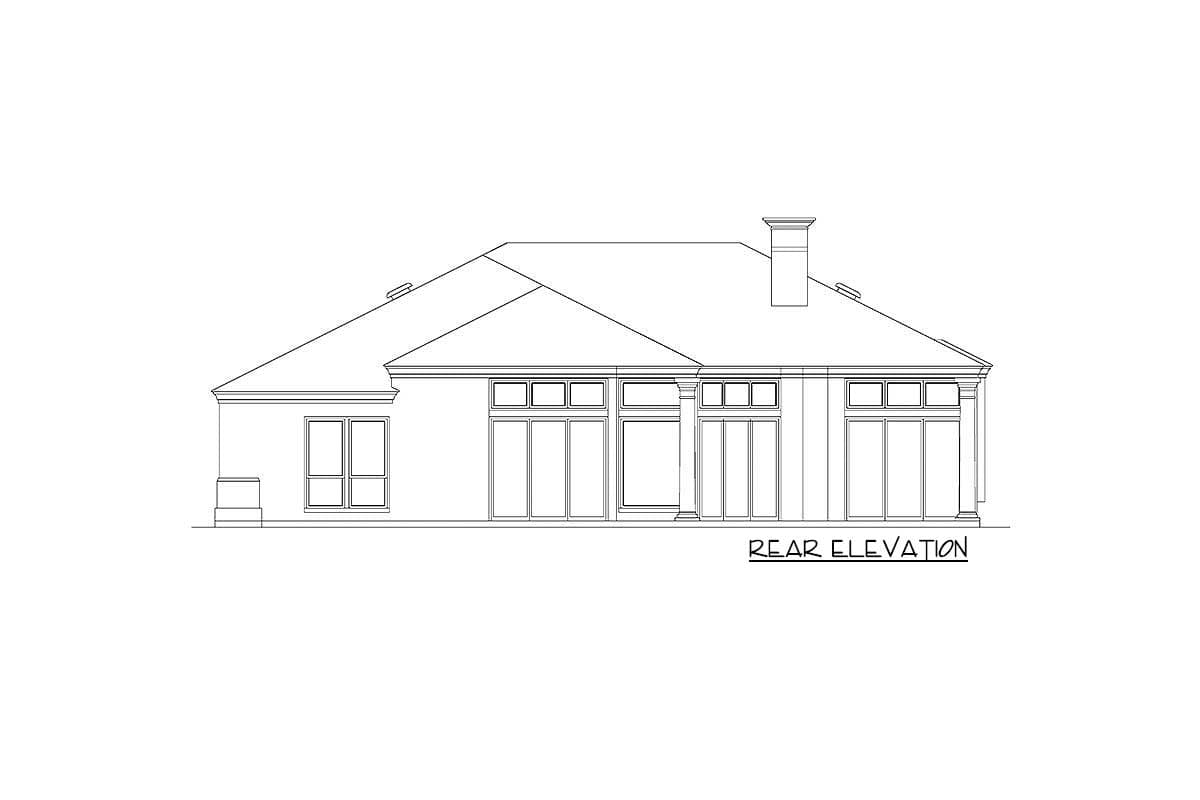

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

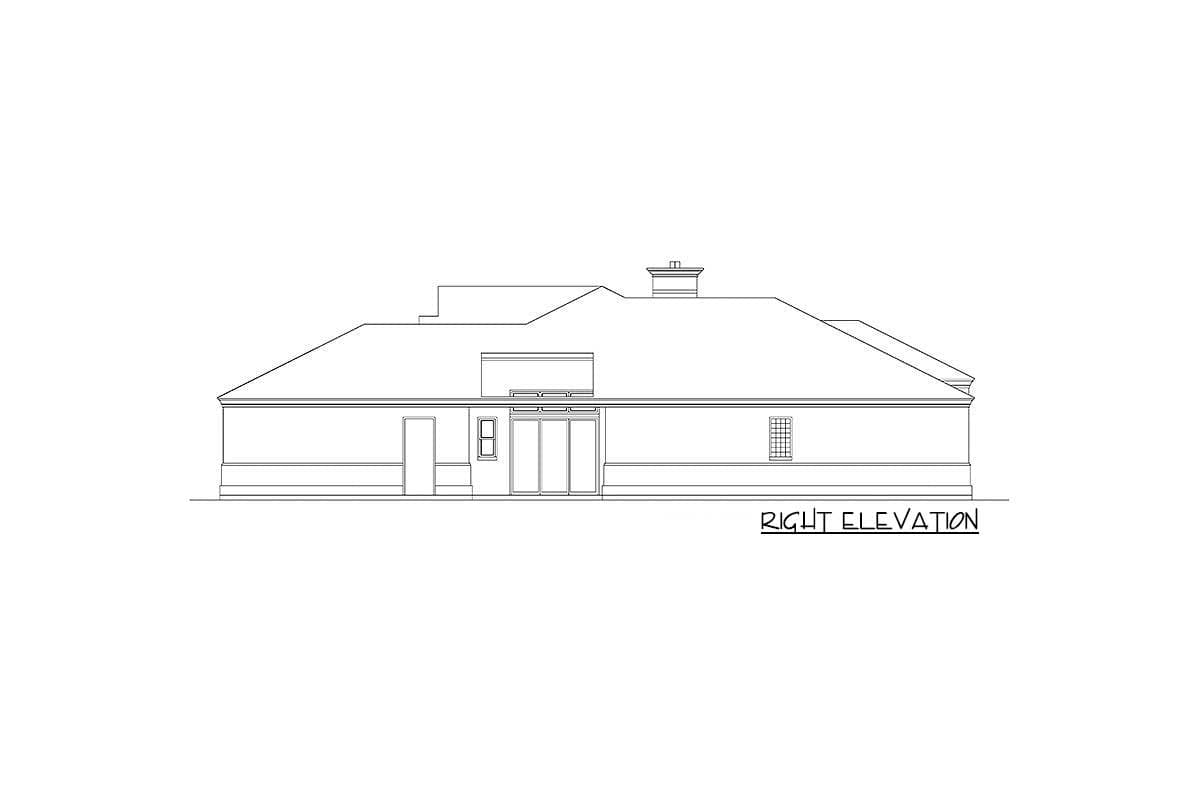

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Three Bedrooms and a Study

  • 2,836

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,075
  • 5 Sets $1,275
  • CAD $1,620
  • View all purchase option online

About This Plan

  • Arched transoms in this Mediterranean house plan not only bring in extra light, they boost the curb appeal.
  • A courtyard entryway leads to the large foyer where you have immediate views of the formal dining room and living room.
  • The informal areas of the home are kept separate and also have a big open floor plan.
  • The split bedroom layout ensures privacy for the large master suite and a quiet study has sliding glass doors to a rear covered patio, one of two patios.
  • The three car garage has storage closets at the back.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,836 sq. ft.
  • 1st Floor: 2,836 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 79' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 757 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front
