Plan 66343WE

Three Bedrooms and Two Outdoor Spaces

Heated S.F.
2,438
Beds
3
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 66343WE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 66343WE

M-F 9am-5pm EST |

1-203-761-8500

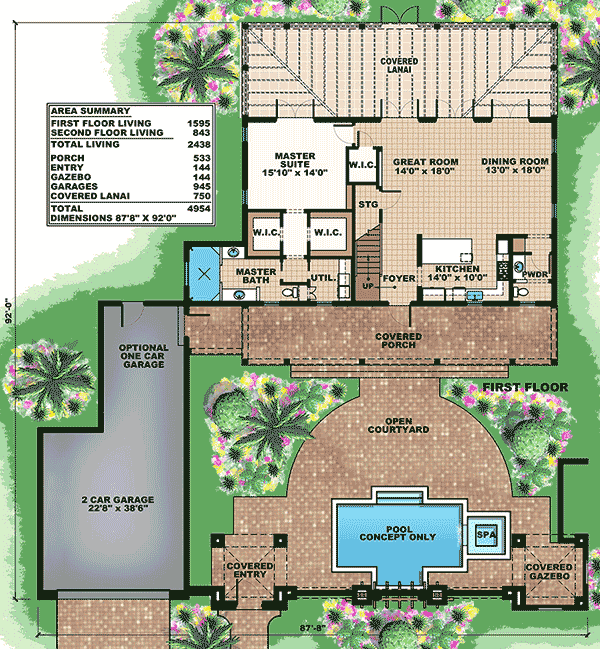

Main Level

Plan 66343WE: Three Bedrooms and Two Outdoor Spaces - Floor Plan - Main Level - Florida-Style, Southern

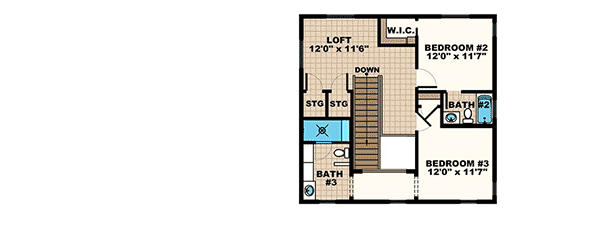

2nd Floor

Plan 66343WE: Three Bedrooms and Two Outdoor Spaces - Floor Plan - 2nd Floor - Florida-Style, Southern

Plan Details

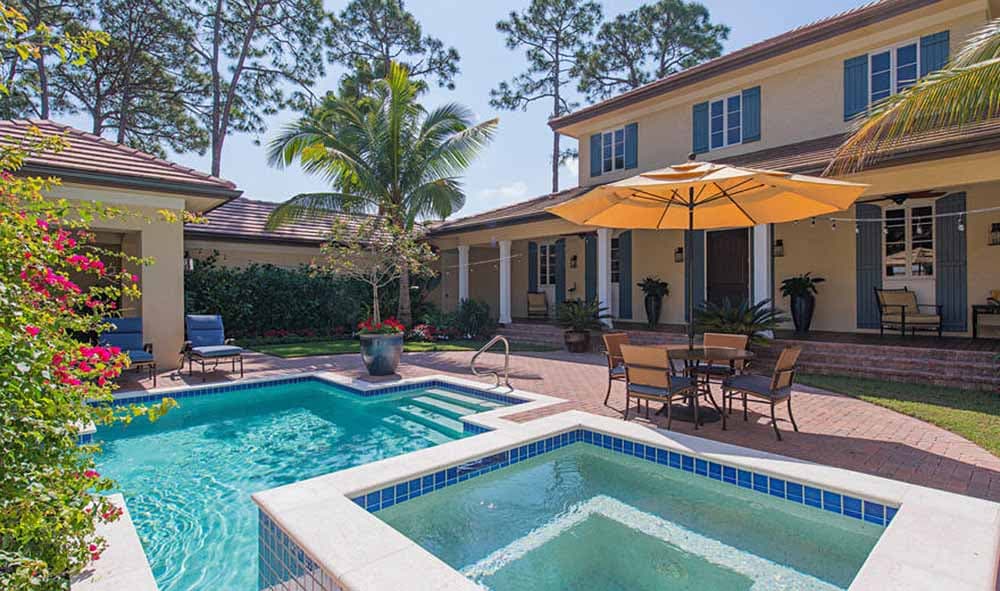

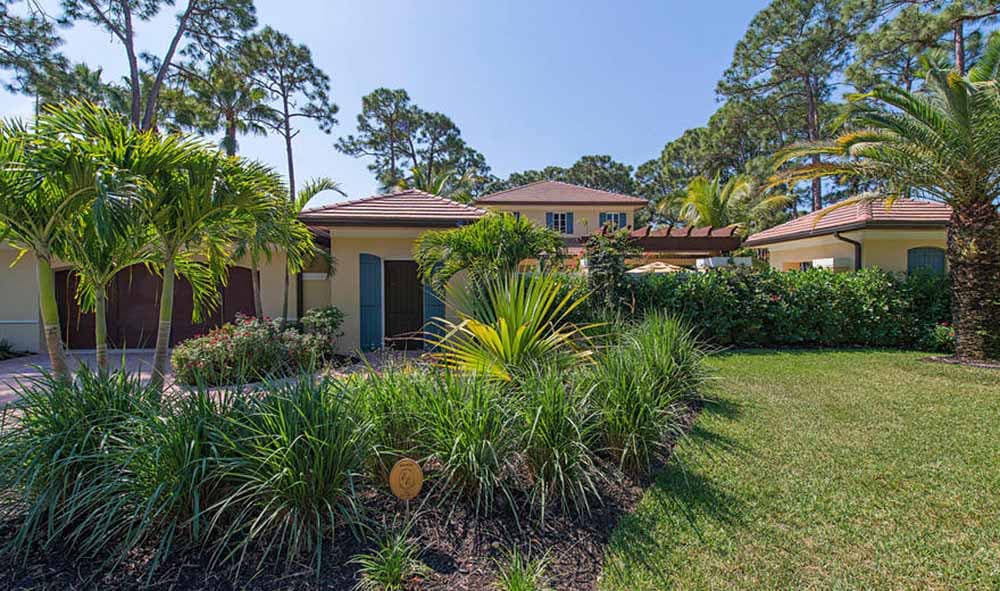

  • You walk through a vaulted covered entry to get to the front courtyard of this lovely 3 bed house plan. The courtyard is open and there is a matching vaulted gazebo to the right.
  • A covered porch spans the entire front of the home giving you over 500 square feet of space to enjoy the fresh air. And that's just one place for outdoor enjoyment. The lanai in back gives you 750 square feet of additional outdoor space.
  • Inside, you'll like the high ceilings and the open layout with the kitchen, great room and dining room all open to each other. Three sets of french doors take you to the lanai from this space.
  • The master is on main and also has french door access to the covered lanai. His and her walk-in closets and dual vanities are nice touches.
  • Upstairs, there are two en suite bedrooms plus a loft area.
  • The roof has a 6:12 main pitch and a 4:12 secondary pitch.
  • NOTE: This house plan is not for sale for use in Collier and Lee Counties, Florida without the prior written consent from the designer. Pricing will vary if permission is granted. Please contact us for more information.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,438 sq. ft.

1st Floor

1,595 sq. ft.

2nd Floor

843 sq. ft.

Porch, Front

533 sq. ft.

Entry

144 sq. ft.

Lanai

750 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

87' 8"

Depth

92' 0"

Max Ridge Height

29' 7"

Garage

Type

Attached

Area

945 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Southern

Special Features

Courtyard

Laundry - Main Level

Loft

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,438 sq. ft.

1st Floor

1,595 sq. ft.

2nd Floor

843 sq. ft.

Porch, Front

533 sq. ft.

Entry

144 sq. ft.

Lanai

750 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

87' 8"

Depth

92' 0"

Max Ridge Height

29' 7"

Garage

Type

Attached

Area

945 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Southern

Special Features

Courtyard

Laundry - Main Level

Loft

Master Suite - 1st Floor

Plan Collections

Photo Gallery
