Plan 90032PD
Three Floors of Living
Heated S.F.
1,635
Beds
2
Baths
1.5
Stories
2-3
Cars
1
What's Included
Plan Details

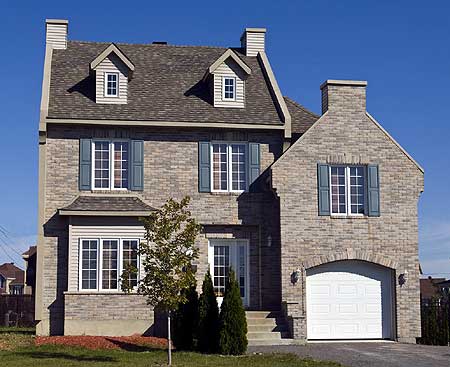

This attractive house plan gives you 3 levels of living space which all begins with an open living main floor.
The middle floor gives you the bedrooms - 2 or 3 depending on if you decide to build the garage or not.
The topmost floor is a large space great for a home office, play or media room.
Related Plan: Eliminate the top floor with house plan 90033PD.

What's Included
Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Three Floors of Living

  • 1,635

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2-3

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,635 sq. ft.
  • 1st Floor: 630 sq. ft.
  • 2nd Floor: 624 sq. ft.
  • 3rd Floor: 381 sq. ft.

Dimensions

  • Width: 24' 0"
  • Depth: 26' 0"
  • Max ridge height: 32' 7"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 264 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
