Plan 86317HH

Three-Level Dream Home Plan with Main Level and Drive-Under Garages

Heated S.F.

5,183

Beds

5

Baths

4.5

Stories

2

Cars

5

What's Included

Floor Plan

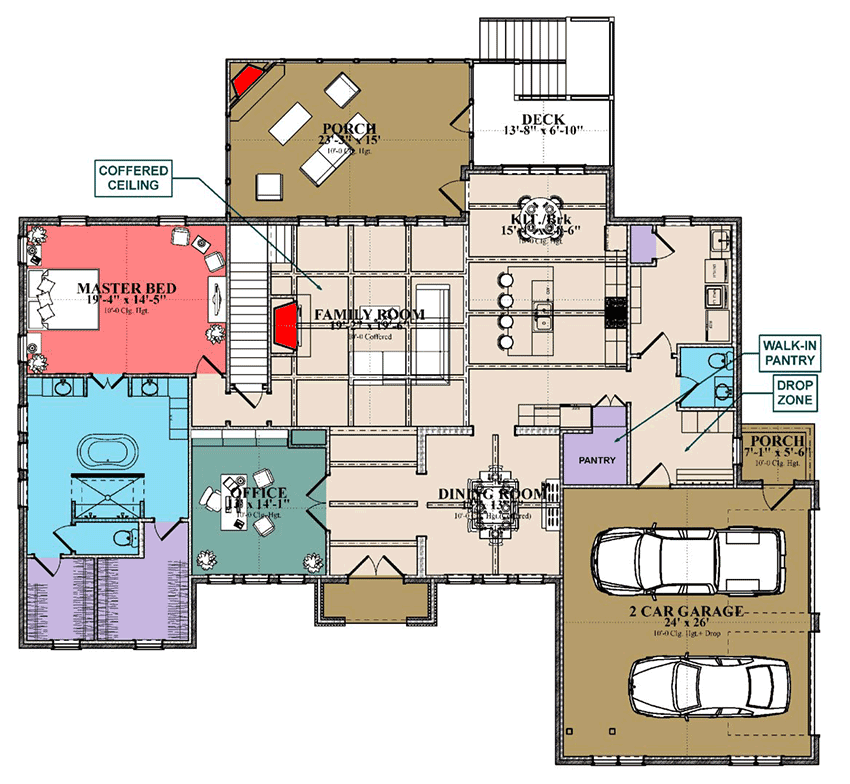

Main Level

Reverse Floor Plan

Three-Level Dream Home Plan with Main Level and Drive-Under Garages - 86317HH floor plan - Main Level

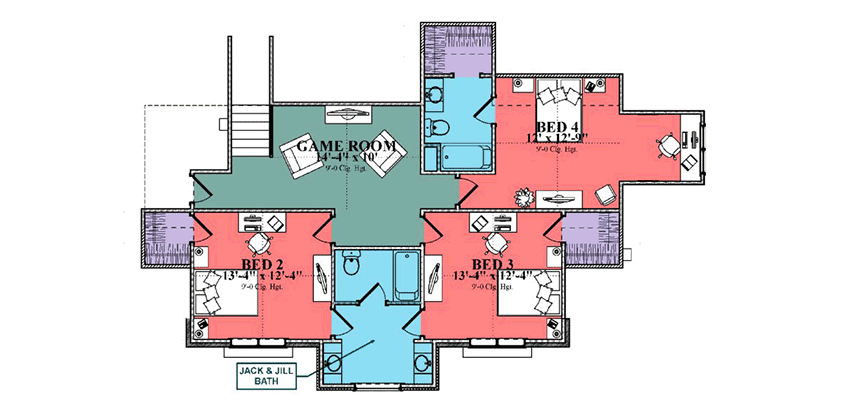

Second Level

Reverse Floor Plan

Three-Level Dream Home Plan with Main Level and Drive-Under Garages - 86317HH floor plan - Second Level

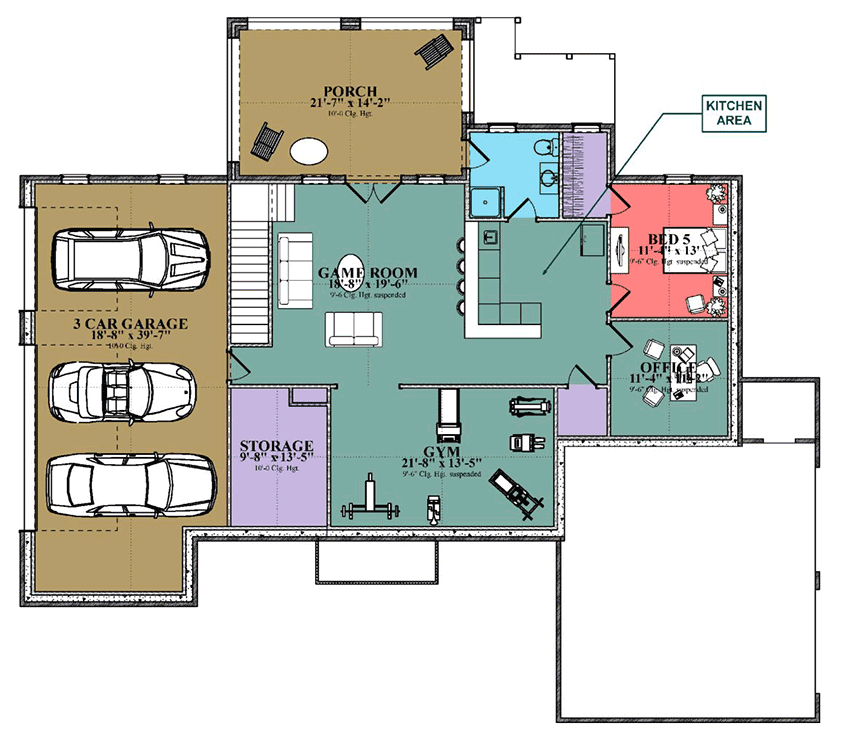

Lower Level

Reverse Floor Plan

Three-Level Dream Home Plan with Main Level and Drive-Under Garages - 86317HH floor plan - Lower Level

Plan Details

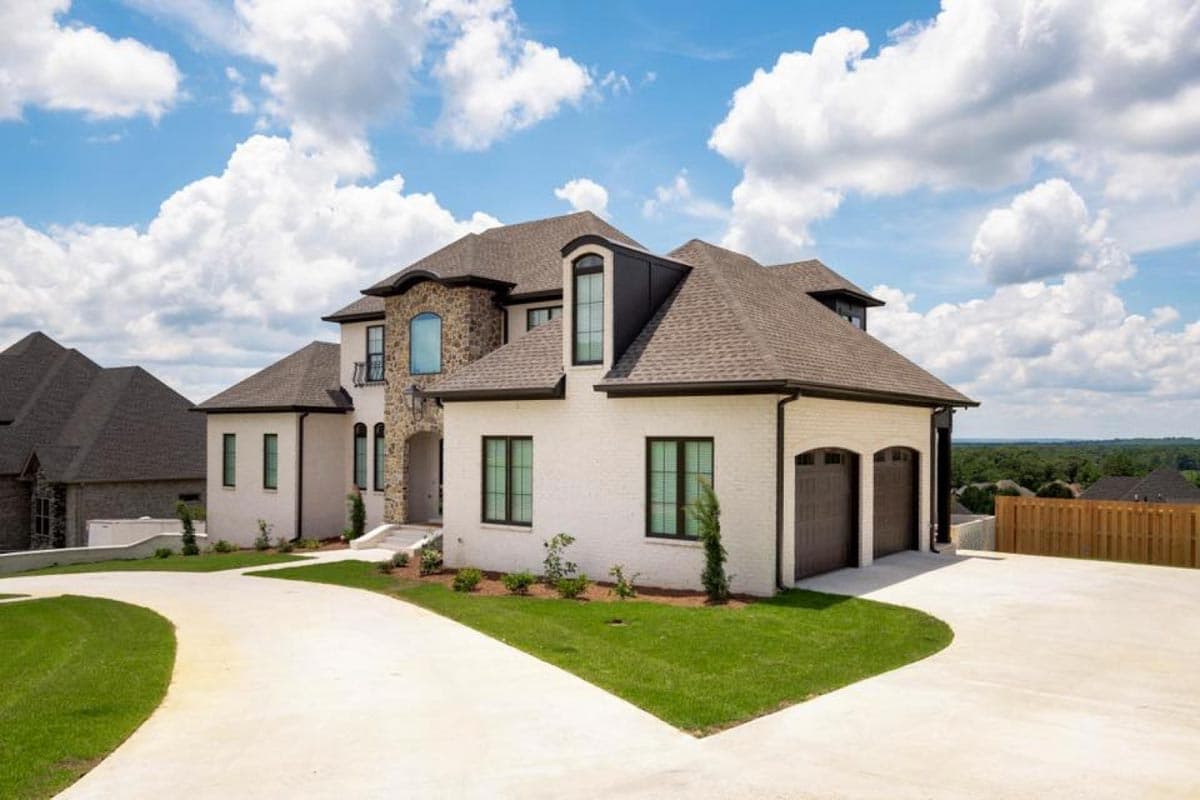

This stunning 5-bedroom house plan truly has it all, featuring a main-level 2-car garage as well as a 3-car garage on the lower level.

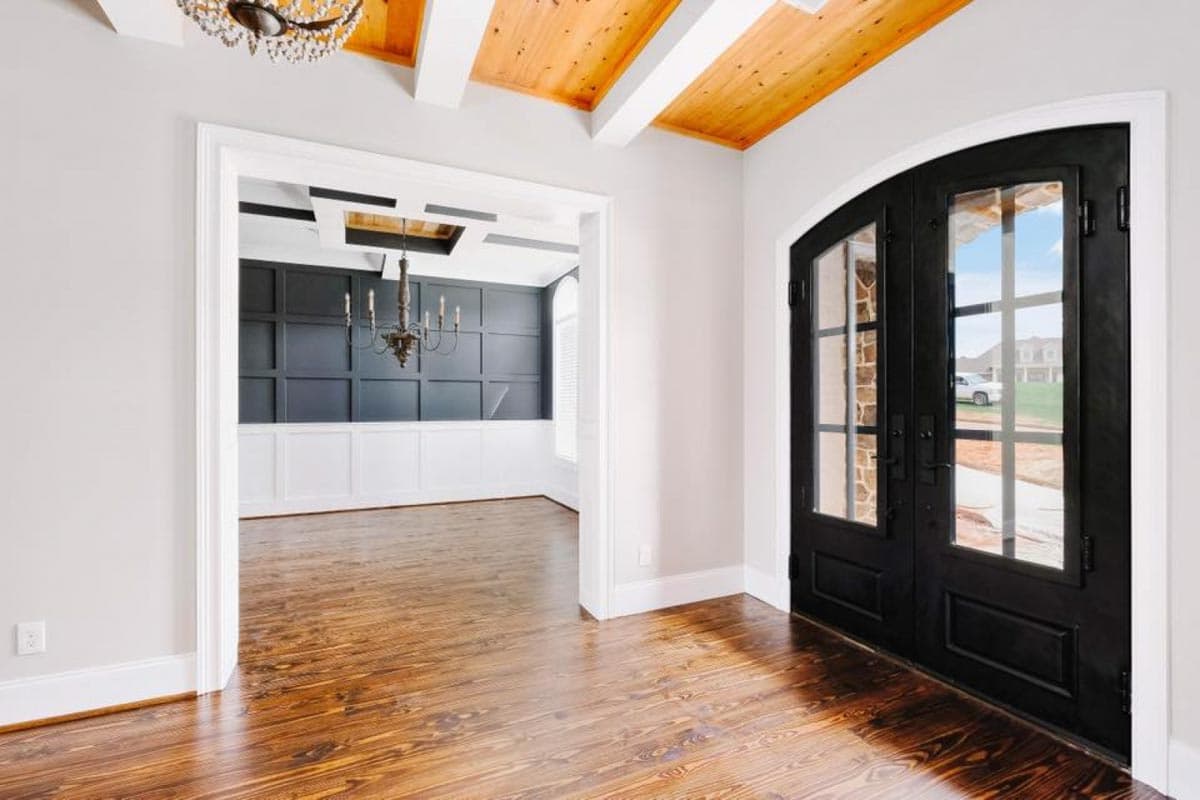

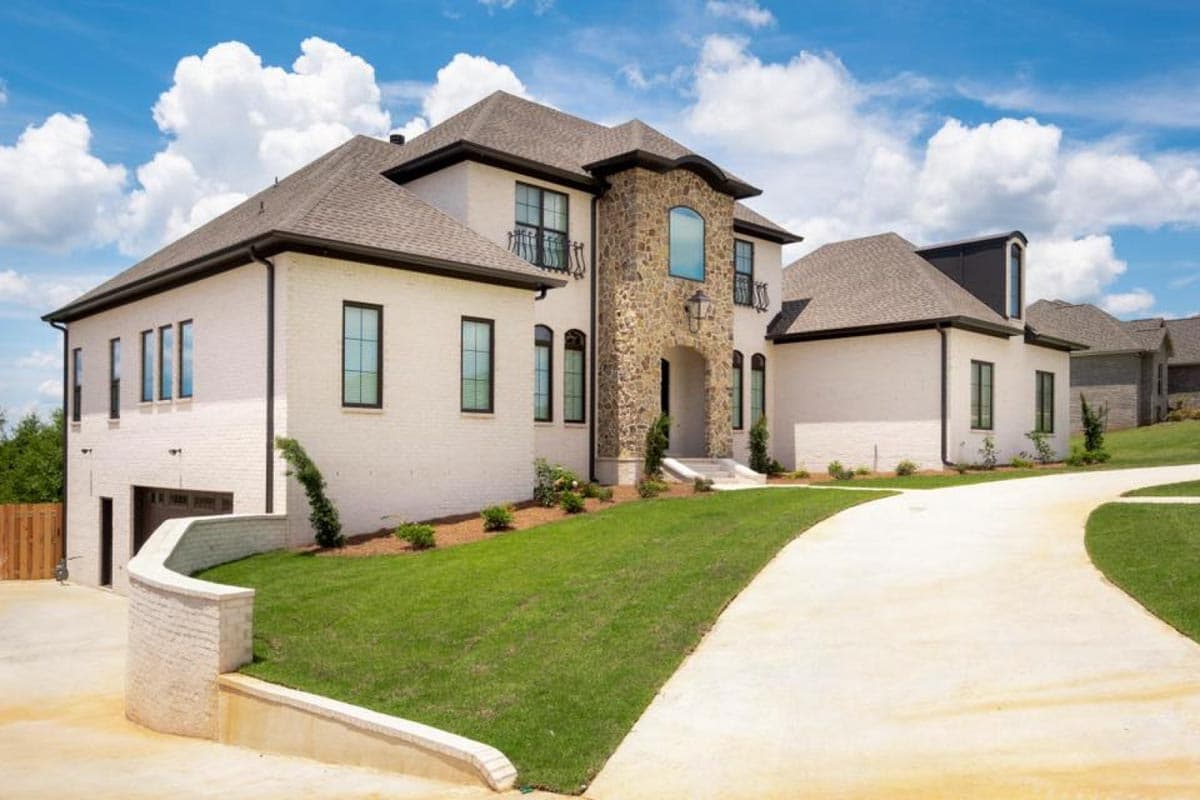

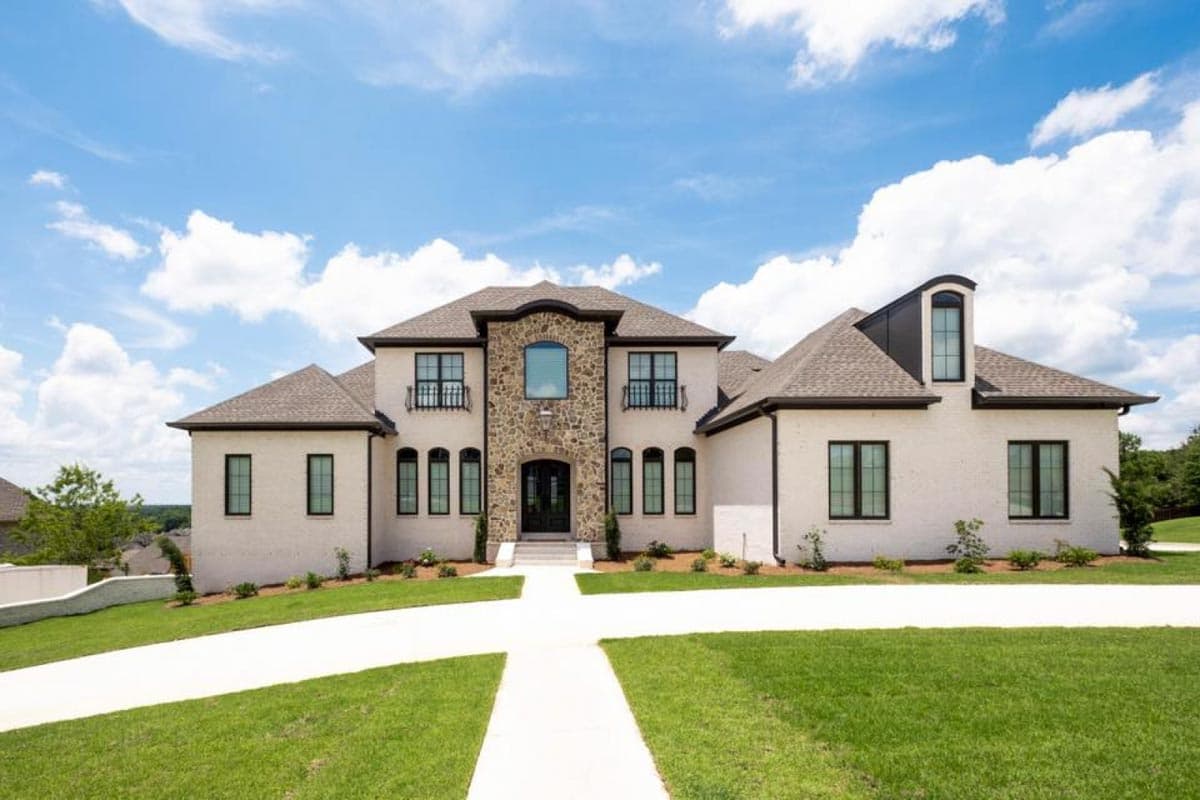

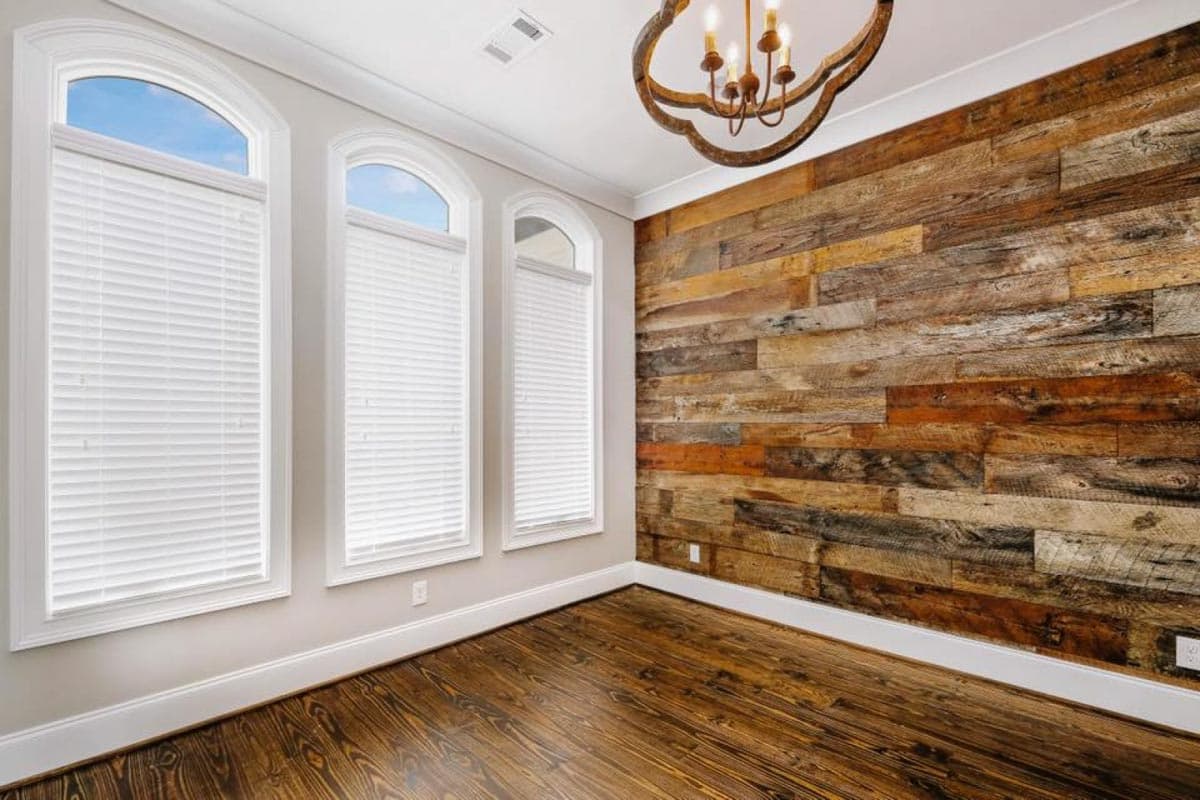

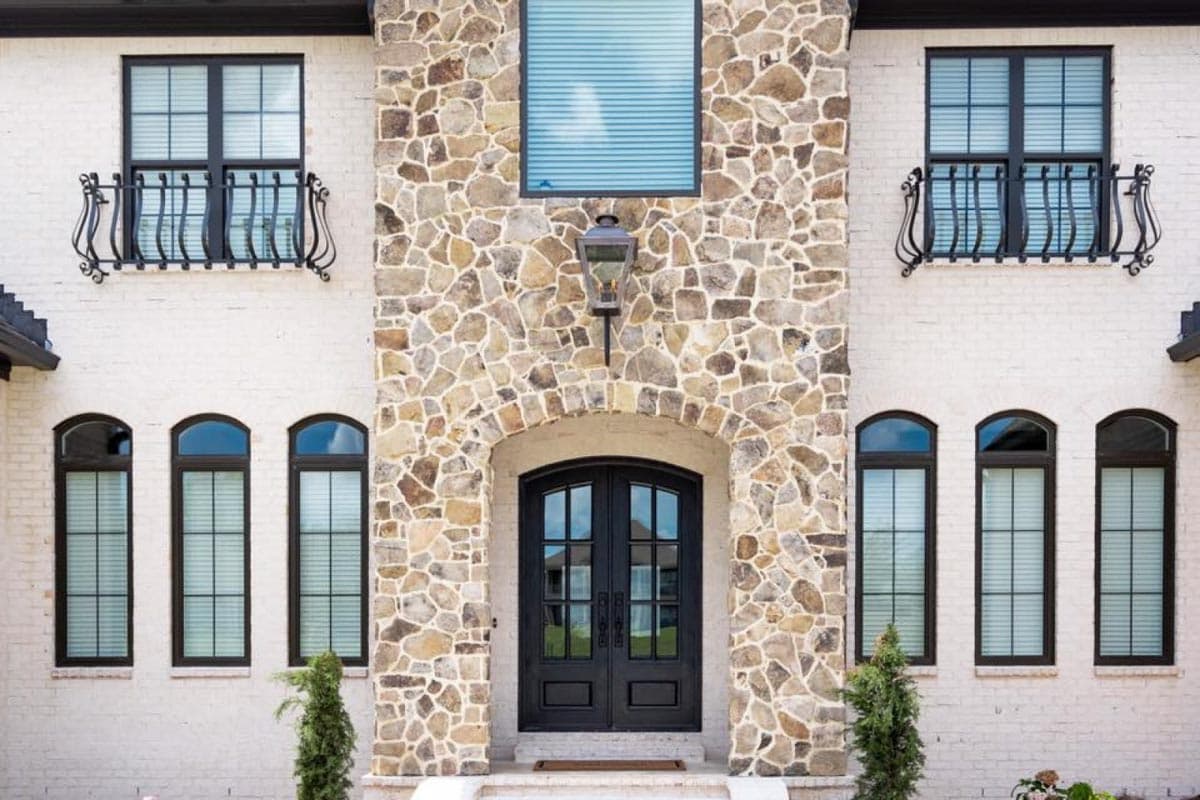

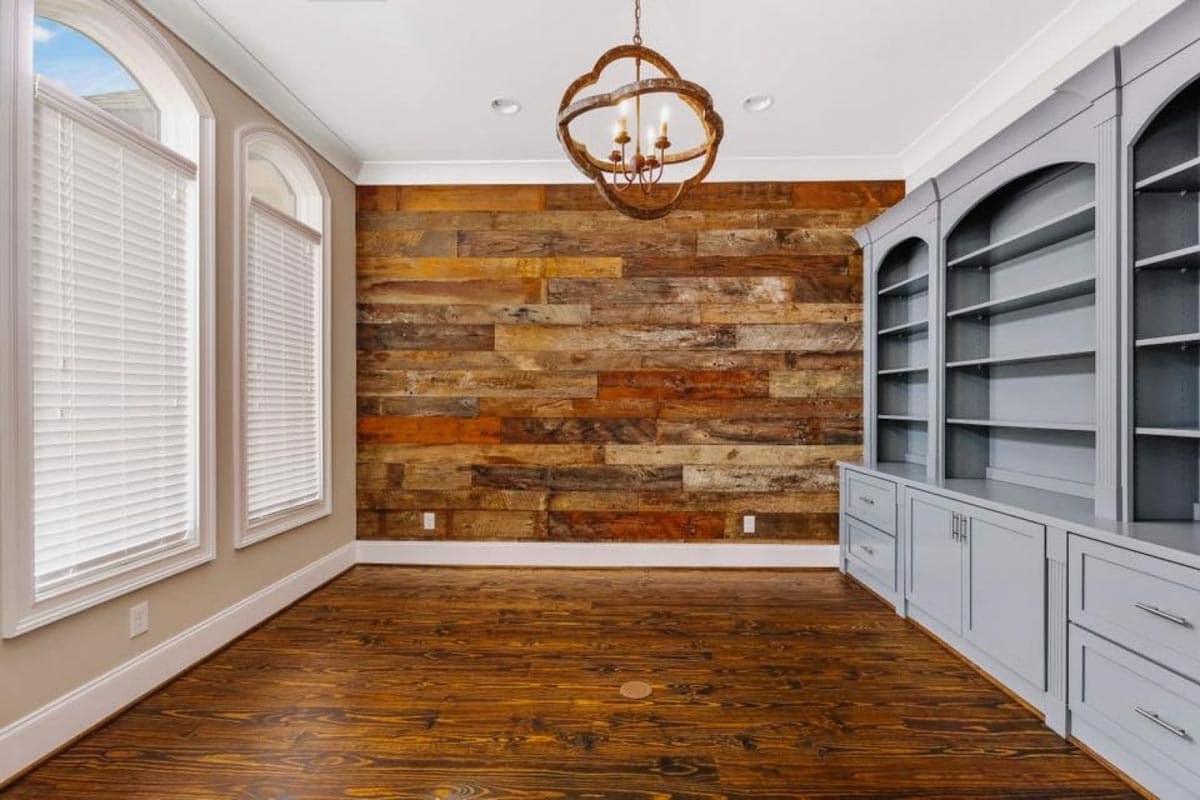

Through the arched front entry, you’ll find a tucked-away office space with French door entry.

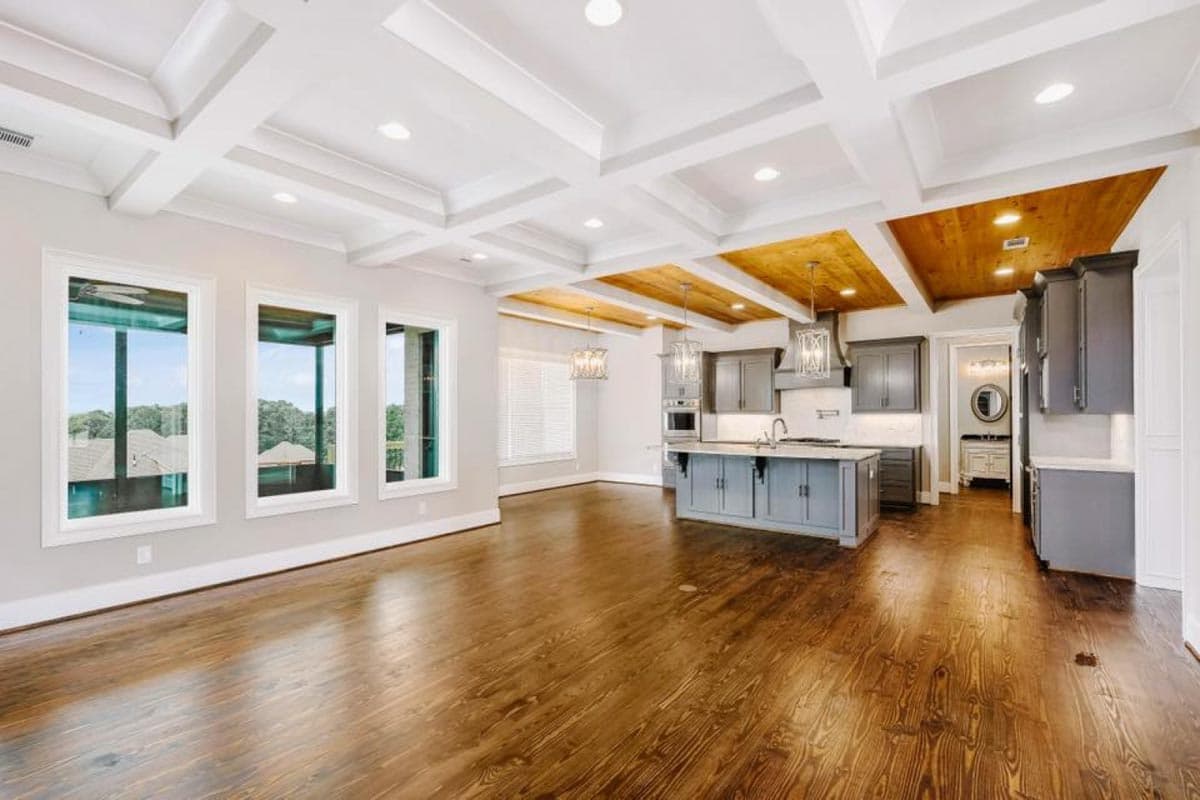

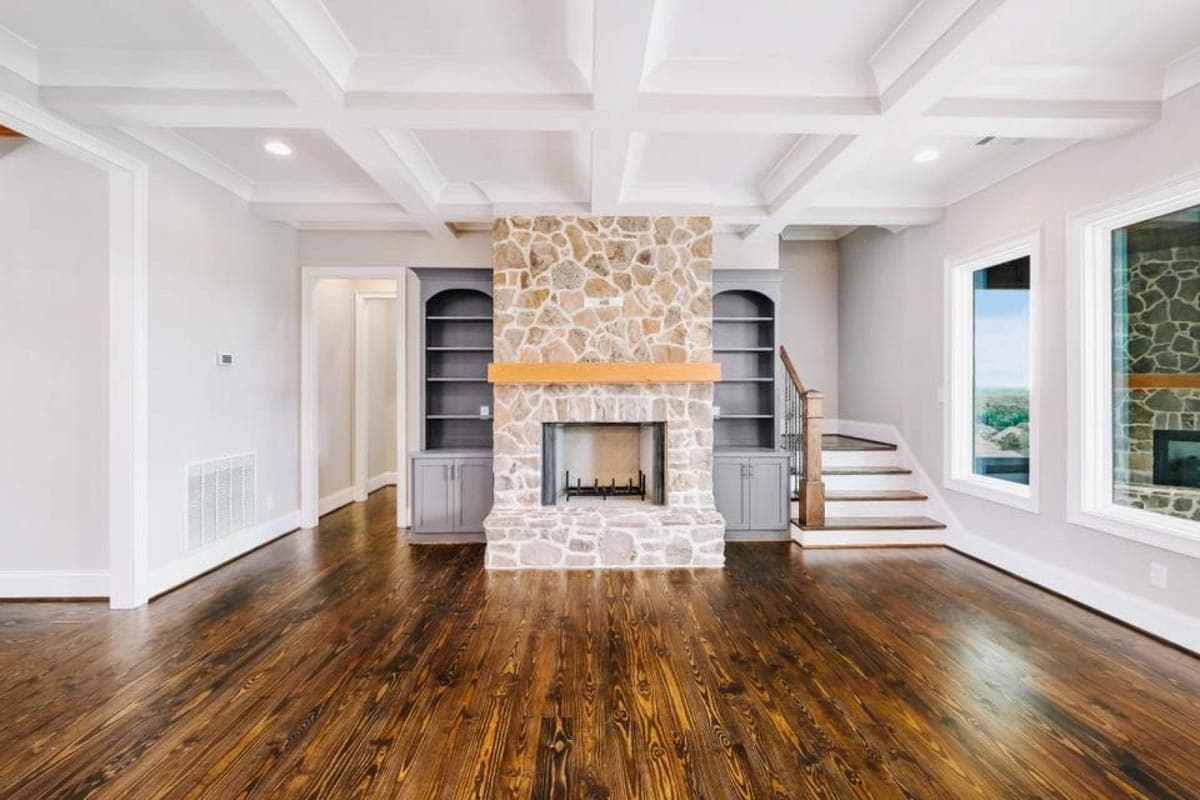

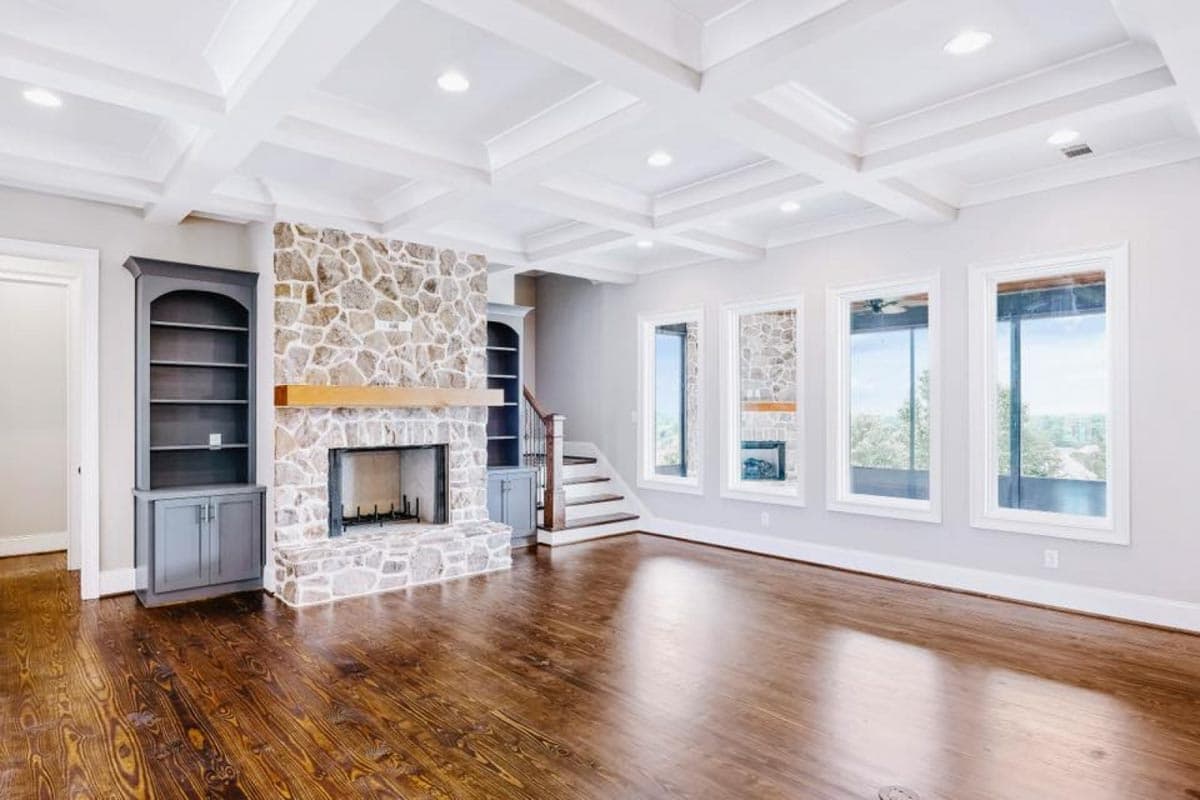

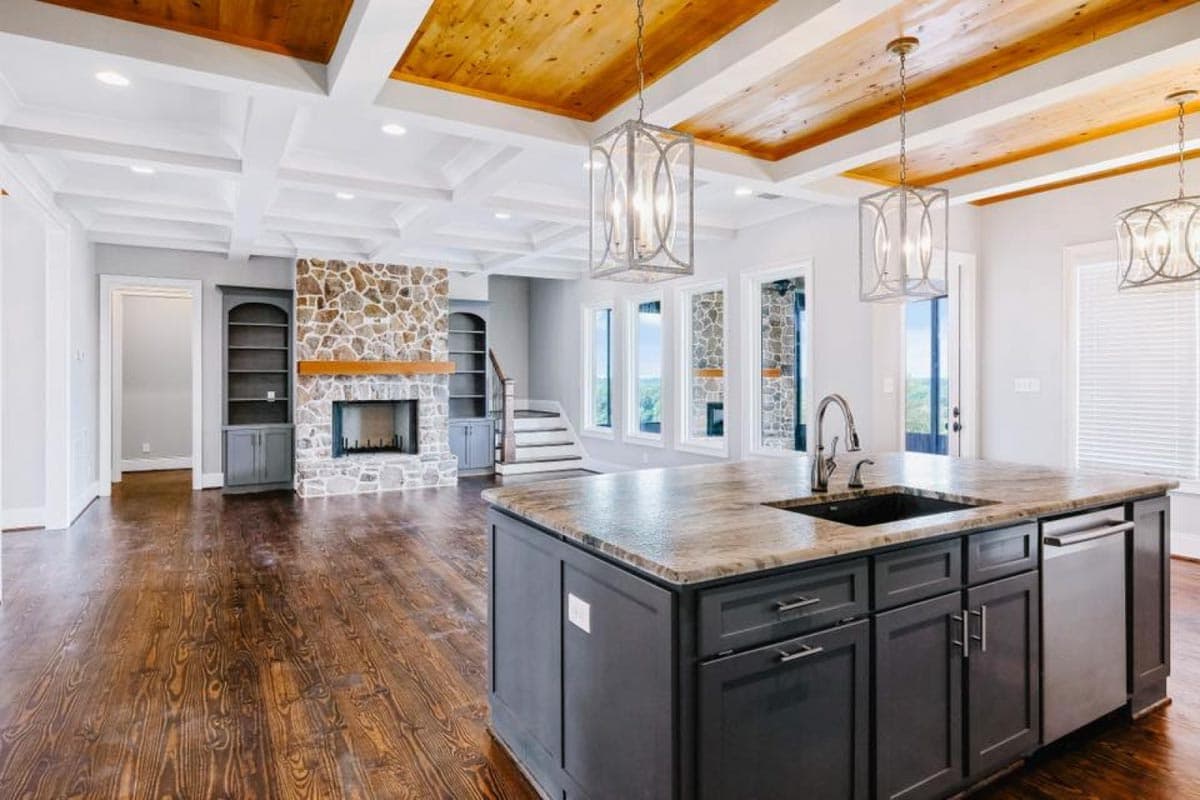

The spacious family room boasts a striking coffered ceiling.

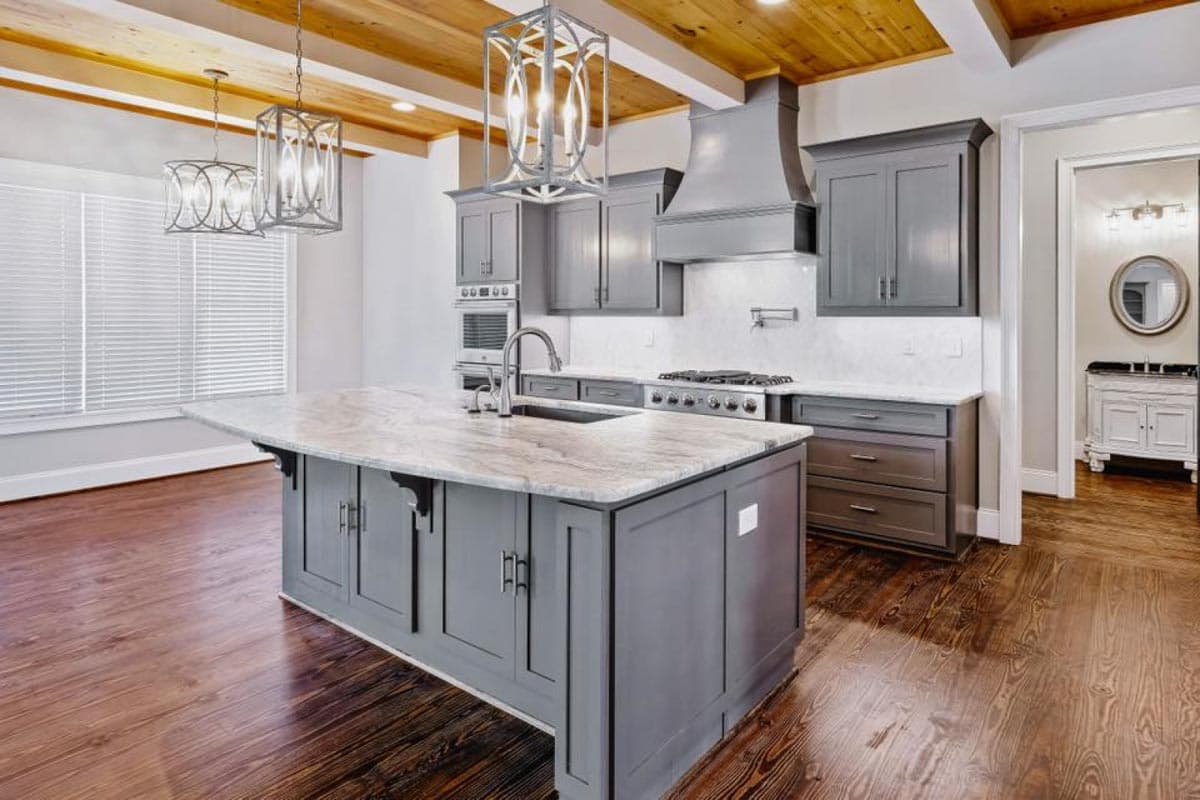

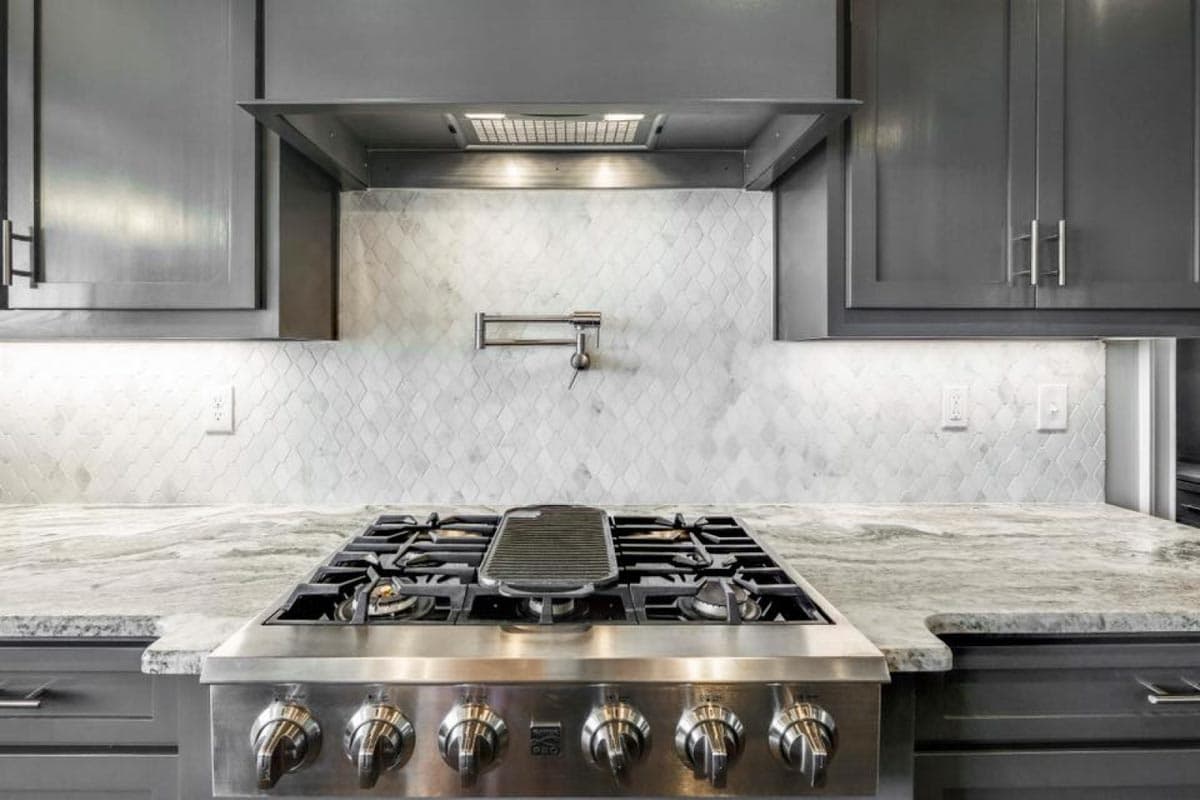

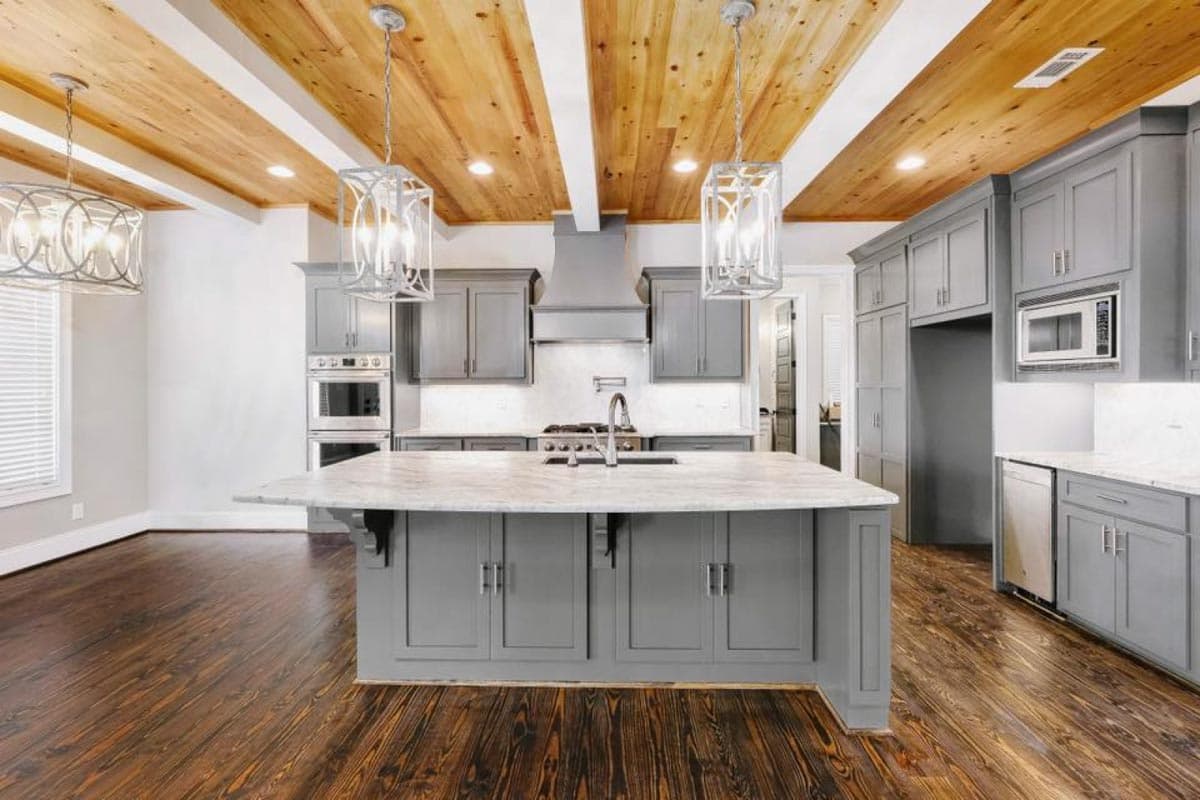

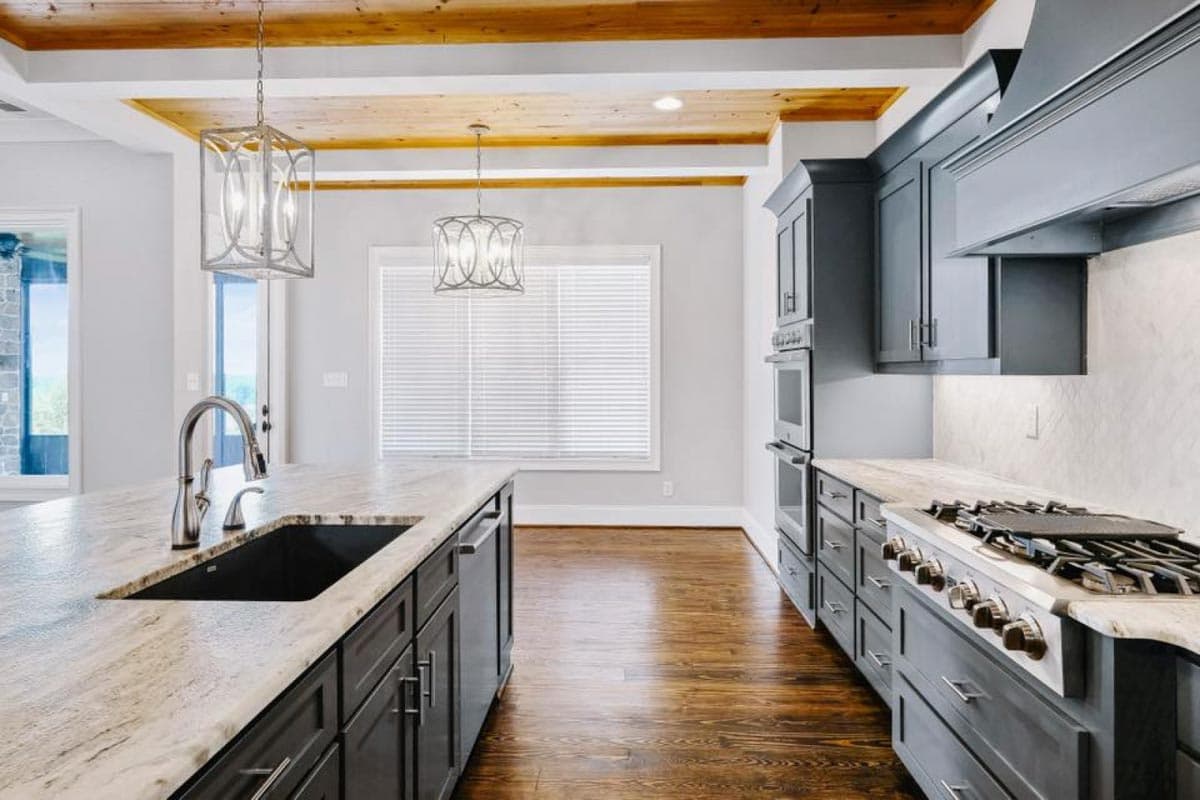

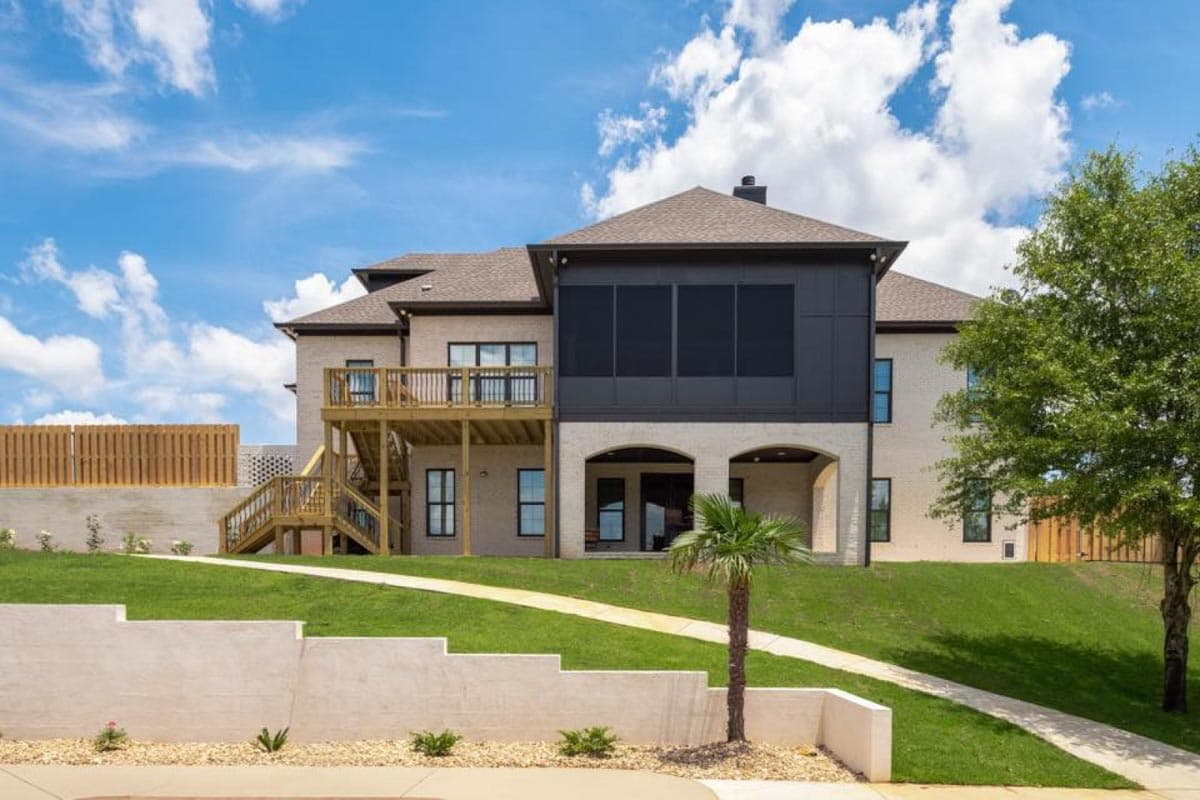

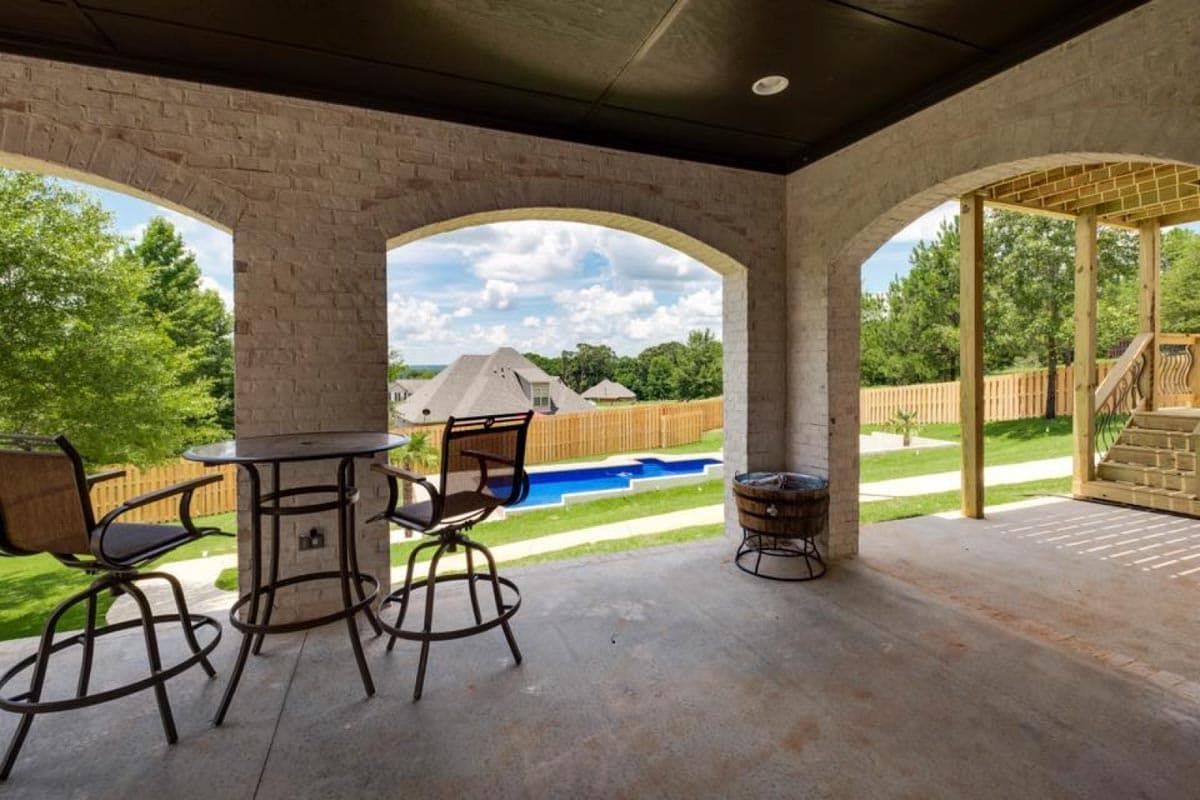

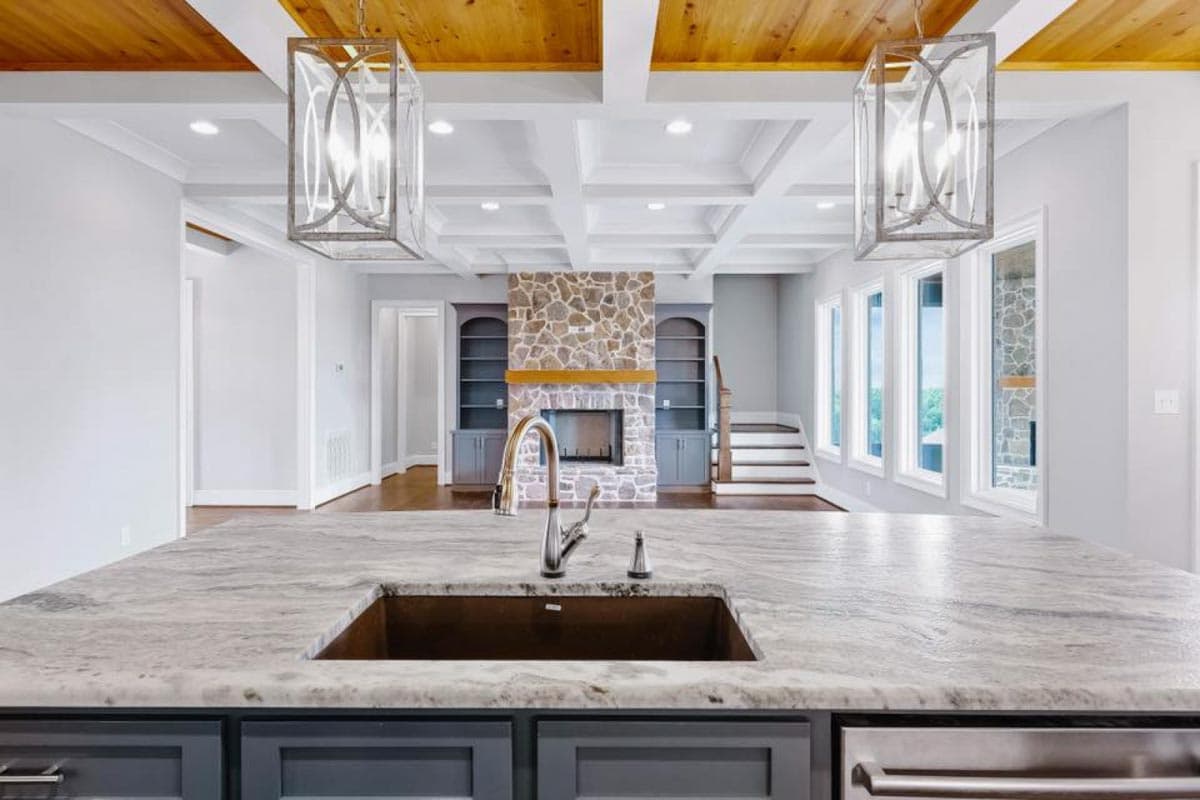

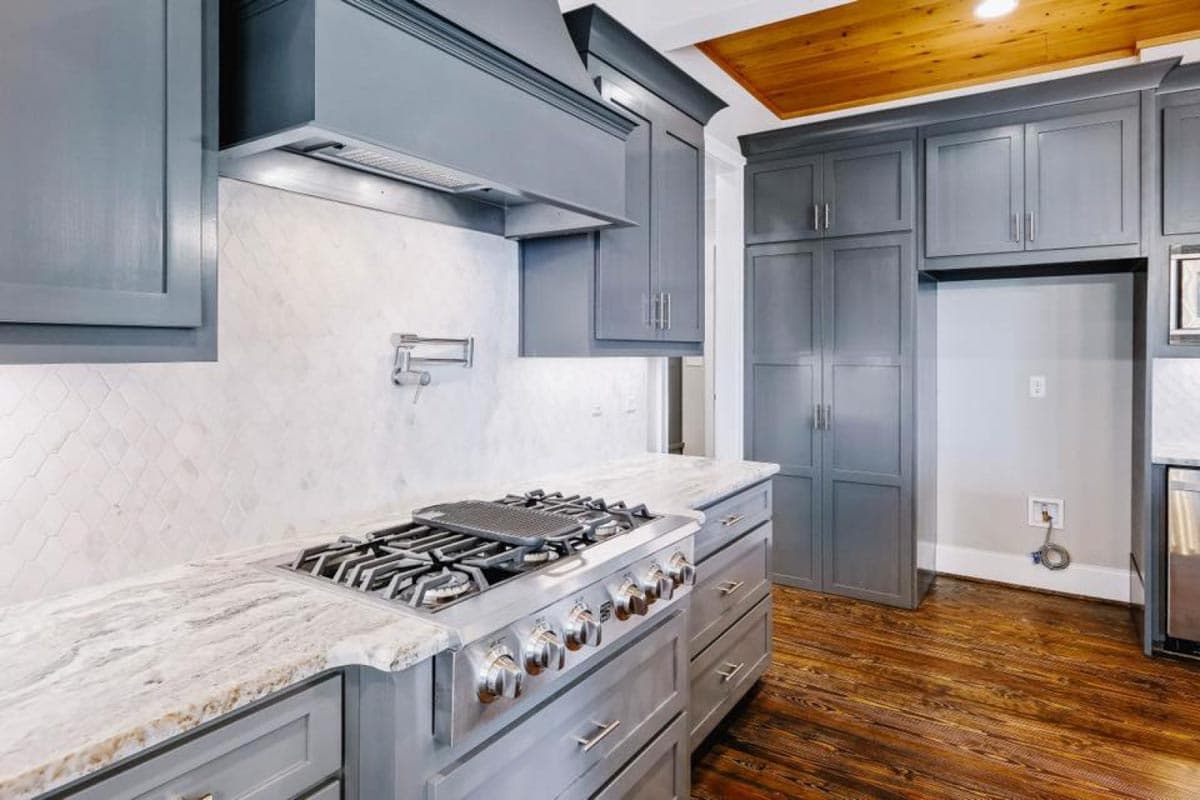

A thoughtfully planned kitchen features an oversized island with seating for casual meals, a large walk-in pantry, and a roomy nook with access to a screened porch with a fireplace.

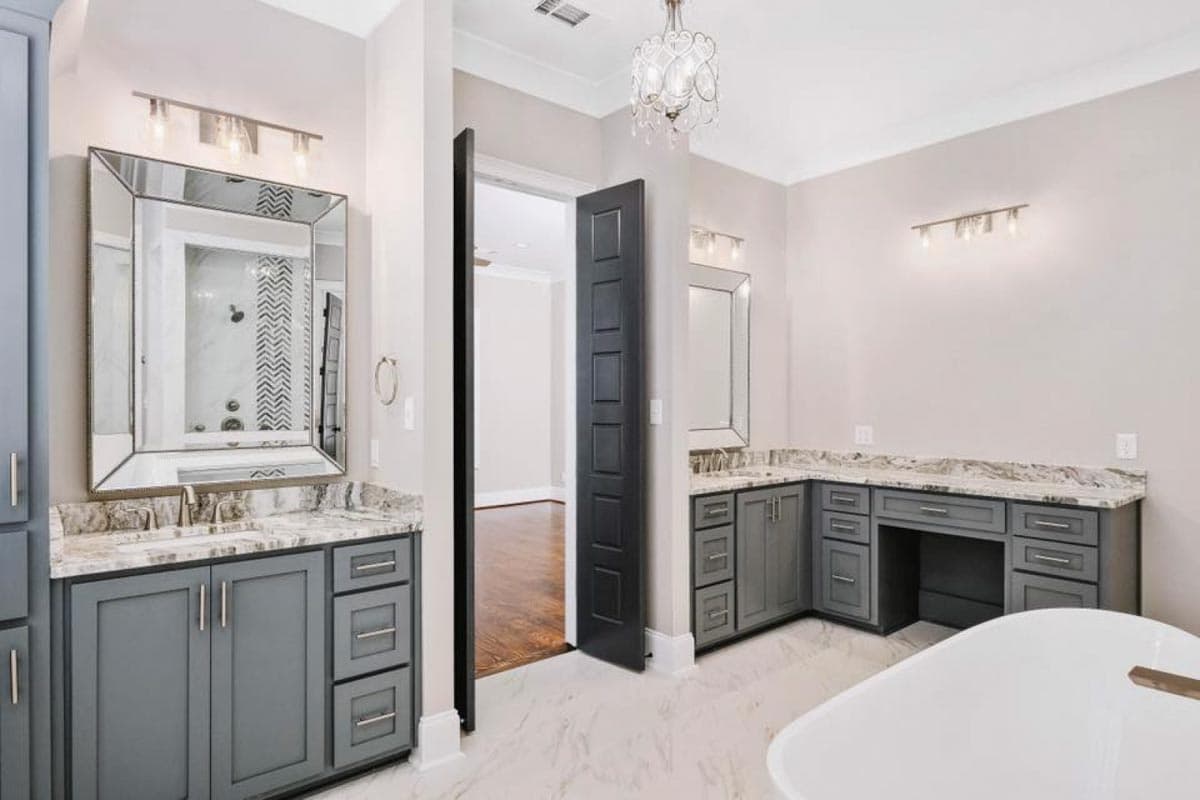

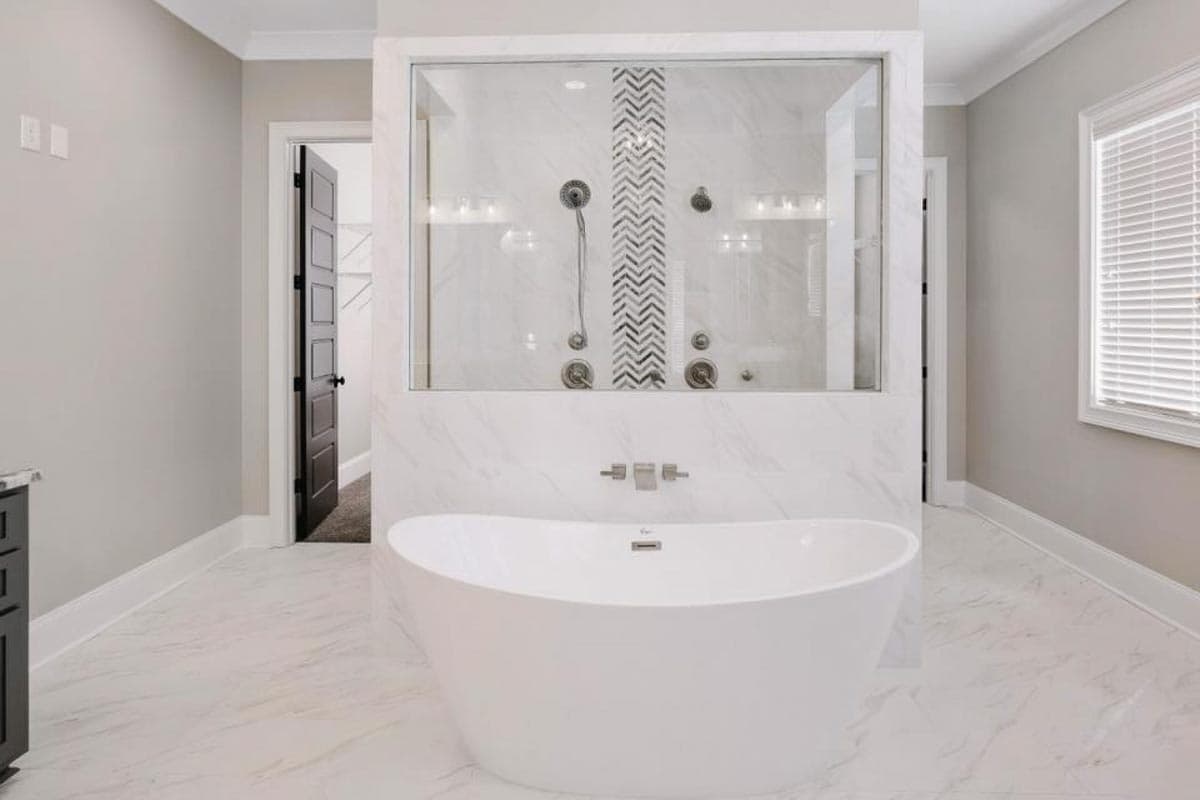

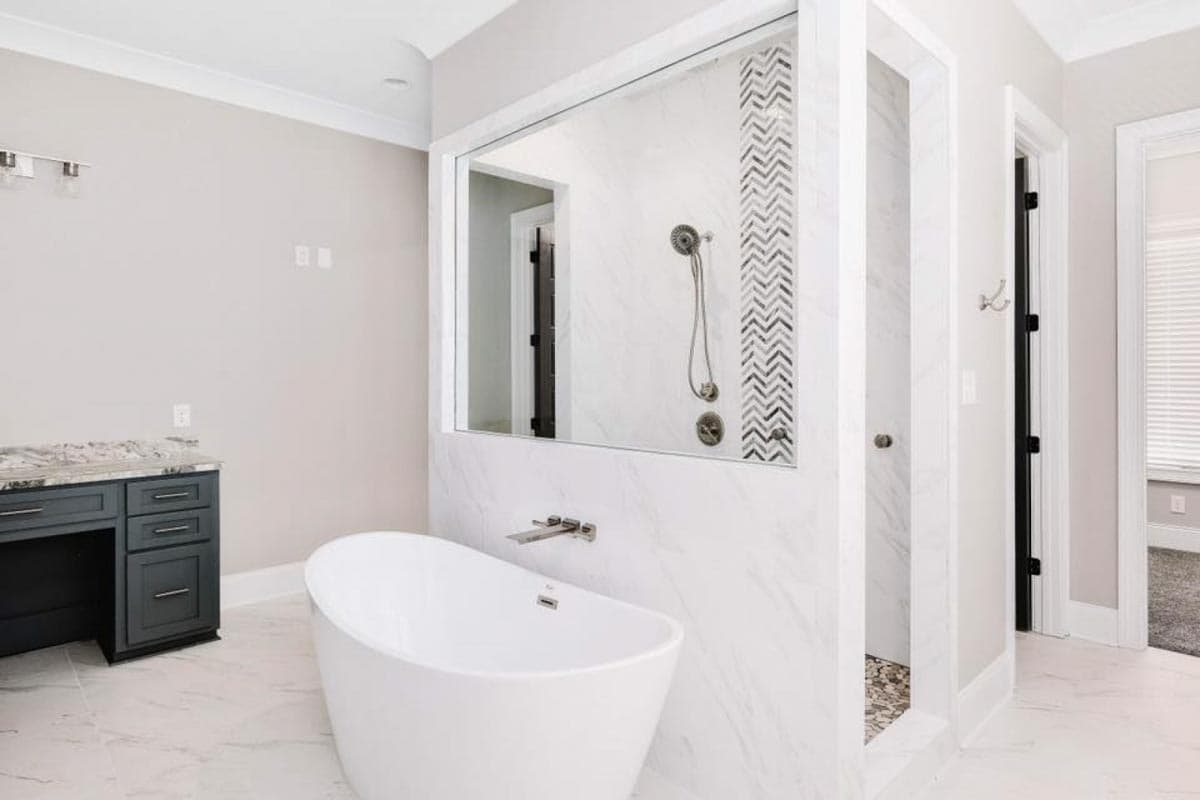

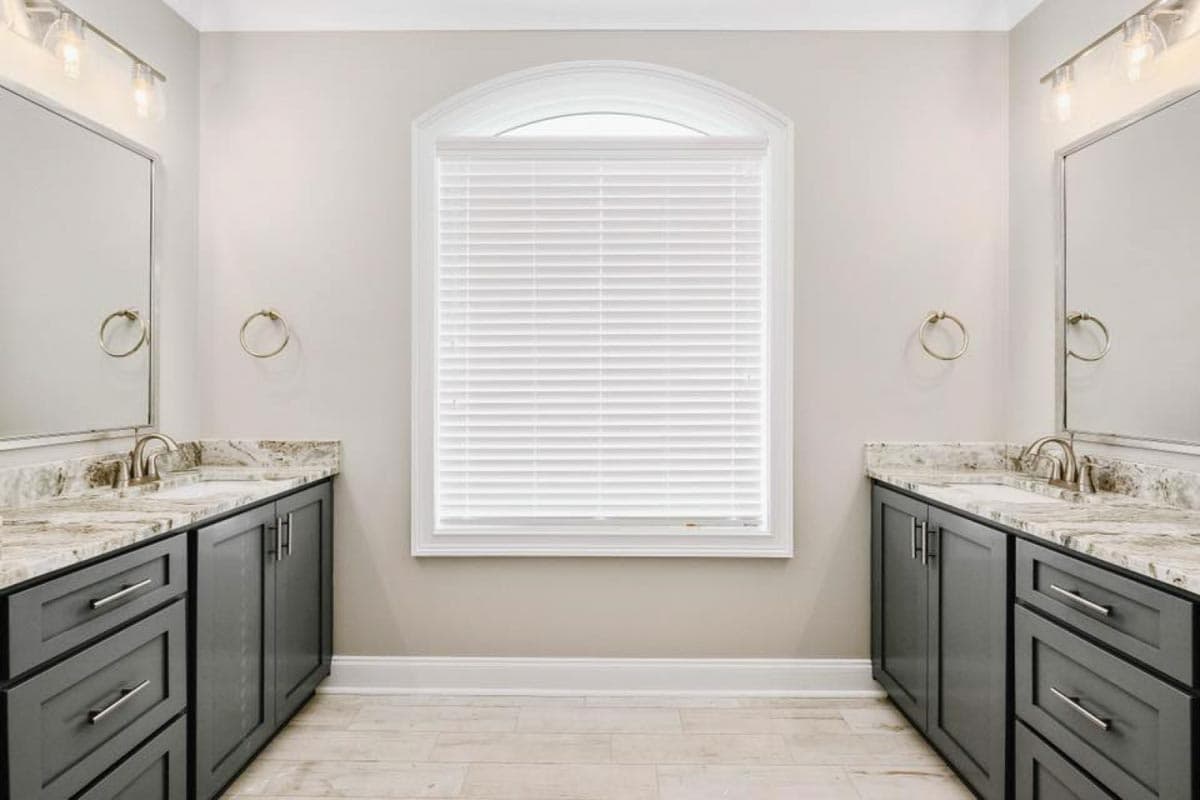

Retreat to the elegant main-floor master suite, which boasts a 5-piece bath with a double walk-in shower and a twin walk-in closets.

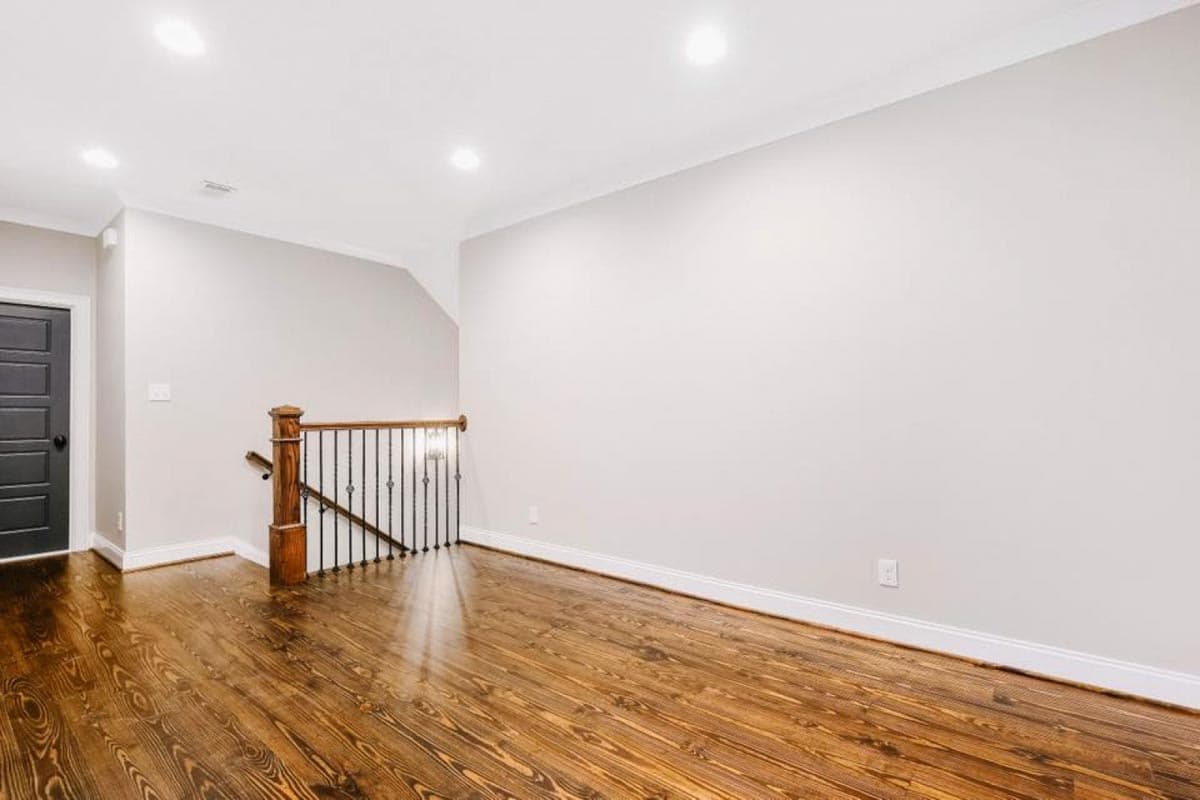

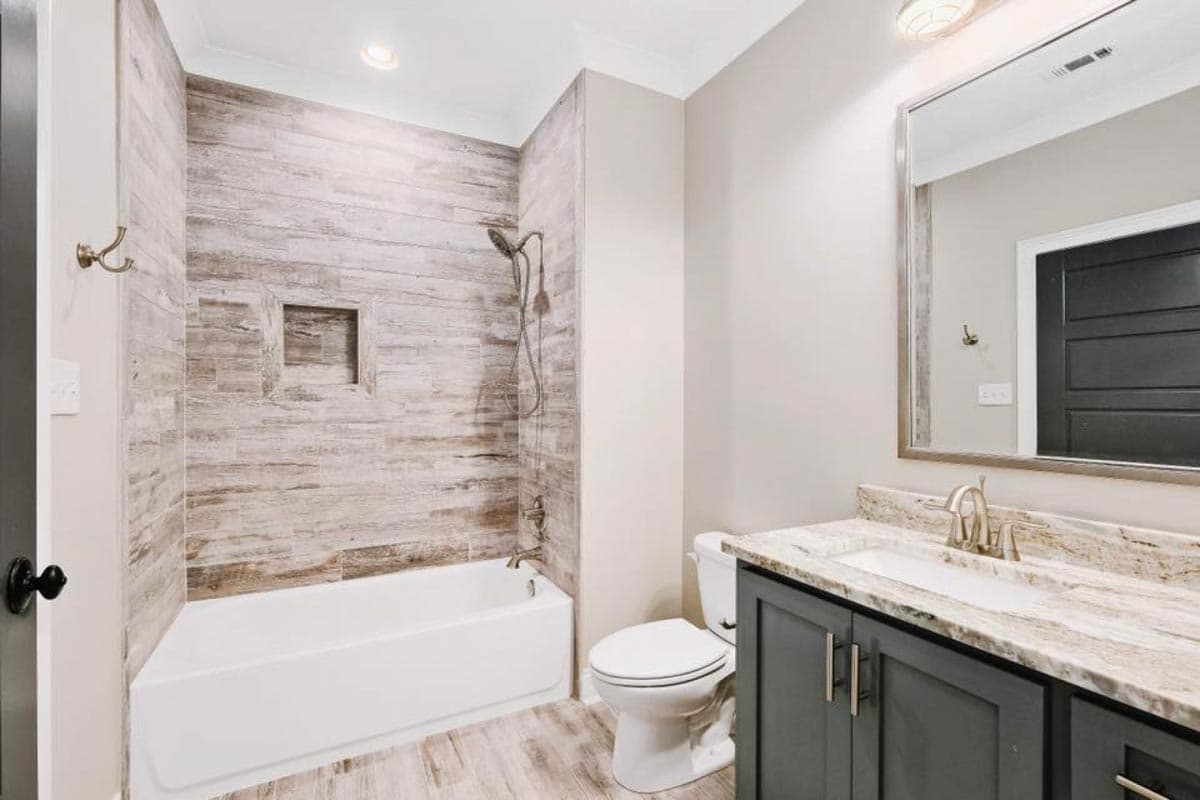

On the upper level, discover a game room and three bedrooms with 2 full baths.

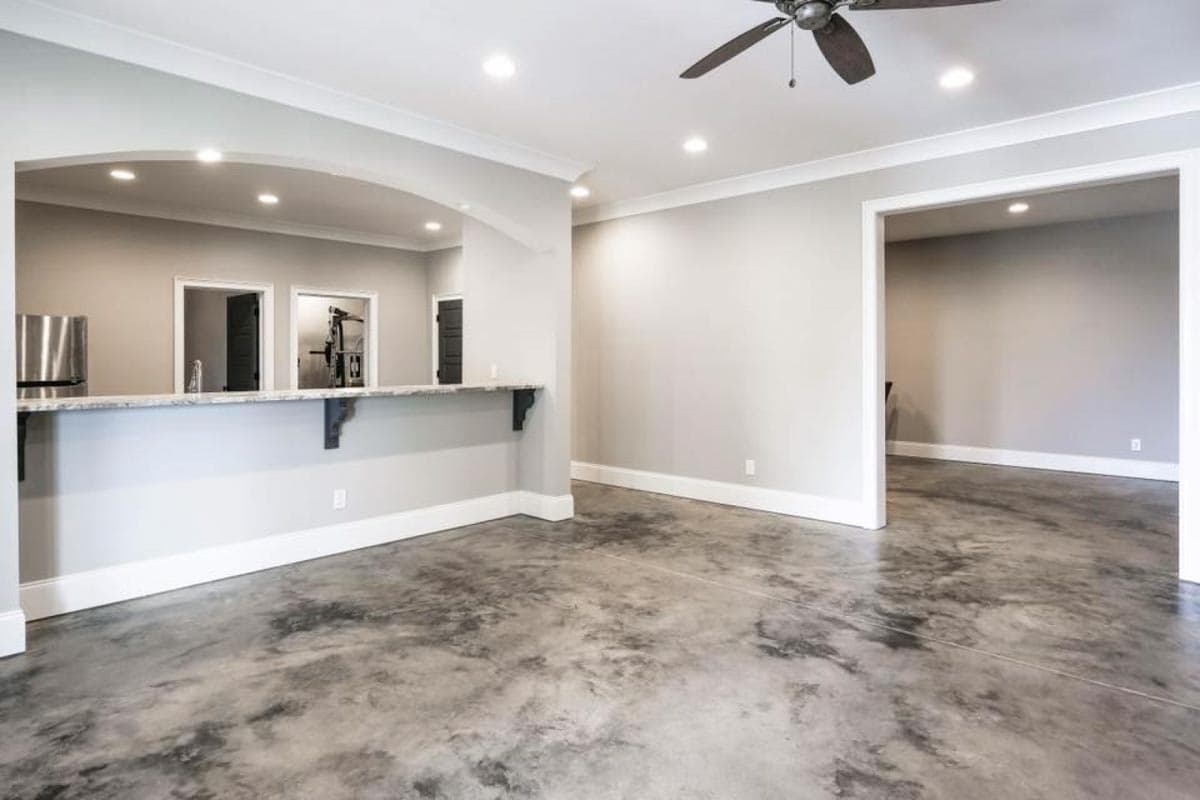

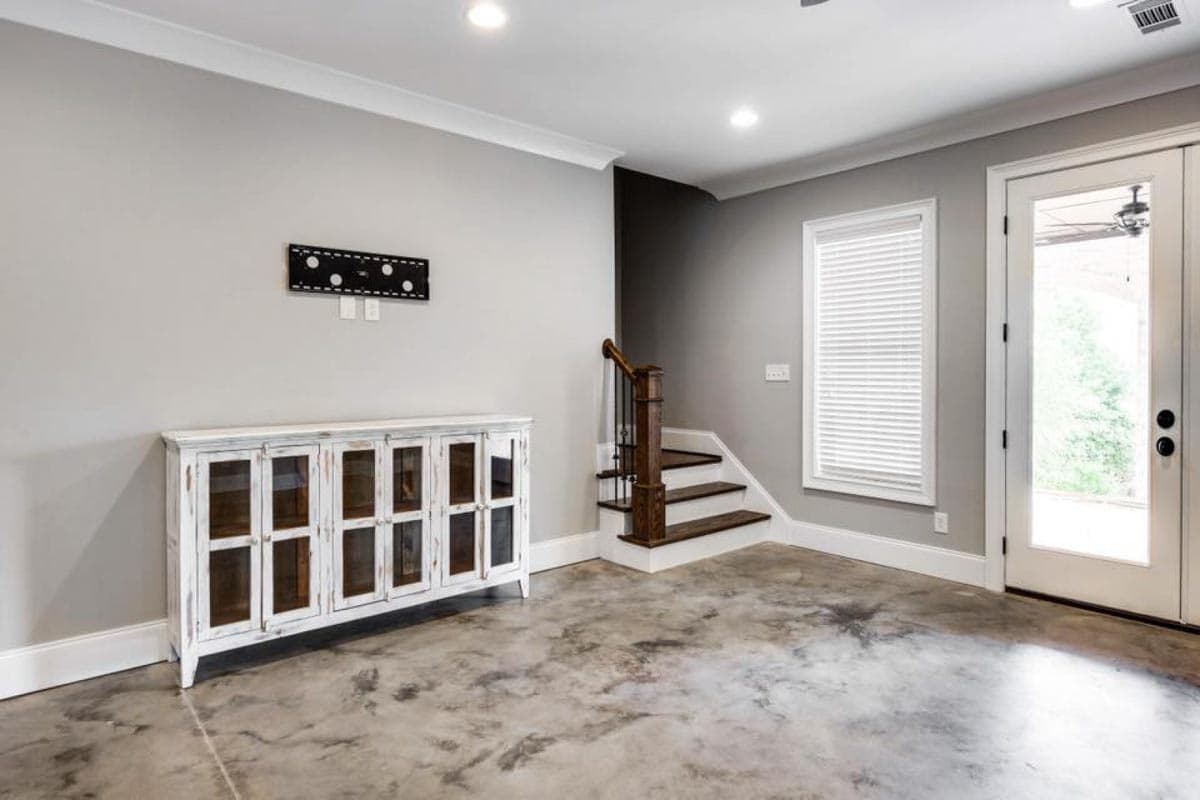

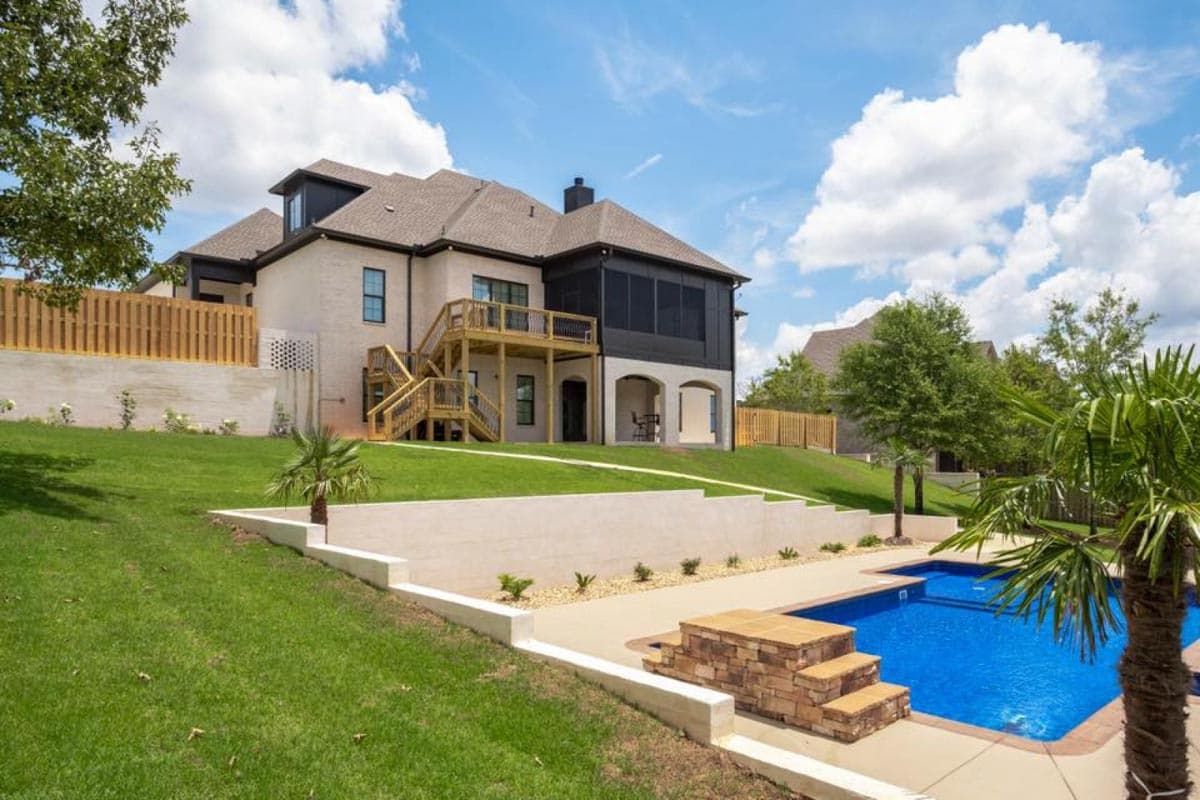

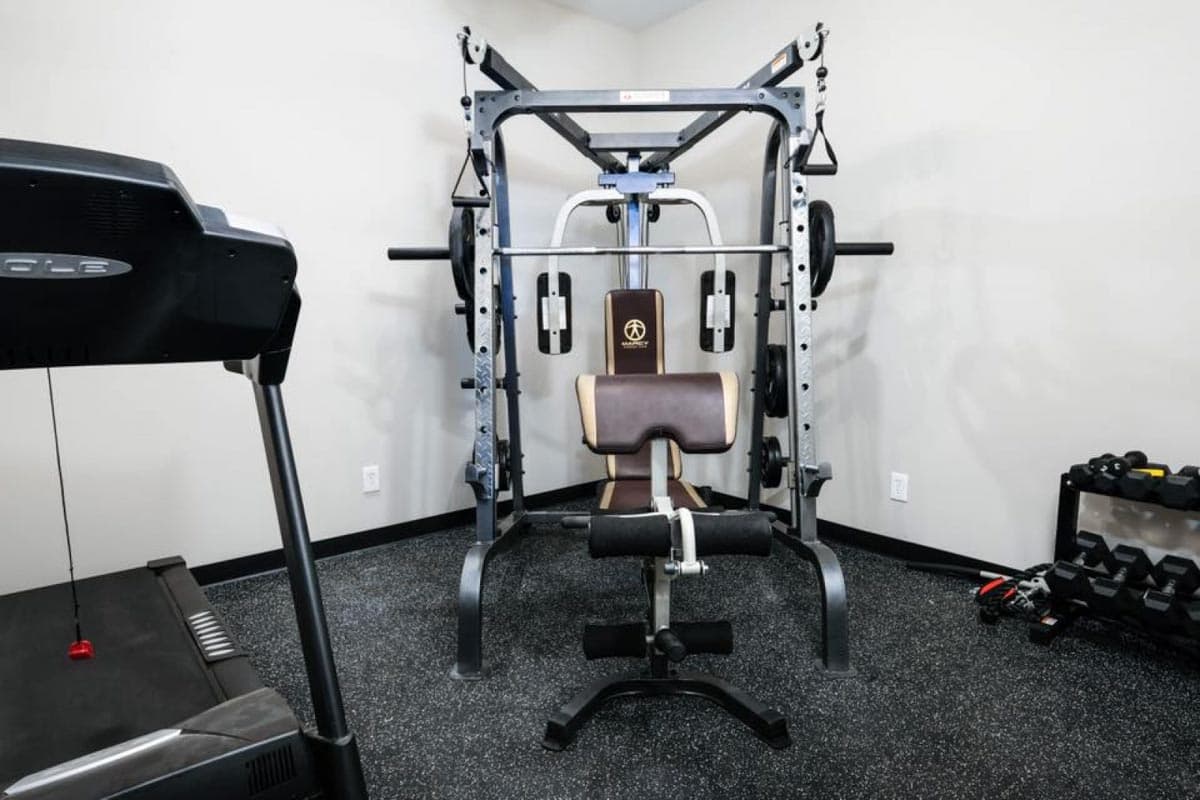

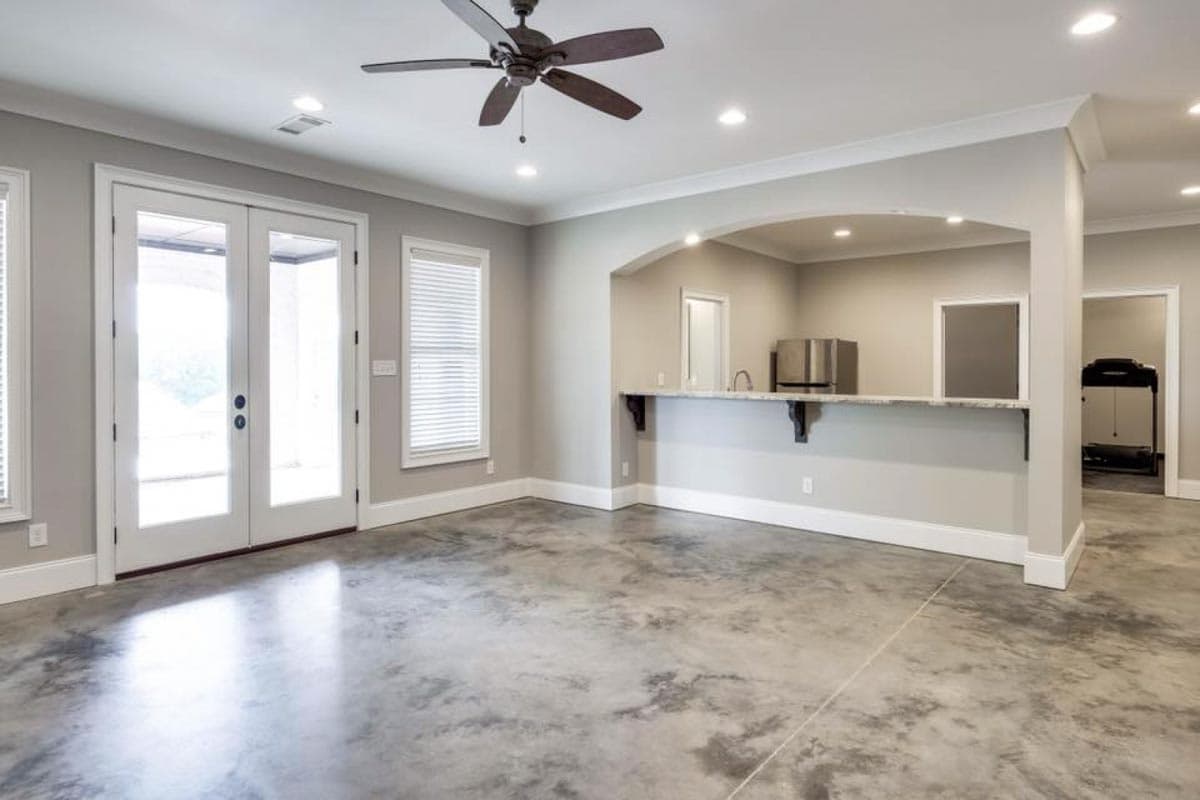

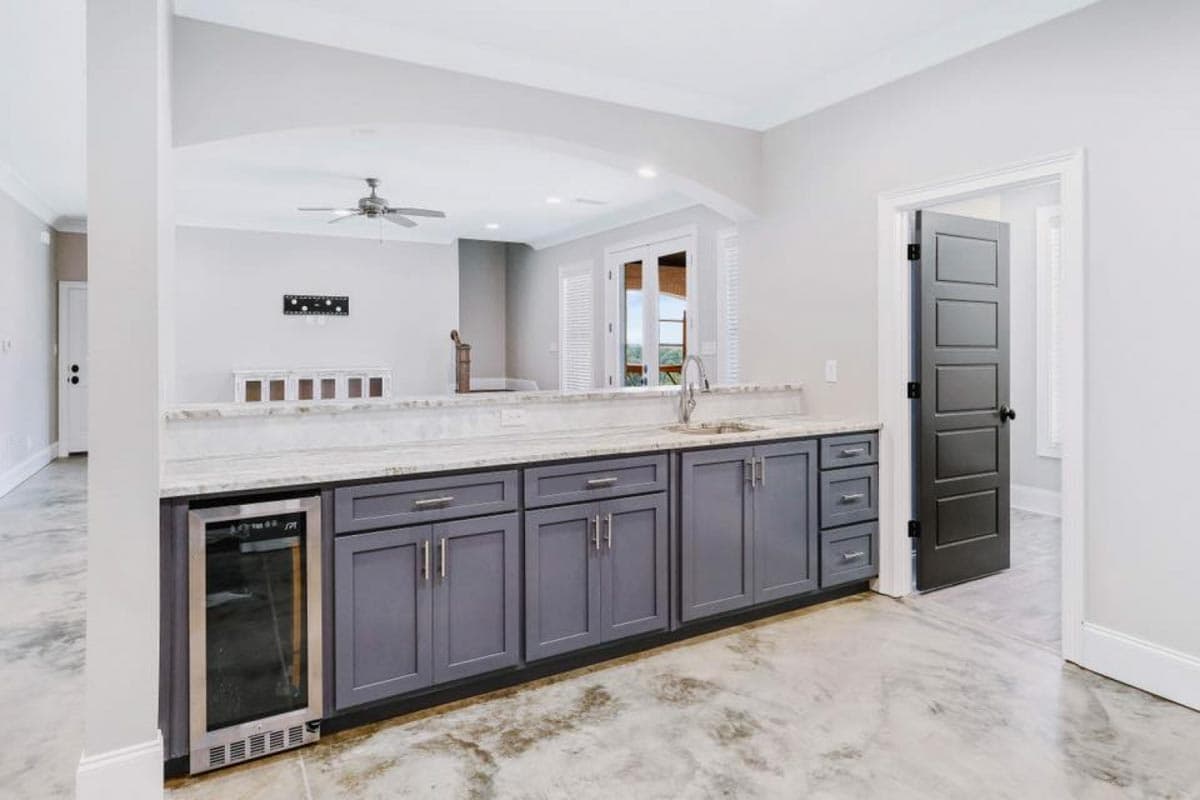

On the lower level, you’ll find a large walkout game room with a kitchen and bar, an adjacent home gym, and a second office.
A lower-level guest suite or fifth bedroom offers privacy and convenience.

What's Included

Cover Sheet
Foundation plans
Elevations - complete with dimensions, ridge heights and special notes
Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
Rafter Plan
Details
Interior Elevations - include applicable cabinetry, electrical and special construction notes
Floor Joist Plan - complete with spans, sizes and direction (if applicable)
Ceiling Joist - complete with spans, sizes and direction
Sections - complete with dimensions, notes and specifications
Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

5,183 sq. ft.

Lower Level:

1,547 sq. ft.

1st Floor:

2,504 sq. ft.

2nd Floor:

1,132 sq. ft.

Porch, Combined:

810 sq. ft.

Beds/Baths

Bedrooms:

5

Full bathrooms:

4

Half bathrooms:

1

Foundation Type

Standard Foundations:

Walkout

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

77' 6"

Depth:

68' 4"

Max Ridge Height:

30' 10"

Garage

Type:

Drive Under, Attached

Area:

681 sq. ft.

Count:

5 Cars

Entry Location:

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch:

10 on 12

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor
