Plan 23733JD
Three Level Shingle Style House Plan
Heated S.F.
4,375
Beds
5
Baths
4.5
Stories
2
Cars
3
Plan Details
  • Designed for a sloping lot, this Shingle style house plan has living space spread out over three levels.

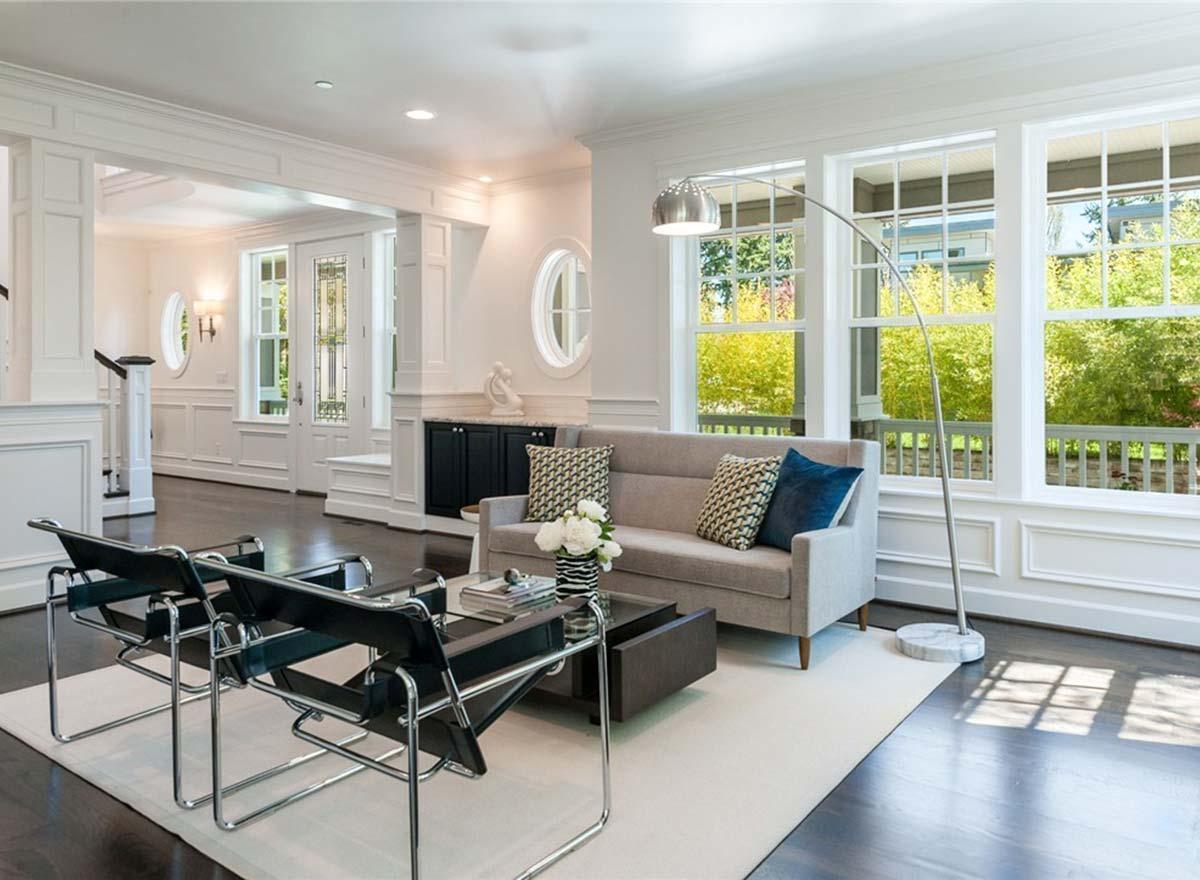

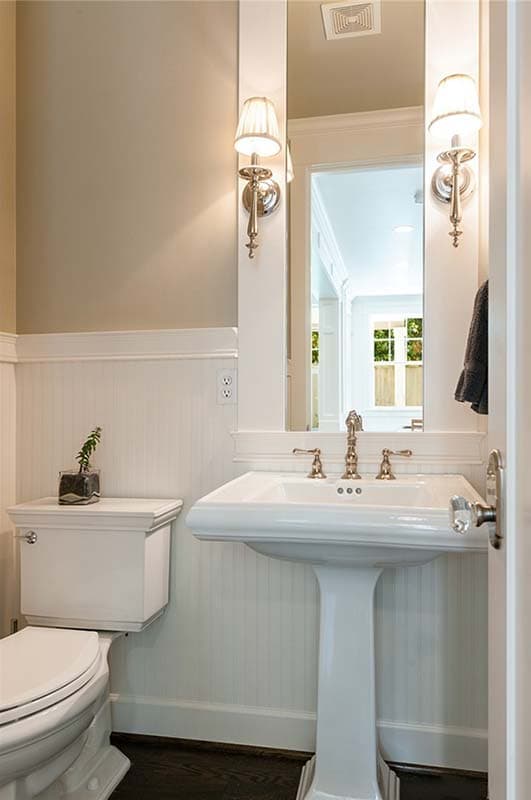

  • Sight lines start right at the foyer on the main floor where you can see into the living room on the left and the open family room in back.

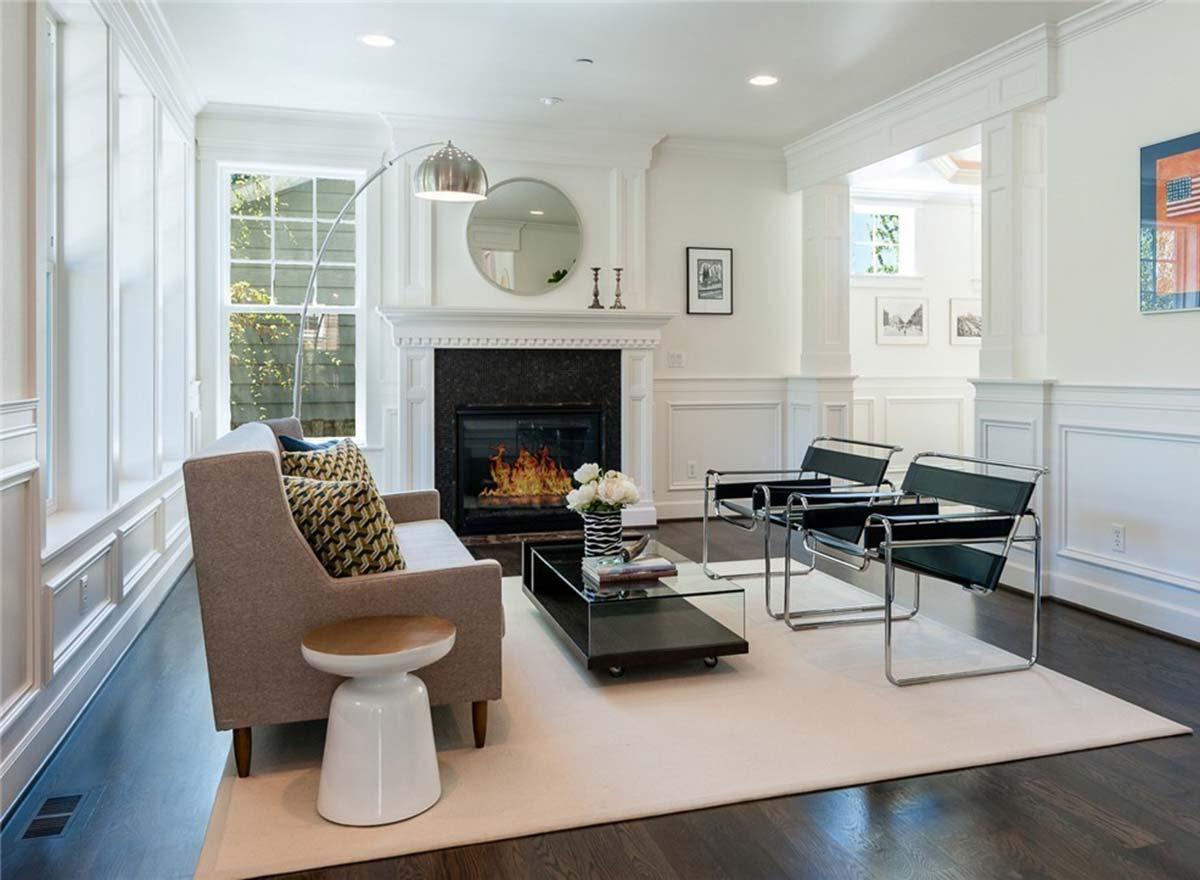

  • Interior columns define the entrances to both the living room and the dining room, adding an elegant touch.

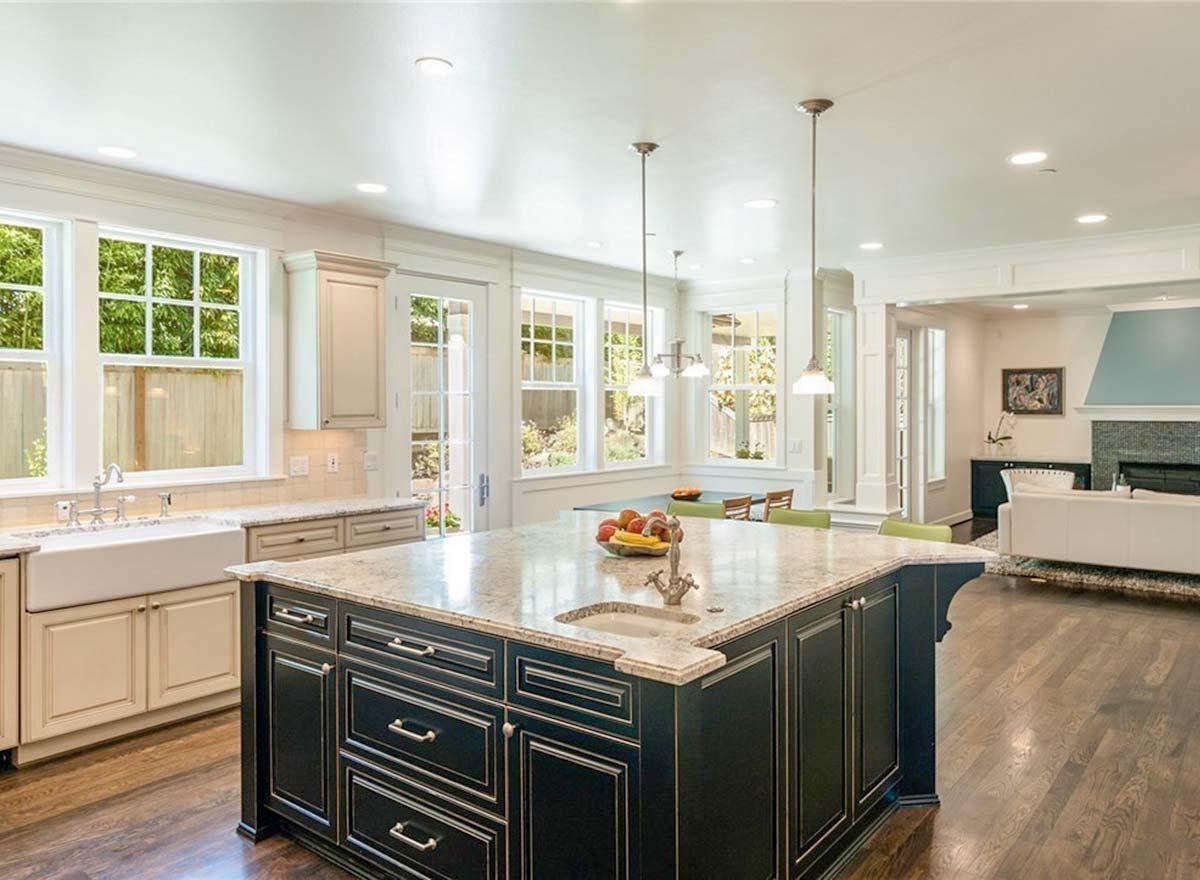

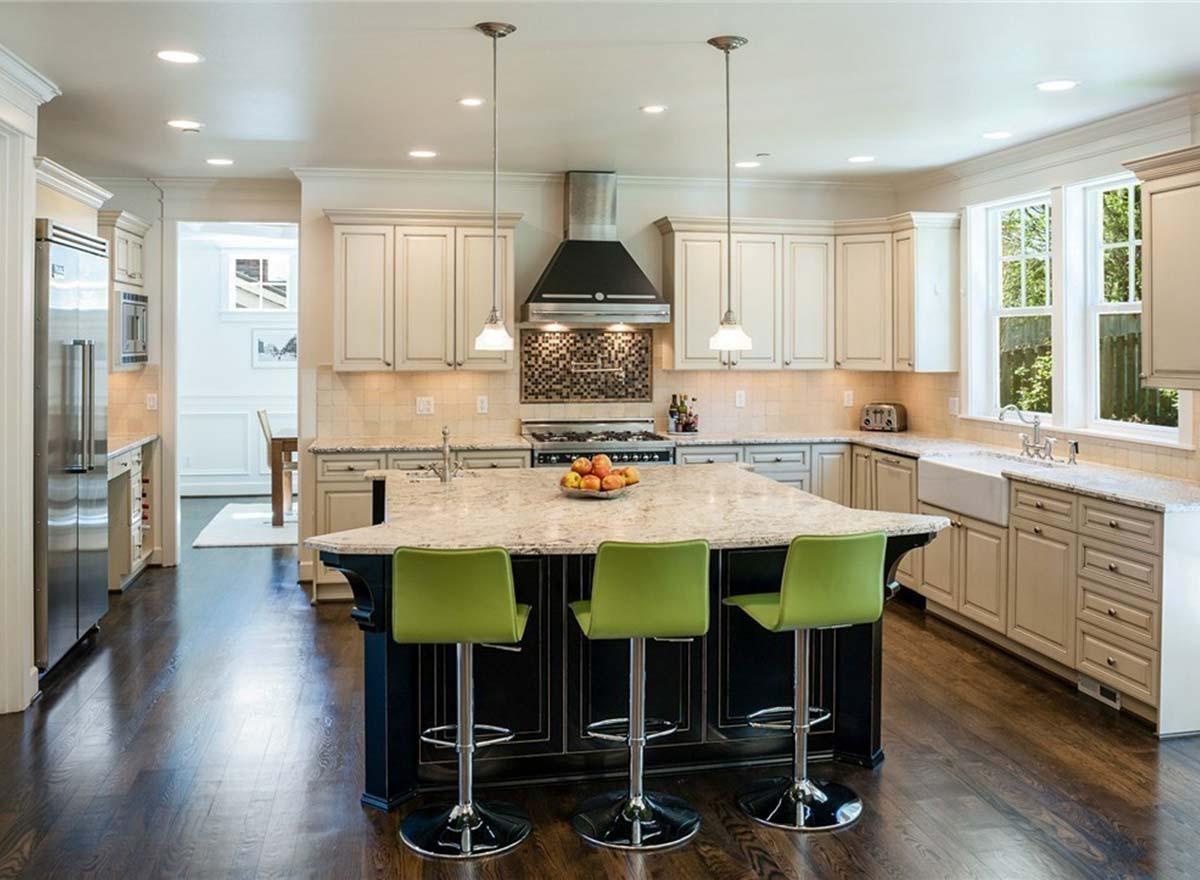

  • The kitchen island is huge and gives you a ton of extra counter space for prep work or baking.

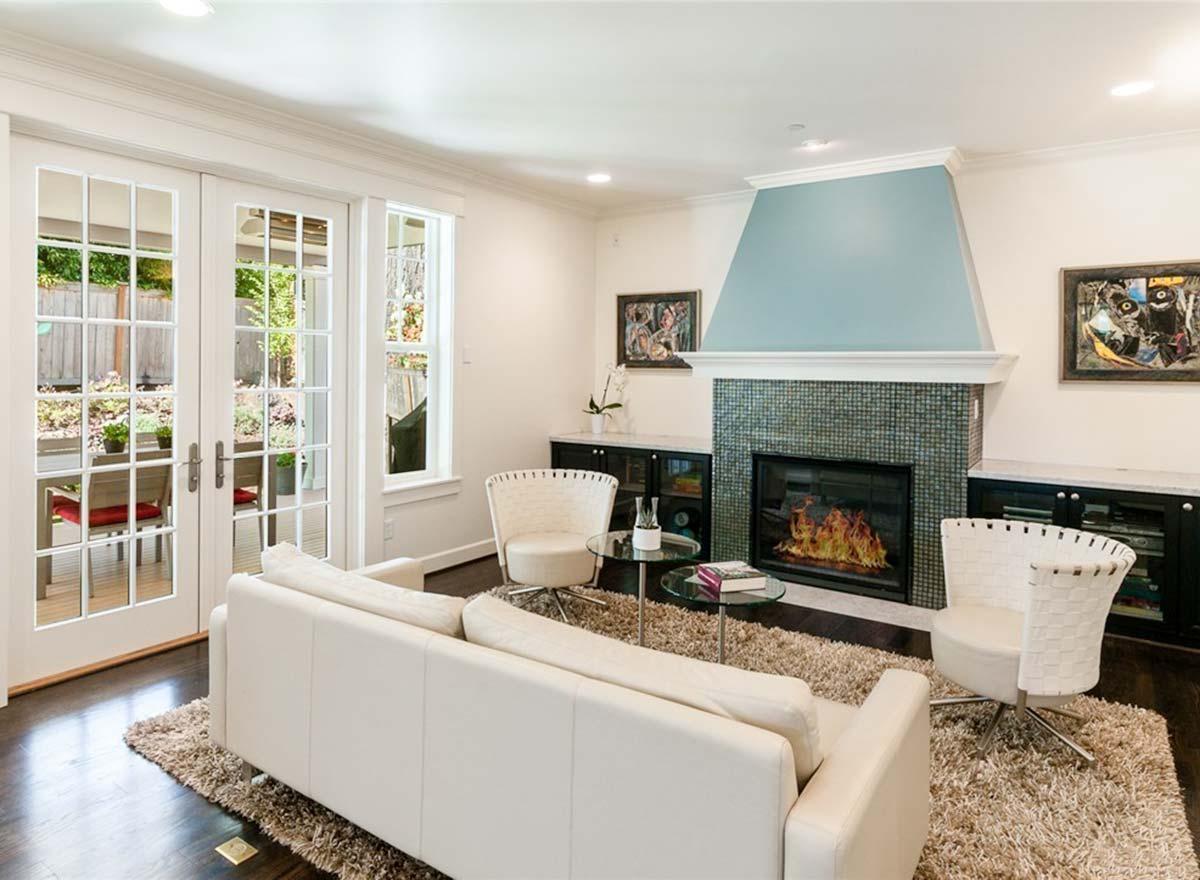

  • From the large eaing nook, you step into the family room that has a fireplace flanked by built-ins.

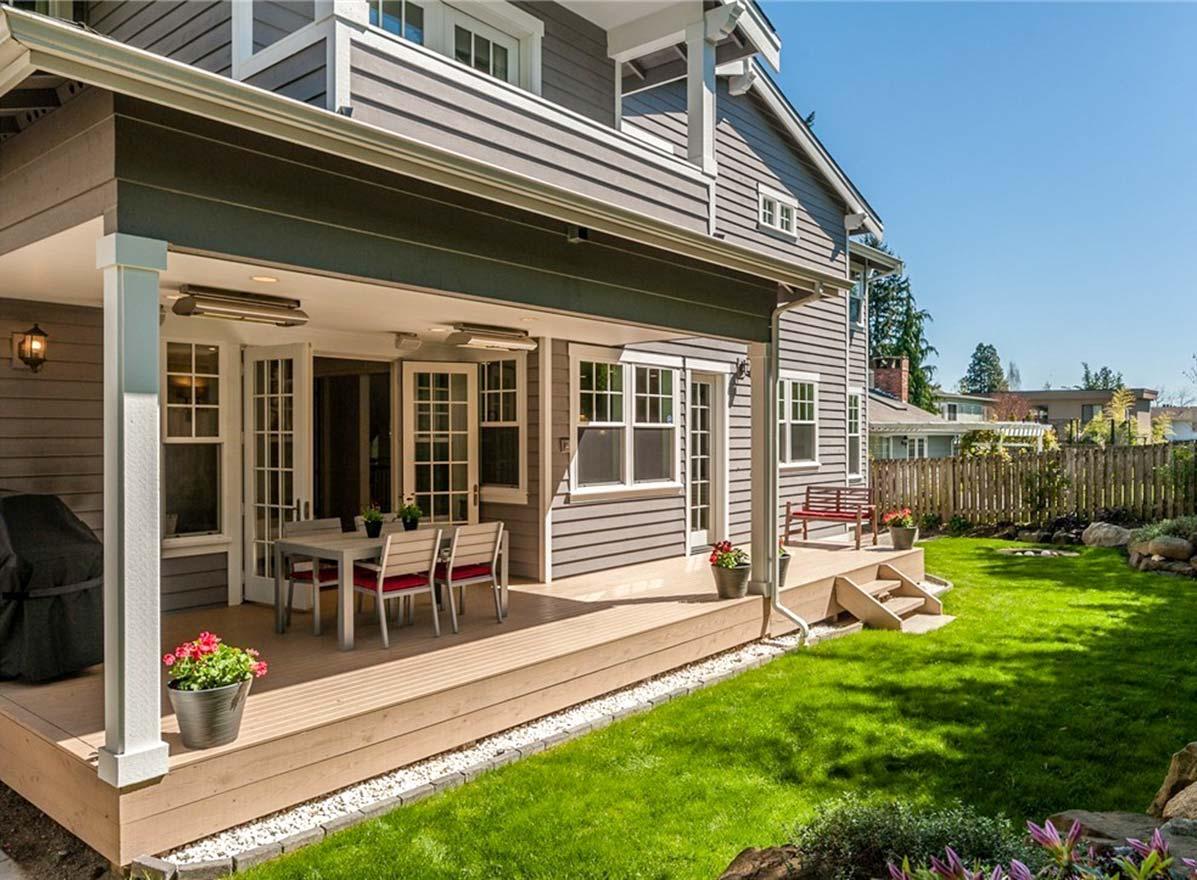

  • Double doors take you to the outside space and you have both covered and uncovered decks.

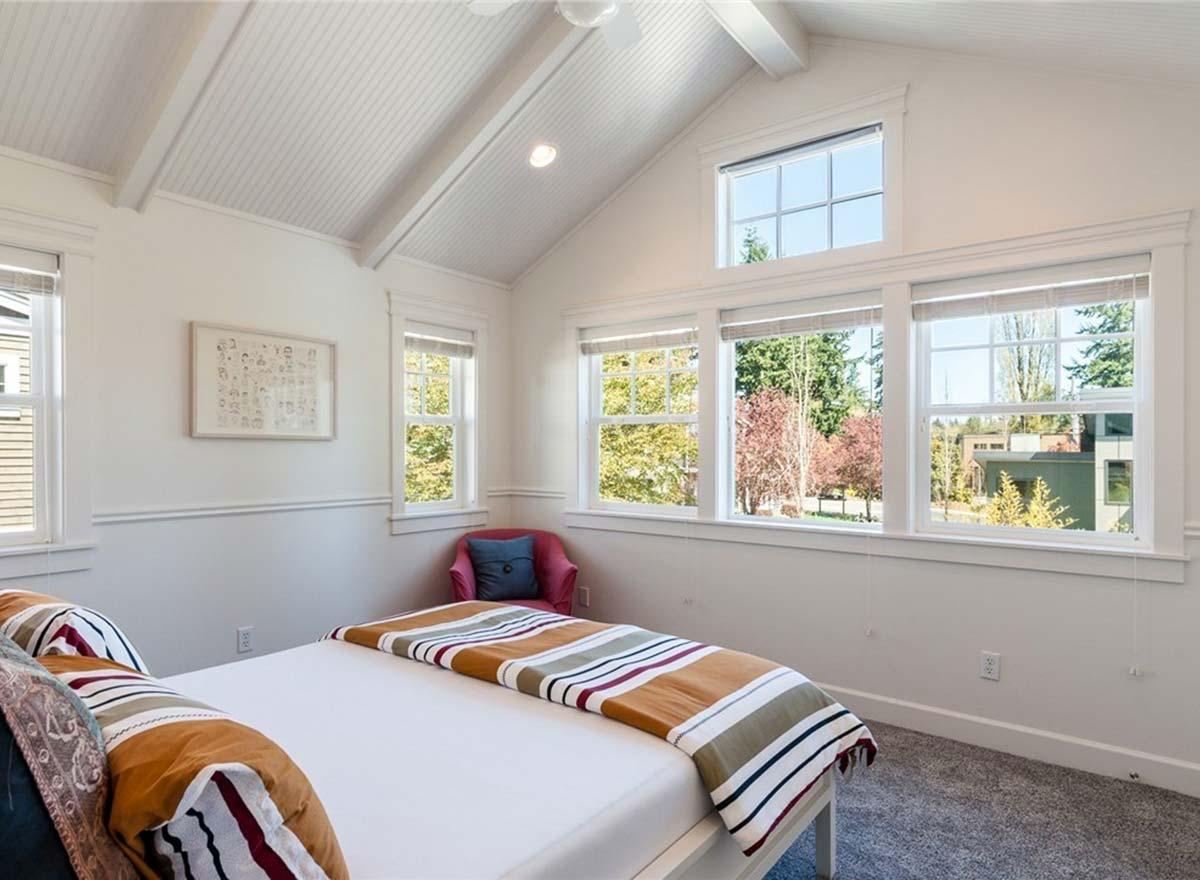

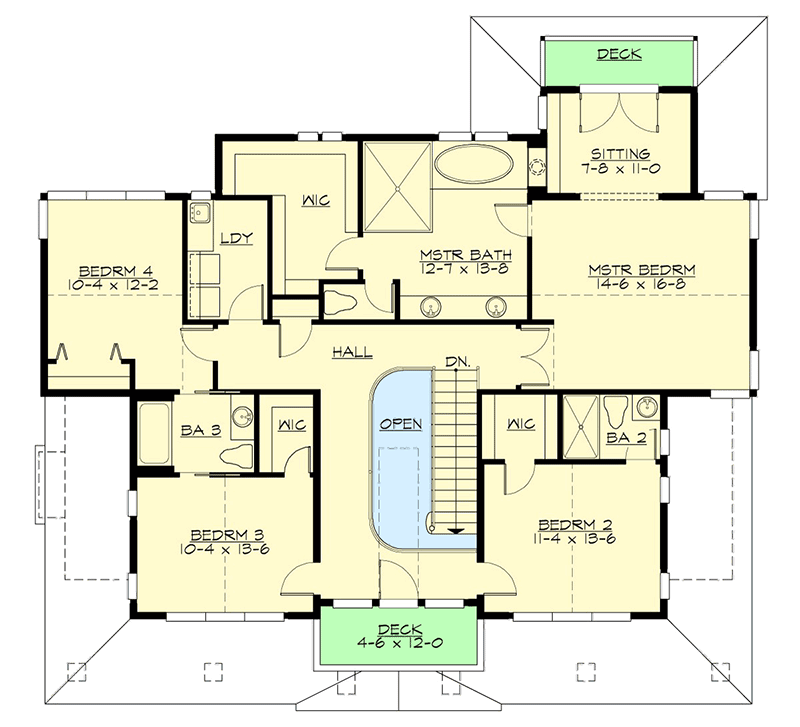

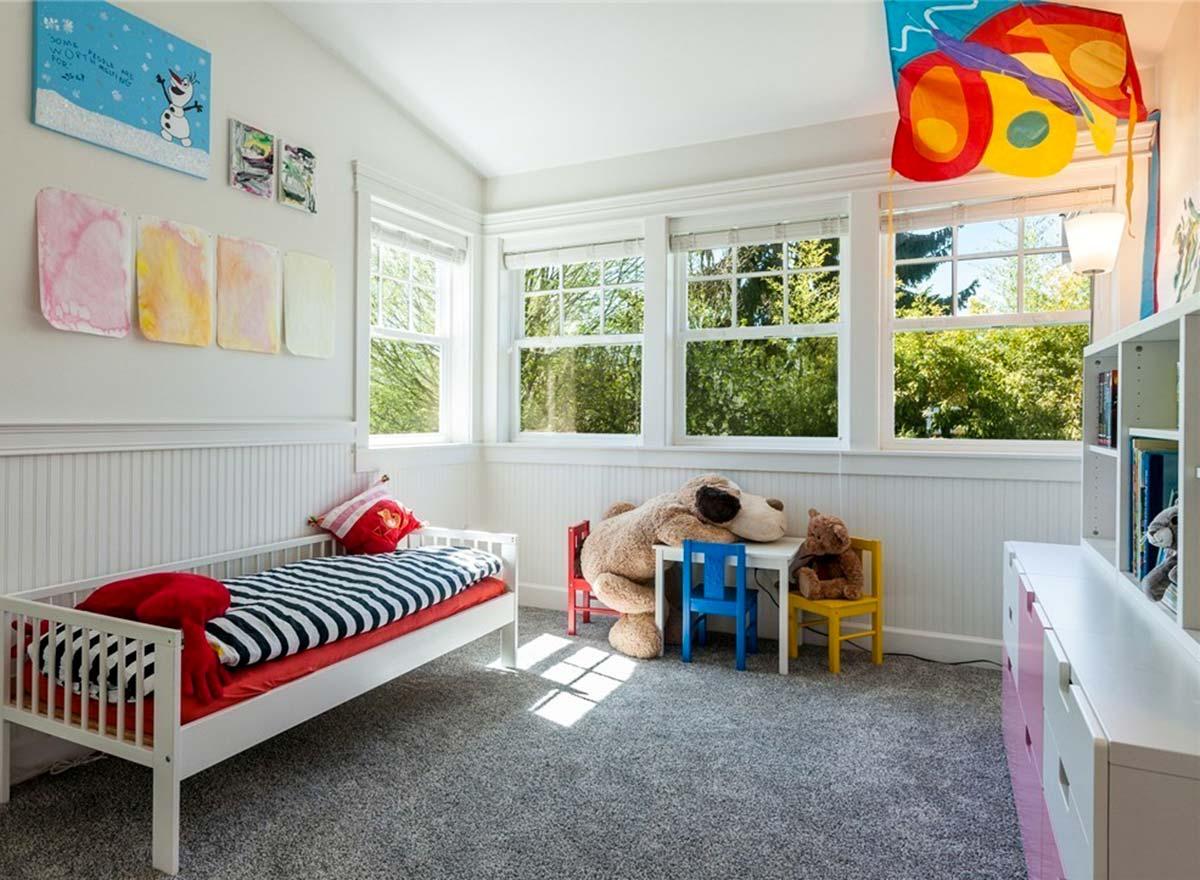

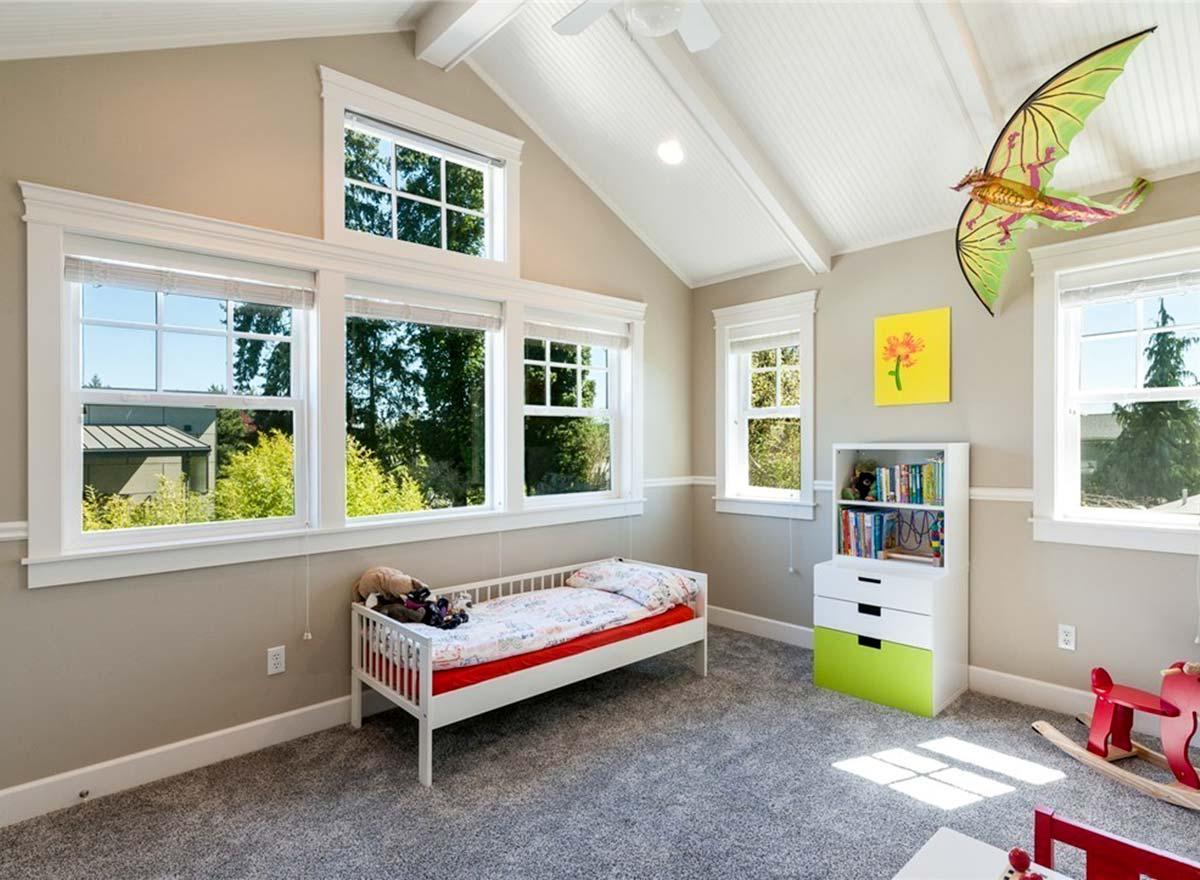

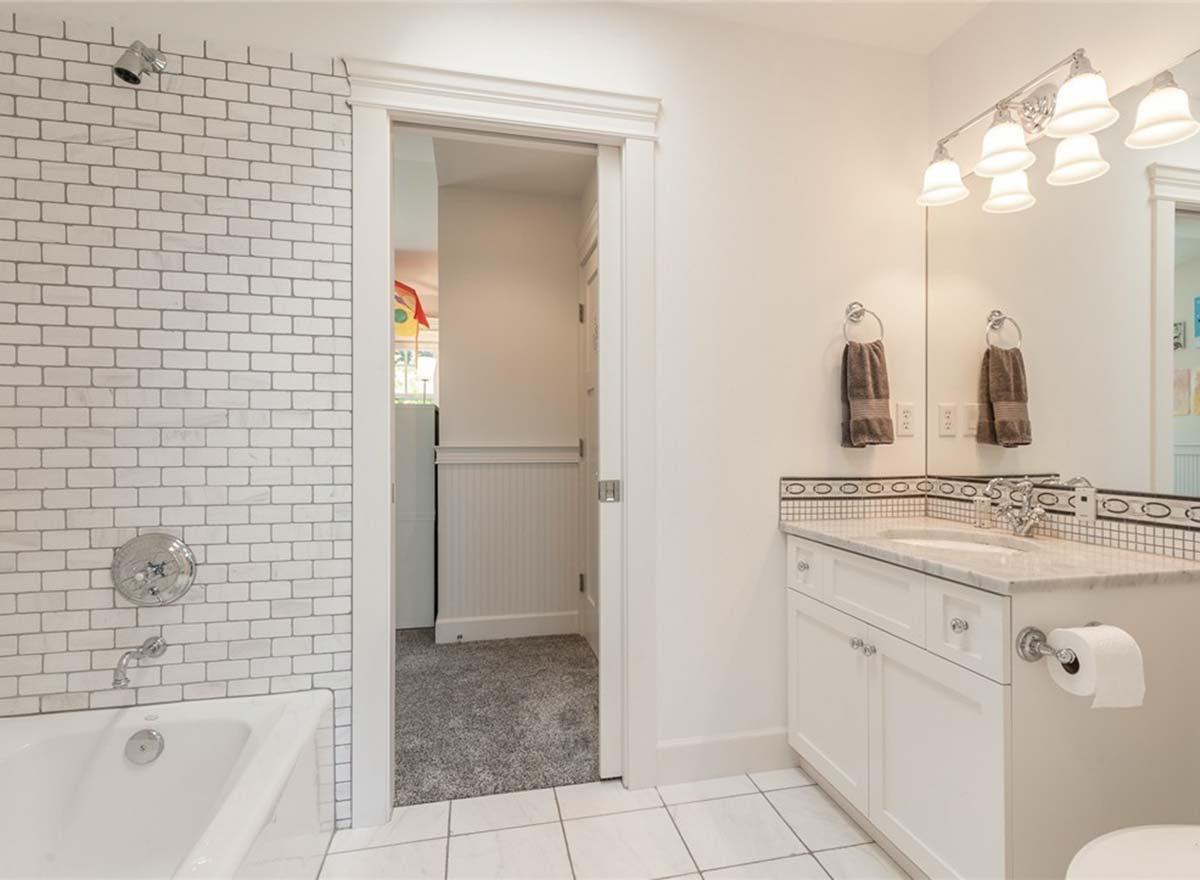

  • All four bedrooms on the second floor have lovely vaulted ceilings and share the second floor laundry room.

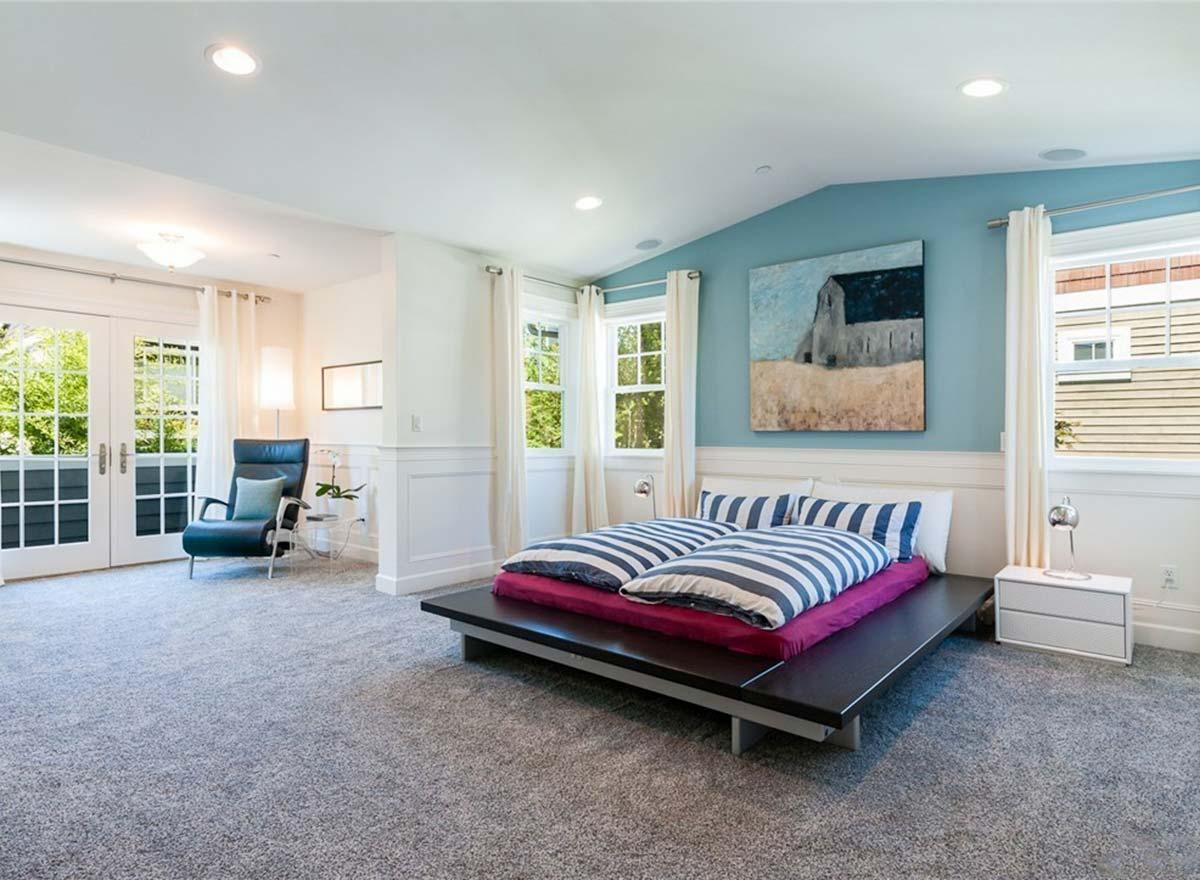

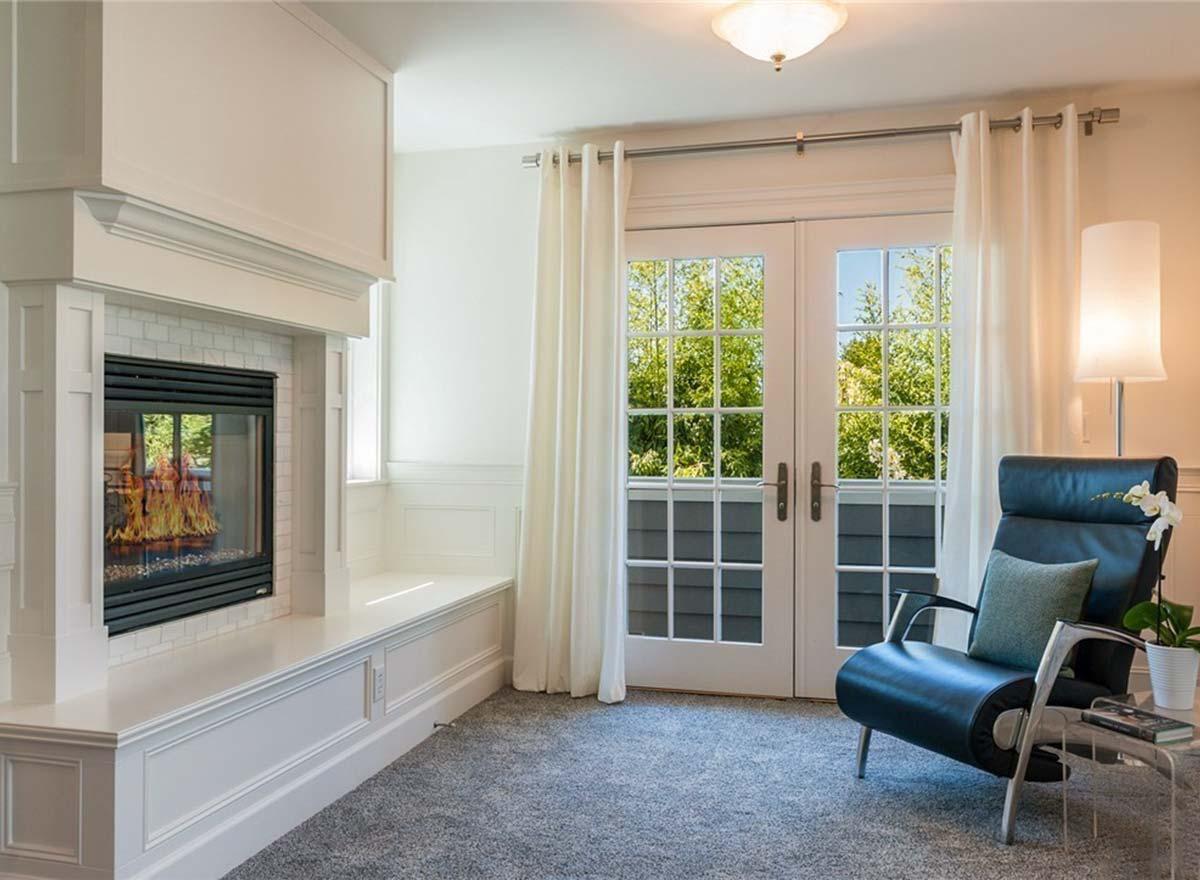

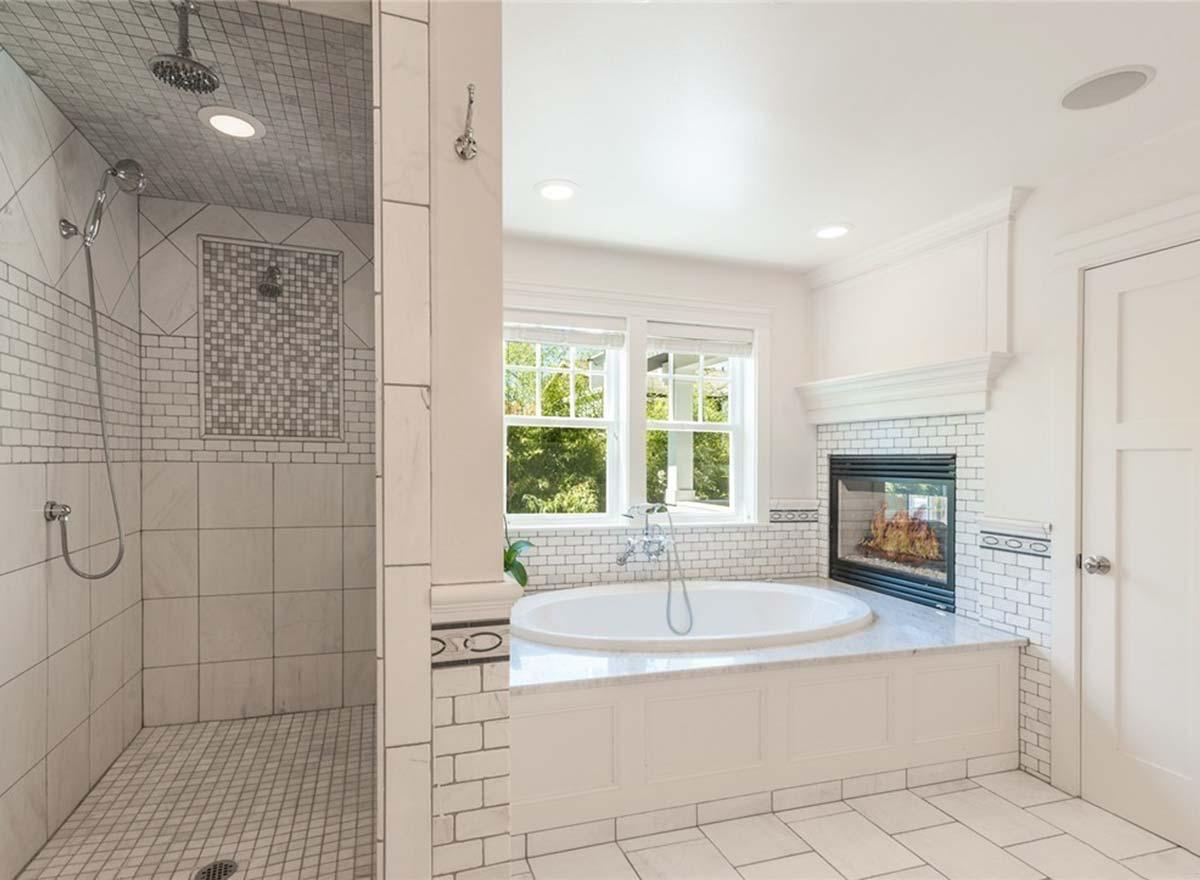

  • Homeowners have the added benefit of a sitting room and private deck in the master suite.

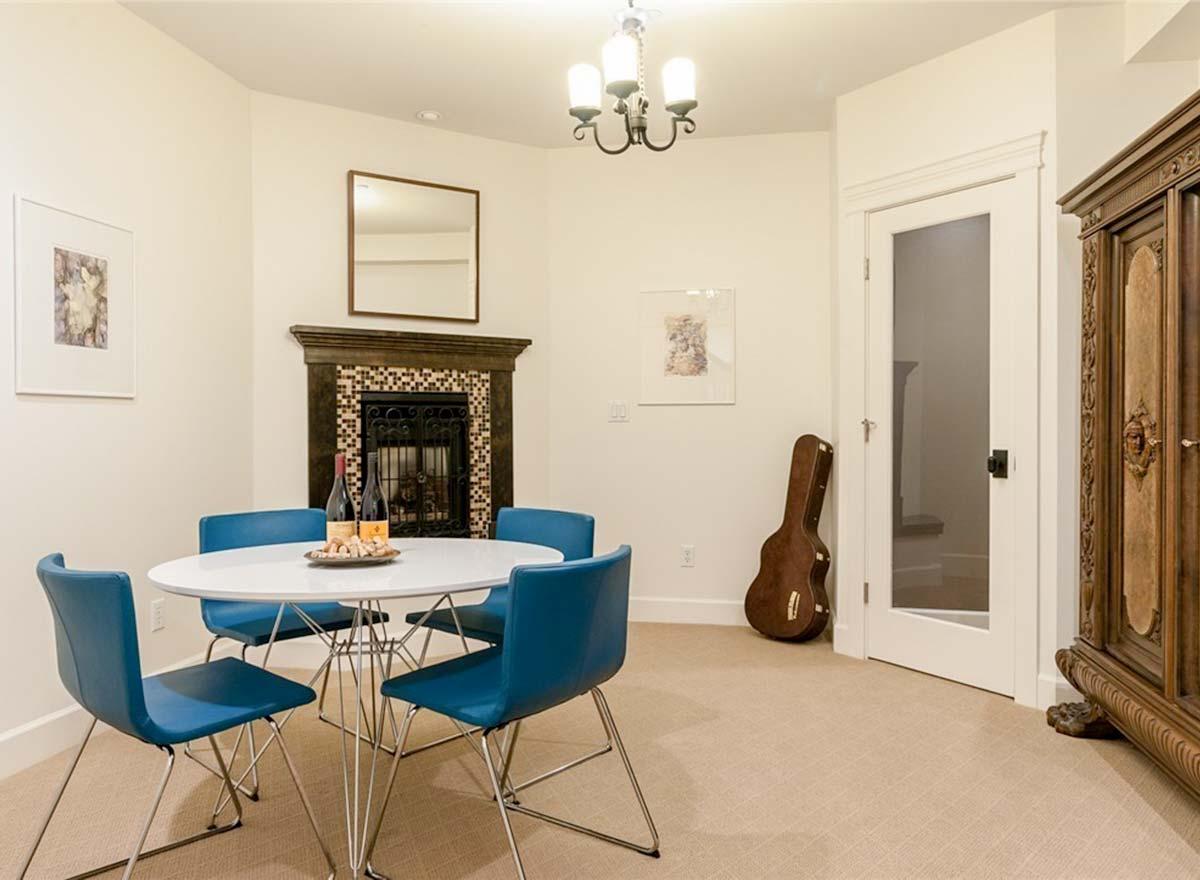

  • Invite all your friends to enjoy the lower level wine room that has a corner fireplace.

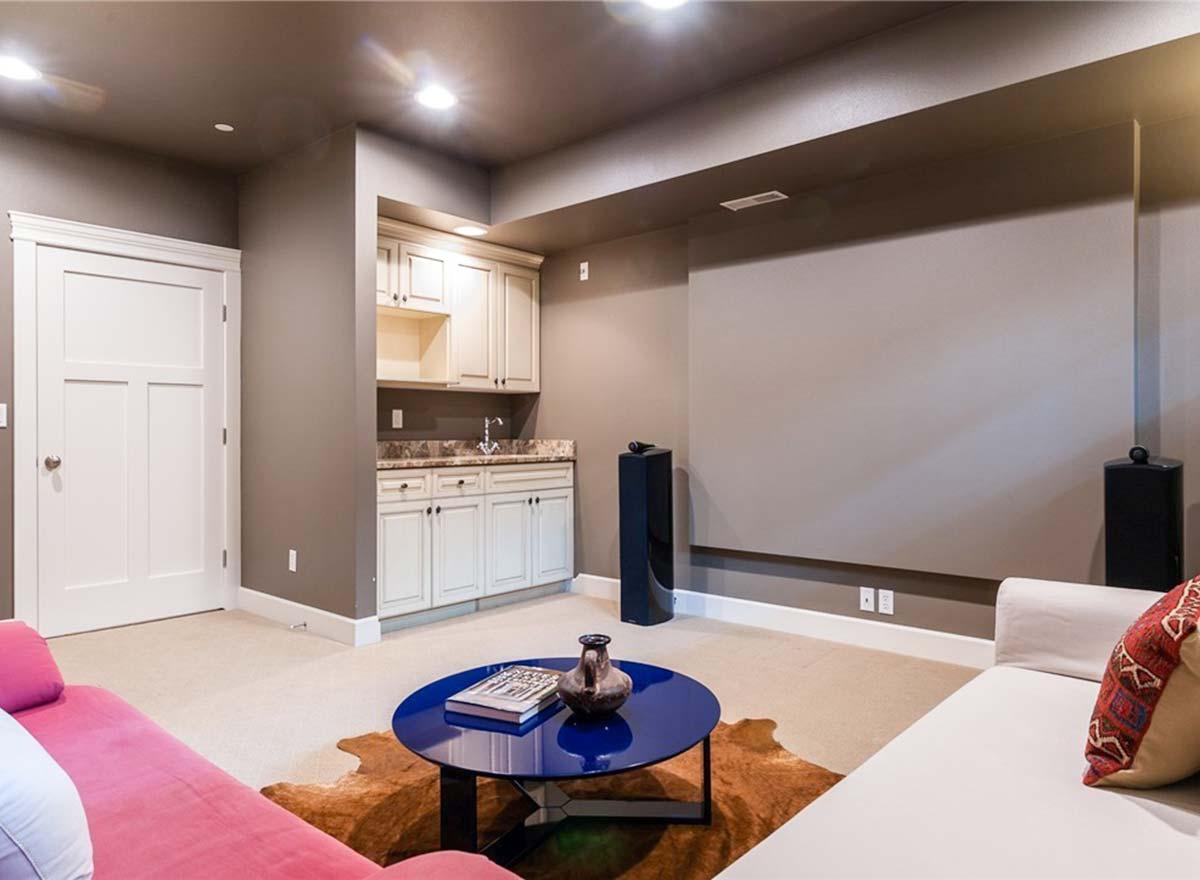

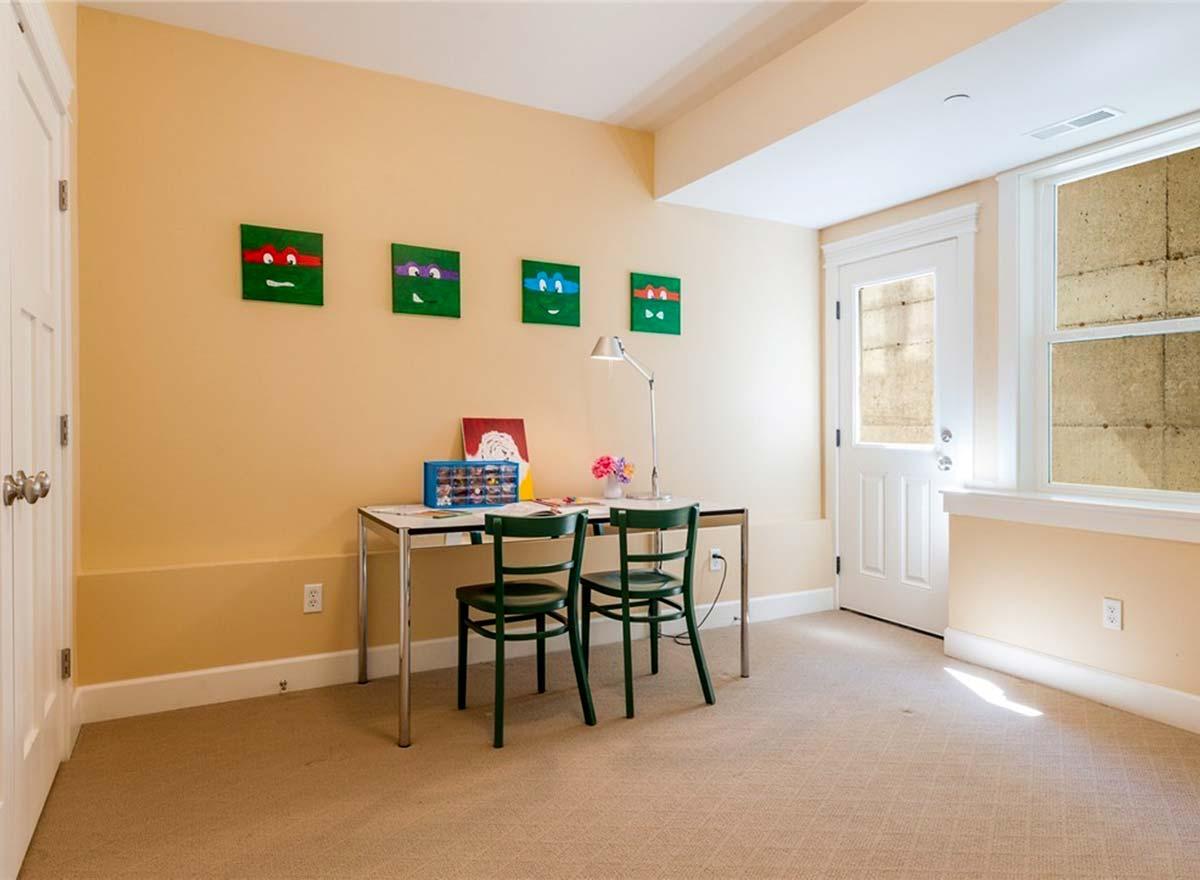

  • Or watch movies in the media room and hosts overnight guests in the fifth bedroom with attached bathroom.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

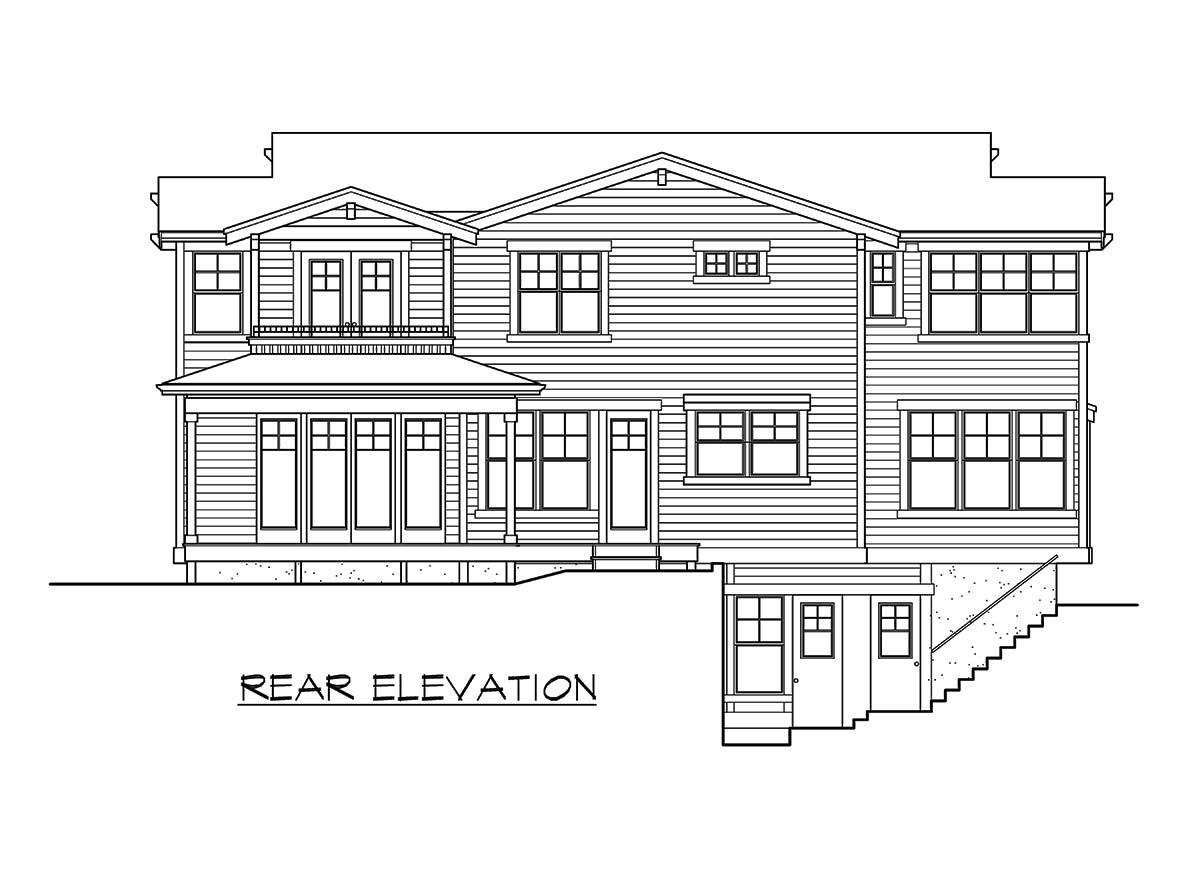

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Three Level Shingle Style House Plan

  • 4,375

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

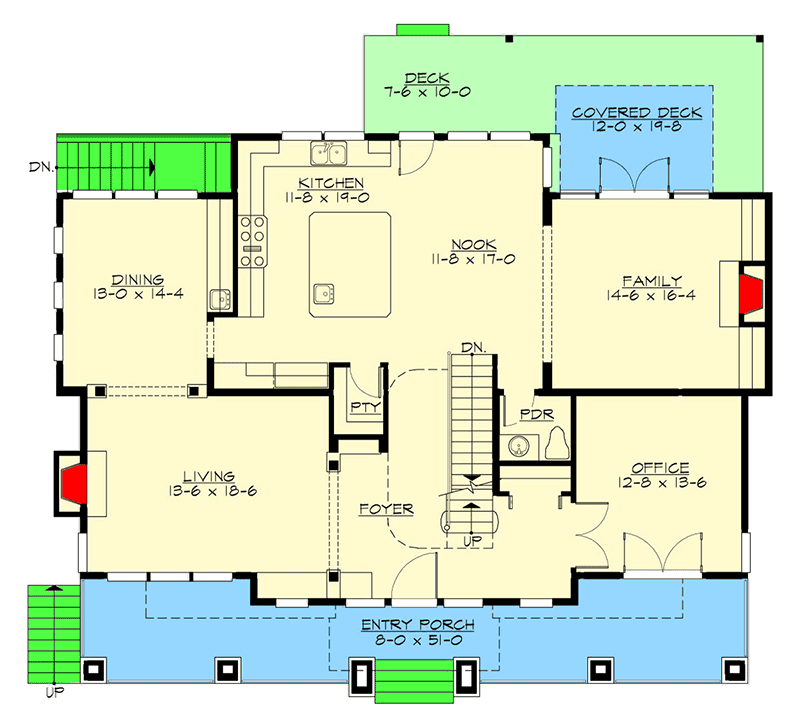

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,375 sq. ft.
  • Lower Level: 1,021 sq. ft.
  • 1st Floor: 1,721 sq. ft.
  • 2nd Floor: 1,633 sq. ft.

Dimensions

  • Width: 54' 10"
  • Depth: 50' 6"
  • Max ridge height: 24' 8"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached, Drive Under
  • Area: 664 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 11' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Three Level Shingle Style House Plan

  • 4,375

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Three Level Shingle Style House Plan

  • 4,375

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,375 sq. ft.
  • Lower Level: 1,021 sq. ft.
  • 1st Floor: 1,721 sq. ft.
  • 2nd Floor: 1,633 sq. ft.

Dimensions

  • Width: 54' 10"
  • Depth: 50' 6"
  • Max ridge height: 24' 8"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached, Drive Under
  • Area: 664 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 11' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
