Plan 23738JD

Three Levels of Living Space

Name: Plan 23738JD: Three Levels of Living Space
Brand: Architectural Designs
SKU: 23738JD
Price: 2600.0 USD
Availability: InStock

Heated S.F.

4,244

Beds

Baths

4.5

Stories

Cars

Floor Plan

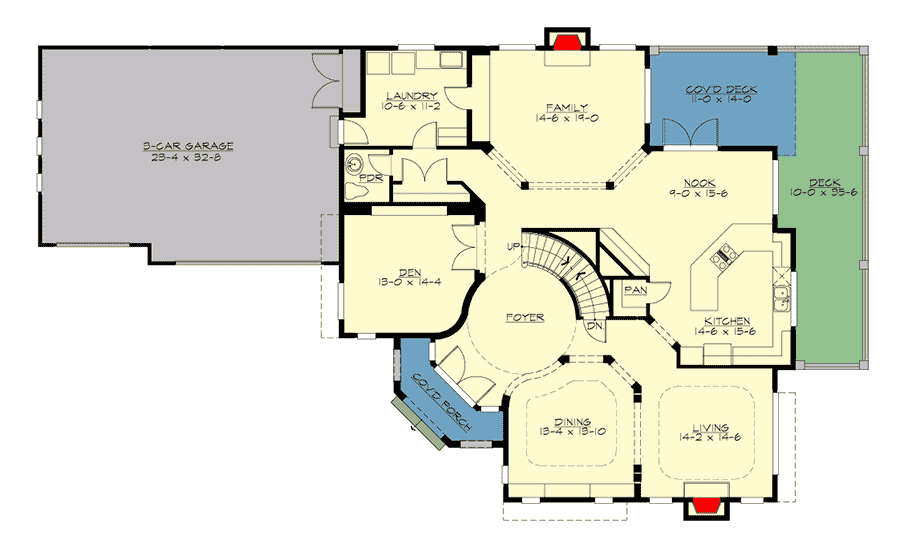

Main Level

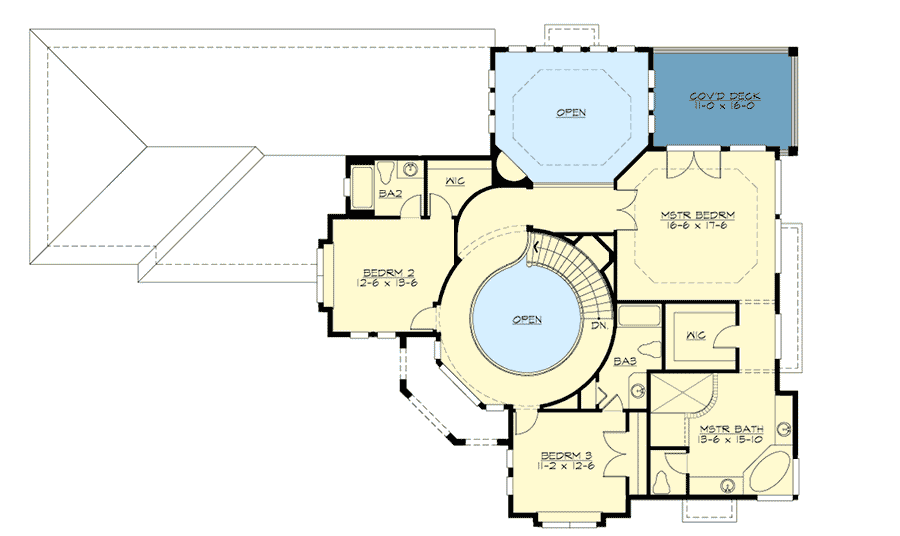

Second Level

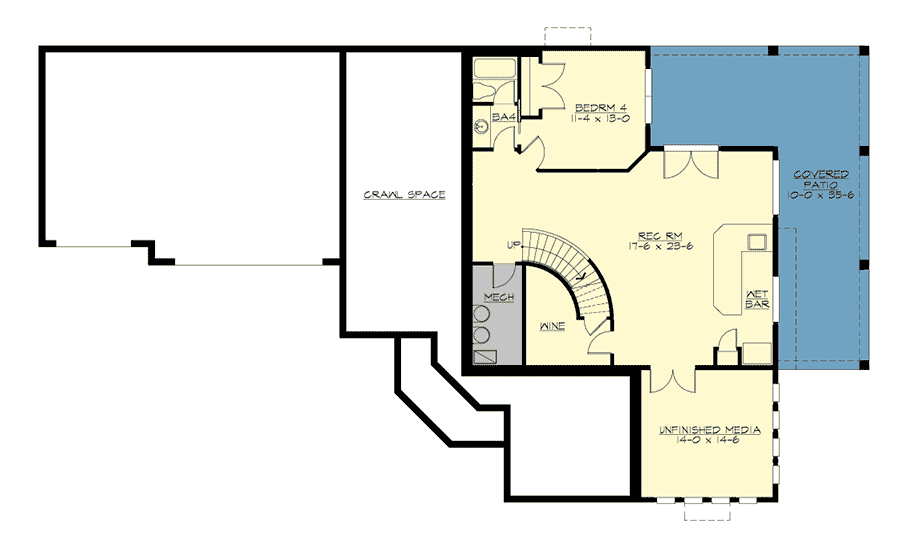

Lower Level

Plan Details

From the front, this striking home appears to be Mediterranean but on the back, the siding and spacious outdoor deck give the appearance of a Northwest home.
The gorgeous circular two-story foyer inside showcases the grand curved staircase.
Interior columns keep the sight lines open in the formal dining room that comes with a tray ceiling and built-ins.
It's an easy flow into the formal living room where you can cozy up to the big fireplace.
In the kitchen, a cook top peninsula counter lets you see into the nook and family room while you are preparing meals.

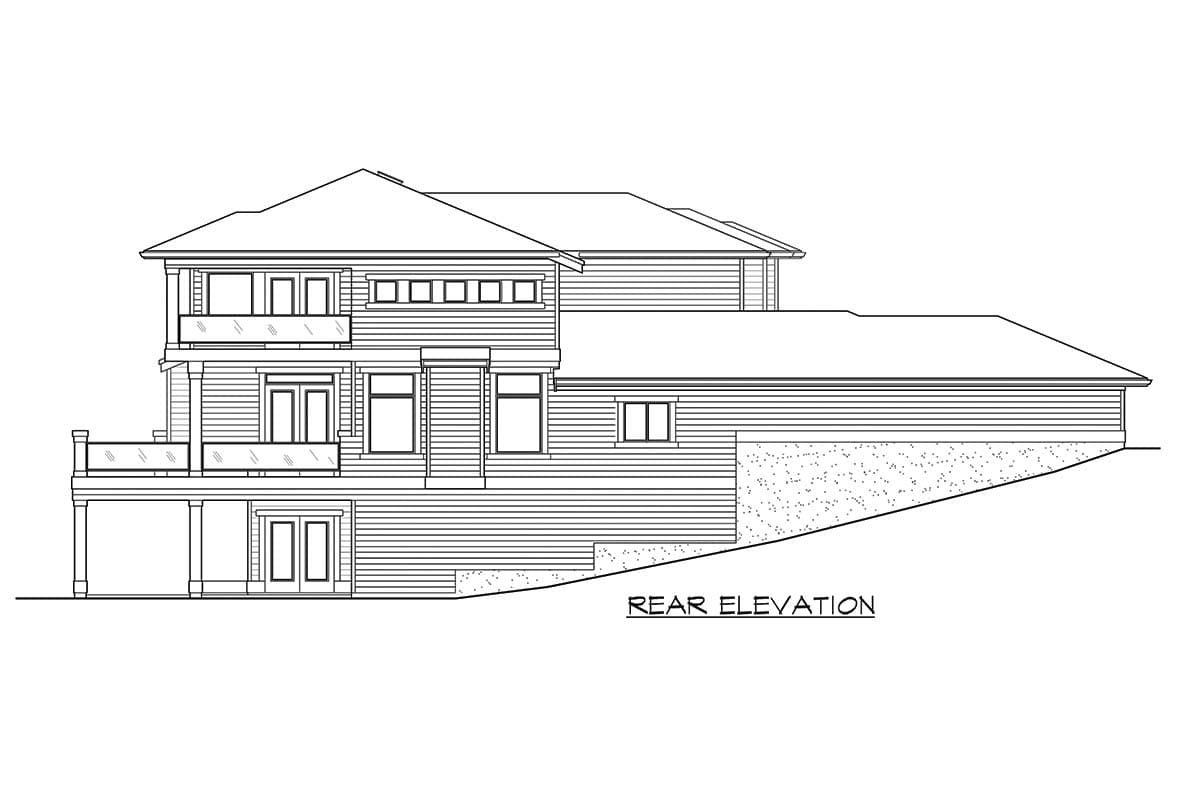

In back, the wrap-around deck is huge and offers shaded and open space for your outdoor enjoyment.
Each bedroom on the second floor has a private bathroom and the deluxe master suite has a private deck where you can sip your morning coffee.
The fourth bedroom is on the finished ground level along with a wine cellar, wet bar and enormous rec room.
An unfinished media room can be completed when you are ready.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

View Sample Plan

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
