Three-Story Shingle Style House Plan with Flex Room and Family Room - 2852 Sq Ft

Heated S.F.
2,852
Beds
4 - 7
Baths
3.5 - 4.5
Stories
2-3
Cars
2

Floor Plan

Plan 654021KNA

Main Level
Main Level
2nd Floor
2nd Floor
3rd Level
3rd Level
Optionally Finished Lower Level
Optionally Finished Lower Level
Alternate Pantry and Mud Room Layout
Alternate Pantry and Mud Room Layout

Plan 654021KNA

M-F 9am-5pm EST |

1-203-761-8500

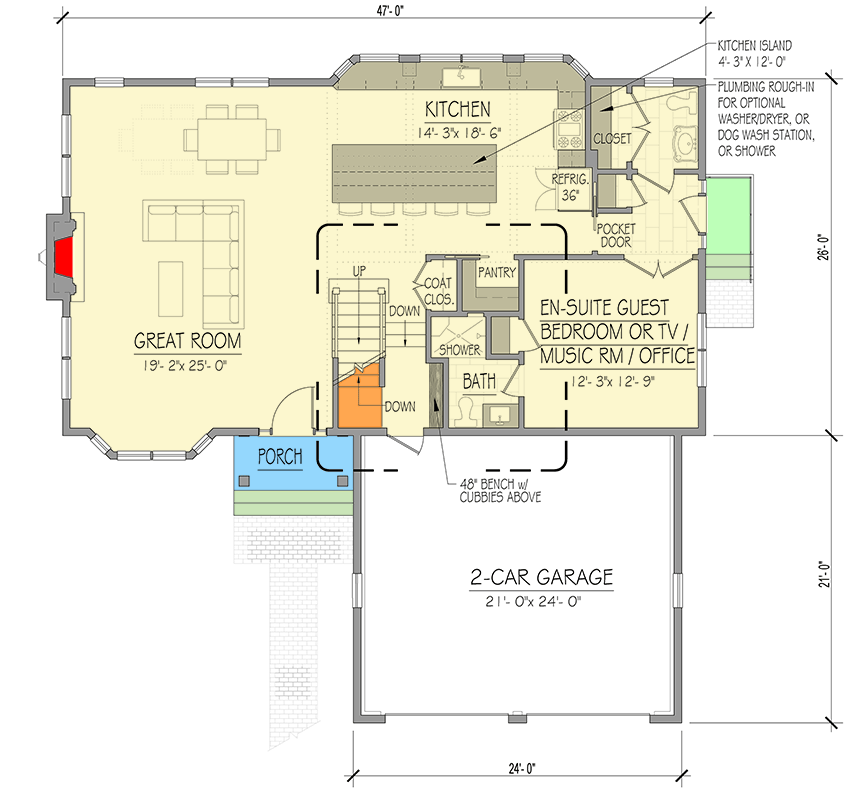

Main Level

Plan 654021KNA: Three-Story Shingle Style House Plan with Flex Room and Family Room - 2852 Sq Ft - Floor Plan - Main Level - Beach, Cape Cod, Colonial, Cottage, Shingle

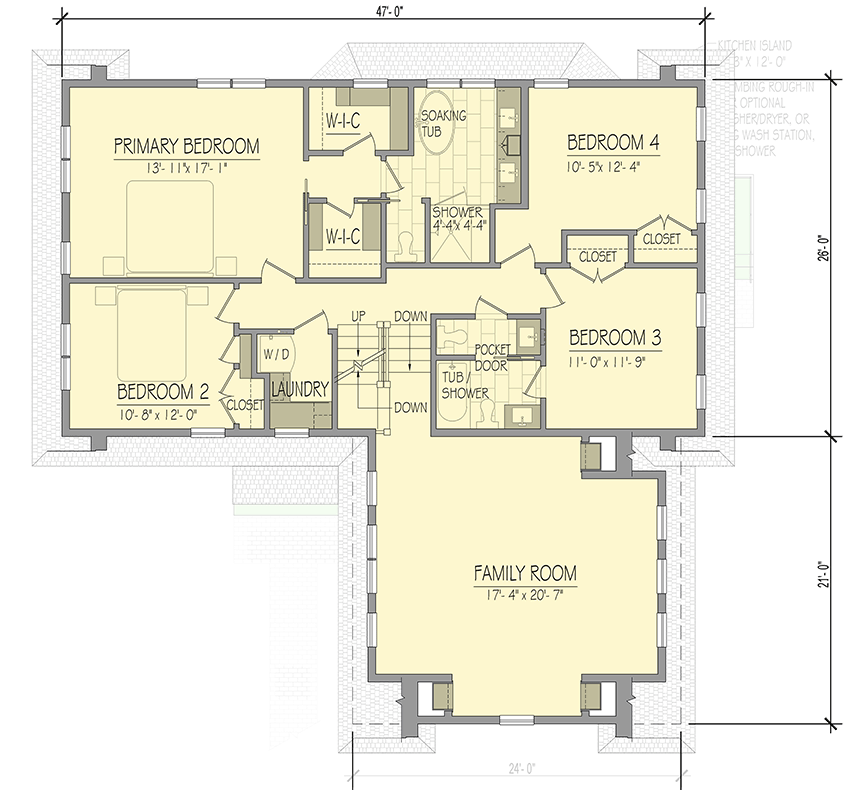

2nd Floor

Plan 654021KNA: Three-Story Shingle Style House Plan with Flex Room and Family Room - 2852 Sq Ft - Floor Plan - 2nd Floor - Beach, Cape Cod, Colonial, Cottage, Shingle

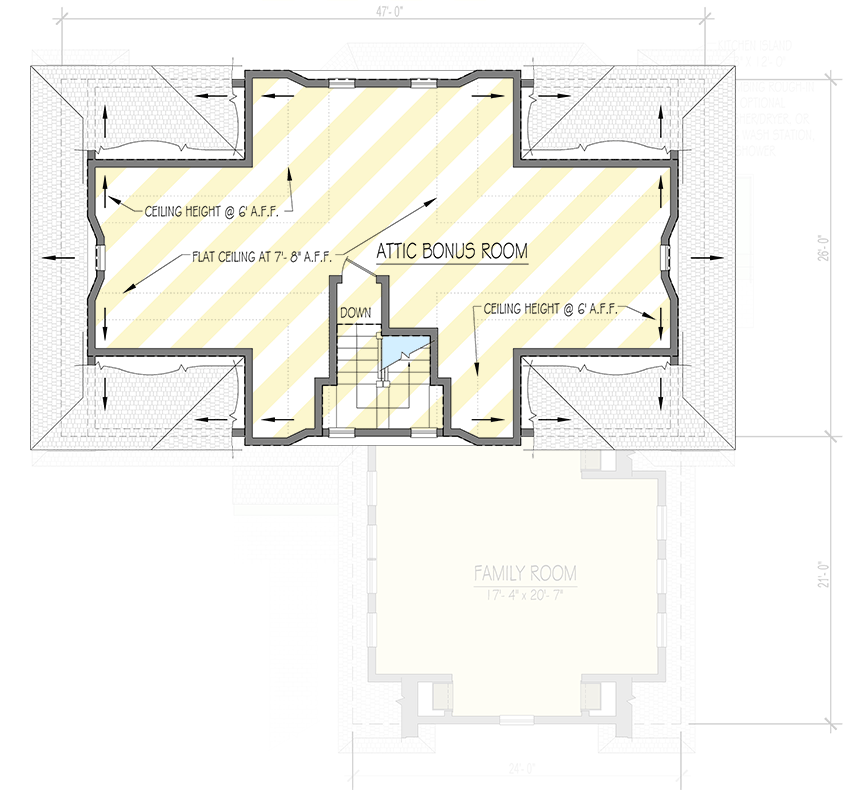

3rd Level

Plan 654021KNA: Three-Story Shingle Style House Plan with Flex Room and Family Room - 2852 Sq Ft - Floor Plan - 3rd Level - Beach, Cape Cod, Colonial, Cottage, Shingle

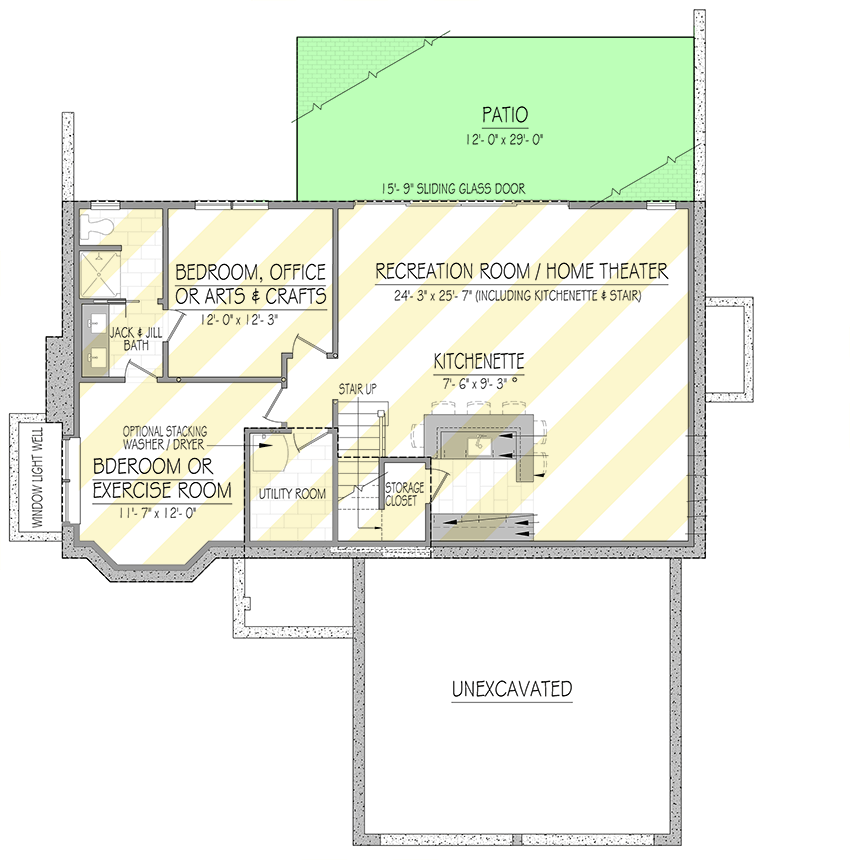

Optionally Finished Lower Level

Plan 654021KNA: Three-Story Shingle Style House Plan with Flex Room and Family Room - 2852 Sq Ft - Floor Plan - Optionally Finished Lower Level - Beach, Cape Cod, Colonial, Cottage, Shingle

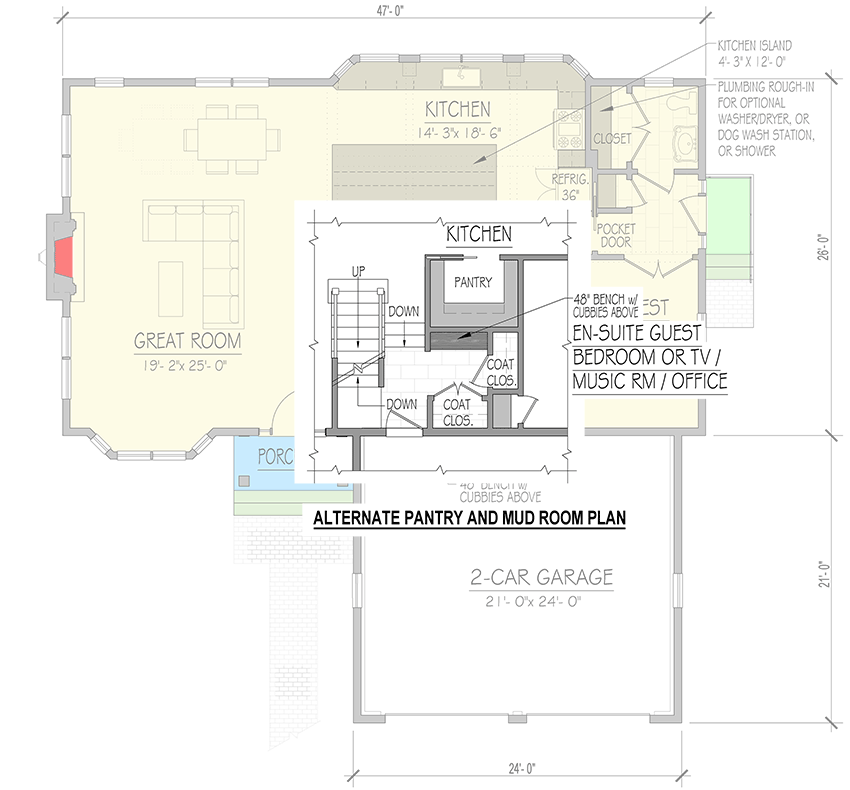

Alternate Pantry and Mud Room Layout

Plan 654021KNA: Three-Story Shingle Style House Plan with Flex Room and Family Room - 2852 Sq Ft - Floor Plan - Alternate Pantry and Mud Room Layout - Beach, Cape Cod, Colonial, Cottage, Shingle

Plan Details

  • This shingle style house plan offers you 2,852 square feet of heated living space with 4-7 beds, 3.5-4.5 baths and a 511 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet
  • Foundation Plan
  • Floor plans
  • Exterior elevations
  • Details
  • Building sections
  • Roof plans drawn at 1/4" scale
  • Suggested electrical layout

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,852 sq. ft.

1st Floor

1,270 sq. ft.

2nd Floor

1,582 sq. ft.

Optional Lower Level

1,132 sq. ft.

Attic

801 sq. ft.

Beds/Baths

Bedrooms

4, 5, 6, or 7

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

47' 0"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

511 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Attic

7' 8''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Architectural Style

Beach

Cape Cod

Colonial

Cottage

Shingle

Special Features

Bedrooms - Clustered

Flex Room

Game/Rec Room

Home Office

Home Theater

Jack & Jill Bath

Laundry - Lower Level

Laundry - Upstairs

Loft

Master Suite - Upstairs

Media Room

Mudroom

Walk-in Pantry

Plan Collections

Exclusive
