Tiny House Living

Plan 22497DR

  • 360

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • Go small or use this tiny house as a vacation getaway.
  • A large front porch extends the living space and has plenty of room for table and chairs.
  • You can cook indoors or out on the porch in the summer kitchen.
  • A wall of sliding glass doors opens the living area up to the porch.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

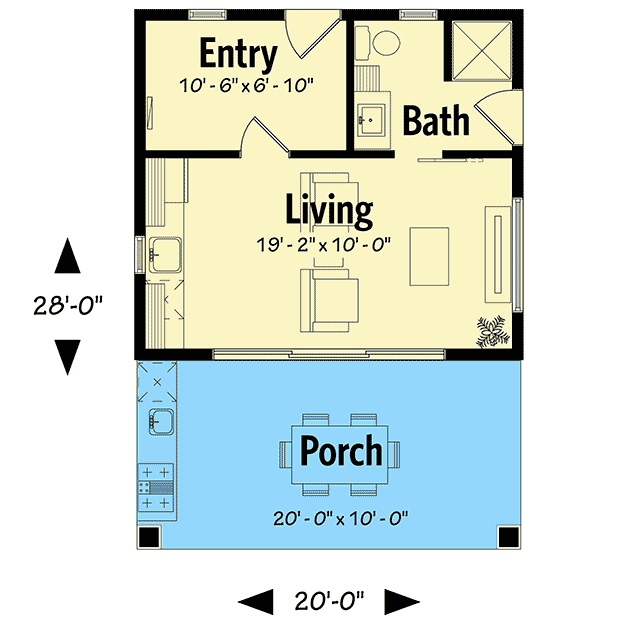

Tiny House Living - 22497DR floor plan - Main Level

Plan details

Architectural Style

Special features

Plan Collections

Tiny House Living

  • 360

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $845
  • Reproducible Set $845
  • 5 Sets + PDF $970
  • CAD - Single-Build $1,445
  • View all purchase option online

About This Plan

  • Go small or use this tiny house as a vacation getaway.
  • A large front porch extends the living space and has plenty of room for table and chairs.
  • You can cook indoors or out on the porch in the summer kitchen.
  • A wall of sliding glass doors opens the living area up to the porch.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 360 sq. ft.
  • 1st Floor: 360 sq. ft.
  • Porch, Front: 200 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Daylight, Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 28' 0"
  • Depth: 20' 0"
  • Max ridge height: 14' 4"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
