Plan 90301PD

Tiny Split Level House Plan

Name: Plan 90301PD: Tiny Split Level House Plan
Brand: Architectural Designs
SKU: 90301PD
Price: 919.74 USD
Availability: InStock

Heated S.F.

1,188

Beds

Baths

1.5

Stories

Floor Plan

This tiny house plan in a Northwest style has all the living areas on the main floor and the sleeping quarters in the optional finished basement level.
It's just two steps up from the sunken foyer to reach the eating, cooking and living spaces that are made larger by the open configuration.
Sliding glass doors lead out to the large porch in back.
An island adds extra counter space and storage in the kitchen and there's even a walk-in pantry - unusual in a house this size.
On the optional finished lower level, two bedrooms share the large four piece bathroom.
The washer/dryer closet is tucked away yet convenient to the bedrooms.

Please note this plan is designed to the National Building Code of Canada.

Elevations

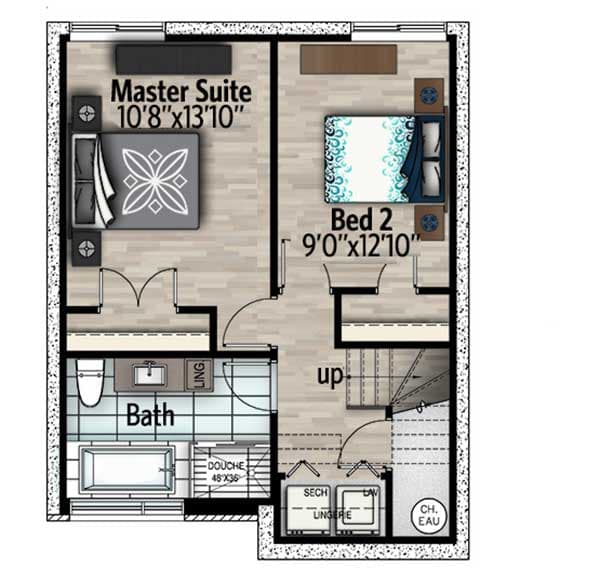

Lower level plan -- including floor above structure, concrete level and thickness, electrical layout

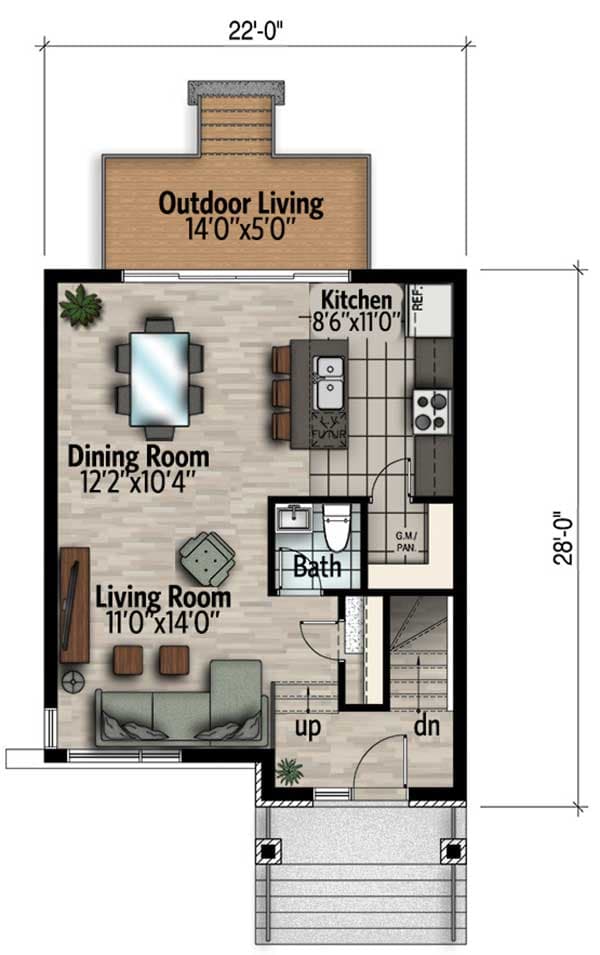

Main floor plan w/ structure for the roof above, electrical layout
Building section
Construction details
Suggested lighting plan

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Framing - layouts with beam sizes and locations
Energy calculations - handled locally when required
