Touched by Grandeur

Plan 59295ND

  • 2,942

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • As your guests enter this traditional home plan they are touched by the grandeur of the great room featuring a beautiful fireplace and french door entry to the rear-grilling porch.
  • The kitchen boasts an island cook top and snack bar, walk-in pantry and computer desk.
  • Eight-inch columns accentuate the formal living room.
  • As you ascend the grand stairway in the foyer, you are encompassed by convenience as you find all four bedrooms tucked privately away.
  • Take a long soak in the whirlpool tub as the children play in their own rooms or in the bonus room.
  • For a related shingled plan with a reverse layout, see 5984ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

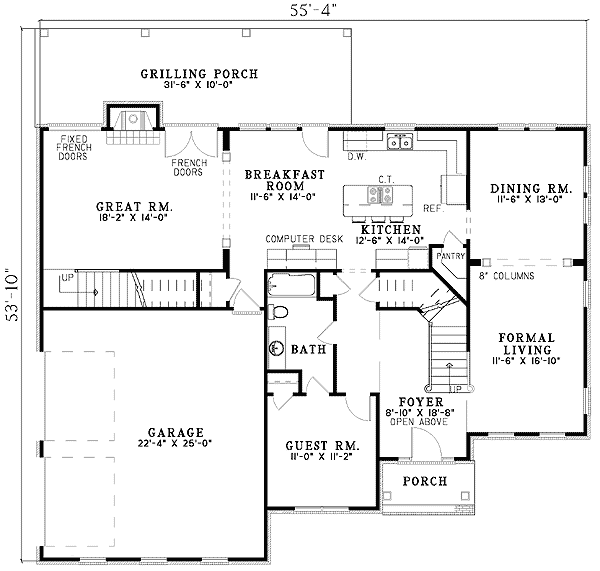

Touched by Grandeur - 59295ND floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

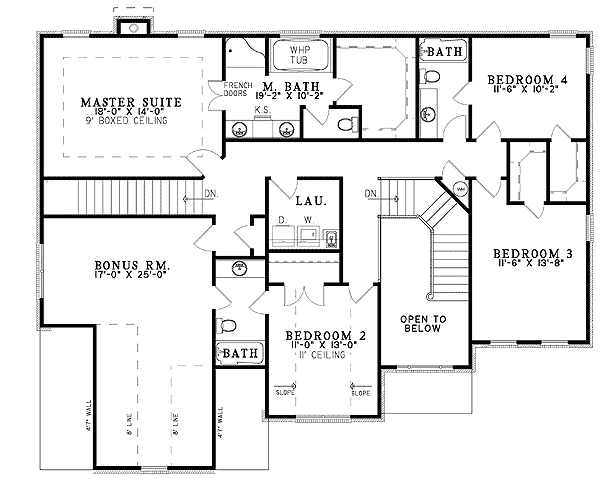

Touched by Grandeur - 59295ND floor plan - 2nd Floor

Touched by Grandeur

  • 2,942

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,942 sq. ft.
  • 1st Floor: 1,547 sq. ft.
  • 2nd Floor: 1,395 sq. ft.

Dimensions

  • Width: 55' 4"
  • Depth: 53' 10"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 575 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Stick
