Plan 5984ND
Spacious Shingle-Style Design
Heated S.F.
3,248
Beds
5
Baths
3
Stories
2
Cars
2
What's Included
Plan Details
  • This roomy shingled design offers lots of special features in a traditional package. Boxed ceilings crown the great room and the master bedroom, which accesses a luxurious bath with a whirlpool tub and a walk-in closet.
  • A guest room or teenager's room has direct access to the second full bath.
  • Fireplaces warm both the great room and hearth room. Well-placed between the formal dining room and the hearth room, the kitchen has easy access to a pantry under the stairs.
  • Upstairs, you find a bonus room with a window seat. Another window seat lies in the TV area at the top of the stairs. Three family bedrooms share a Jack-and-Jill bath.
  • For a related plan in brick with a reverse layout, see 59295ND.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Shingle-Style Design

  • 3,248

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

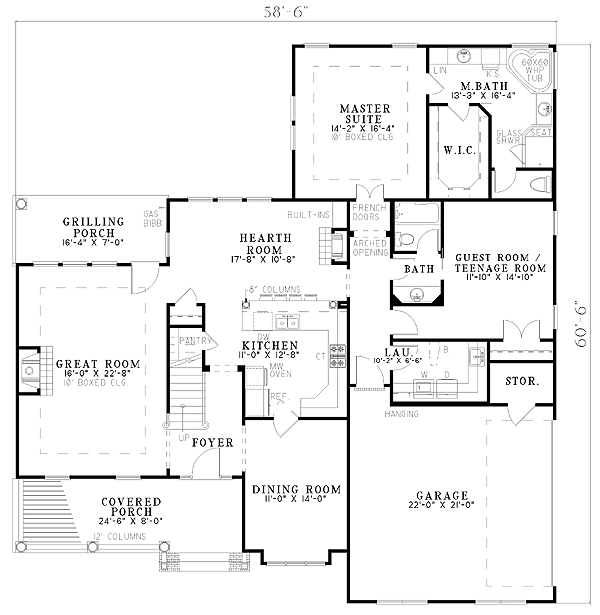

  • Main Level

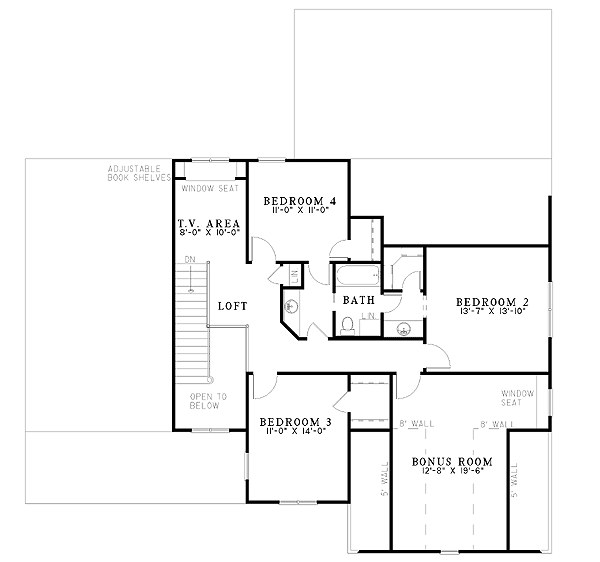

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,248 sq. ft.
  • 1st Floor: 2,021 sq. ft.
  • 2nd Floor: 1,227 sq. ft.

Dimensions

  • Width: 58' 6"
  • Depth: 60' 6"
  • Max ridge height: 32' 9"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 519 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
