Plan 72732DA

Townhouse Plan With Rear Garage

Heated S.F.
1,888
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 72732DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72732DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

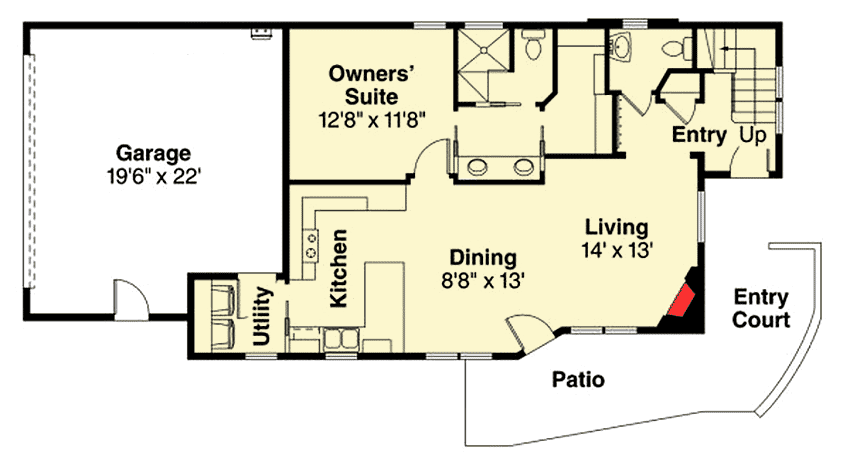

Plan 72732DA: Townhouse Plan With Rear Garage - Floor Plan - Main Level - Contemporary, Northwest

2nd Floor

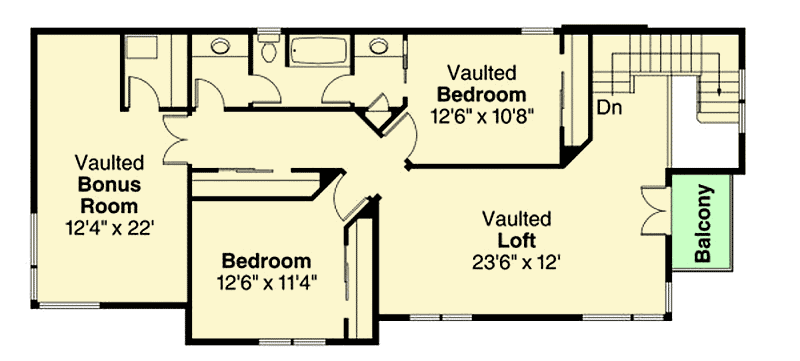

Plan 72732DA: Townhouse Plan With Rear Garage - Floor Plan - 2nd Floor - Contemporary, Northwest

Plan Details

  • This contemporary town home is eye-catching and spacious and great for a narrow lot. Natural light washes into the entry and stairwell through the striking stacked sets of tall slender windows that highlight one side of the front faзade. Just inside the front door, you pass that window-bright stairway plus a handy powder room and convenient coat closet before stepping into the expansive living room.
  • The inner half of the living/dining room has a standard-height ceiling, due to the vaulted second-story loft. The exterior-oriented half shares the loft's vaulted ceiling. Light spilling in through ground level and clerestory windows brightens the entire space. A mess-free gas fireplace nestles into one front corner.
  • The living room segues seamlessly into the dining area. The atrium door at the juncture of these two spaces makes it easy to move meals out onto the partially covered side patio. A flush eating bar rims the counter that bounds the kitchen. Laundry appliances are nearby, in a pass-through room that links with the two-car garage.
  • The owners' suite fills out the rest of the main floor. It boasts a walk-in shower, dual vanity and roomy walk-in closet. Two more bedrooms are upstairs. Each offers direct entry to the novel three-section bathroom -- toilet and tub are shared, but each bedroom has its own vanity. One of the bedrooms is vaulted, as is the large bonus room.
  • Double doors in the loft open onto a charming balcony.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

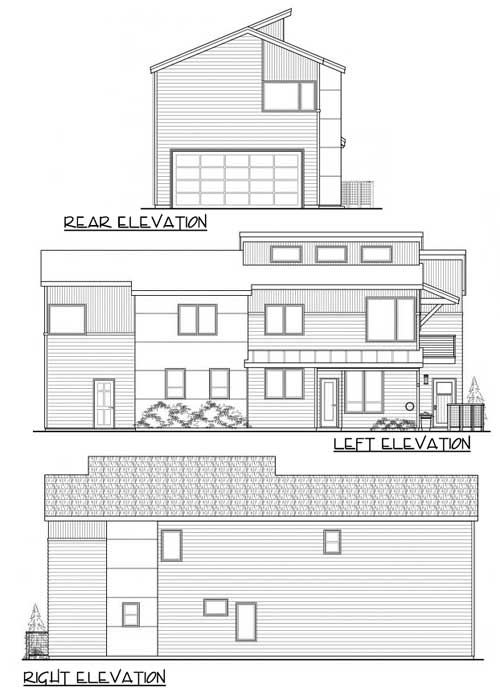

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,888 sq. ft.

1st Floor

941 sq. ft.

2nd Floor

941 sq. ft.

Bonus

303 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

58' 6"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

433 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

5 on 12

Architectural Style

Contemporary

Northwest

Special Features

Jack & Jill Bath

Loft

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,888 sq. ft.

1st Floor

941 sq. ft.

2nd Floor

941 sq. ft.

Bonus

303 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

58' 6"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

433 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

5 on 12

Architectural Style

Contemporary

Northwest

Special Features

Jack & Jill Bath

Loft

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Photo Gallery
