Plan 82327KA

Traditional 2-Story House Plan Under 3000 Square Feet with Loft and Main Level Master Suite

Heated S.F.
2,947
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 82327KA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 82327KA

M-F 9am-5pm EST |

1-203-761-8500

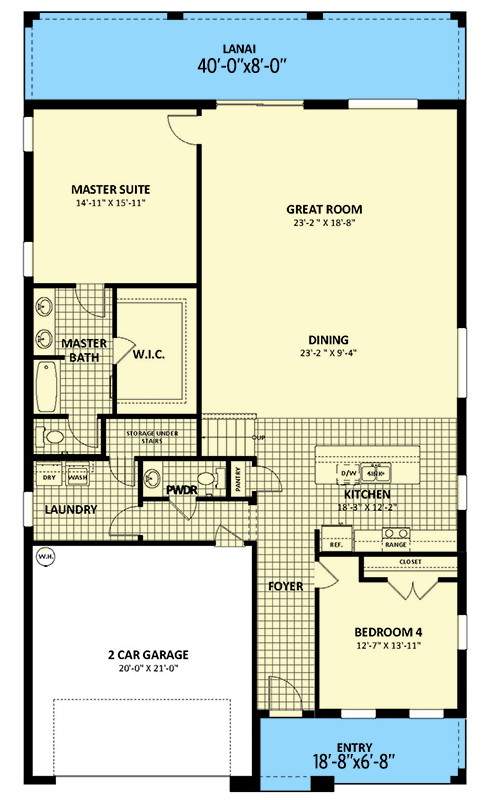

Main Level

Plan 82327KA: Traditional 2-Story House Plan Under 3000 Square Feet with Loft and Main Level Master Suite - Floor Plan - Main Level - European, Florida-Style, Traditional

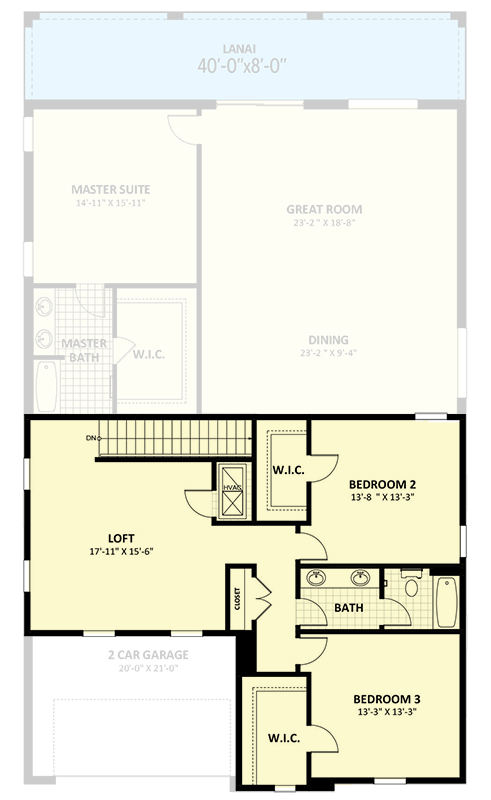

2nd Floor

Plan 82327KA: Traditional 2-Story House Plan Under 3000 Square Feet with Loft and Main Level Master Suite - Floor Plan - 2nd Floor - European, Florida-Style, Traditional

Plan Details

  • This Traditional 2-Story house plan, complete with stone accents, features 4 bedrooms and 2.5 baths for a total of 2,947 square feet.
  • The main level delivers an open kitchen, dining area, and great room with access to the 8'-deep lanai through glass sliders.
  • Lining the left side of the home, discover a spacious master suite that is paired with a walk-in closet and 4-fixture bathroom. A second bedroom near the foyer overlooks the front porch.
  • Enter from the double garage to find a convenient powder bath and laundry room with additional storage beneath the stairwell.
  • Upstairs, a loft offers a flexible space to enjoy and leads to bedrooms 2 and 3, separated by compartmentalized bath.
  • Related Plan: Find an alternate exterior with plan 82326KA.

What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

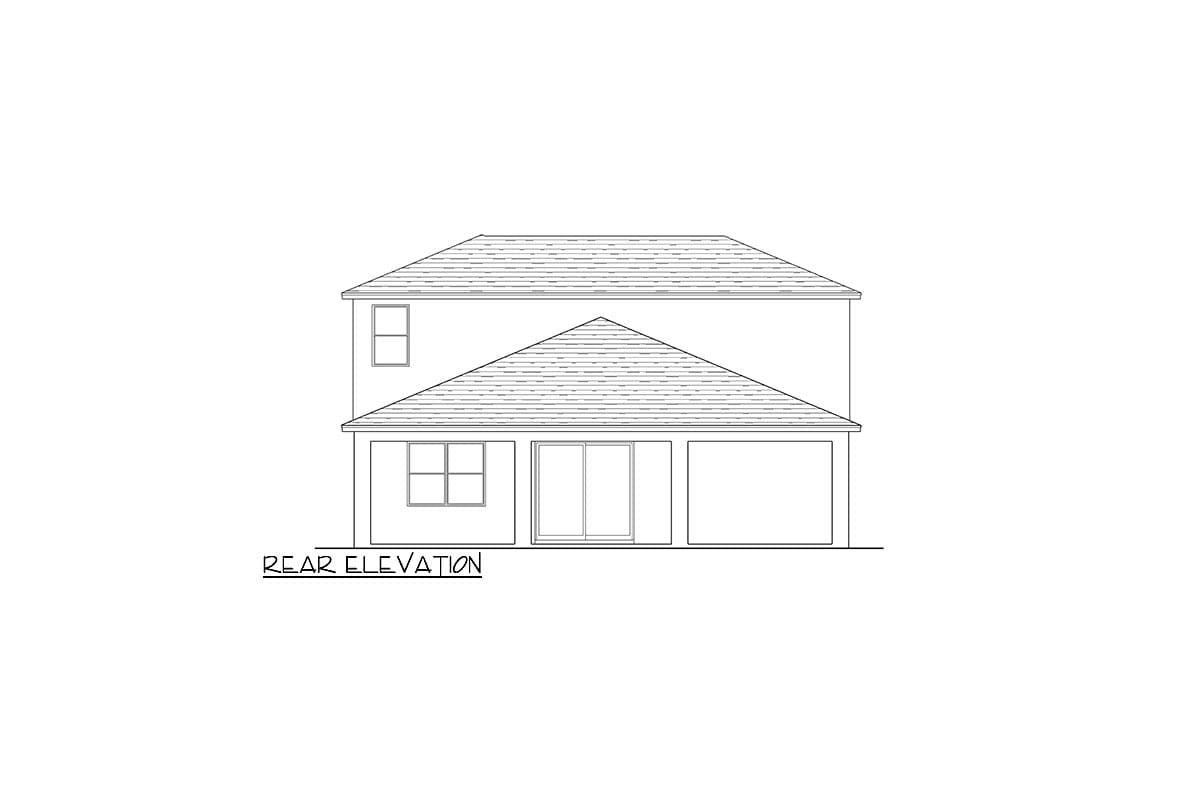

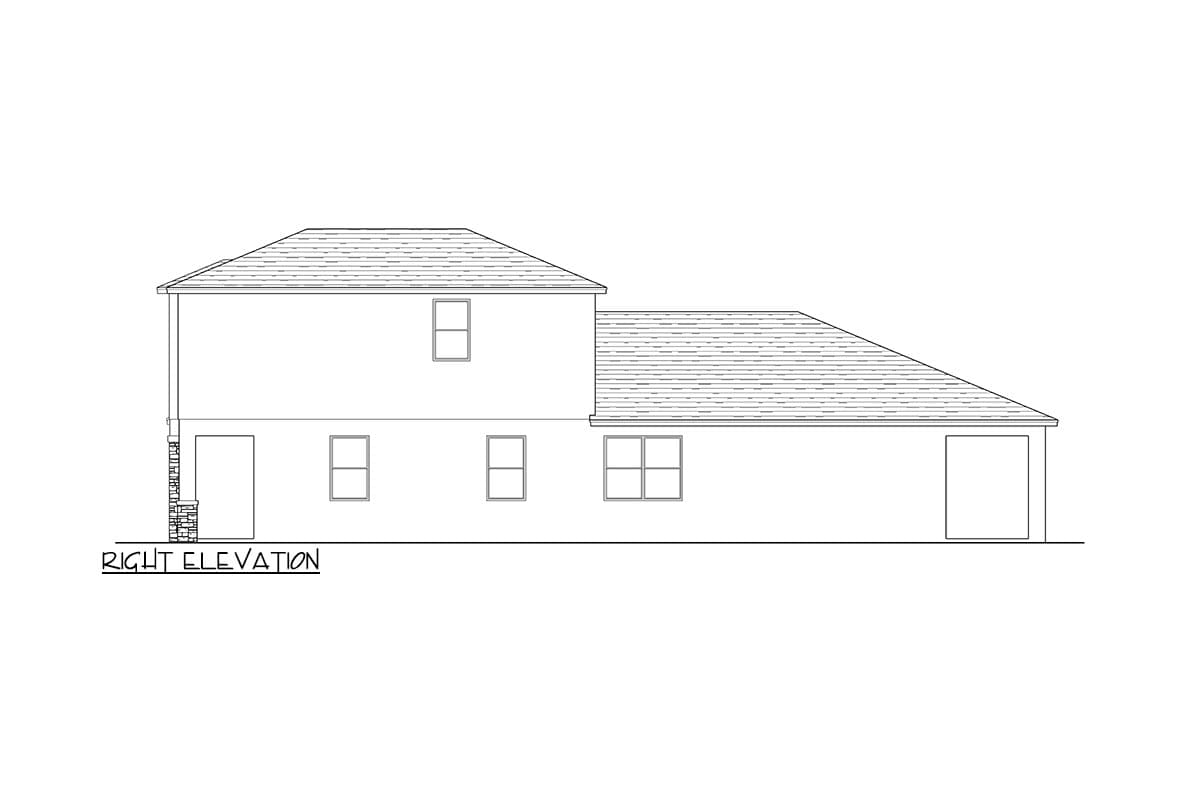

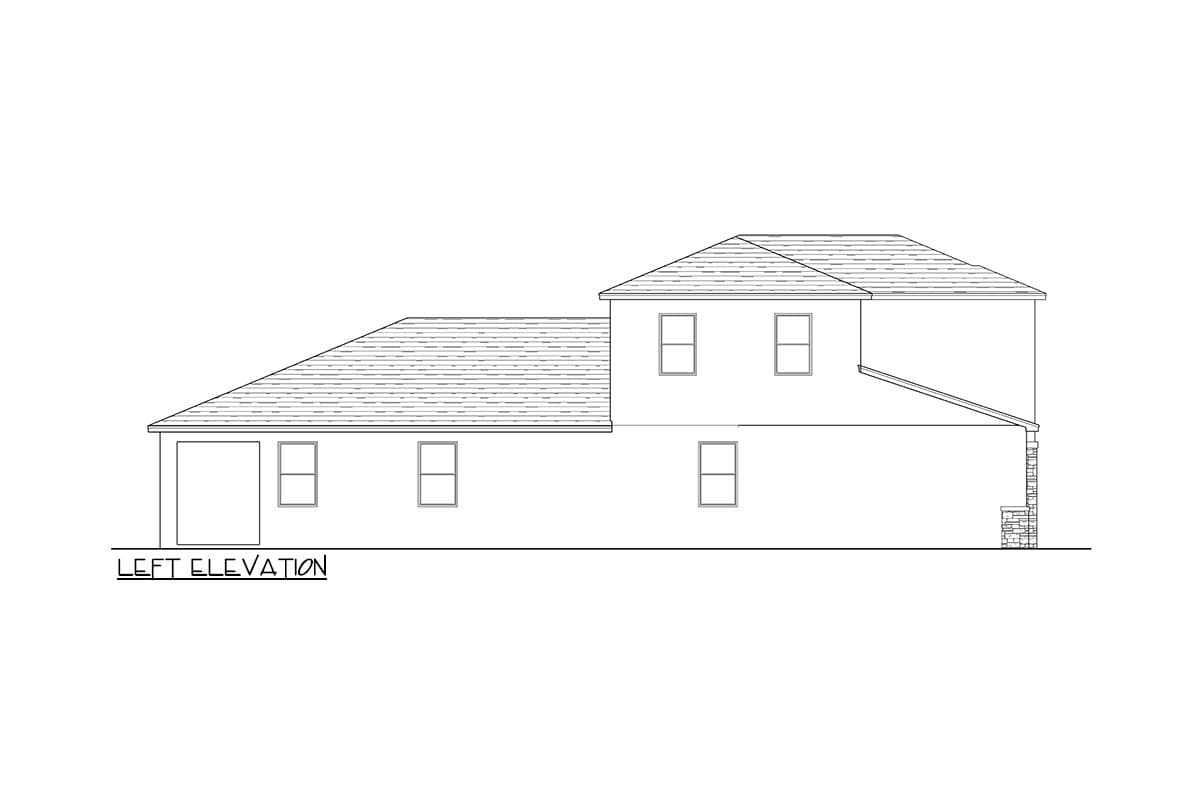

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,947 sq. ft.

1st Floor

1,916 sq. ft.

2nd Floor

1,031 sq. ft.

Porch, Front

118 sq. ft.

Porch, Rear

320 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

40' 0"

Depth

70' 8"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

452 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

European

Florida-Style

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,947 sq. ft.

1st Floor

1,916 sq. ft.

2nd Floor

1,031 sq. ft.

Porch, Front

118 sq. ft.

Porch, Rear

320 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

40' 0"

Depth

70' 8"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

452 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

European

Florida-Style

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
