Stucco-Clad House Plan Under 3000 Square Feet with First Floor Master Suite

Plan 82326KA

  • 2,947

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 4-bedroom house plan, complete with a stucco exterior, features 4 bedrooms and 2.5 baths.
  • The main level delivers an open kitchen, dining area, and great room with access to the 8'-deep lanai through glass sliders.
  • Lining the left side of the home, discover a spacious master suite that is paired with a walk-in closet and 4-fixture bathroom. A second bedroom near the foyer overlooks the front porch.
  • Enter from the double garage to find a convenient powder bath and laundry room with additional storage beneath the stairwell.
  • Upstairs, a loft offers a flexible space to enjoy and leads to bedrooms 2 and 3, separated by compartmentalized bath.
  • Related Plan: Get an alternate exterior with house plan 82327KA.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

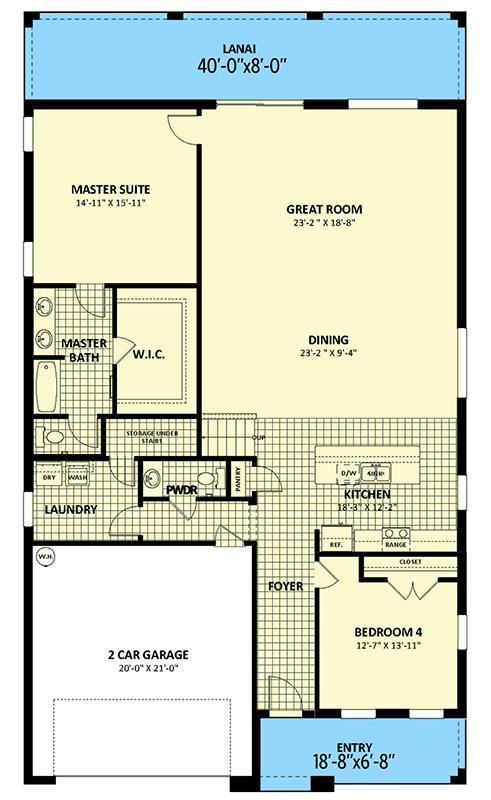

Stucco-Clad House Plan Under 3000 Square Feet with First Floor Master Suite - 82326KA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

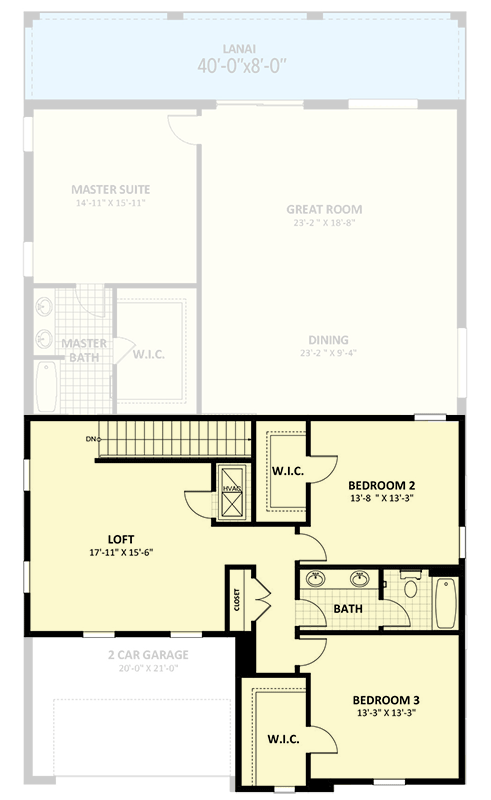

Stucco-Clad House Plan Under 3000 Square Feet with First Floor Master Suite - 82326KA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,947 sq. ft.
  • 1st Floor: 1,916 sq. ft.
  • 2nd Floor: 1,031 sq. ft.
  • Porch, Rear: 320 sq. ft.
  • Porch, Front: 118 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 40' 0"
  • Depth: 70' 8"
  • Max ridge height: 24' 9"

Garage

  • Type: Attached
  • Area: 452 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features
