Plan 61241UT
Traditional 5 Bed Home Plan with RV Garage and Possible Lower Level ADU Apartment
Heated S.F.
2,967
Beds
5-8
Baths
3.5 - 4.5
Stories
2
Cars
3
What's Included
Plan Details
  • This Traditional home plan comes with a two-car garage plus an extra deep drive-through RV garage.
  • The 4'11"-deep front covered porch welcomes you to the home and has room for some rocking chairs.
  • To the left of the foyer, a large den could be used as a home office if you closed off the access to the kitchen,. To the right, a living room gives you a private place to enjoy
  • Both the kitchen and dining room are open concept so you can see straight down to the family room fireplace from the kitchen.
  • All five bedrooms are upstairs along with a nice size loft and a handy second floor laundry room.
  • The optional finished lower level comes with the plans and has access from inside and outside. With a kitchen, family room and three bedrooms, it makes a great ADU rental apartment.

What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

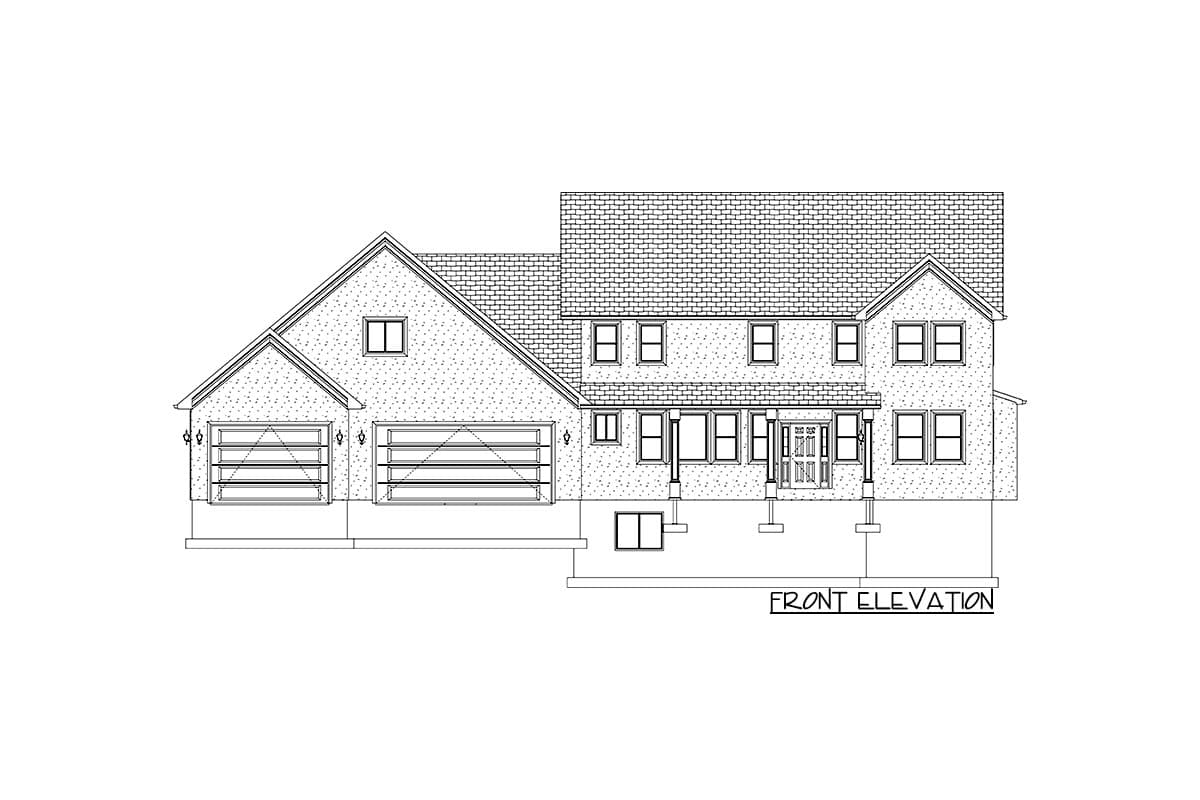

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional 5 Bed Home Plan with RV Garage and Possible Lower Level ADU Apartment

  • 2,967

    Heated s.f.

  • 5-8

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

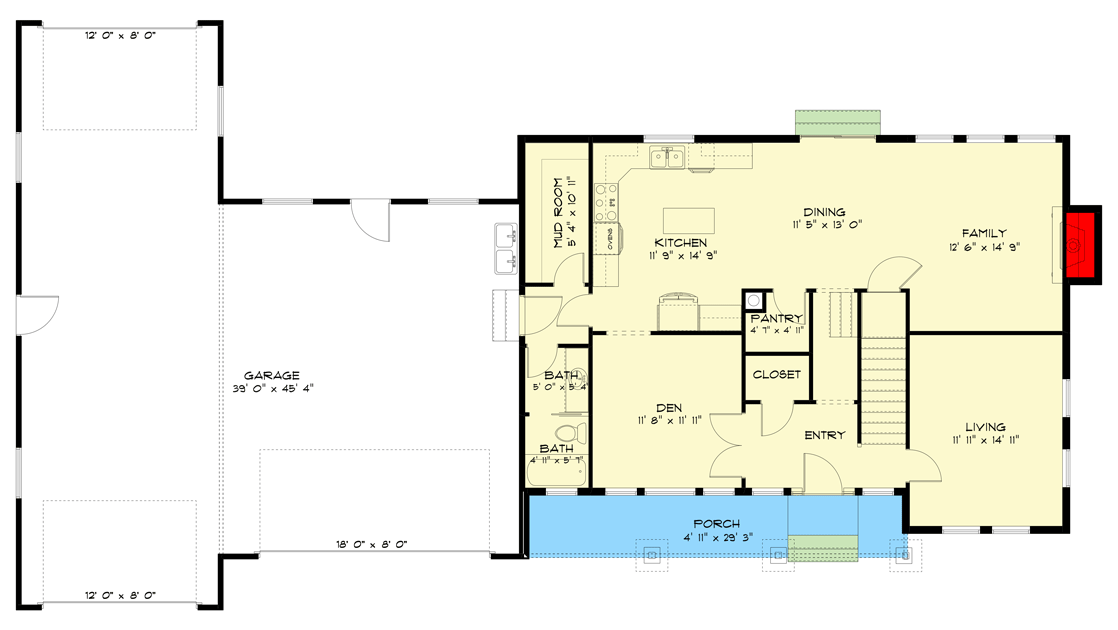

  • Main Level

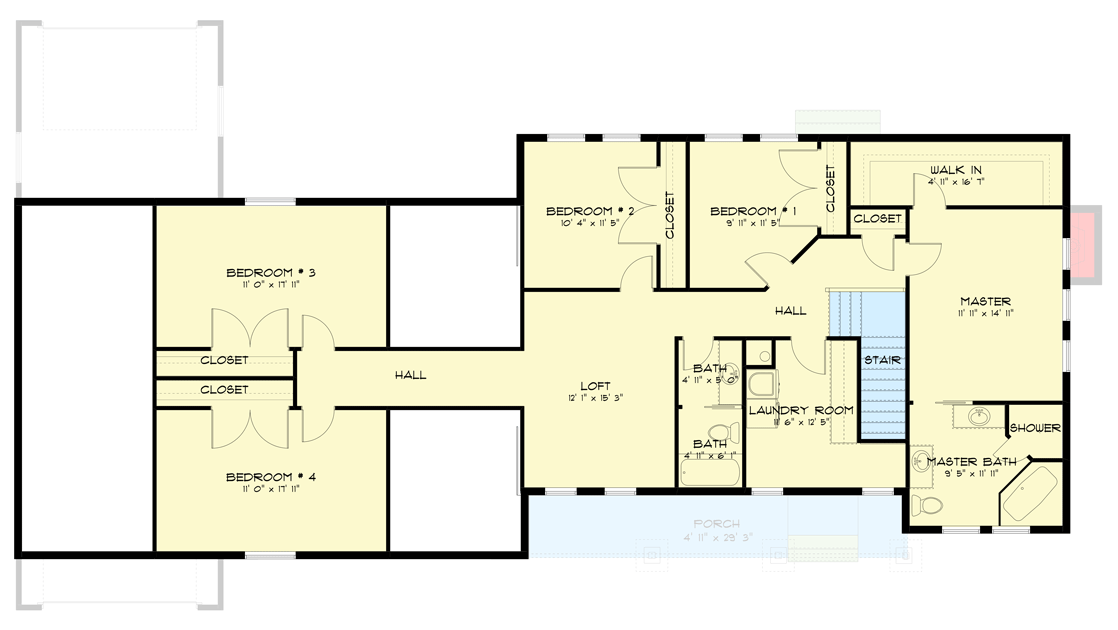

  • 2nd Floor

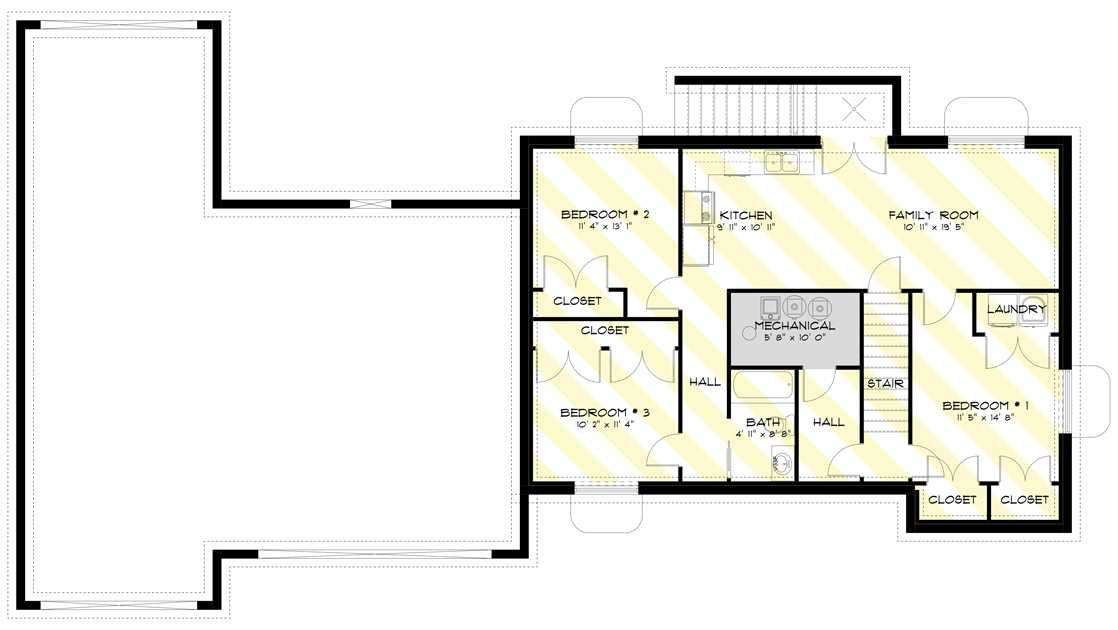

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,967 sq. ft.
  • 1st Floor: 1,276 sq. ft.
  • 2nd Floor: 1,691 sq. ft.

Dimensions

  • Width: 82' 5"
  • Depth: 46' 0"
  • Max ridge height: 31' 8"

Beds/Baths

  • Bedrooms: 5, 6, 7, or 8
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: RV Garage, Attached
  • Area: 1415 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear, Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Stem Wall, Monolithic Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
