Plan 61227UT Traditional Carriage House with Oversized Garage and 2-Bed Apartment

1,096 2 2 2 6
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Traditional Carriage House with Oversized Garage and 2-Bed Apartment

Plan 61227UT

  • 1,096

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • 6

    Cars

  • Enjoy the oversized garage on the lower level of this traditional carriage house plan, complete with three, 12' by 8' overhead garage doors and a dedicated storage room.
  • A tall vaulted ceiling tops the rear portion of the garage, creating an open and airy space for vehicles, lawn supplies, or a workshop.
  • Upstairs, a large wraparound deck grants access to the great room, where you'll find a corner kitchenette and a forward-facing wall full of windows.
  • The bedrooms are identical in size and separated by a full bathroom with a laundry closet.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

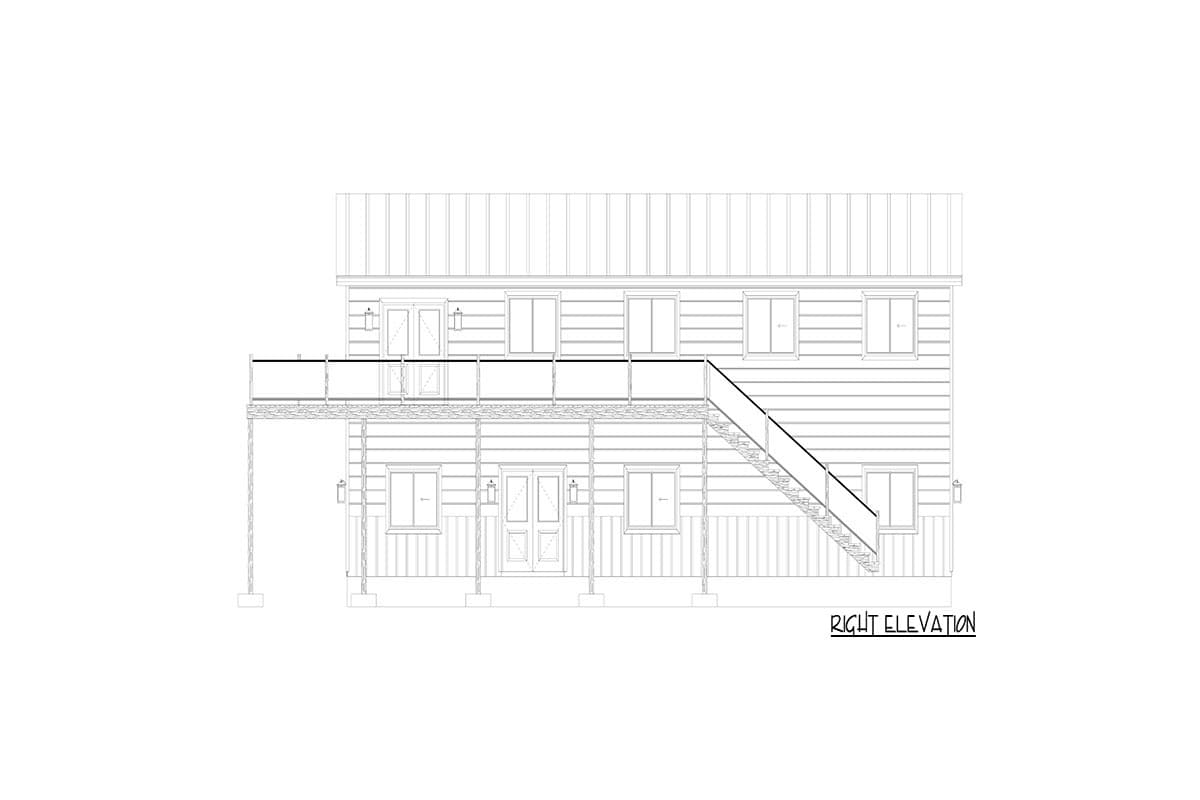

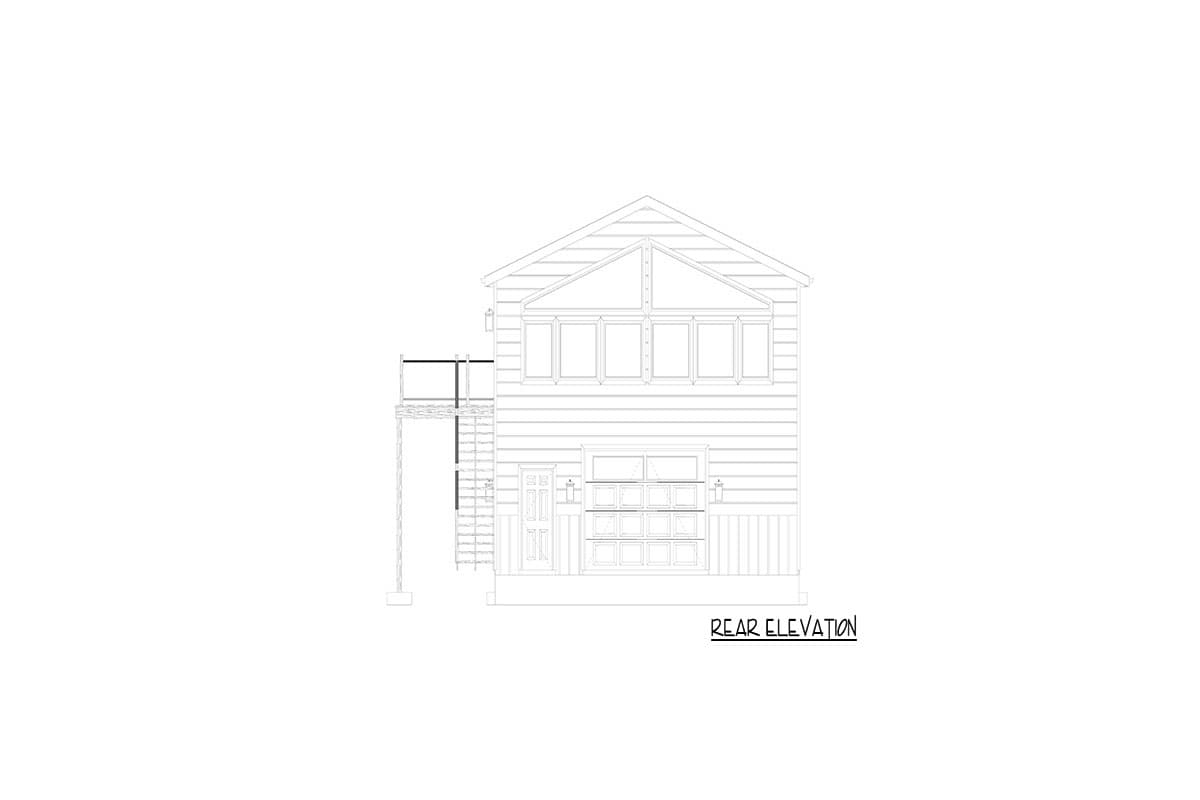

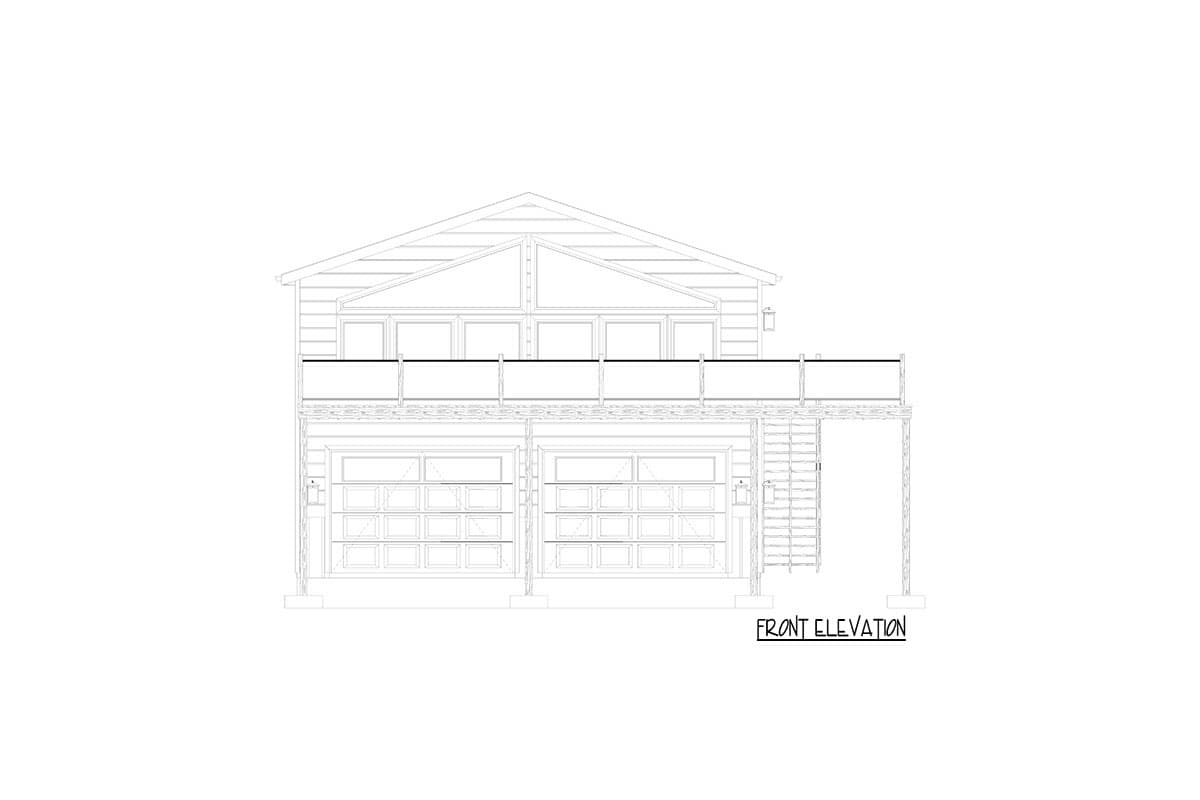

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

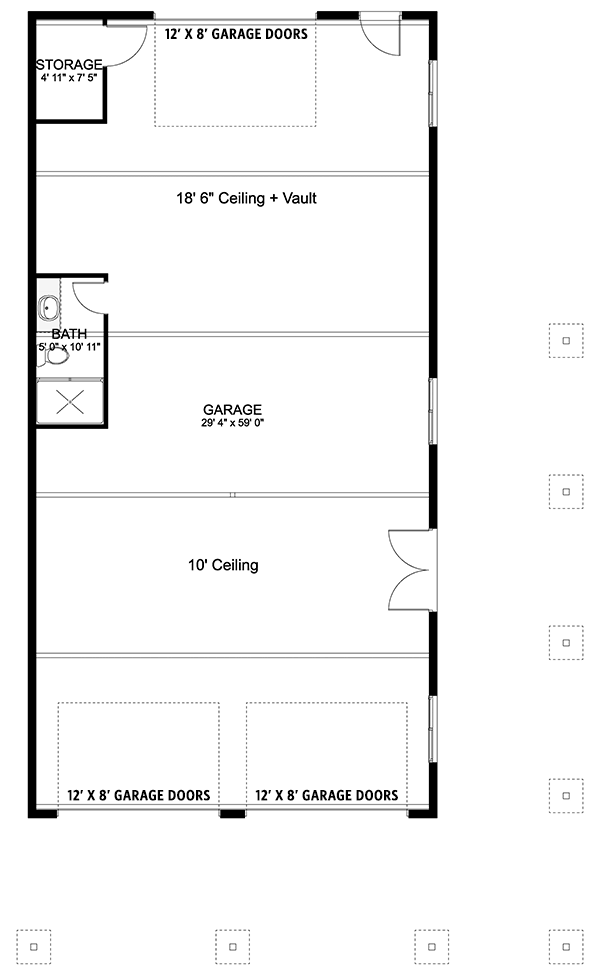

Traditional Carriage House with Oversized Garage and 2-Bed Apartment - 61227UT floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

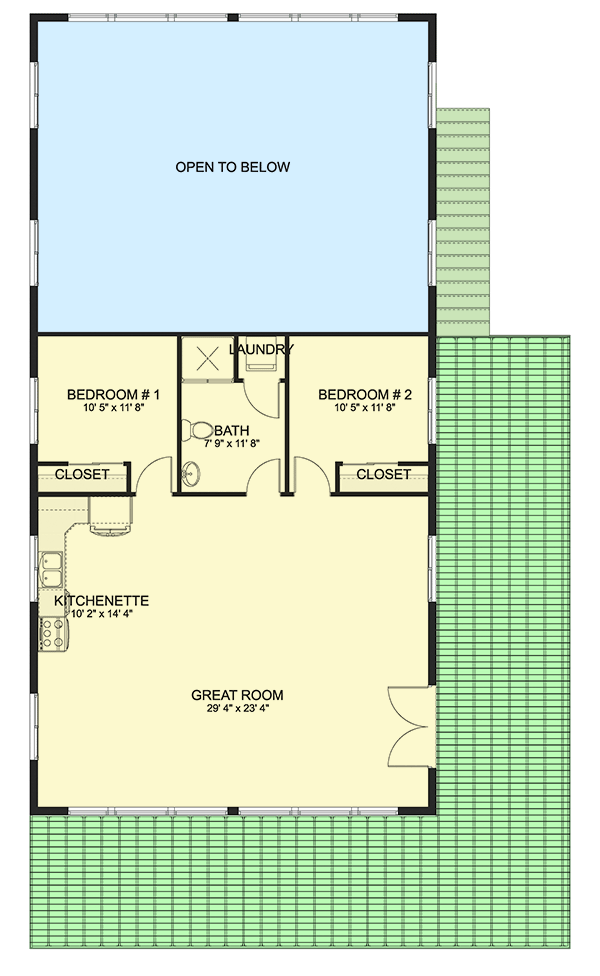

Traditional Carriage House with Oversized Garage and 2-Bed Apartment - 61227UT floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,096 sq. ft.
  • 2nd Floor: 1,096 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 4"
  • Depth: 60' 0"
  • Max ridge height: 25' 2"

Garage

  • Type: Detached
  • Area: 1819 sq. ft.
  • Count: 6 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 6"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Traditional Carriage House with Oversized Garage and 2-Bed Apartment

  • 1,096

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

  • 6

    Car garage

Buy This Plan
  • PDF - Single-Build $700
  • PDF - Unlimited Build $825
  • 5 Sets + PDF $1,025
  • CAD - Single-Build $1,150
  • CAD Unlimited + PDF $1,275
  • View all purchase option online

About This Plan

  • Enjoy the oversized garage on the lower level of this traditional carriage house plan, complete with three, 12' by 8' overhead garage doors and a dedicated storage room.
  • A tall vaulted ceiling tops the rear portion of the garage, creating an open and airy space for vehicles, lawn supplies, or a workshop.
  • Upstairs, a large wraparound deck grants access to the great room, where you'll find a corner kitchenette and a forward-facing wall full of windows.
  • The bedrooms are identical in size and separated by a full bathroom with a laundry closet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,096 sq. ft.
  • 2nd Floor: 1,096 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 4"
  • Depth: 60' 0"
  • Max ridge height: 25' 2"

Garage

  • Type: Detached
  • Area: 1819 sq. ft.
  • Count: 6 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 6"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
