Traditional Craftsman-Style Duplex with Matching 3-Bed Units - 1478 Sq Ft Per Unit

Heated S.F.
2,956
Units
2
Width
Depth

Floor Plan

Plan 67836MG

Main Level
Main Level
2nd Floor
2nd Floor

Plan 67836MG

M-F 9am-5pm EST |

1-203-761-8500

Main Level

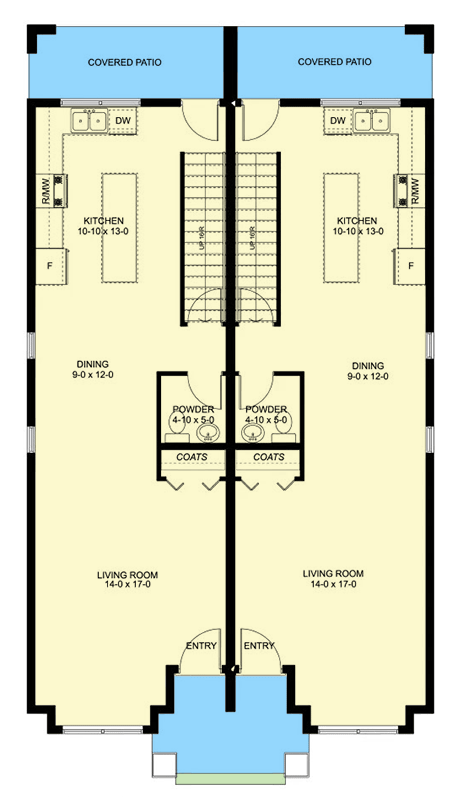

Plan 67836MG: Traditional Craftsman-Style Duplex with Matching 3-Bed Units - 1478 Sq Ft Per Unit - Floor Plan - Main Level - Craftsman, Traditional

2nd Floor

Plan 67836MG: Traditional Craftsman-Style Duplex with Matching 3-Bed Units - 1478 Sq Ft Per Unit - Floor Plan - 2nd Floor - Craftsman, Traditional

Plan Details

  • This Craftsman-style duplex offers a master bedroom with an en suite and walk-in closet, plus two additional bedrooms and a full bathroom.
  • The open main floor includes a powder room and covered rear patio.
  • With a foundation width of 30', this plan suits most narrow lots. Each unit has 1,478 sq. ft. of living space—683 sq. ft. on the main floor and 795 sq. ft. on the second floor.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,478Sq. Ft.
683 Sq. Ft. 1st
795 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
15'width
55' 6"depth
24' 8"height
Unfinished Areas
79 Sq. Ft. Porch, Front
82 Sq. Ft. Covered Patio
Unit B
Heated Area
1,478Sq. Ft.
683 Sq. Ft. 1st
795 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
15'width
55' 6"depth
24' 8"height
Unfinished Areas
79 Sq. Ft. Porch, Front
82 Sq. Ft. Covered Patio

What's Included

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans
  • Elevations
  • Cross section
  • Wall details, etc.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.
