Plan 333026JHB

Traditional Detached Garage Plan with Second-Level Living Space - 713 Sq Ft

Heated S.F.
713
Beds
1
Baths
1
Stories
2
Cars
2- 3

Floor Plan

Plan 333026JHB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 333026JHB

M-F 9am-5pm EST |

1-203-761-8500

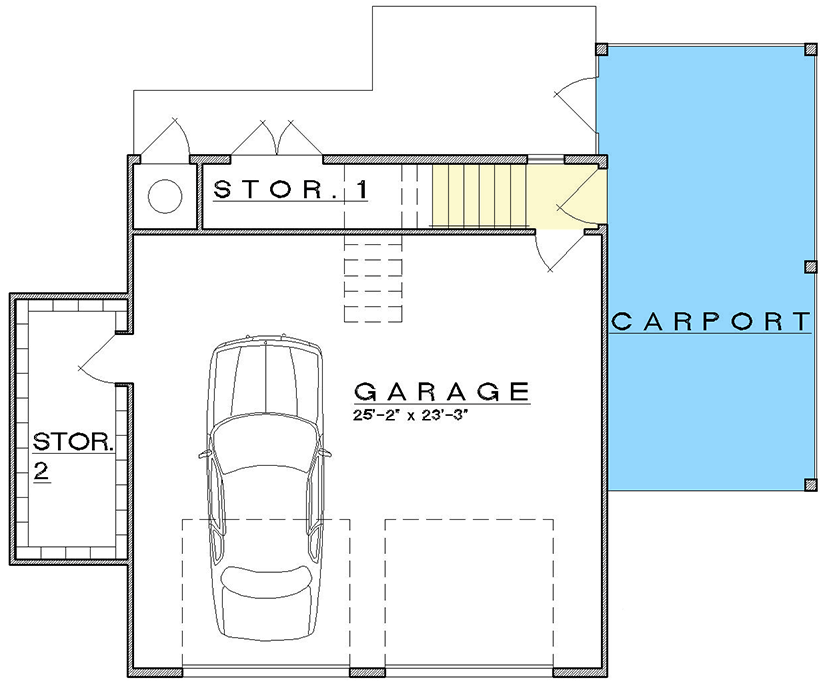

Main Level

Plan 333026JHB: Traditional Detached Garage Plan with Second-Level Living Space - 713 Sq Ft - Floor Plan - Main Level - Carriage, Farmhouse, Traditional

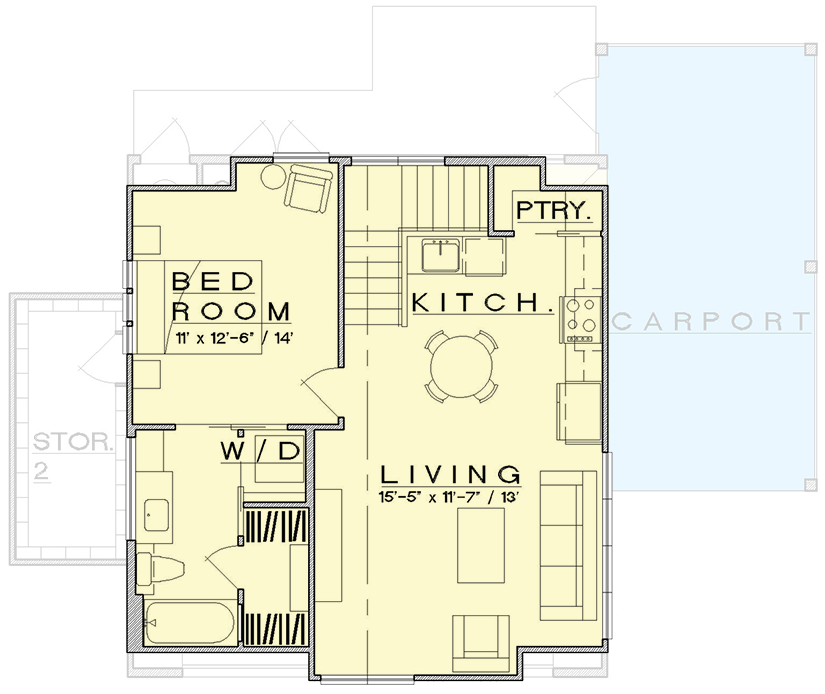

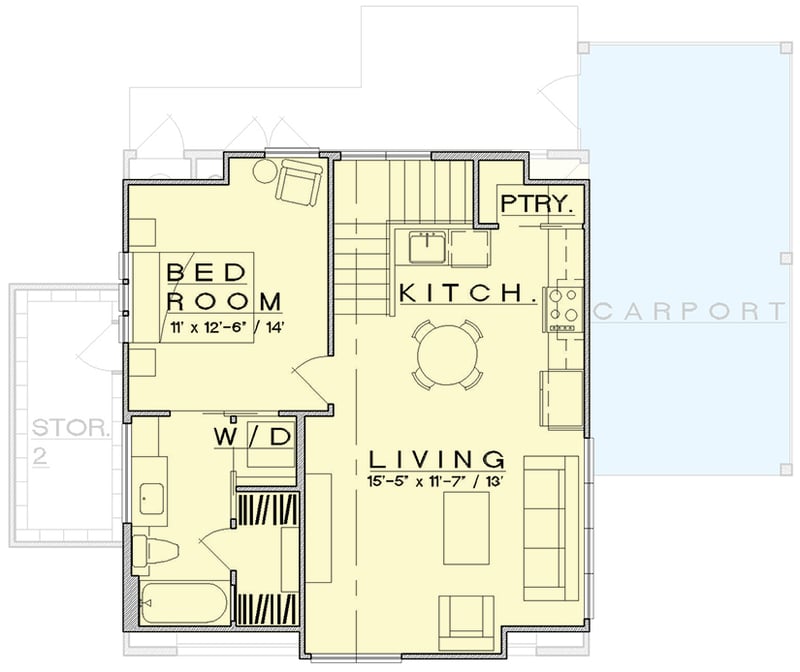

2nd Floor

Plan 333026JHB: Traditional Detached Garage Plan with Second-Level Living Space - 713 Sq Ft - Floor Plan - 2nd Floor - Carriage, Farmhouse, Traditional

Plan Details

  • This traditional garage house plan offers you 713 square feet of heated living space with 1 beds and 1 bath on the second level and a 753 square foot, 2-car garage bay.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover page with legends & notes
  • Foundation details
  • Floor plan(s) [depending on whether it’s 1 or 2 stories]
  • Dimension plan(s)
  • Front view
  • Right view
  • Left view
  • Rear view
  • Building section(s)
  • Wall section
  • Interior views
  • Electrical plan(s)
  • Roof layout plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

713 sq. ft.

1st Floor

60 sq. ft.

2nd Floor

653 sq. ft.

Carport

274 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

43' 4"

Depth

34' 0"

Max Ridge Height

29' 3"

Garage

Type

Detached, Carport

Area

753 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Carriage

Farmhouse

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - Upstairs

Safe Room

Walk-in Pantry

Plan Collections

ADU

Attached Apartments

Square Footage Breakdown

Total Heated Area

713 sq. ft.

1st Floor

60 sq. ft.

2nd Floor

653 sq. ft.

Carport

274 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

43' 4"

Depth

34' 0"

Max Ridge Height

29' 3"

Garage

Type

Detached, Carport

Area

753 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Carriage

Farmhouse

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - Upstairs

Safe Room

Walk-in Pantry

Plan Collections

ADU

Attached Apartments
