Traditional Duplex House Plan with 8 Beds and Flexible Living

Heated S.F.
3,264
Units
2
Width
Depth

Floor Plan

Plan 52511WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52511WM

M-F 9am-5pm EST |

1-203-761-8500

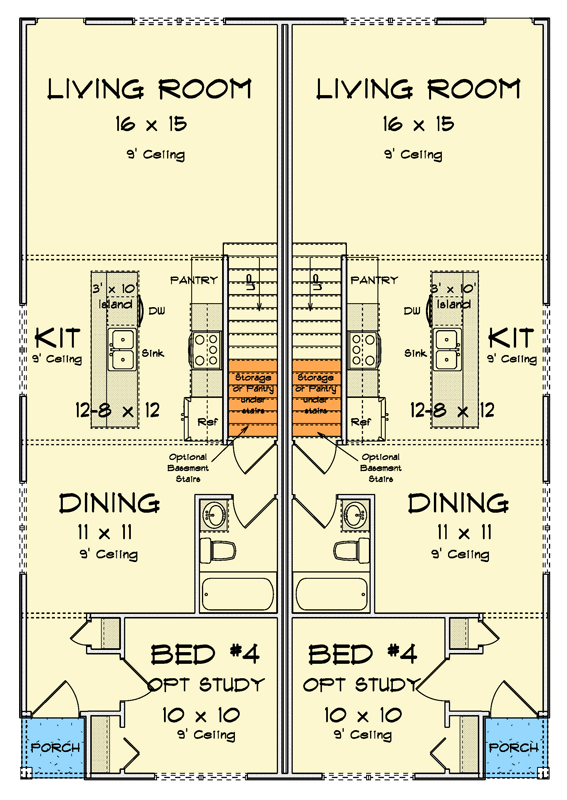

Main Level

Plan 52511WM: Traditional Duplex House Plan with 8 Beds and Flexible Living - Floor Plan - Main Level - Traditional

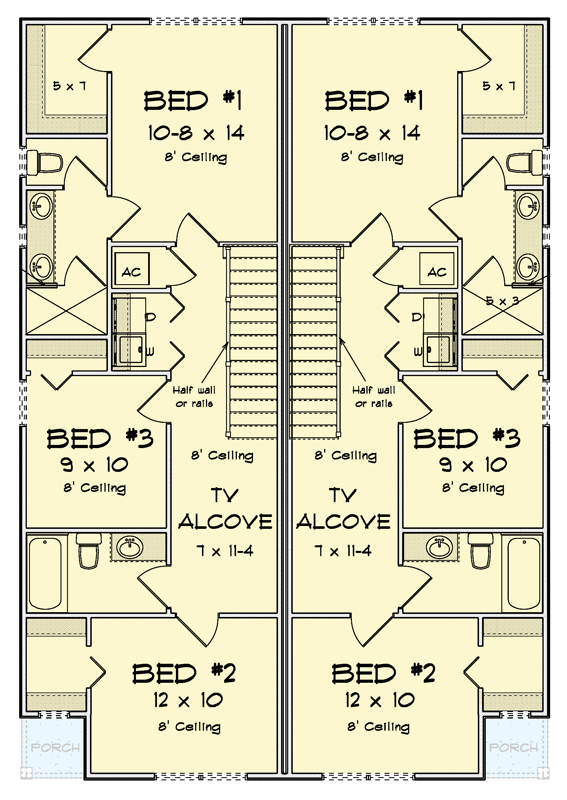

2nd Floor

Plan 52511WM: Traditional Duplex House Plan with 8 Beds and Flexible Living - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This expansive traditional duplex house plan provides a generous 3,264 square feet of heated living space, encompassing two identical units, each featuring 4 bedrooms and 3 full baths, all presented with a timeless traditional exterior.
  • Upon entering each unit, residents are welcomed into a thoughtfully designed ground floor featuring high 9-foot ceilings and flexible spaces that can adapt as a private library, a quiet study, or a versatile flex room, ensuring immediate functionality.
  • The main living areas on the ground floor are designed for effortless flow, with an inviting breakfast nook perfect for morning coffee, seamlessly connecting to the kitchen and dining spaces, fostering a comfortable and cohesive common area.
  • Each unit boasts a private master suite located upstairs for ultimate tranquility, complemented by strategically split secondary bedrooms that ensure privacy, all conveniently situated near an upstairs laundry room for practical living.
  • An adaptable loft space on the second floor within each unit offers additional square footage, perfect for a media room, a creative studio, or a casual lounge area.
  • Each unit is enhanced by a welcoming covered front porch, providing a charming spot to enjoy the neighborhood ambiance or a quiet moment outdoors.
Unit A
Heated Area
1,632Sq. Ft.
816 Sq. Ft. 1st
816 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
Dimensions
17'width
24'depth
13'height
Unfinished Areas
8 Sq. Ft. Porch, Front
Unit B
Heated Area
1,632Sq. Ft.
1632 Sq. Ft. 1st
1632 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
Dimensions
17'width
24'depth
13'height
Unfinished Areas
8 Sq. Ft. Porch, Front

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,264 sq. ft.

1st Floor

1,632 sq. ft.

2nd Floor

1,632 sq. ft.

Porch, Front

17 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

34' 0"

Depth

49' 0"

Max Ridge Height

27' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Laundry - Upstairs

Library/Study

Loft

Master Suite - Upstairs

Square Footage Breakdown
