Plan 62490DJ

Traditional Five Bedroom House Plan with Three Car Garage

Heated S.F.
3,493
Beds
5
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 62490DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 62490DJ

M-F 9am-5pm EST |

1-203-761-8500

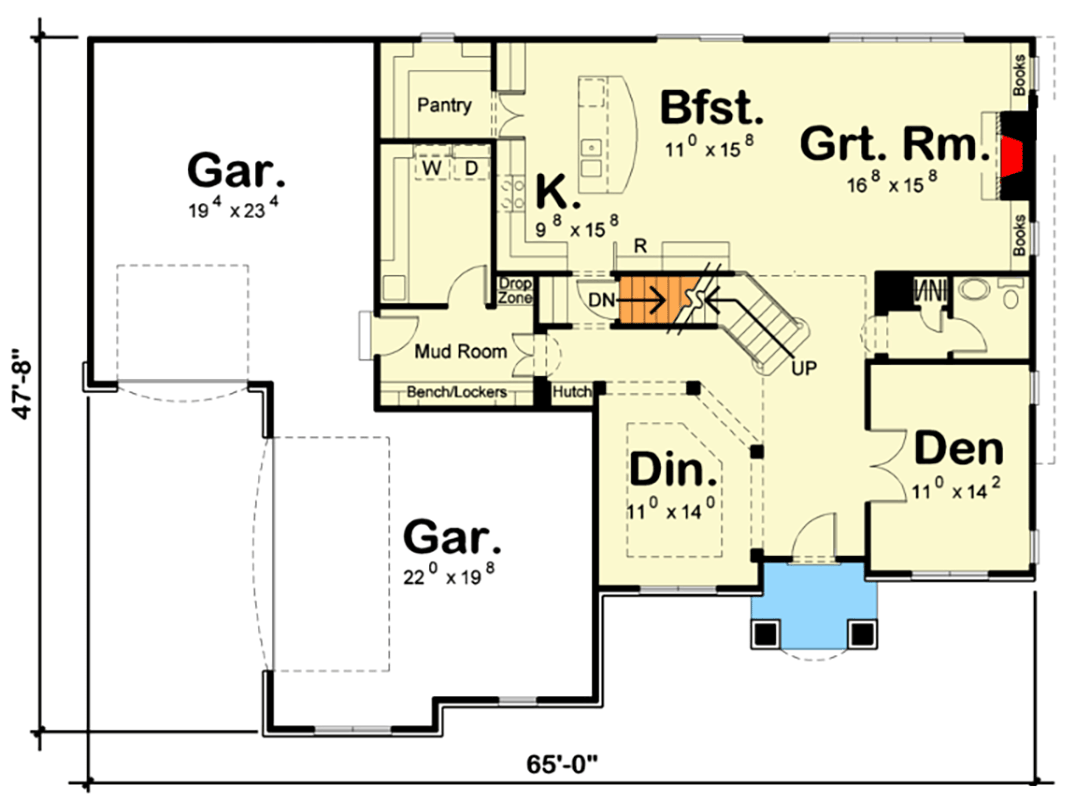

Main Level

Plan 62490DJ: Traditional Five Bedroom House Plan with Three Car Garage - Floor Plan - Main Level - Traditional

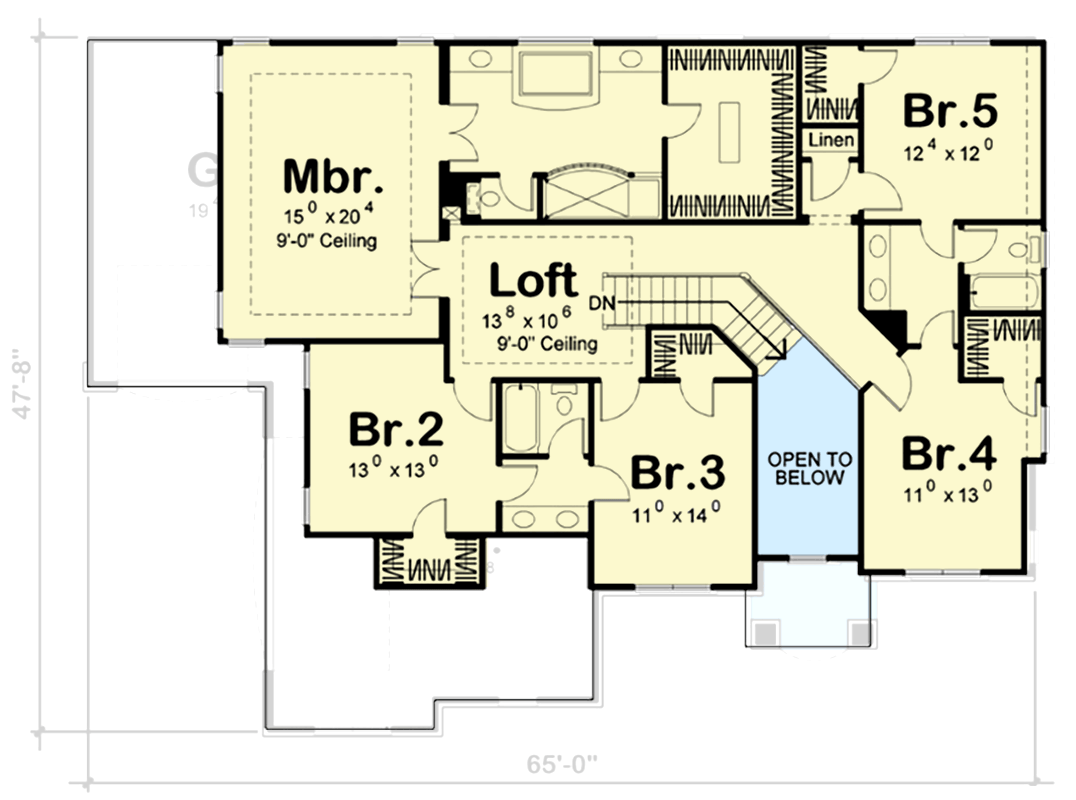

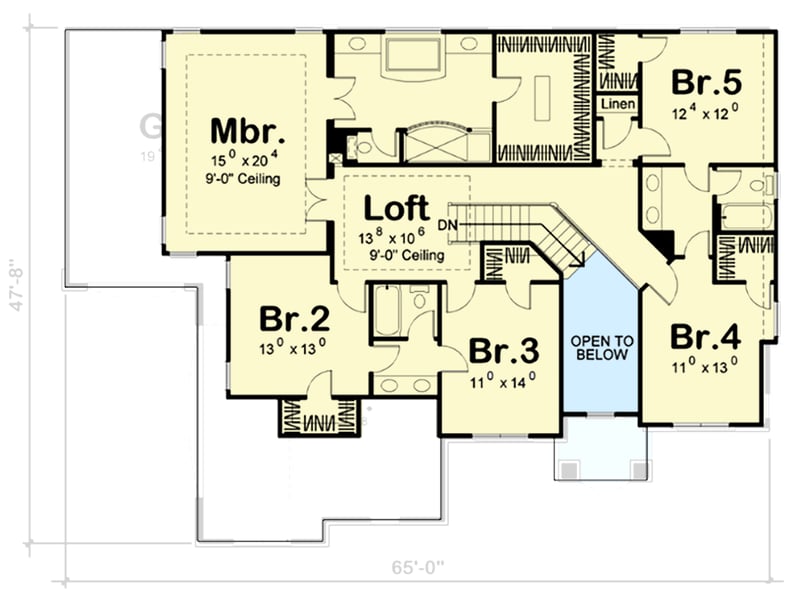

2nd Floor

Plan 62490DJ: Traditional Five Bedroom House Plan with Three Car Garage - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This stately traditional home offers 3,493 square feet of living space, featuring five bedrooms, two full baths, one half bath, and a spacious 919 square foot three-car garage.
  • The elegant exterior combines classic brickwork and siding, creating a welcoming facade that leads into a thoughtfully designed interior layout.
  • Inside, the main level provides a seamless transition between a formal dining area, a dedicated home office, and a bright breakfast nook adjacent to the kitchen.
  • A convenient mudroom and walk-in pantry simplify daily routines, while the kitchen serves as the heart of the home for gathering and meal preparation.
  • Upstairs, the expansive primary suite provides a peaceful retreat, accompanied by four additional bedrooms that share access to a functional Jack and Jill bathroom.
  • A versatile loft space on the second floor offers extra room for a play area, study, or media lounge, ensuring comfort for the entire family.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.

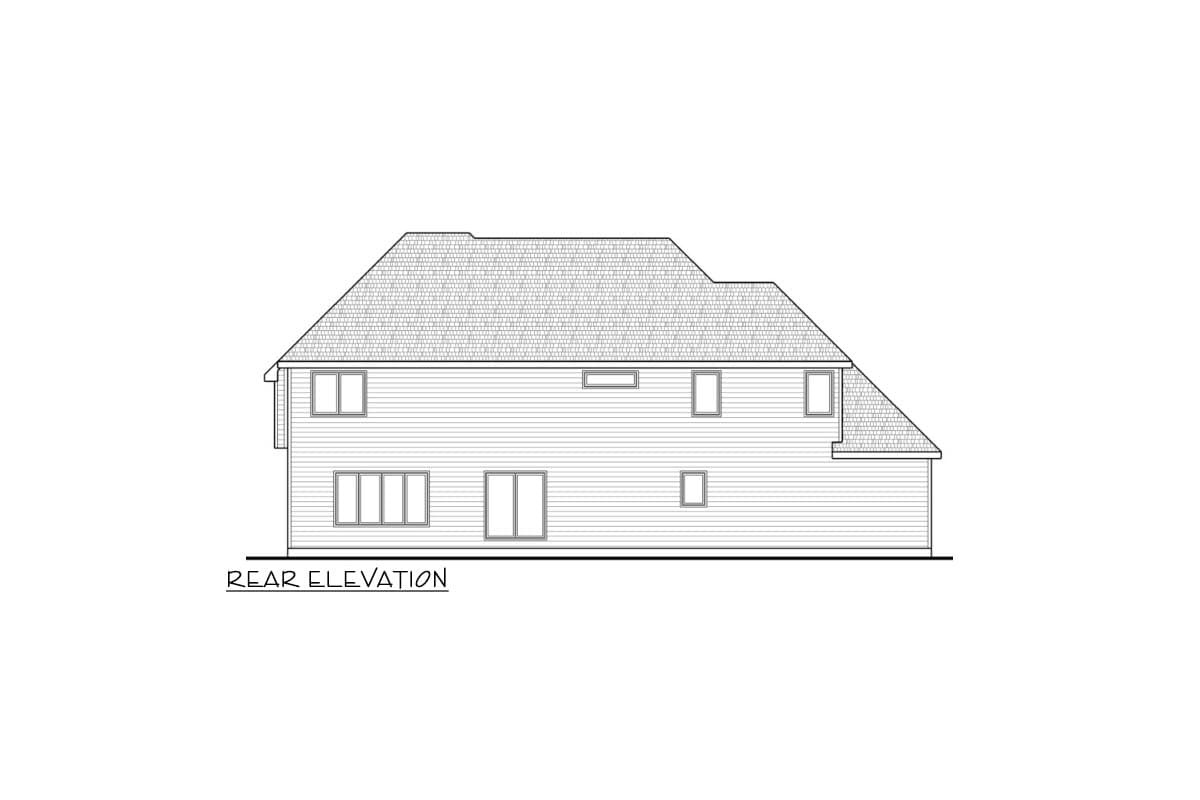

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,493 sq. ft.

1st Floor

1,497 sq. ft.

2nd Floor

1,996 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

48' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached, Standard

Area

919 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,493 sq. ft.

1st Floor

1,497 sq. ft.

2nd Floor

1,996 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

48' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached, Standard

Area

919 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry
