Plan 81666AB
Traditional House Plan with Bonus Room
Heated S.F.
2,804
Beds
3-5
Baths
2.5 - 4.5
Stories
2
Cars
3
What's Included
Plan Details
  • A staggered three car garage with a bonus room above creates an interesting exterior for this Traditional house plan.
  • Note that the third garage bay can be entered from front or back.
  • The two-story foyer makes a great first impression as you walk into the home.
  • With an open floor plan, you can see all the way from the great room to the spacious kitchen with its huge 15' island that faces the dining area and covered deck.
  • A landing on the way to the second floor directs you to either the bonus room over the garage or three steps up to the bedroom level.
  • The second floor laundry room is a handy addition to this home.
What's Included
Plans include the following:

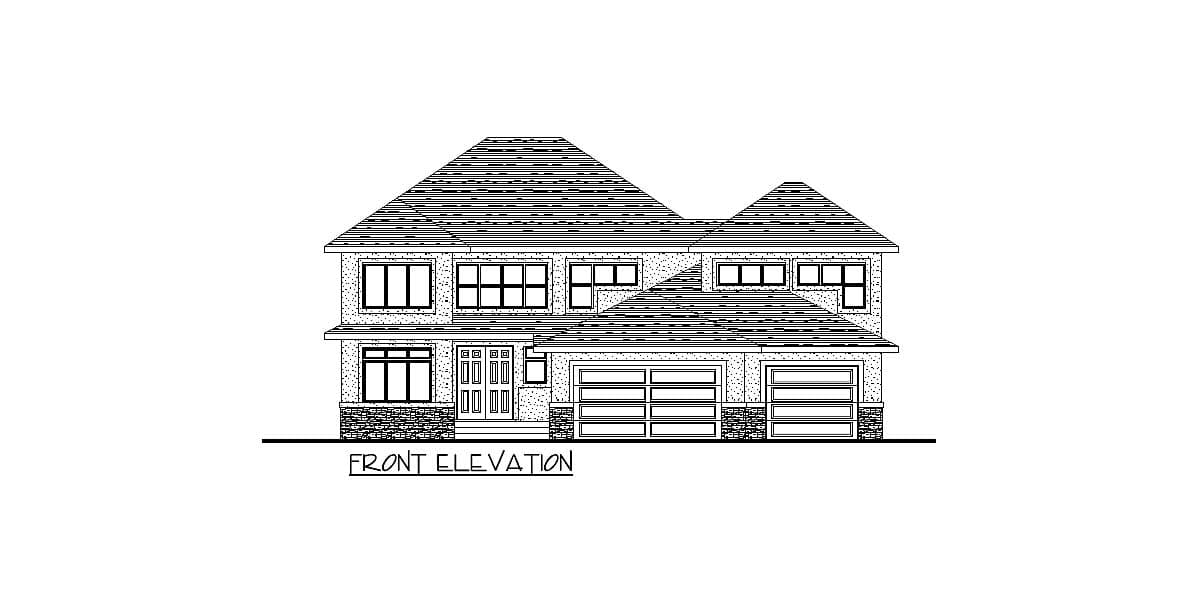

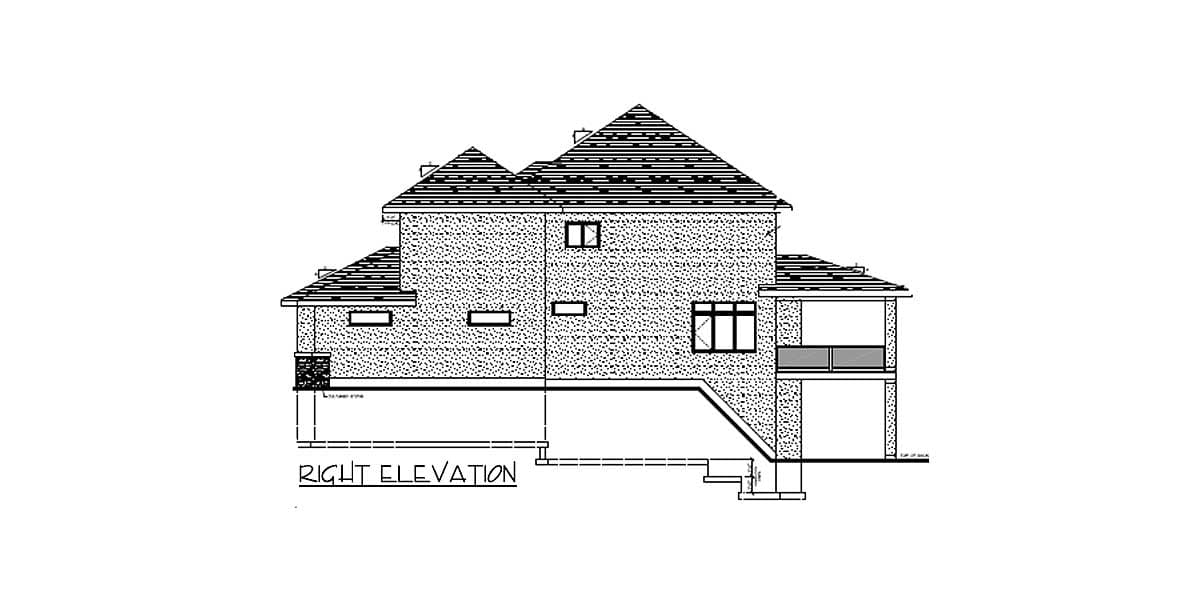

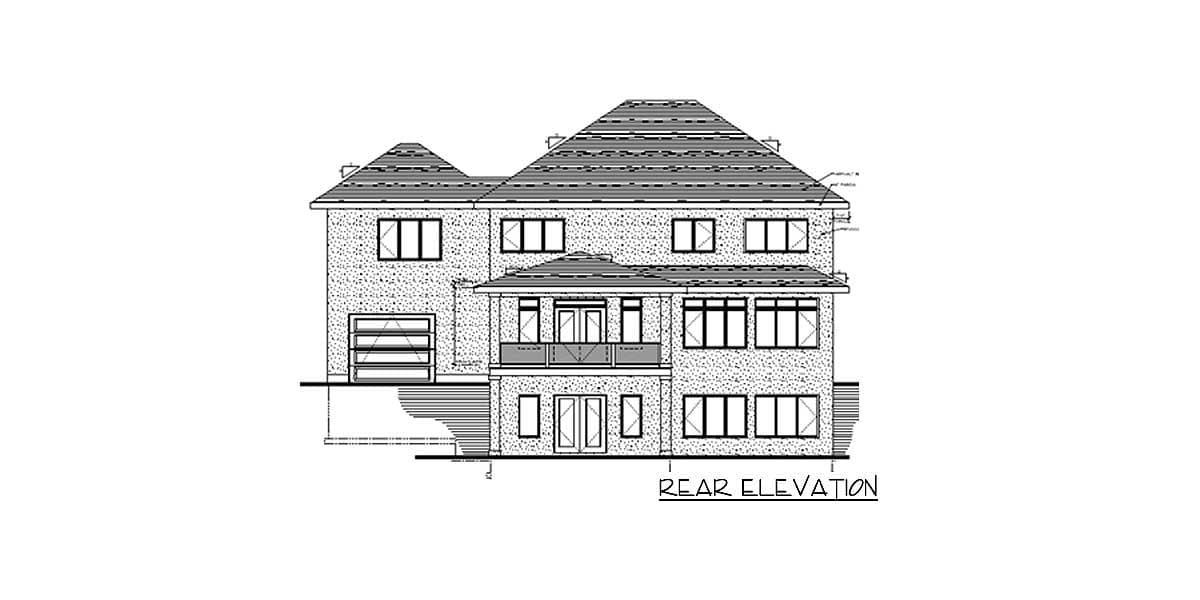

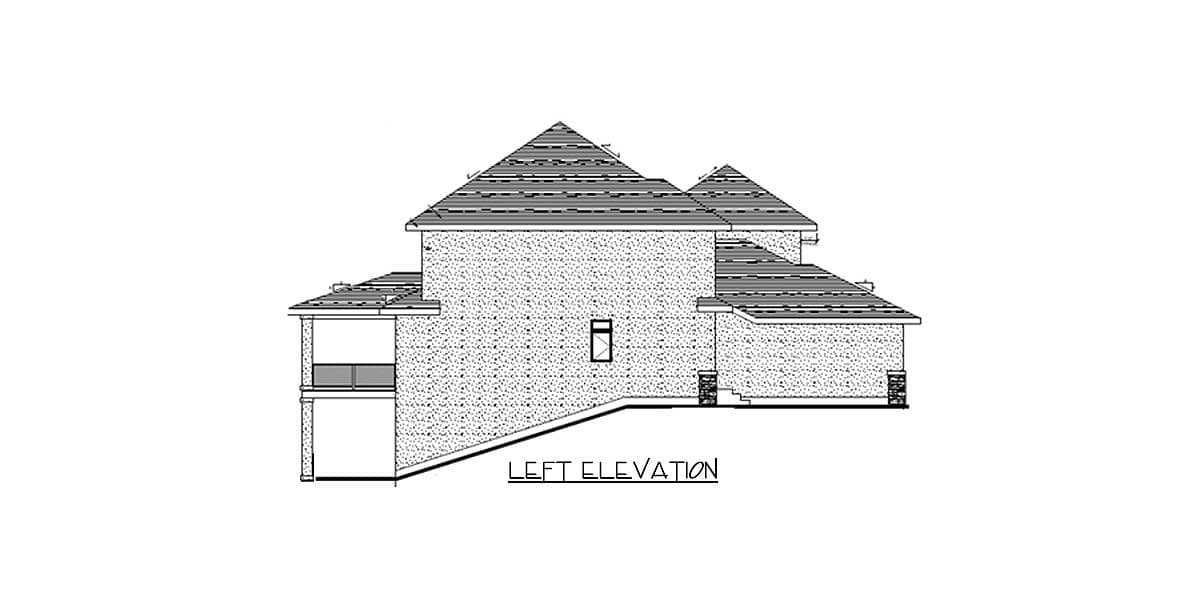

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional House Plan with Bonus Room

  • 2,804

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

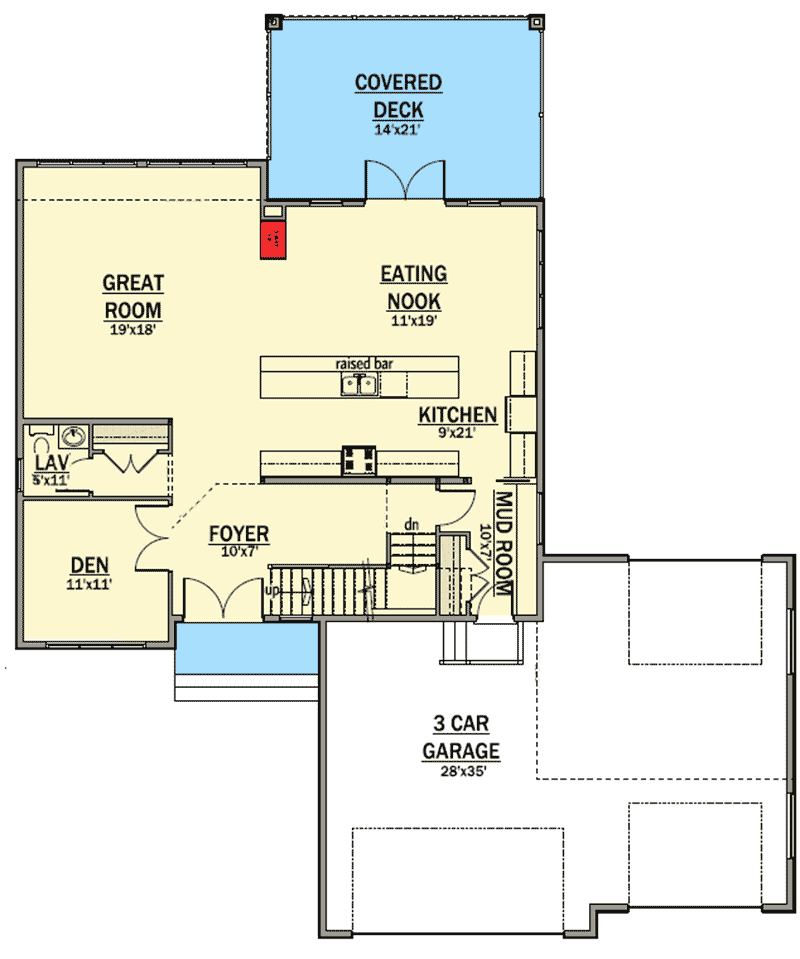

  • Main Level

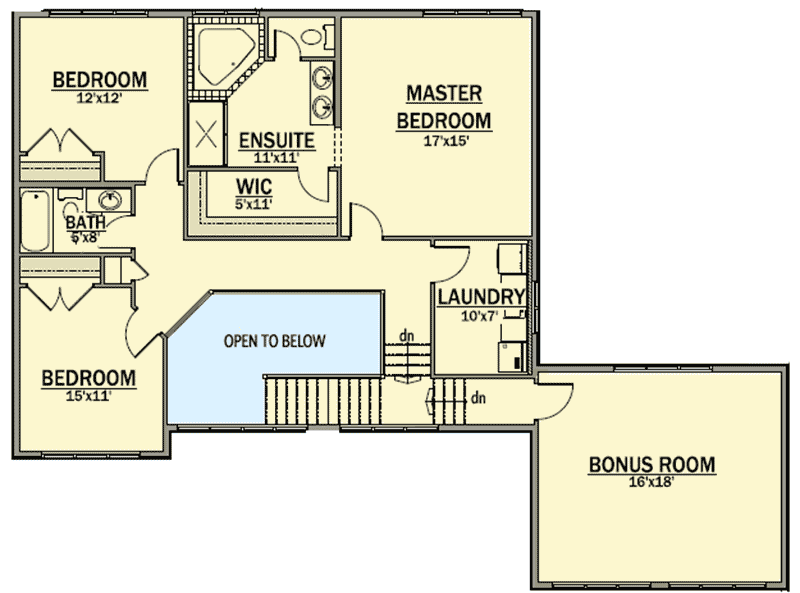

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,804 sq. ft.
  • 1st Floor: 1,361 sq. ft.
  • 2nd Floor: 1,443 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 70' 0"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 938 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
