Plan 290072IY
Traditional House Plan with Optional Lower Level
Heated S.F.
2,396
Beds
3-5
Baths
2.5 - 3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS

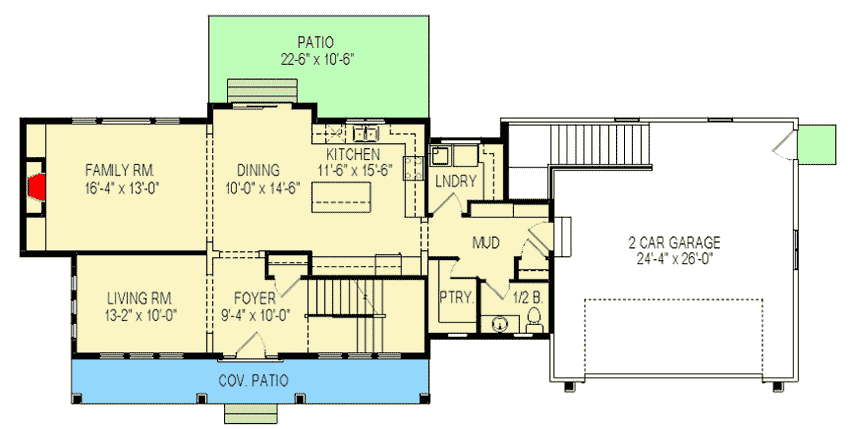

Main Level
Reverse Floor Plan
Traditional House Plan with Optional Lower Level - 290072IY floor plan - Main Level

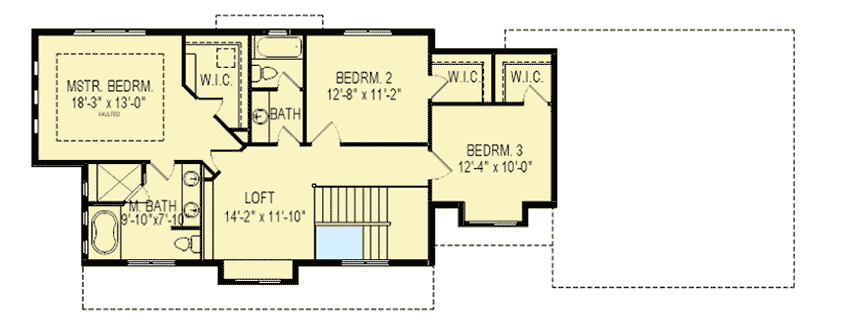

2nd Floor
Reverse Floor Plan
Traditional House Plan with Optional Lower Level - 290072IY floor plan - 2nd Floor

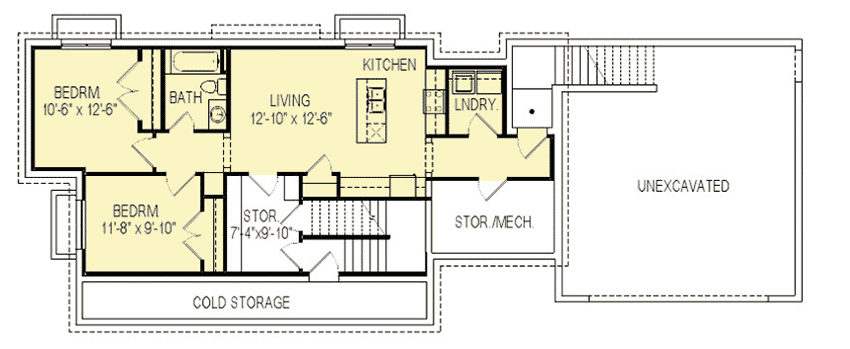

Optional Lower Level
Reverse Floor Plan
Traditional House Plan with Optional Lower Level - 290072IY floor plan - Optional Lower Level
Plan Details
  • A wide front porch leads you to the entrance to this Traditional house plan.
  • The functional floor plan offers a separate living room for entertaining, large walk-in pantry and a separate laundry room that can be closed off from the large mud room to keep noise down.
  • Sliding glass doors in the dining area open to a large back patio.
  • All three bedrooms are upstairs, each with a walk-in closet.
  • Built-in shelves line one wall of the loft.
  • There are two staircases down to the optional finished lower level - one inside and one from the garage.
  • This lower level could easily provide comfortable in-law accommodations complete with a full kitchen.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans

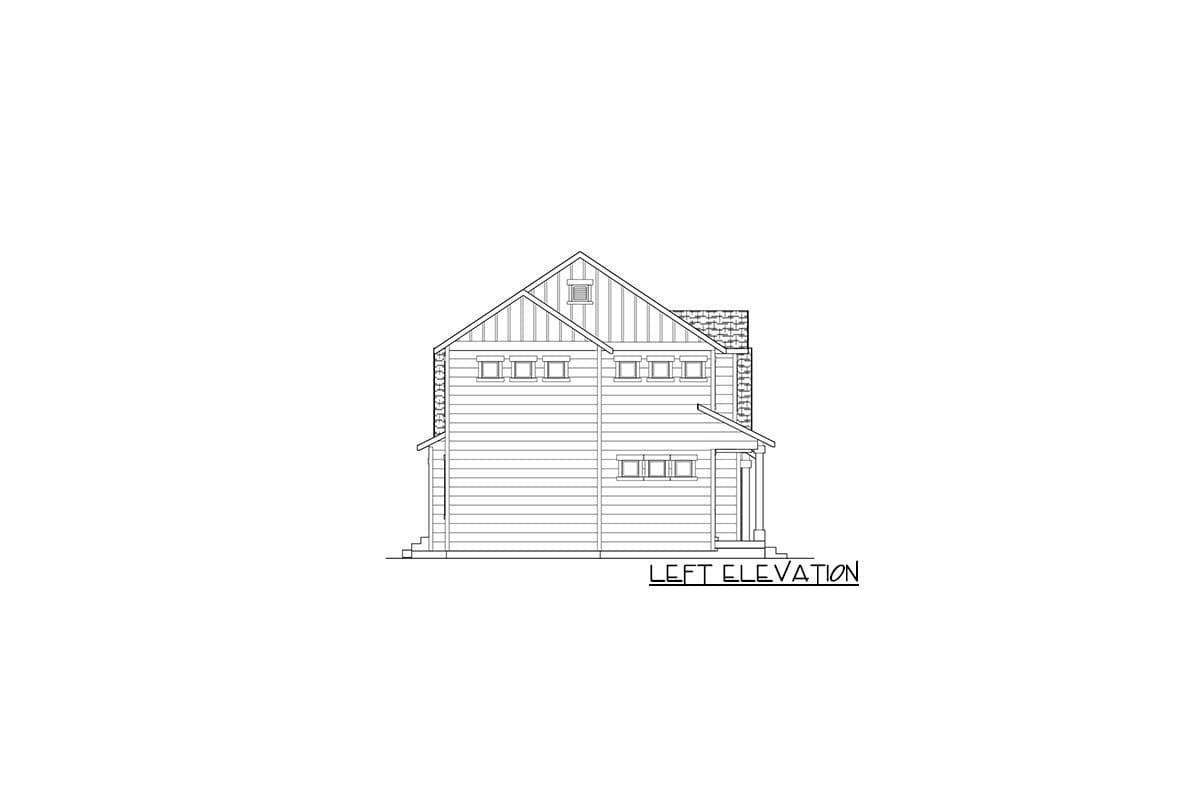

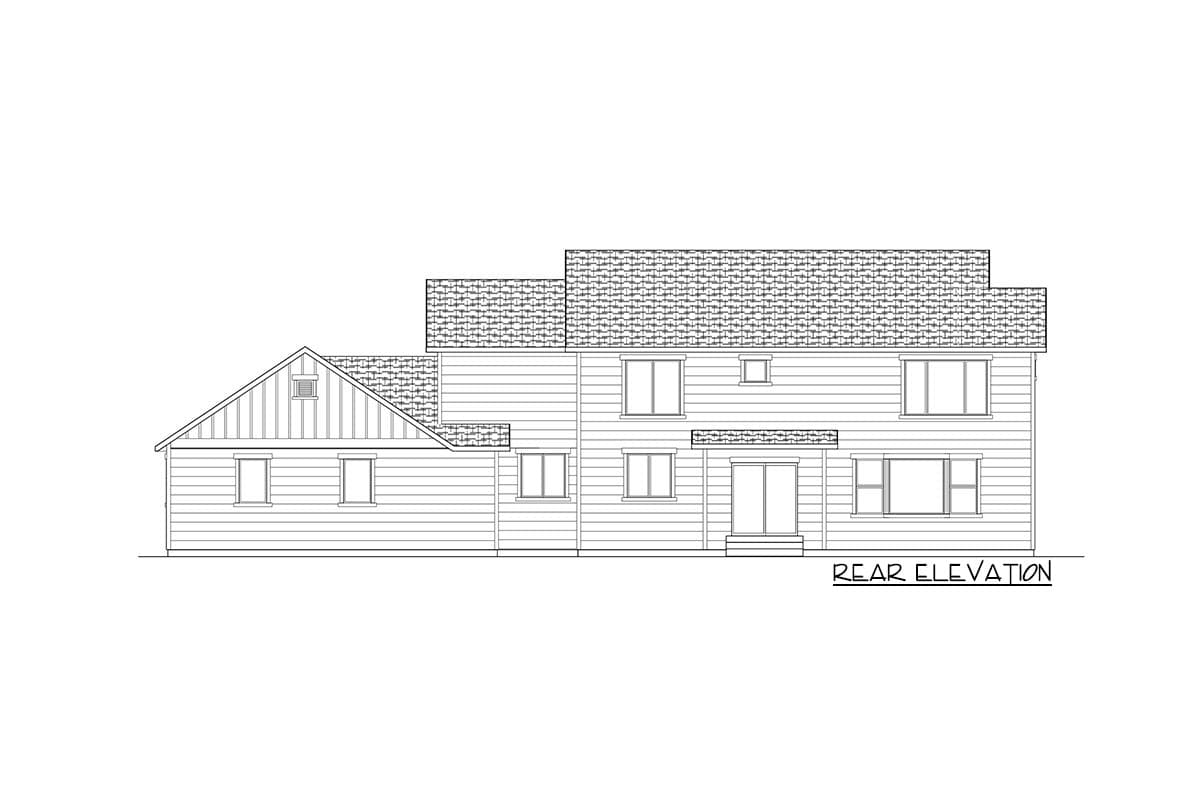

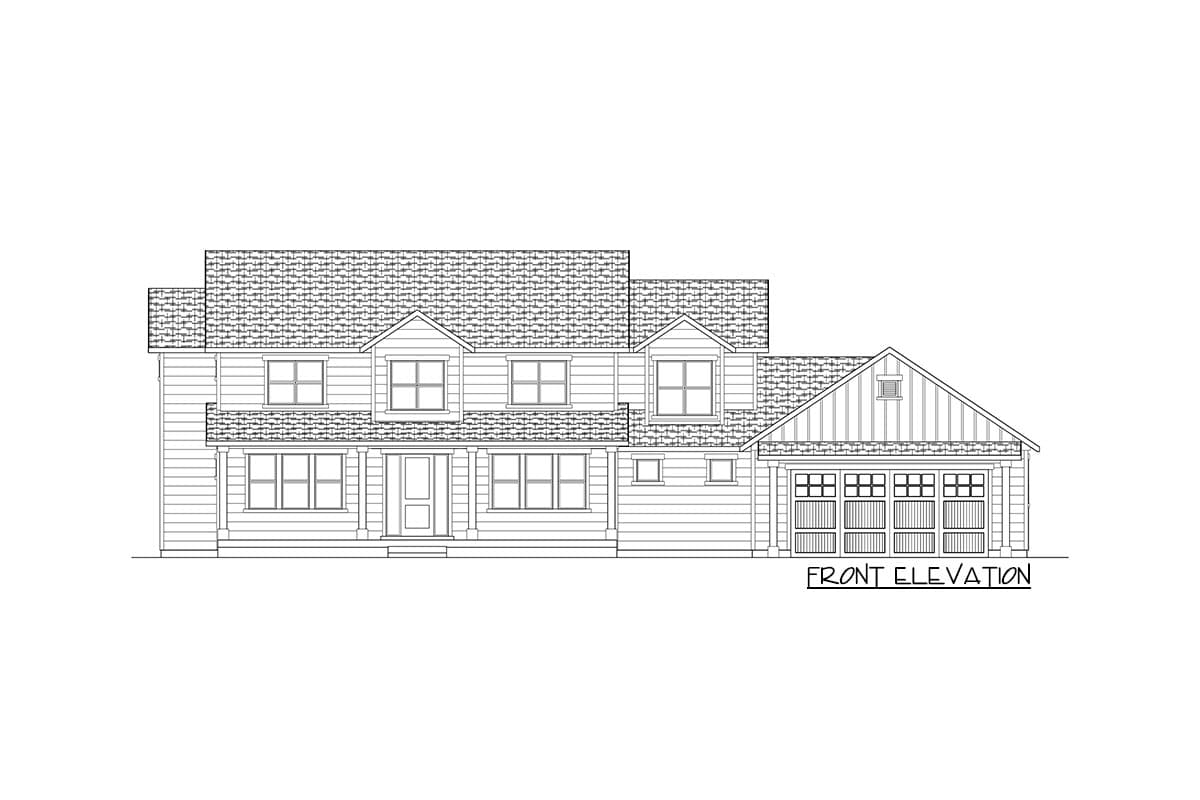

  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional House Plan with Optional Lower Level

  • 2,396

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,396 sq. ft.
  • 1st Floor: 1,202 sq. ft.
  • 2nd Floor: 1,194 sq. ft.

Dimensions

  • Width: 78' 10"
  • Depth: 28' 2"
  • Max ridge height: 27' 11"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 699 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site
