Plan 81658AB Traditional House Plan with Optional Pool Room

Traditional House Plan with Optional Pool Room

Plan 81658AB

  • 4,772

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 5.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • A courtyard style garage leads you to the covered front porch of this huge Traditional house plan that has five bedrooms plus the option for more on the lower level.
  • Columns frame the entrance to the formal dining room giving you an elegant enclosed room that still has views towards the kitchen.
  • The great room, nook and kitchen have tray ceilings that unite the space.
  • Both the master bedroom and the nook offer sliding glass doors to the rear covered and screened porch.
  • Climb the stairs or take the elevator to the second floor where you come to a sitting area with wet bar.
  • The front bedroom has a private bathroom while the other two bedrooms share a connected bathroom.
  • The fabulous lower level adds 3,096 square feet that includes a spectacular pool room with kids pool and hot tub area.
  • There's also a craft room, hobby room and studio in addition to an exercise area.
  • No need to ever leave home with a house like this!

Plans include the following:

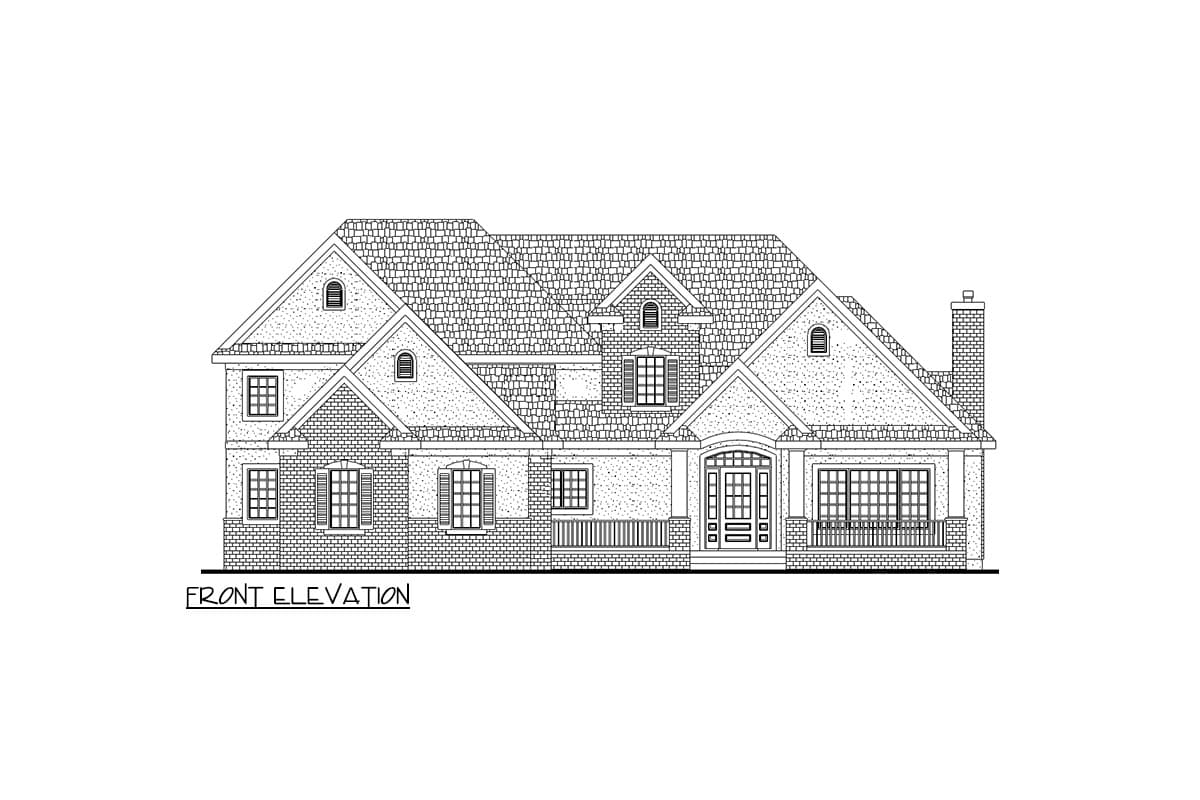

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

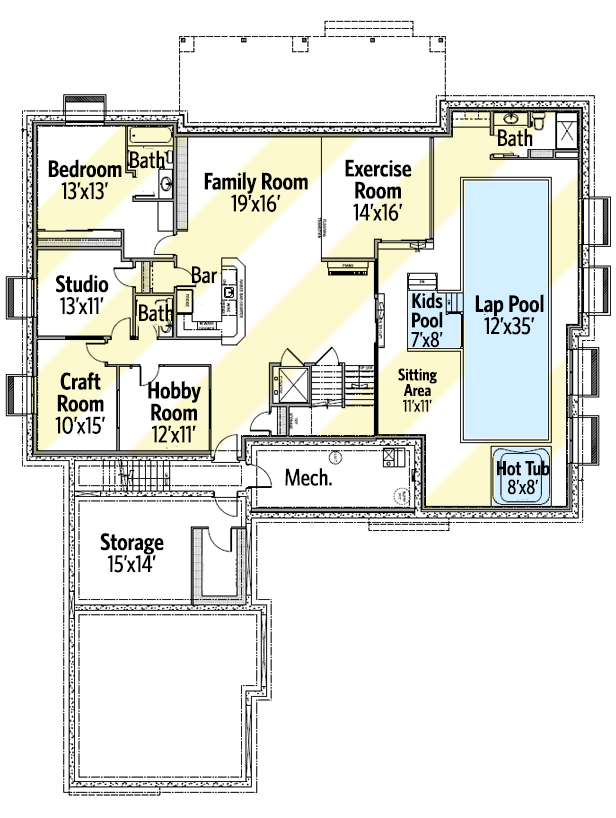

Traditional House Plan with Optional Pool Room - 81658AB floor plan - Basement
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

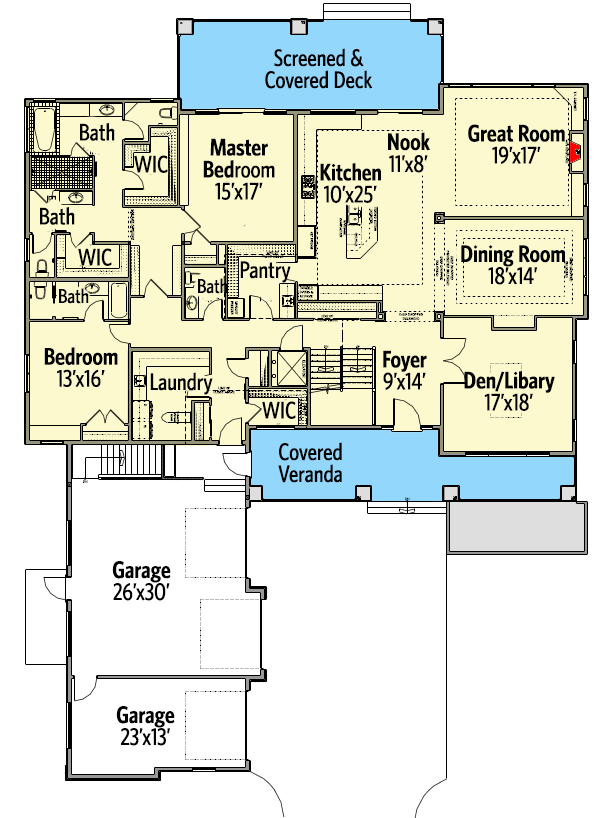

Traditional House Plan with Optional Pool Room - 81658AB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

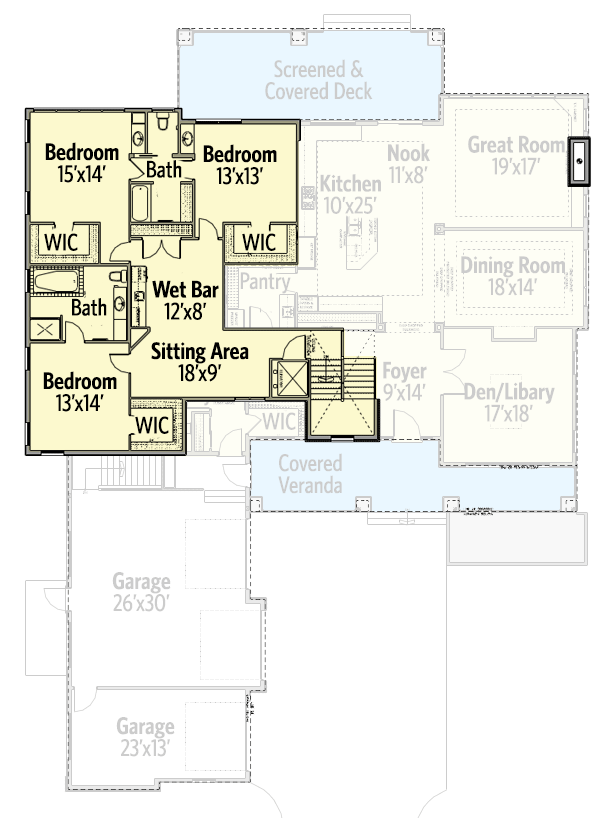

Traditional House Plan with Optional Pool Room - 81658AB floor plan - 2nd Floor

Plan details

Traditional House Plan with Optional Pool Room

  • 4,772

    Heated s.f.

  • 3 - 6

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,815
  • CAD - Single-Build $2,725
  • View all purchase option online

About This Plan

  • A courtyard style garage leads you to the covered front porch of this huge Traditional house plan that has five bedrooms plus the option for more on the lower level.
  • Columns frame the entrance to the formal dining room giving you an elegant enclosed room that still has views towards the kitchen.
  • The great room, nook and kitchen have tray ceilings that unite the space.
  • Both the master bedroom and the nook offer sliding glass doors to the rear covered and screened porch.
  • Climb the stairs or take the elevator to the second floor where you come to a sitting area with wet bar.
  • The front bedroom has a private bathroom while the other two bedrooms share a connected bathroom.
  • The fabulous lower level adds 3,096 square feet that includes a spectacular pool room with kids pool and hot tub area.
  • There's also a craft room, hobby room and studio in addition to an exercise area.
  • No need to ever leave home with a house like this!

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,772 sq. ft.
  • 1st Floor: 3,307 sq. ft.
  • 2nd Floor: 1,465 sq. ft.
  • Optional Lower Level: 3,096 sq. ft.
  • Deck: 420 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, & 6
  • Full bathrooms: 2, 3, 4, & 5
  • Half bathrooms: 1, 2, & 3

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 92' 0"
  • Max ridge height: 34' 4"

Garage

  • Type: Attached
  • Area: 1018 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
