Plan 270089AF

Traditional House Plan with Upstairs Master Suite with Private Deck - 3631 Sq Ft

Heated S.F.
3,631
Beds
4
Baths
3.5
Stories
2

Floor Plan

Plan 270089AF

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 270089AF

M-F 9am-5pm EST |

1-203-761-8500

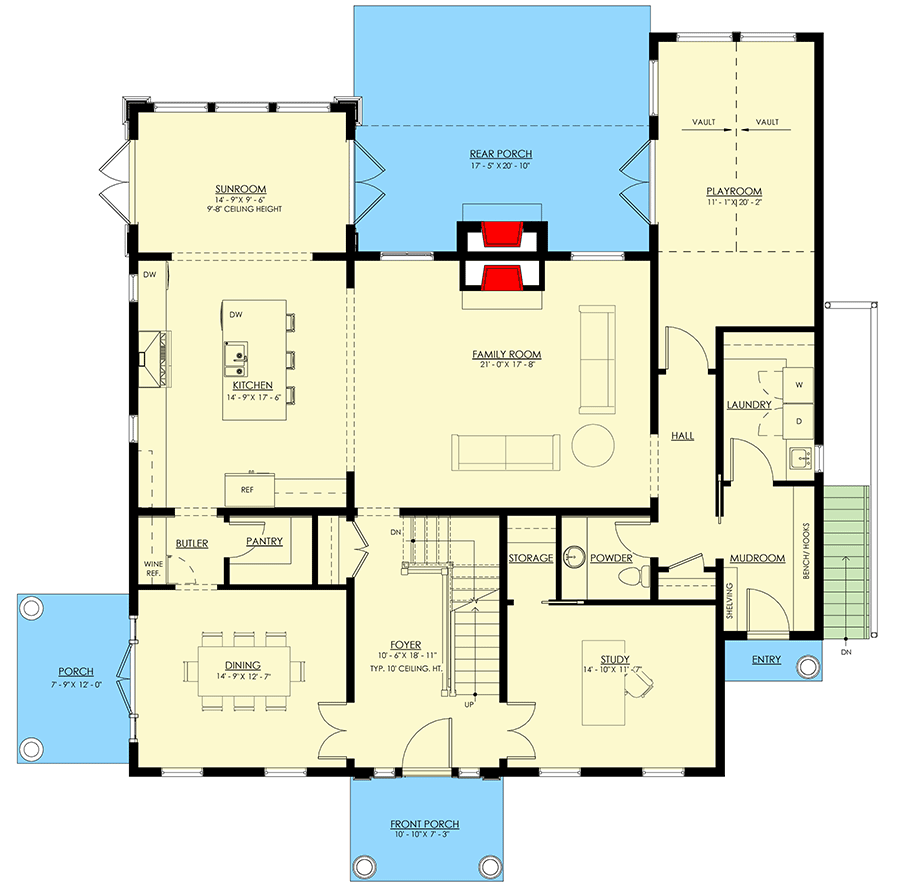

Main Level

Plan 270089AF: Traditional House Plan with Upstairs Master Suite with Private Deck - 3631 Sq Ft - Floor Plan - Main Level - Colonial, Traditional

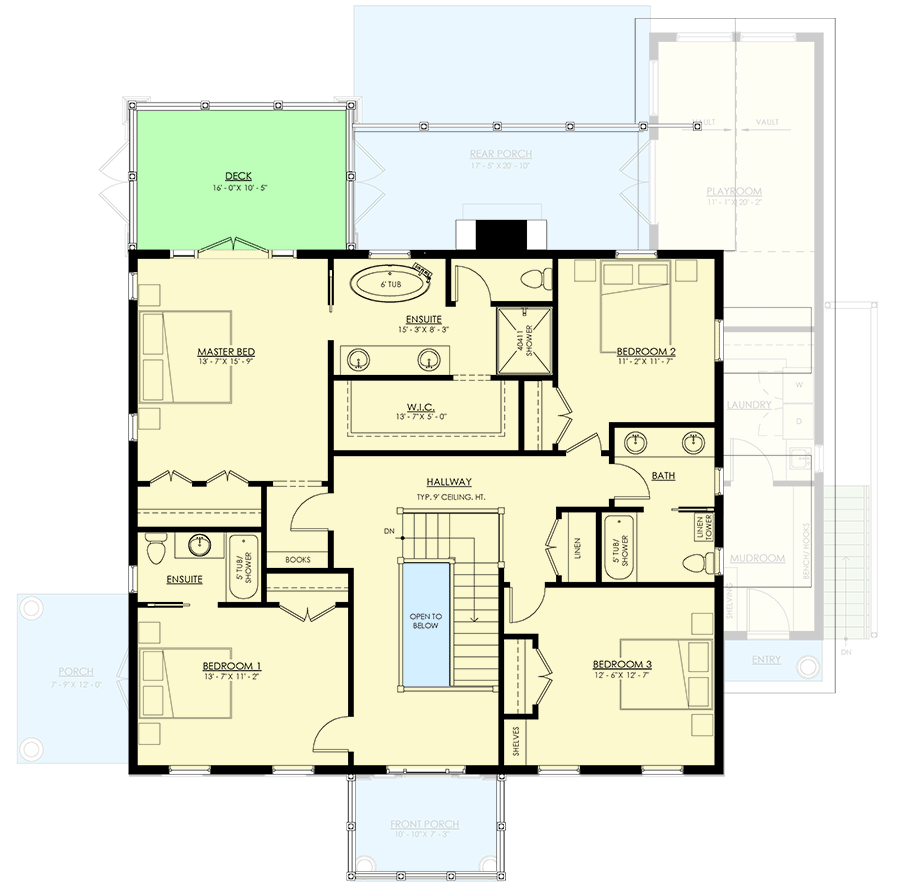

2nd Floor

Plan 270089AF: Traditional House Plan with Upstairs Master Suite with Private Deck - 3631 Sq Ft - Floor Plan - 2nd Floor - Colonial, Traditional

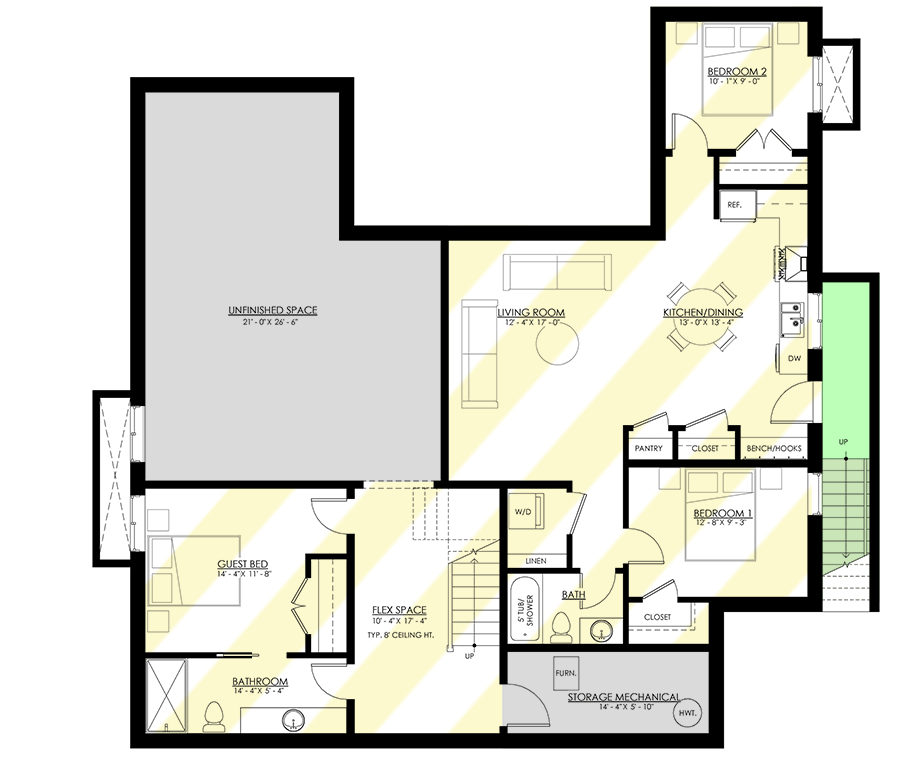

Optional Lower Level

Plan 270089AF: Traditional House Plan with Upstairs Master Suite with Private Deck - 3631 Sq Ft - Floor Plan - Optional Lower Level - Colonial, Traditional

Plan Details

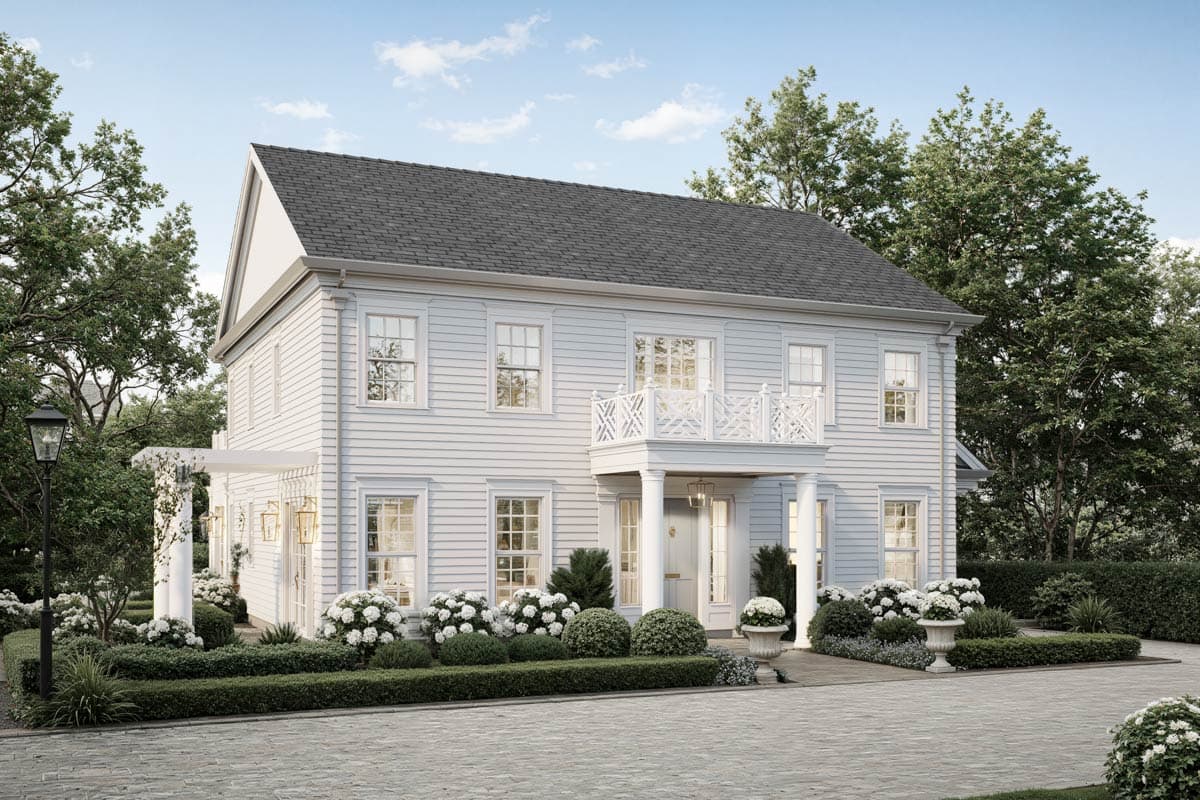

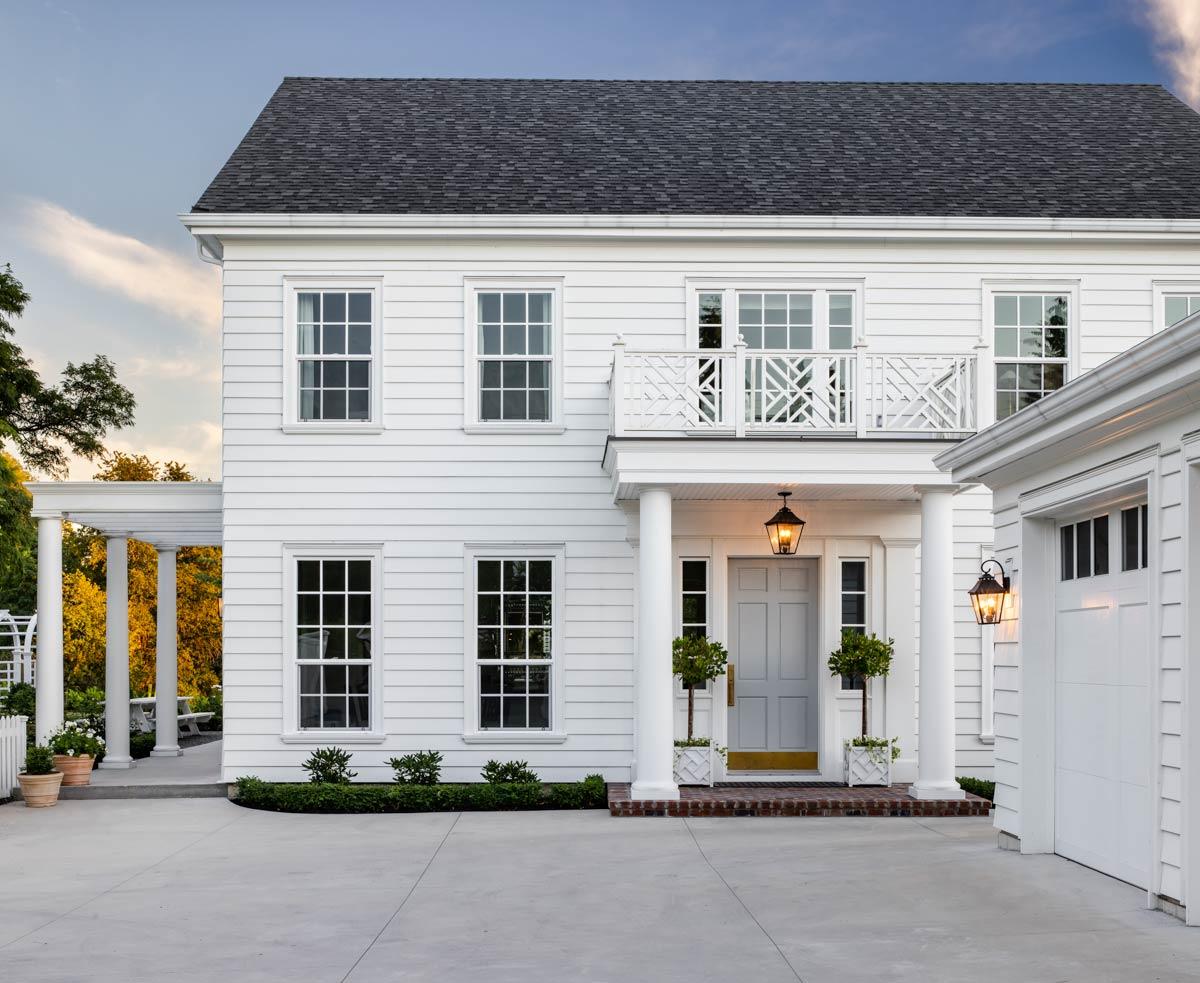

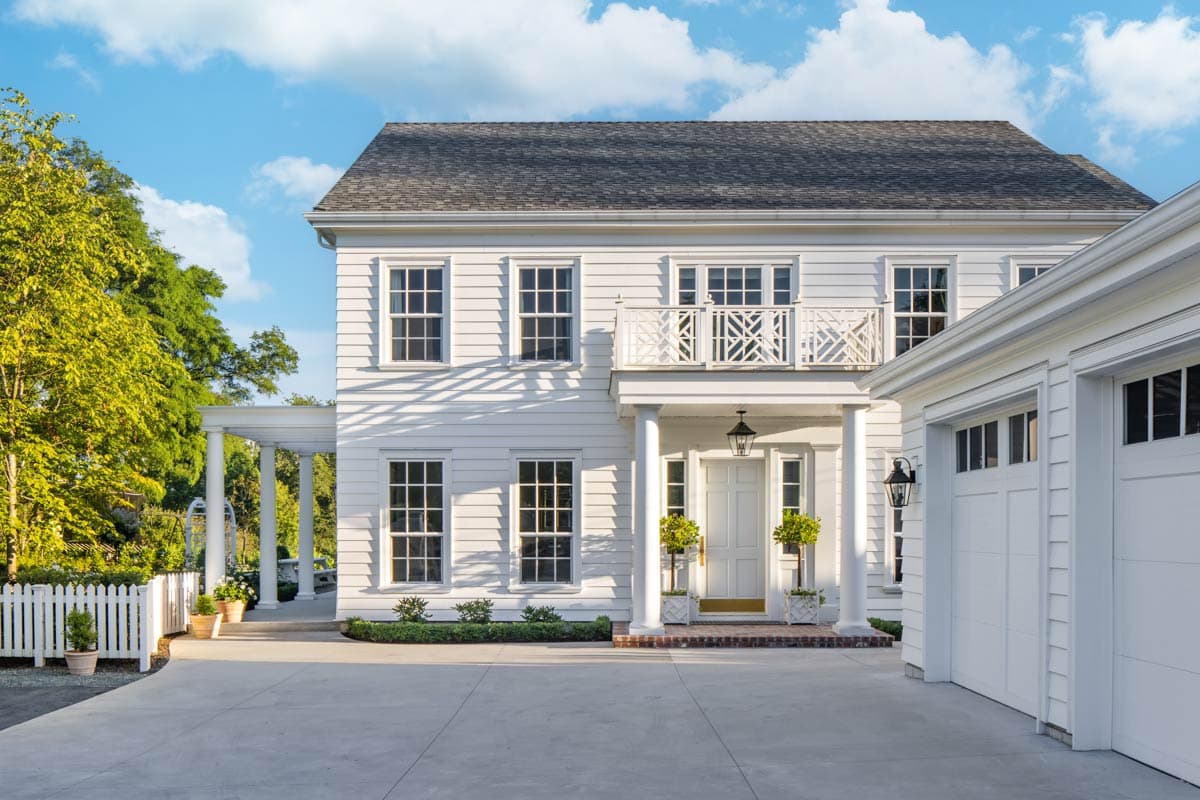

  • This distinguished 3,631 sq. ft. Traditional Colonial house plan features 4 bedrooms, 3.5 bathrooms, presenting a timeless facade with classic architectural details.

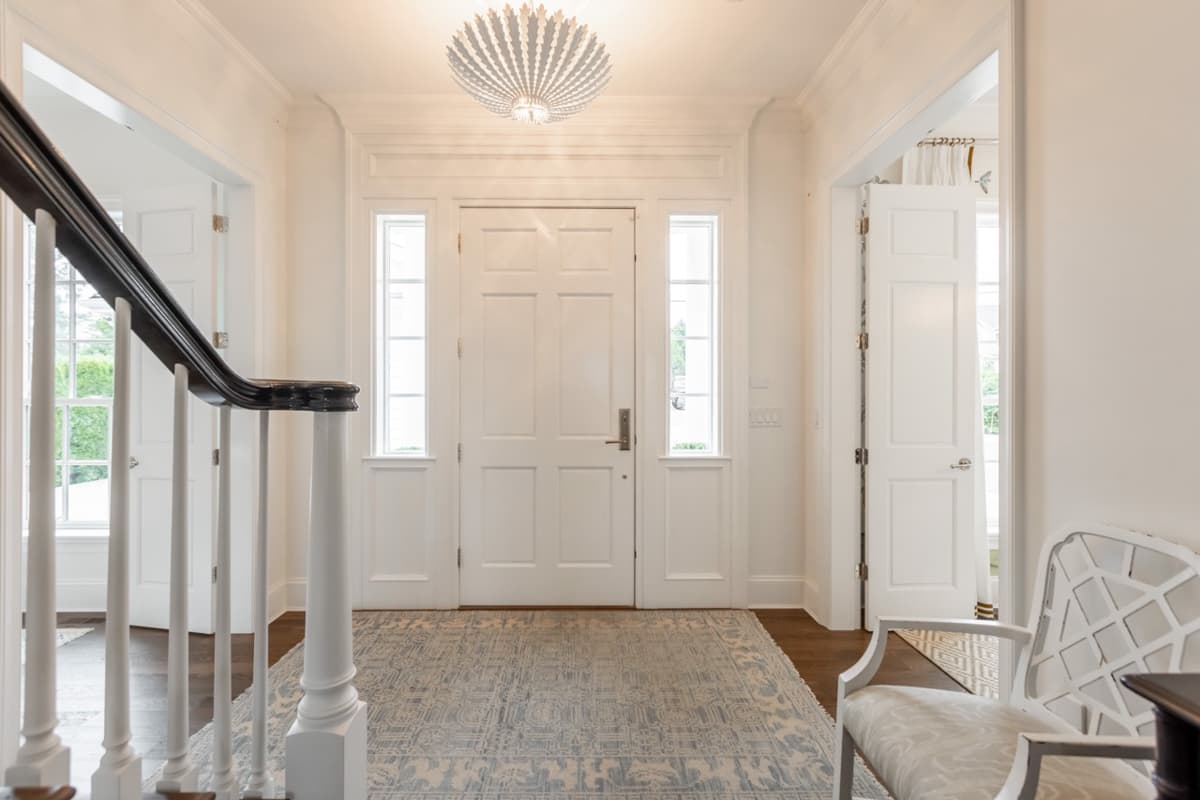

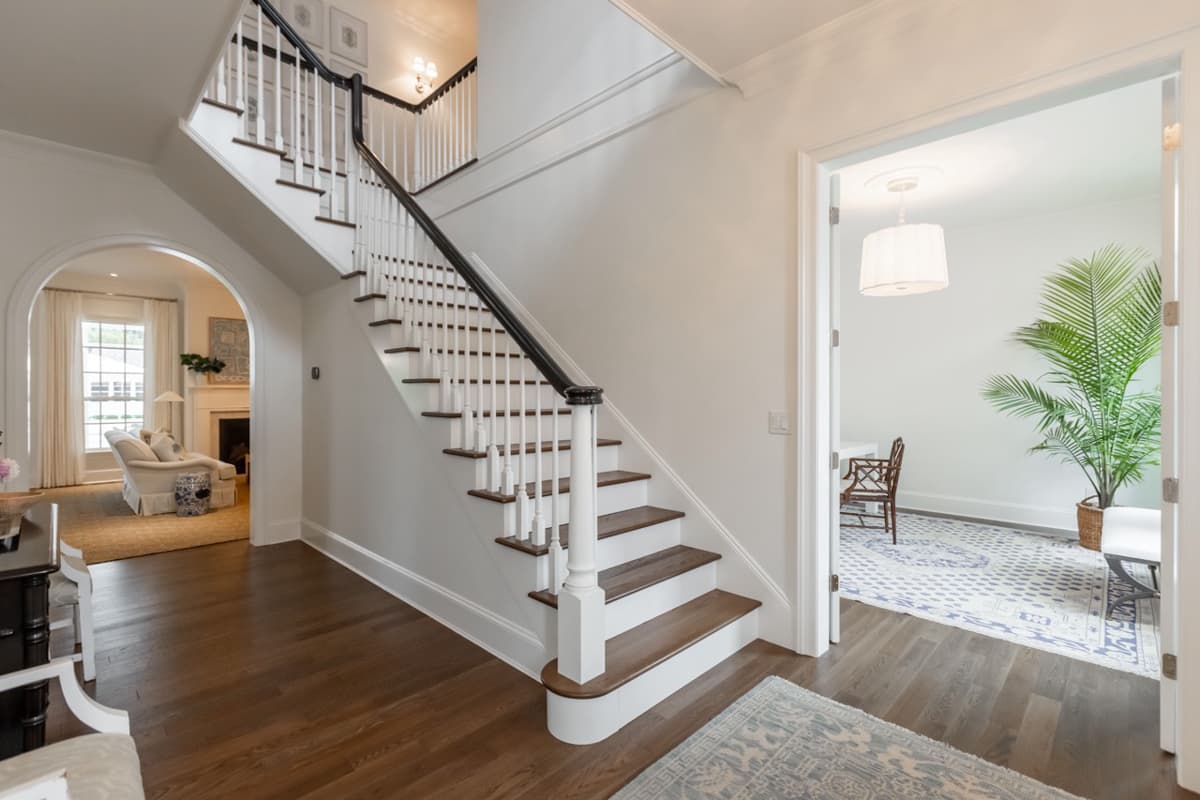

  • Upon entry, a grand foyer with a 10-foot ceiling welcomes you, leading directly to a private study on one side and a formal dining room on the other, establishing a sophisticated tone for the home.

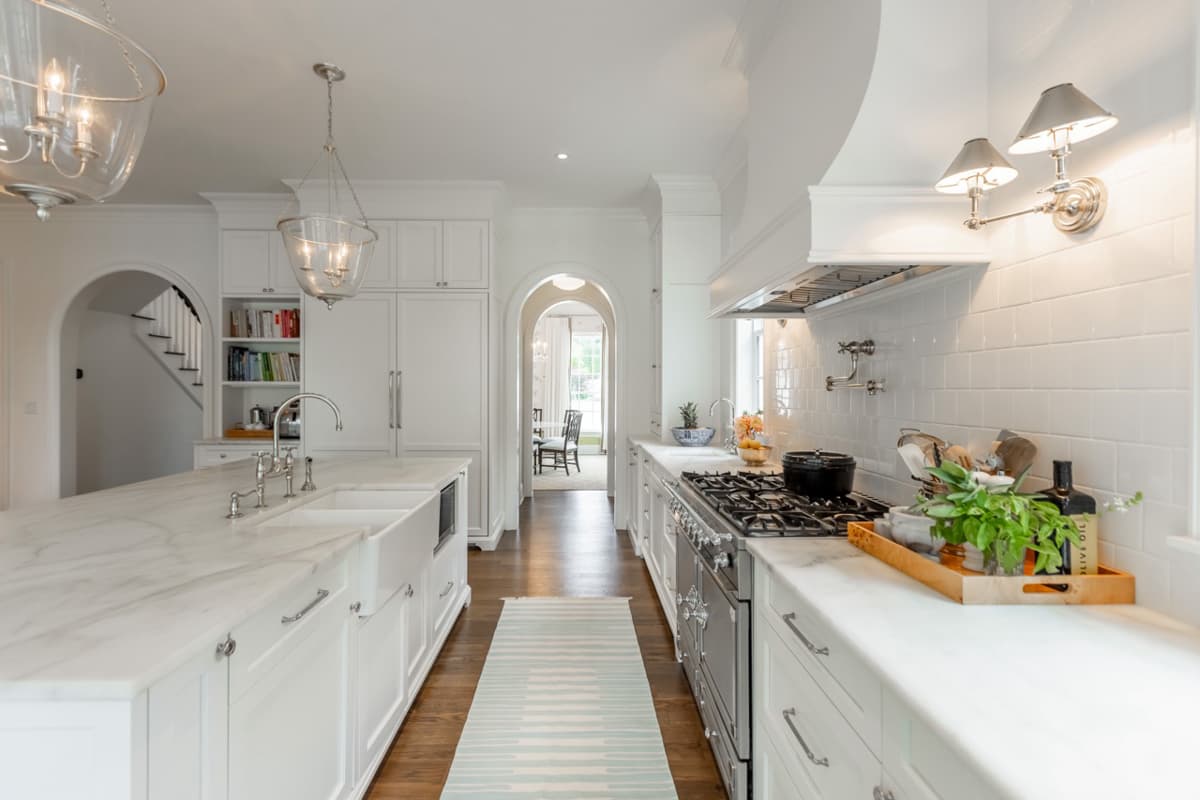

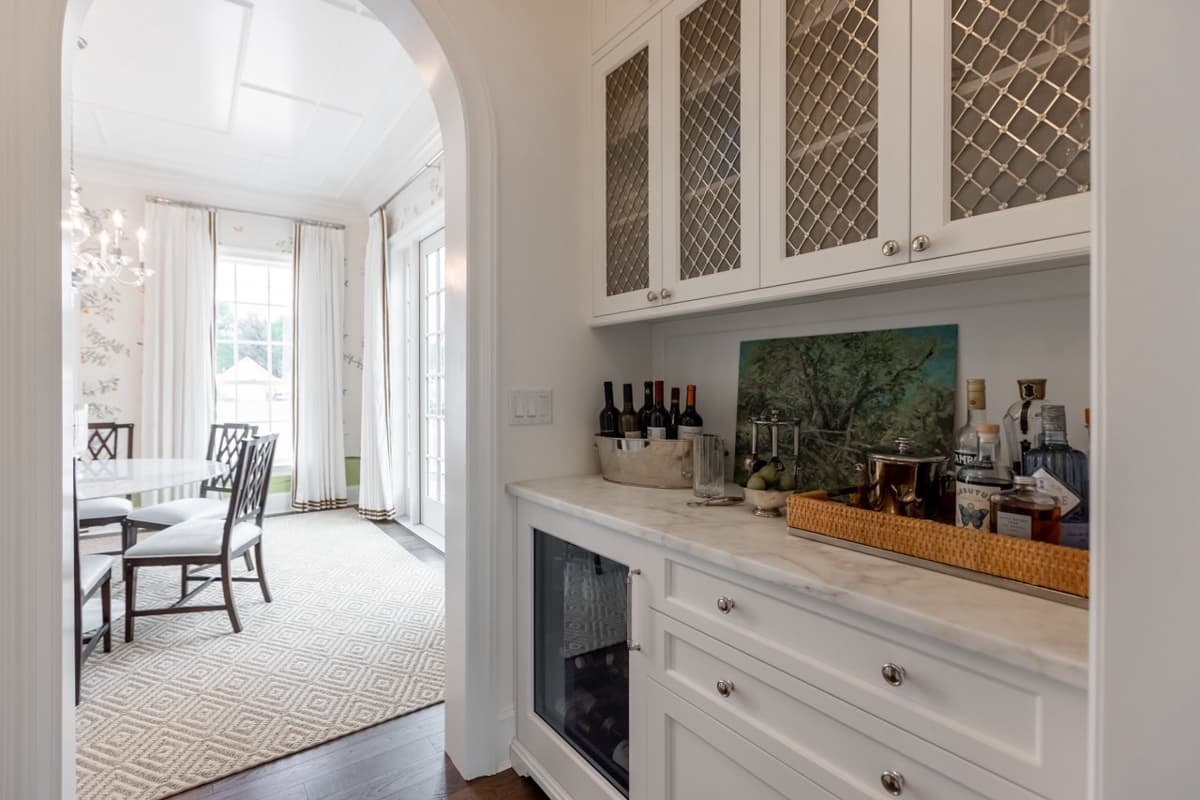

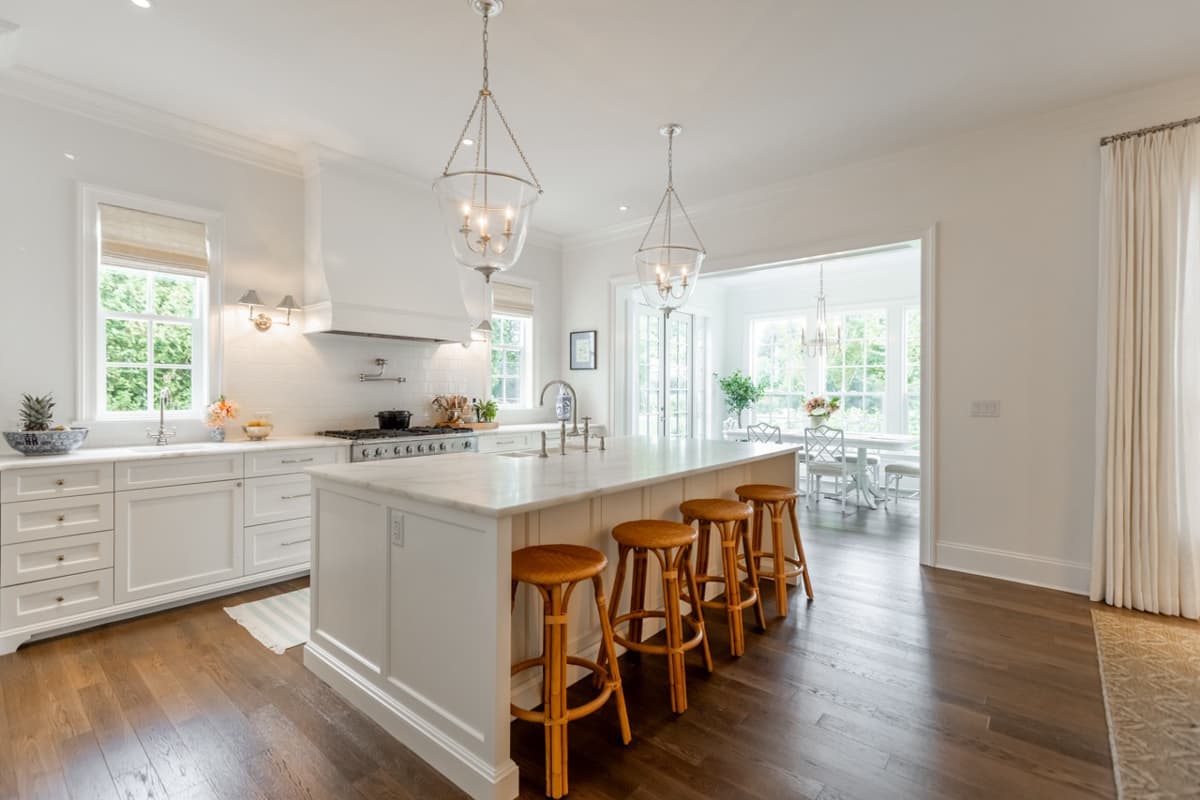

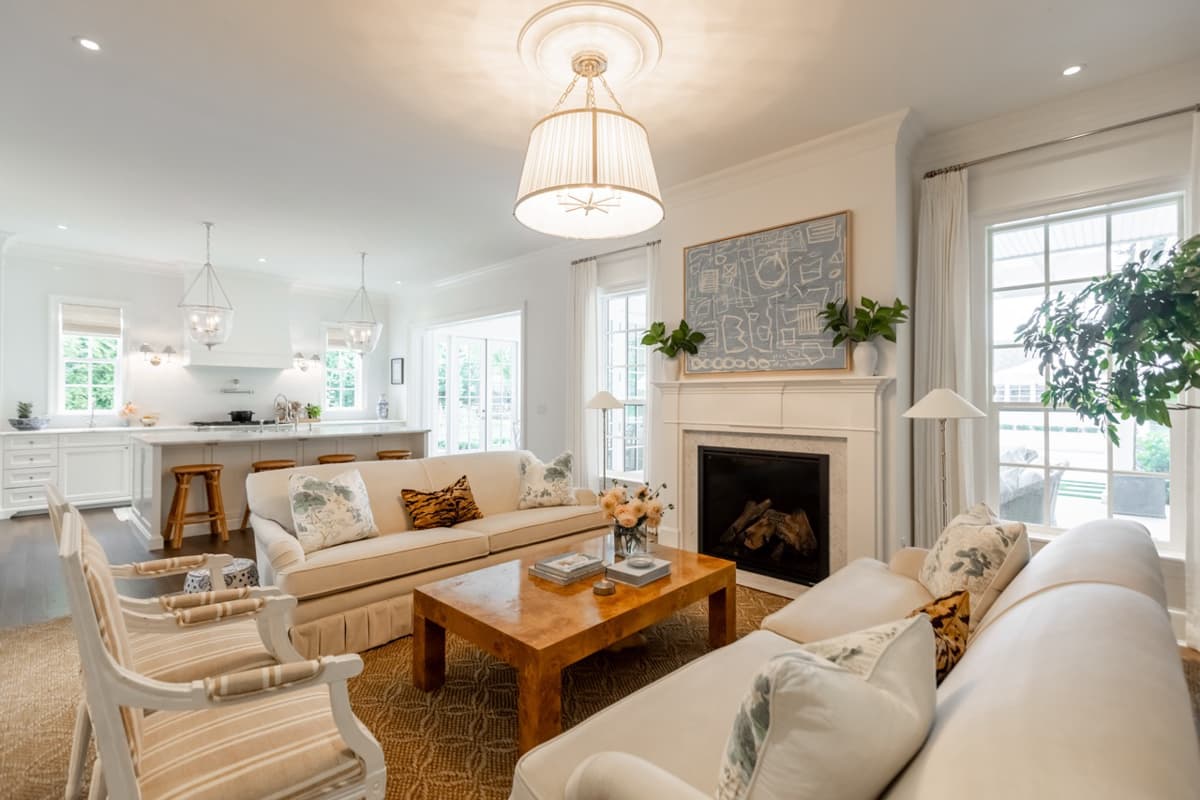

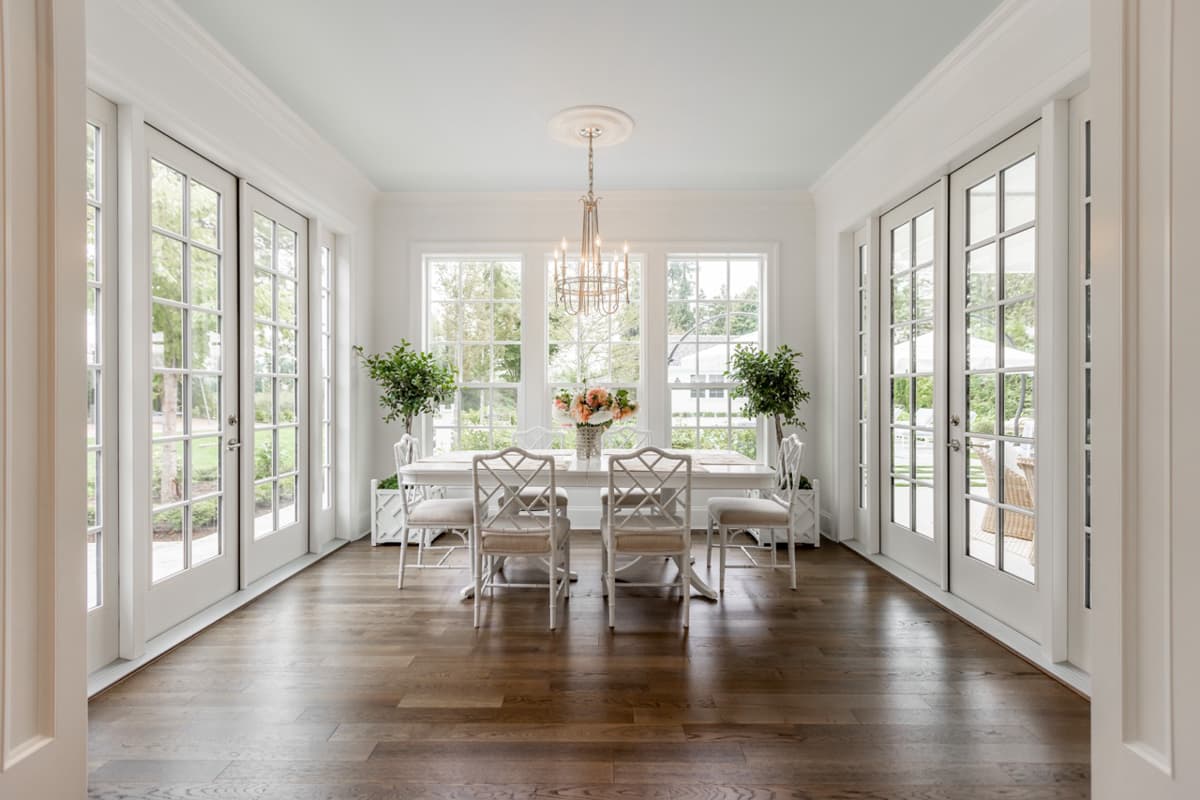

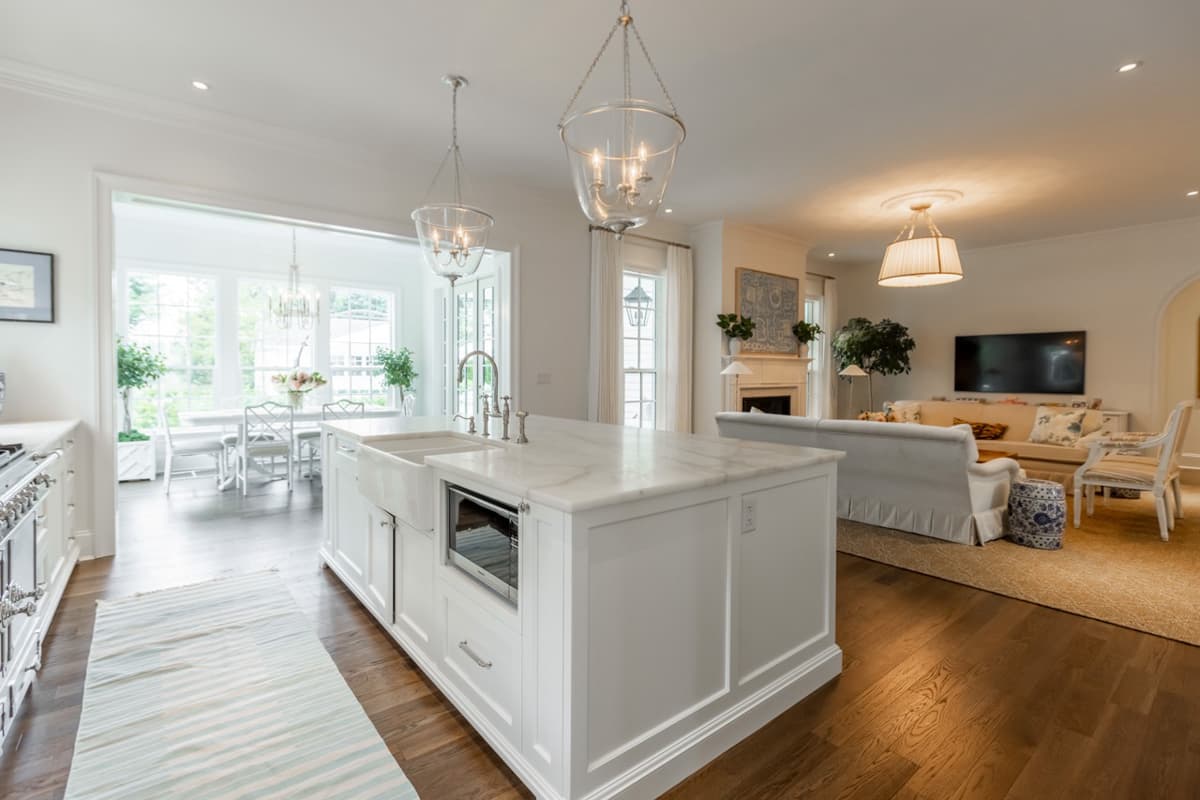

  • The main level unfolds into an expansive open-concept family room, seamlessly connecting to a gourmet kitchen with an island and a butler's walk-in pantry, ideal for hosting gatherings. Adjacent to the kitchen, a bright sunroom provides a serene spot for morning coffee, while a playroom offers a dedicated space for recreation.

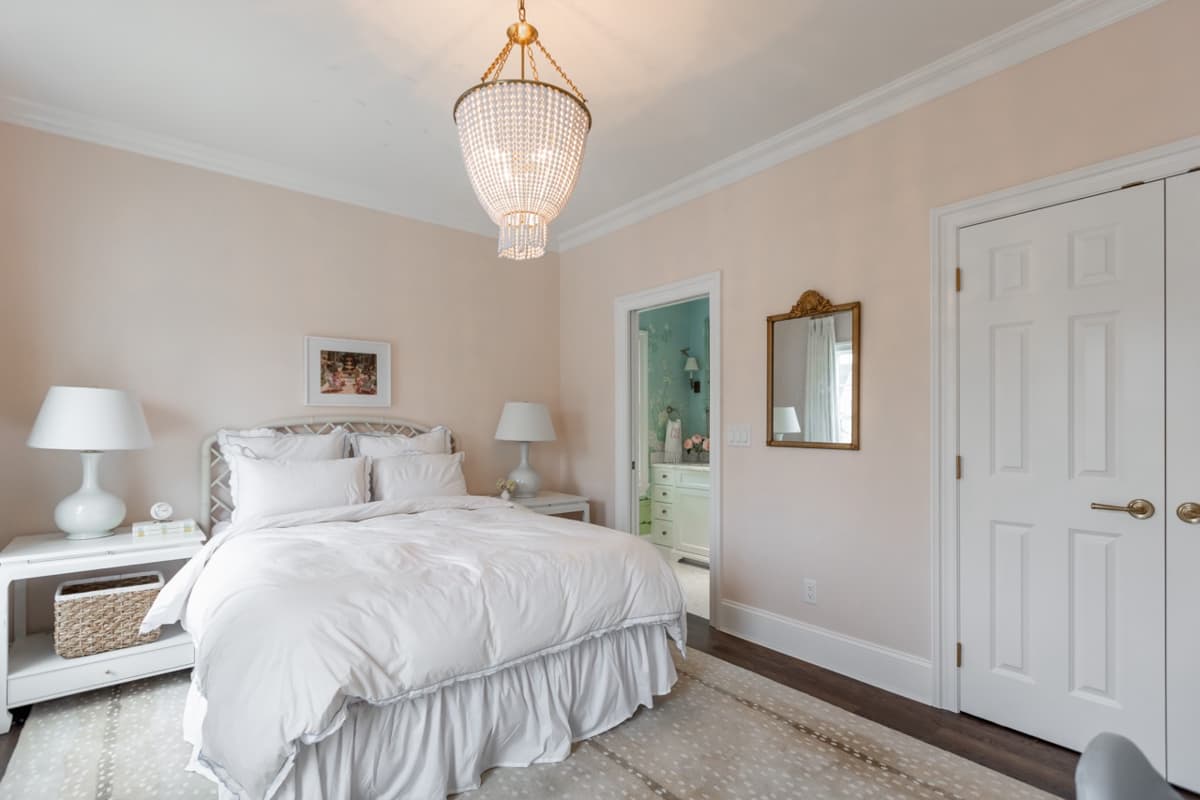

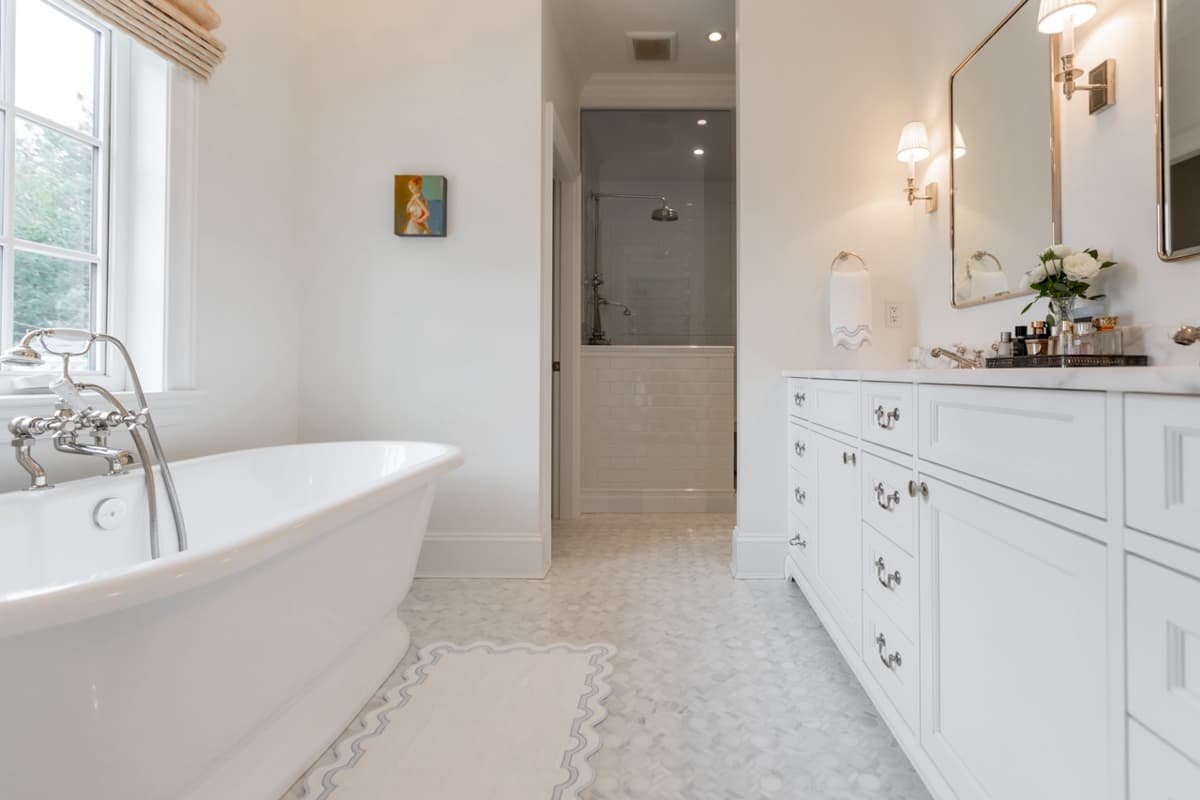

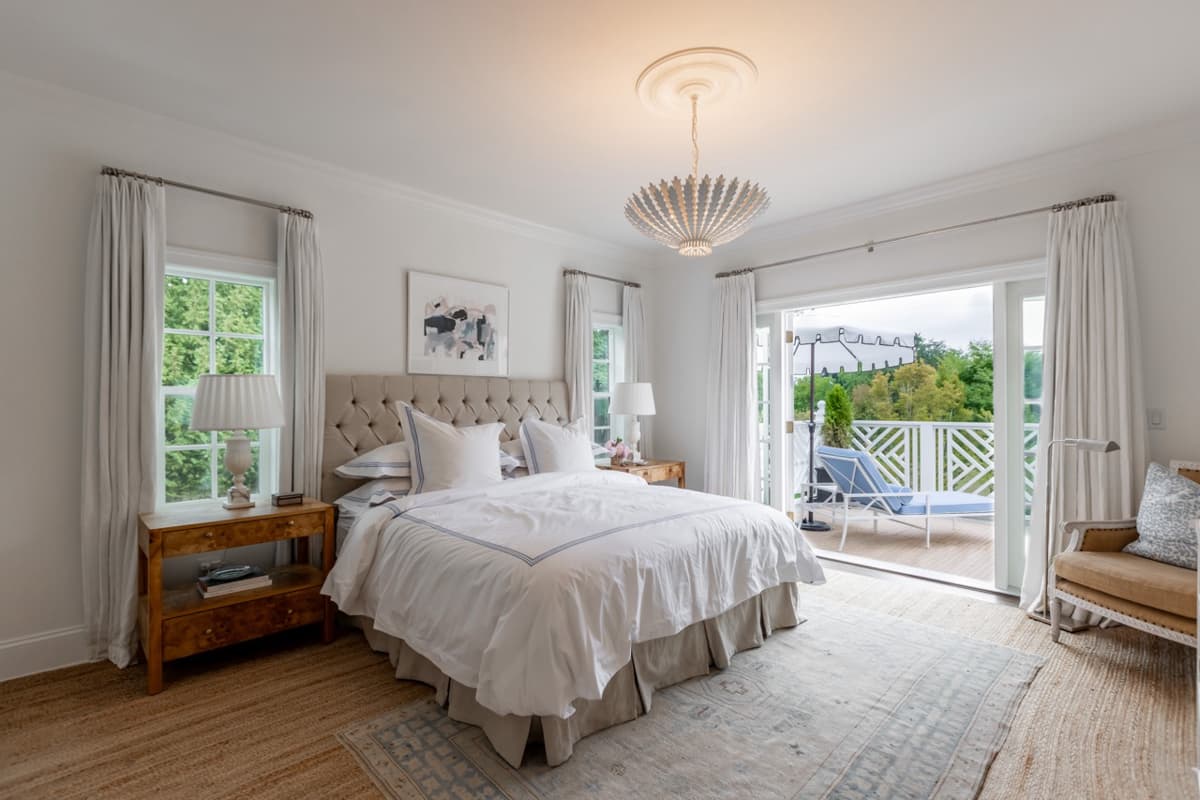

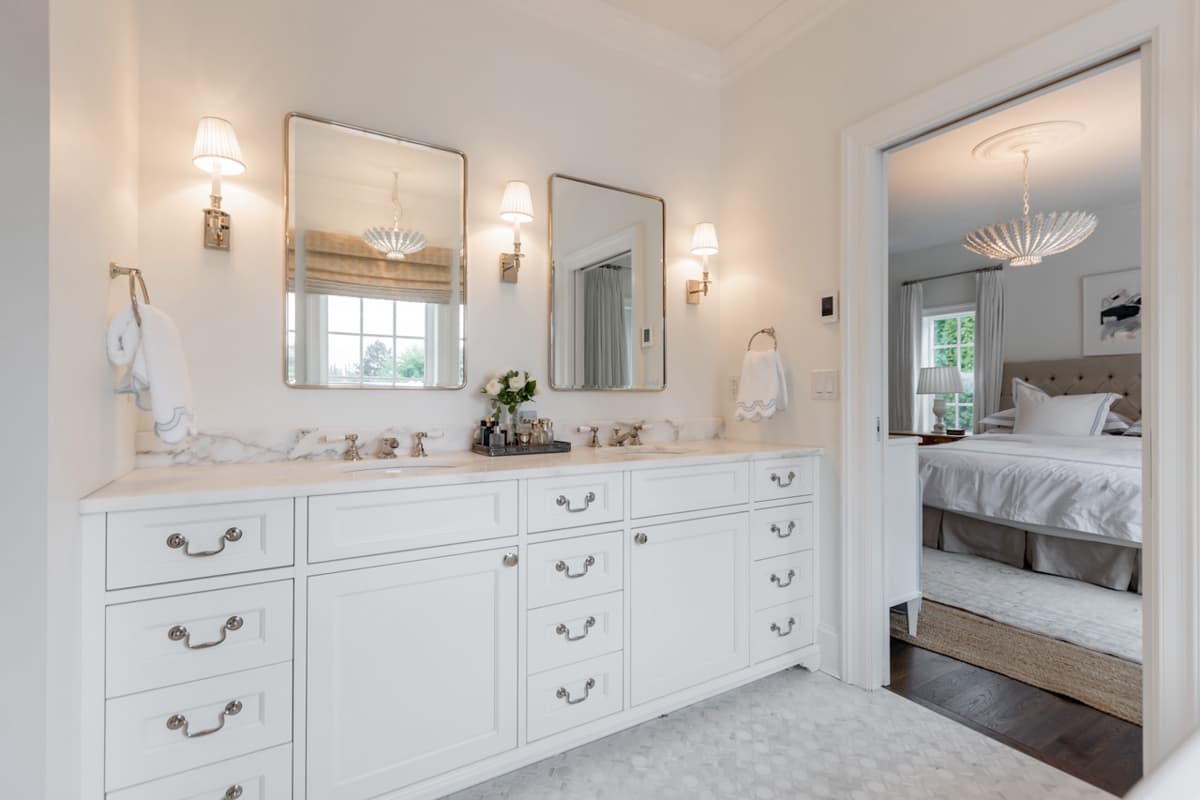

  • Upstairs, the master suite serves as a luxurious retreat, featuring an elegant ensuite bathroom with a soaking tub and a spacious walk-in closet, and direct access to a private deck. Three additional bedrooms, each with ample closet space, share well-appointed bathrooms, ensuring comfort and privacy for family members.

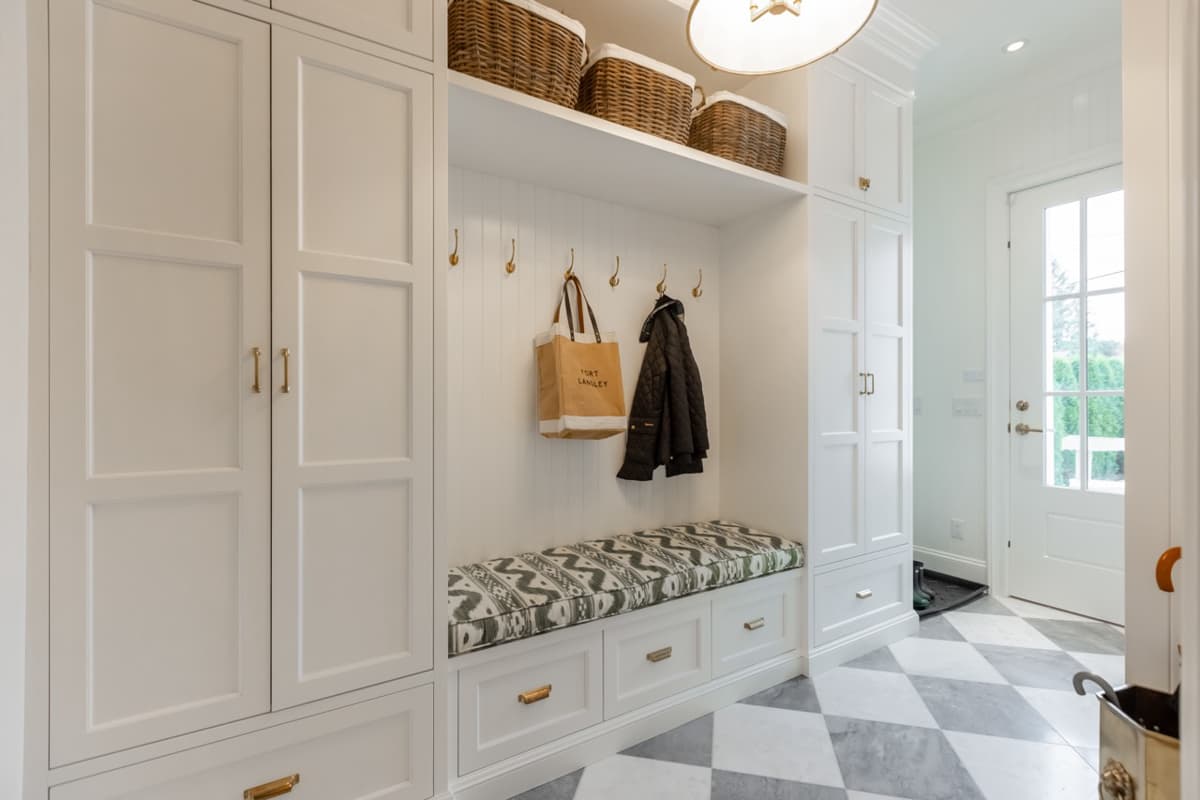

  • A dedicated mudroom off the entry provides practical organization, connecting to a conveniently located main-level laundry room. The main level also features a powder room.

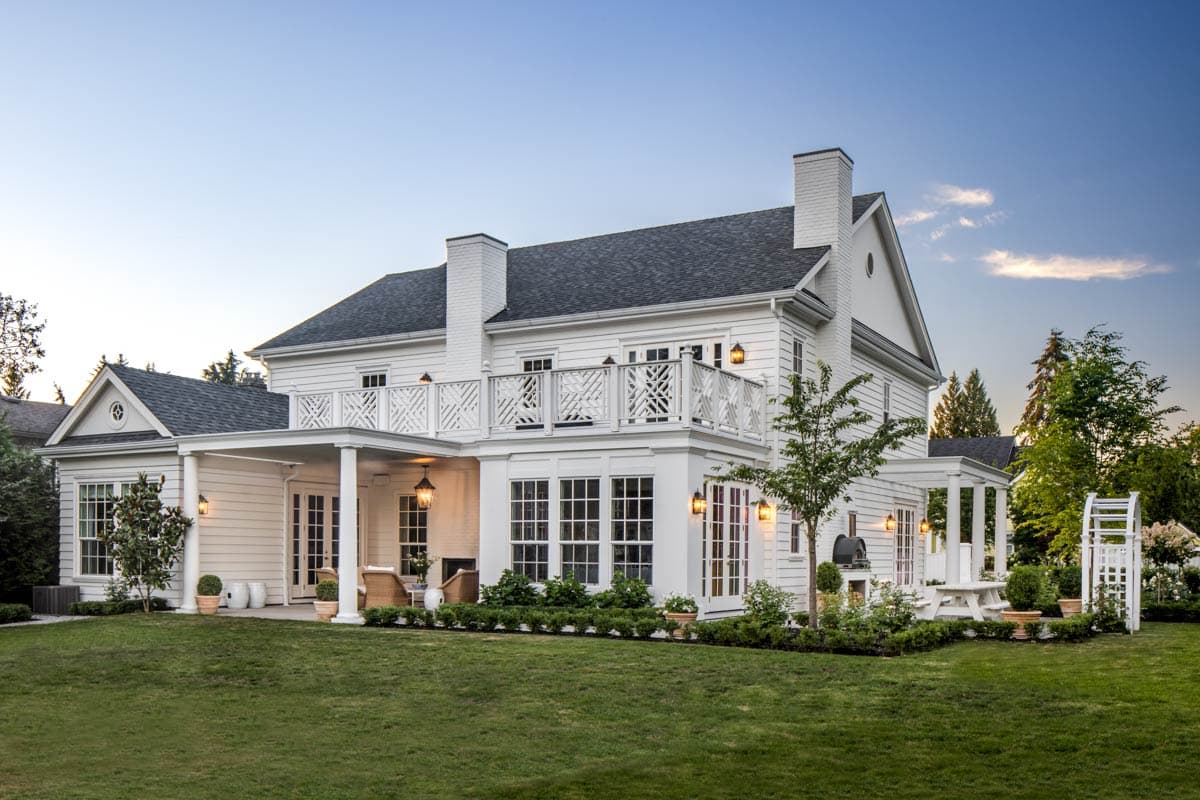

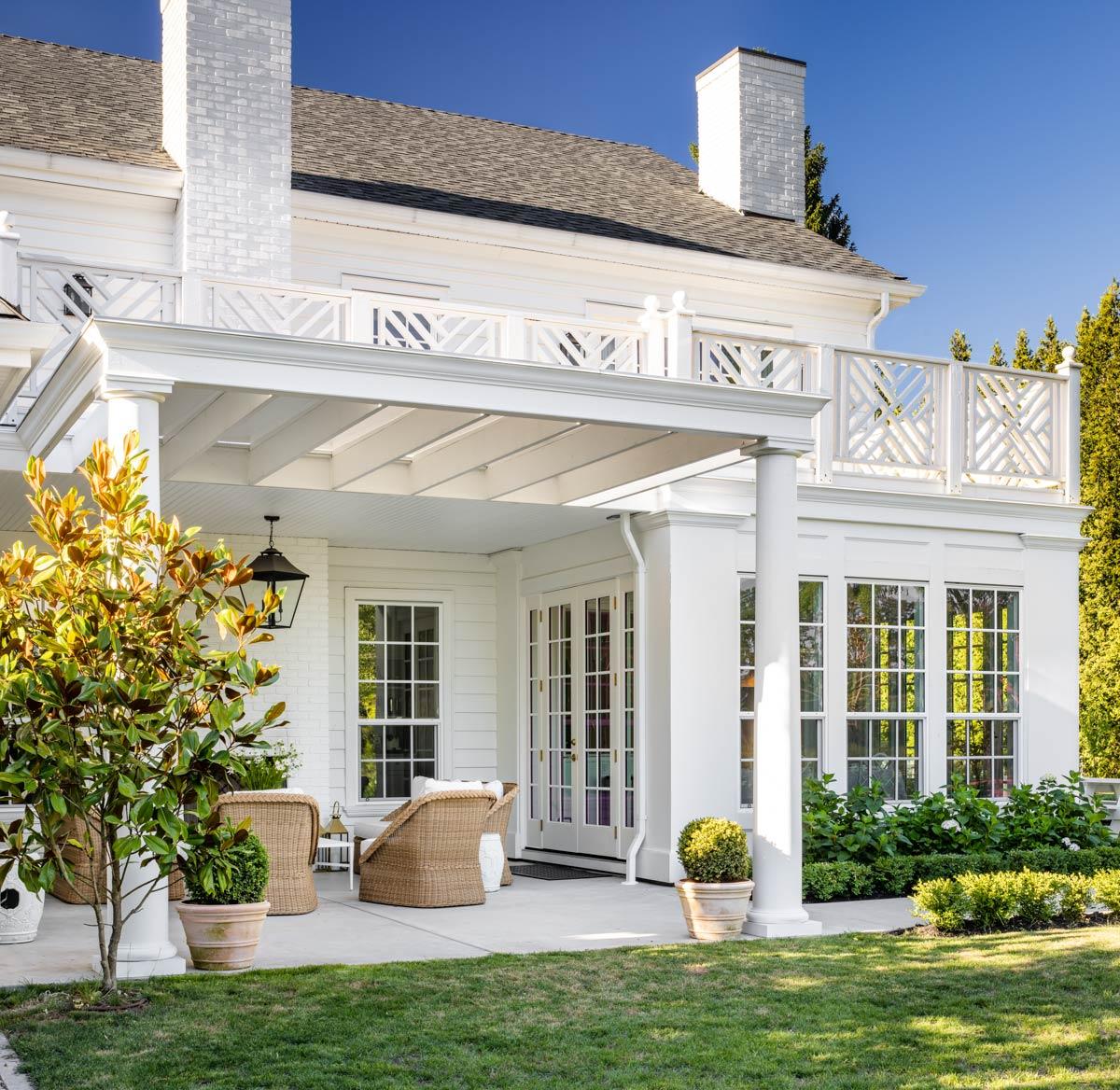

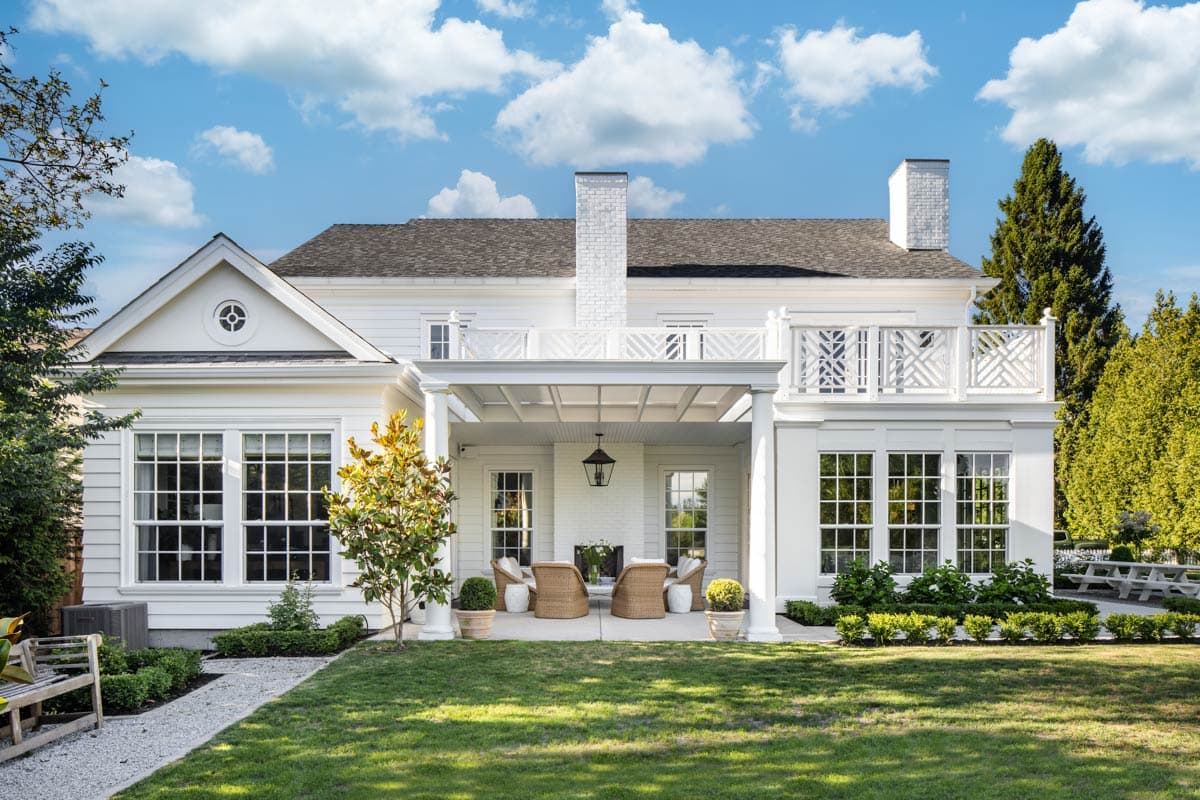

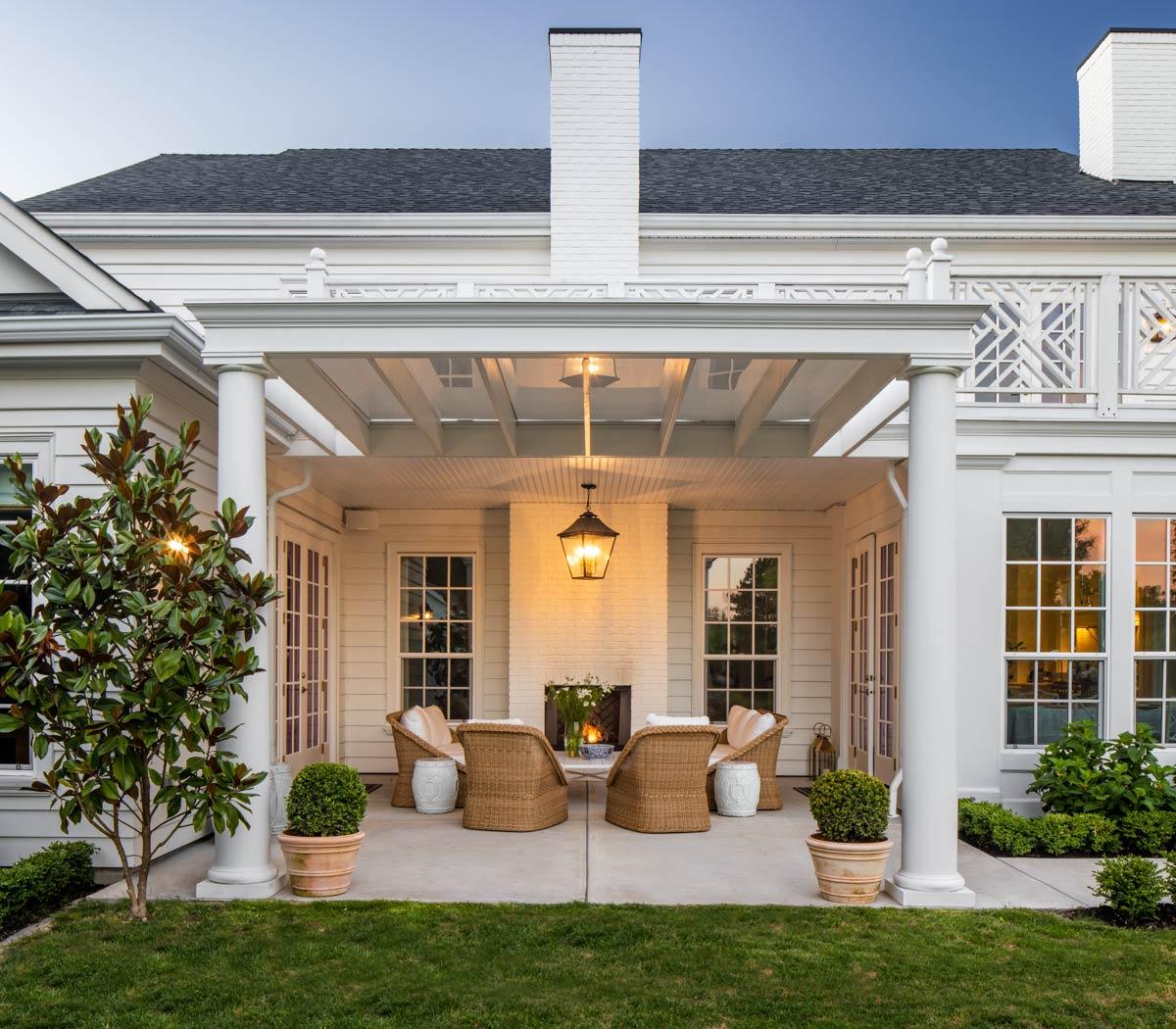

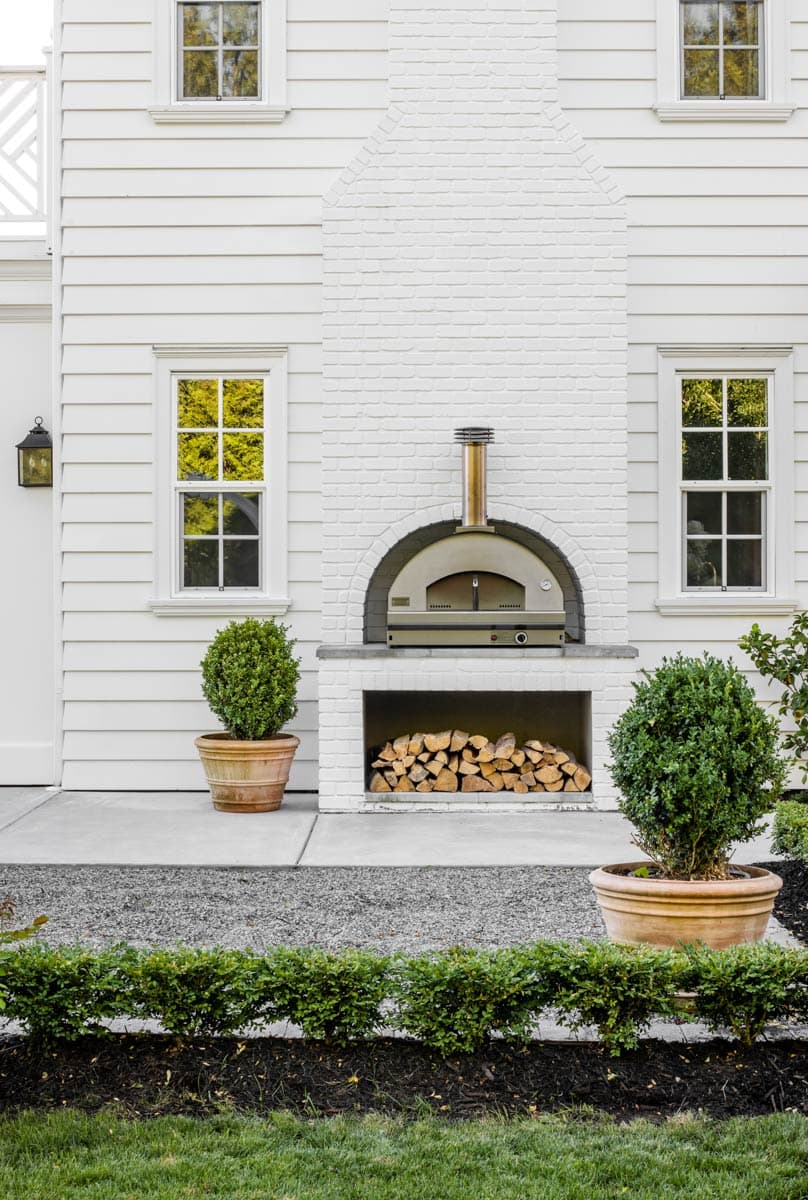

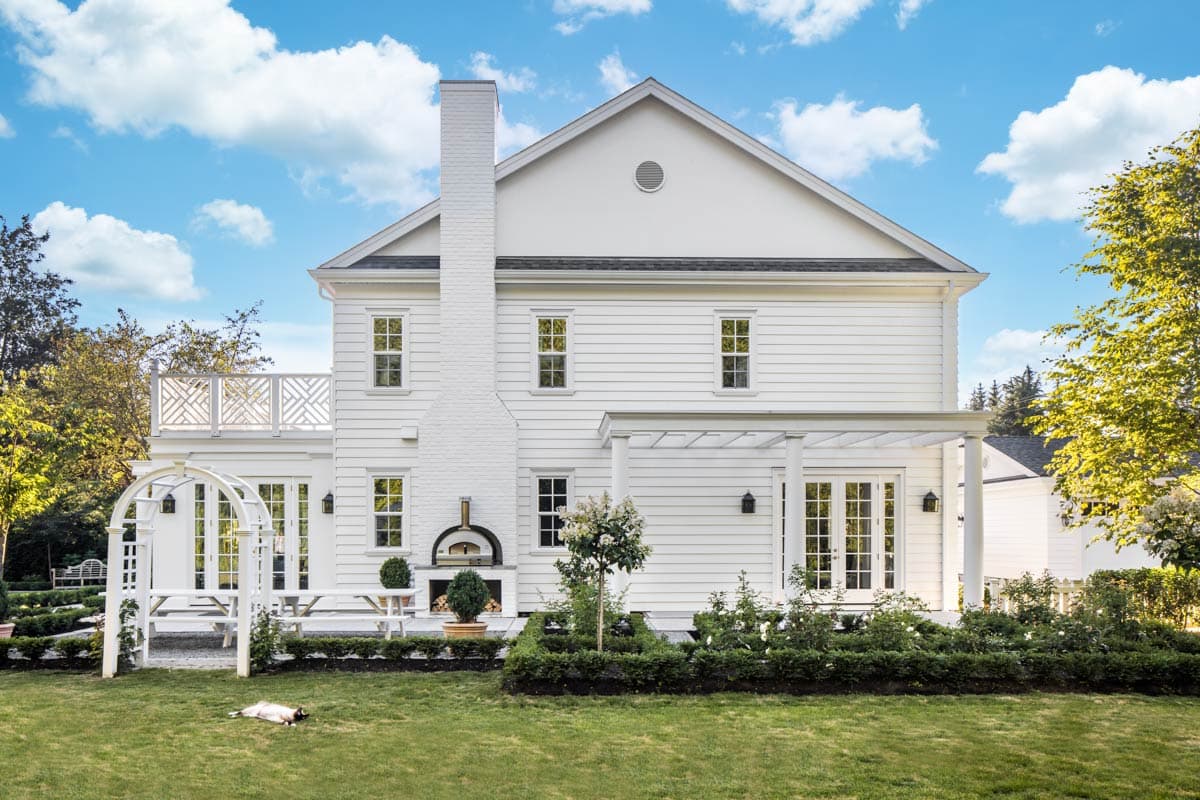

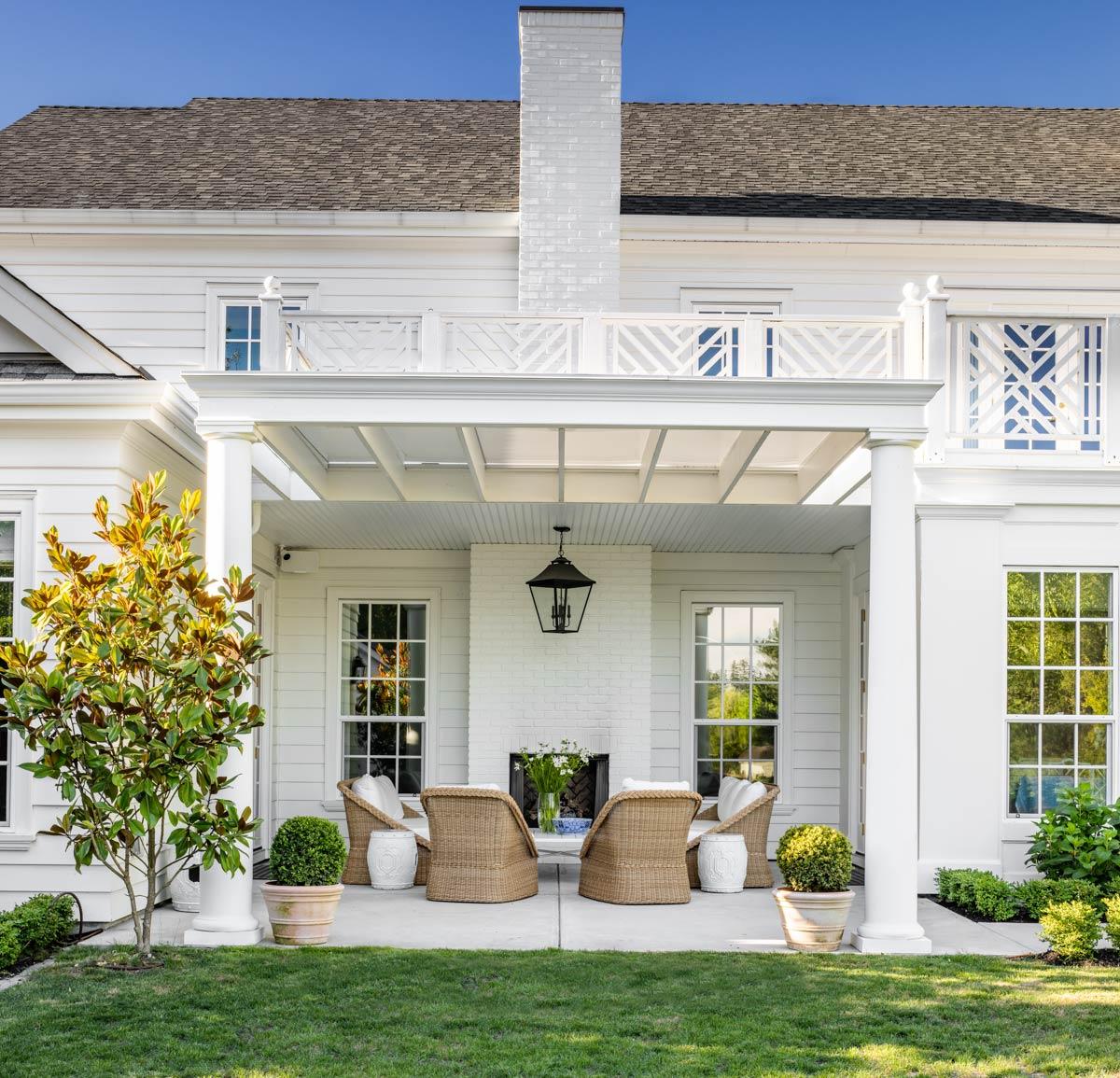

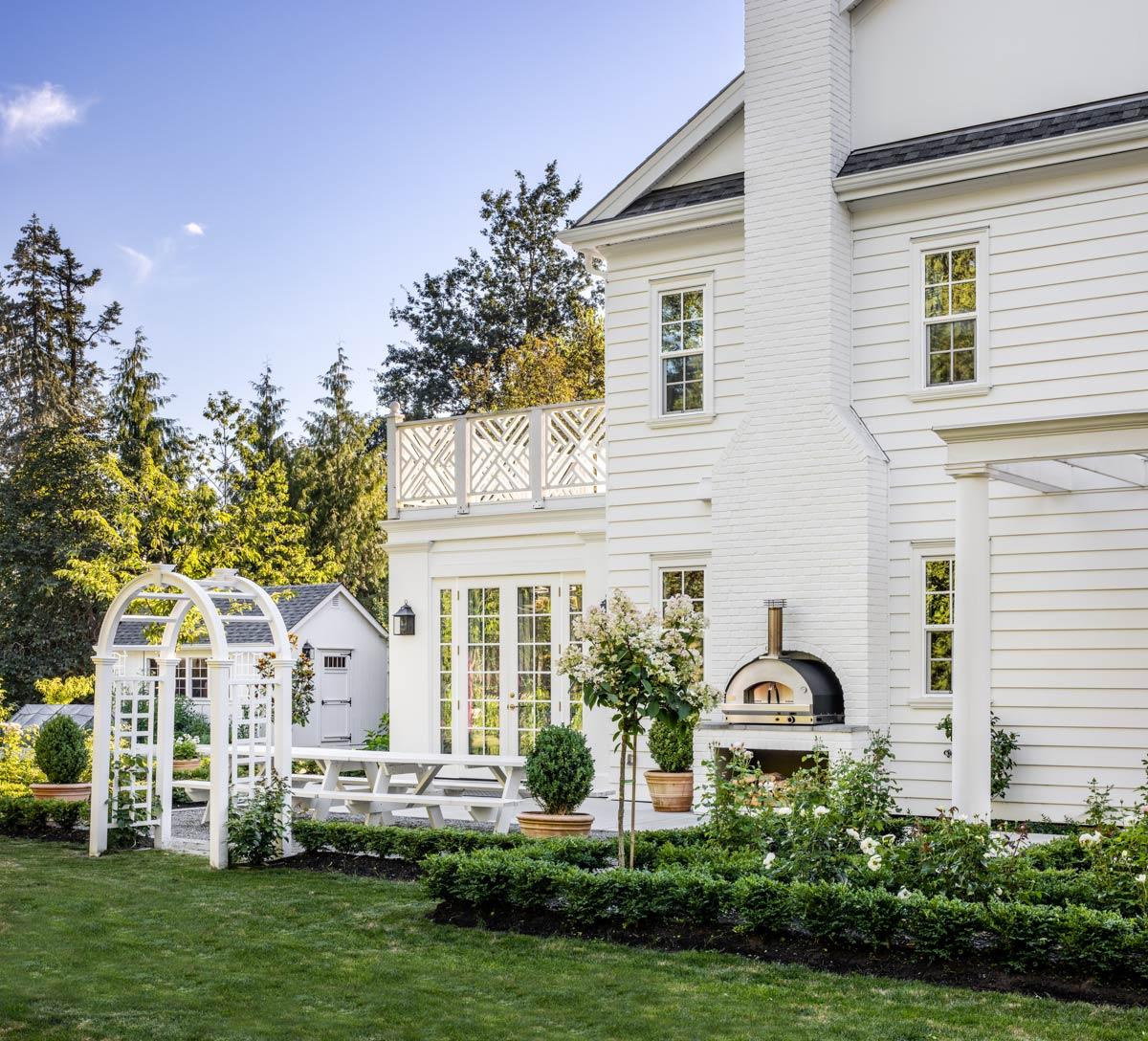

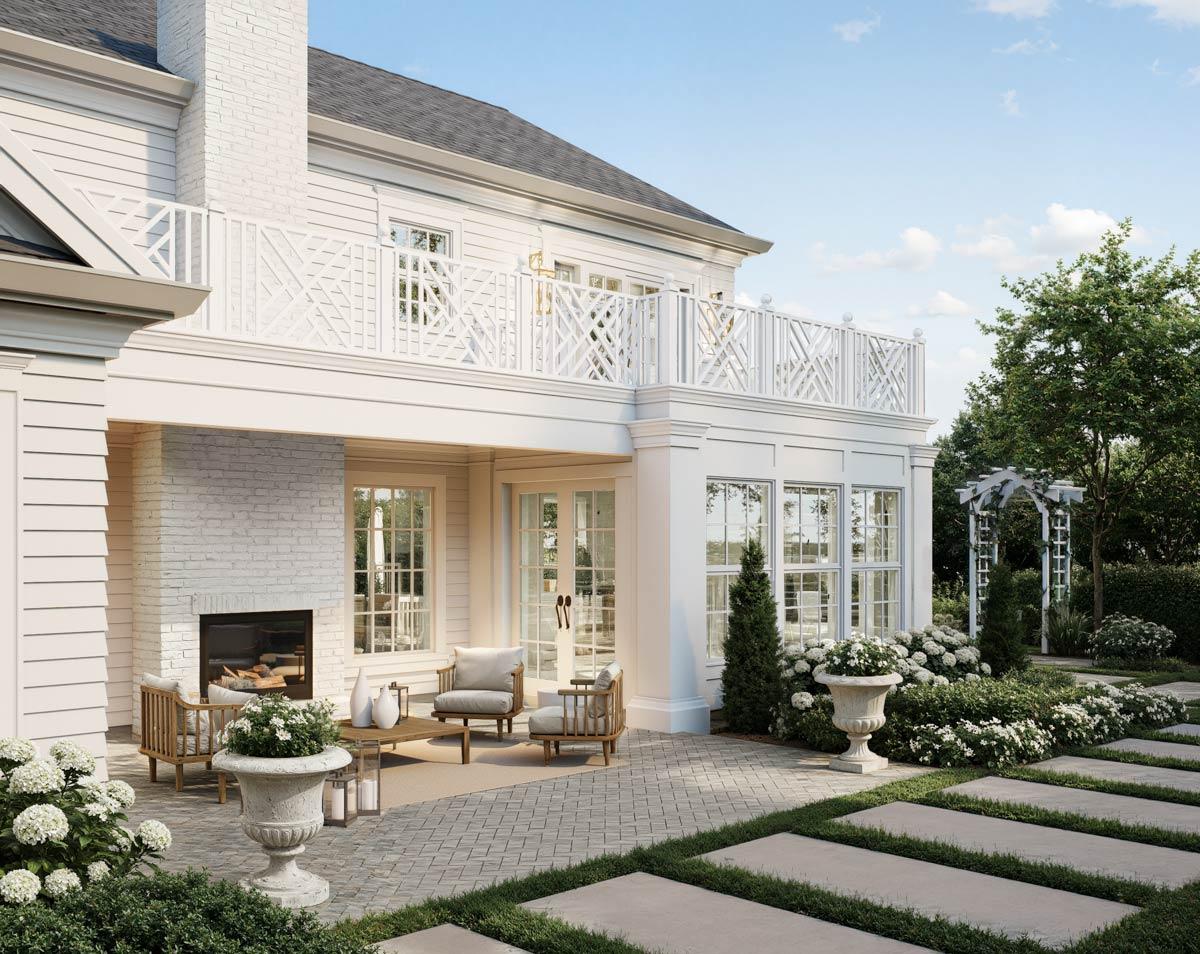

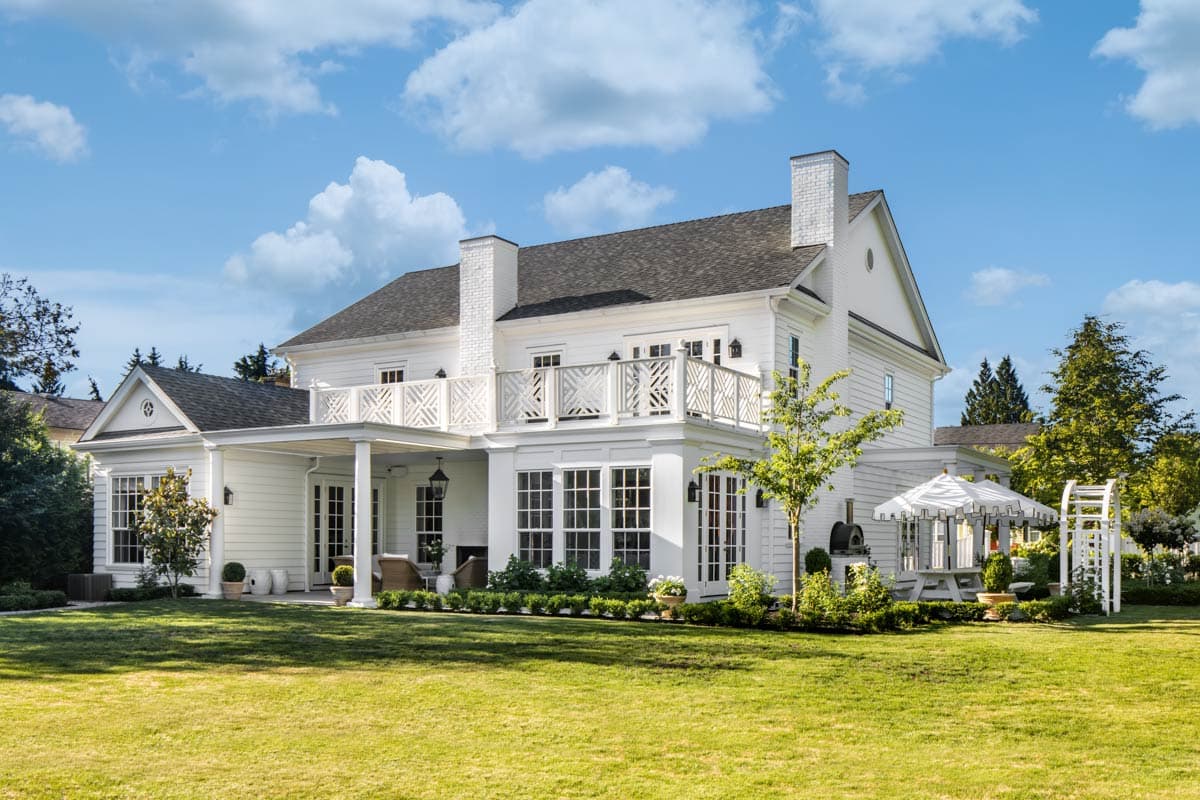

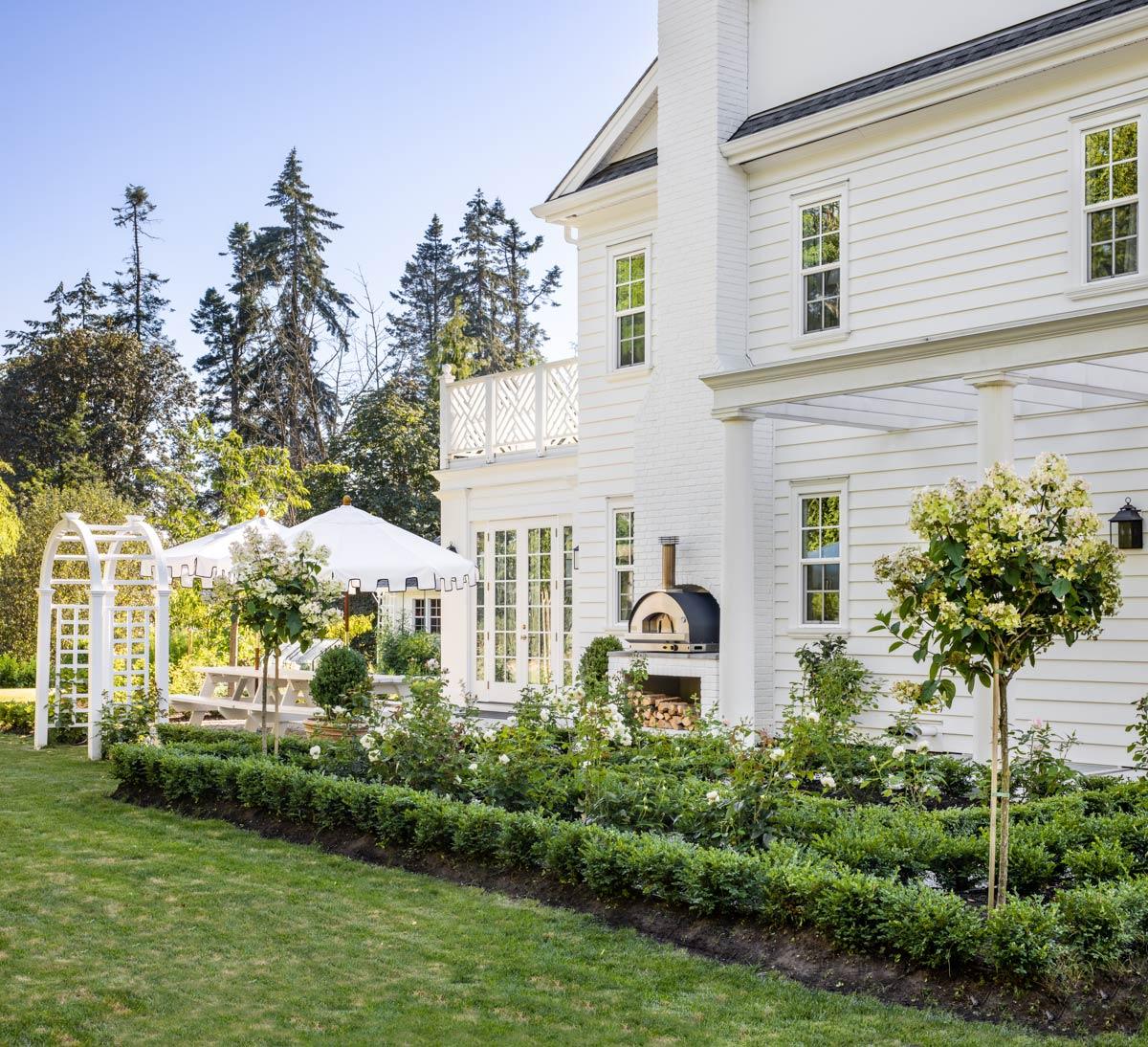

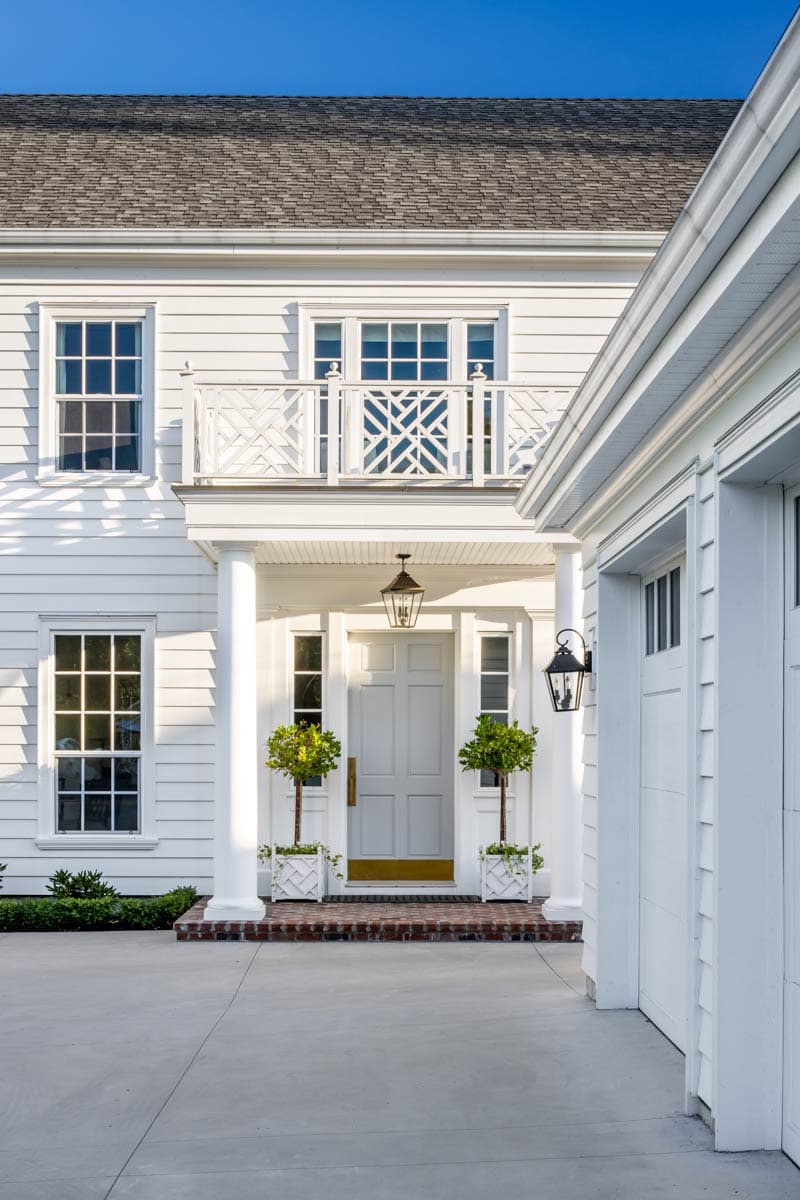

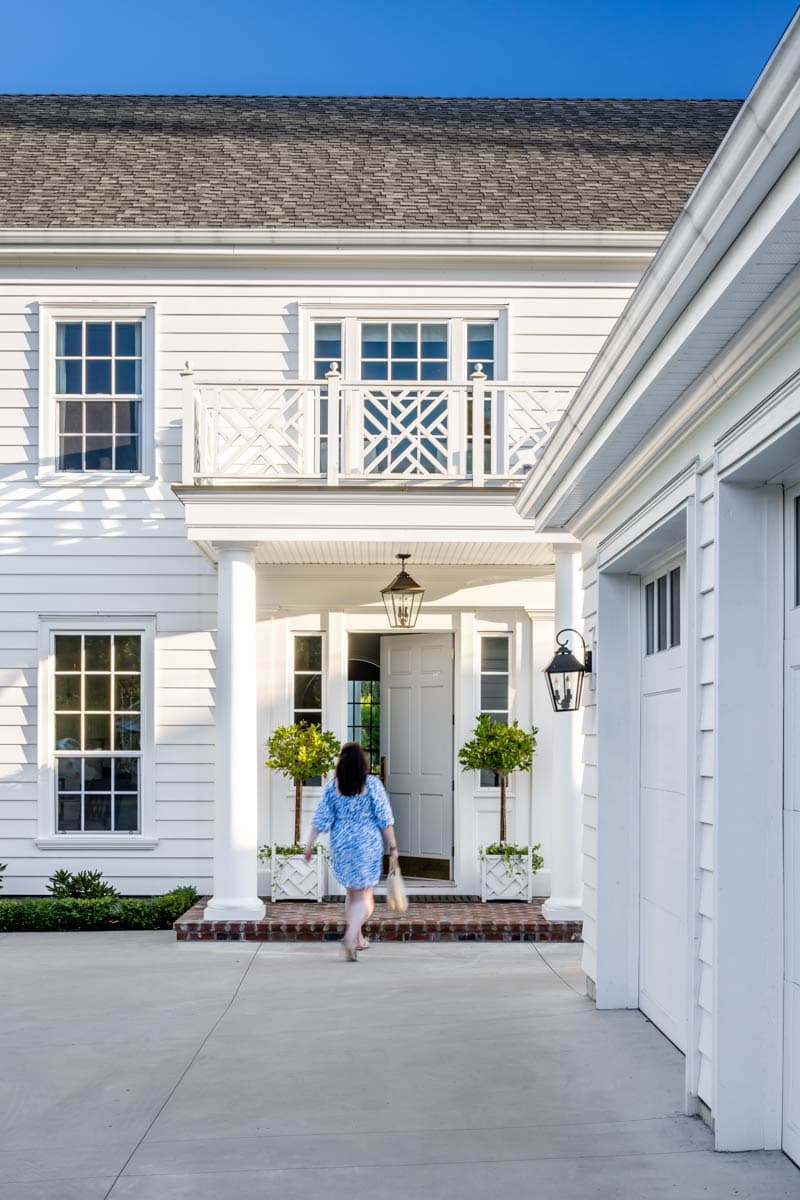

  • Outdoor living is enhanced by a welcoming front porch, a generous rear porch, and a private deck accessible from the master suite, offering various spaces for relaxation and al fresco dining. An outdoor fireplace extends usability into cooler evenings.
  • The optional 2,100 sq. ft. lower level can be finished to include additional bedrooms, a flex space, a living room, and a second kitchen/dining area, offering versatile accommodations for guests or extended family living.

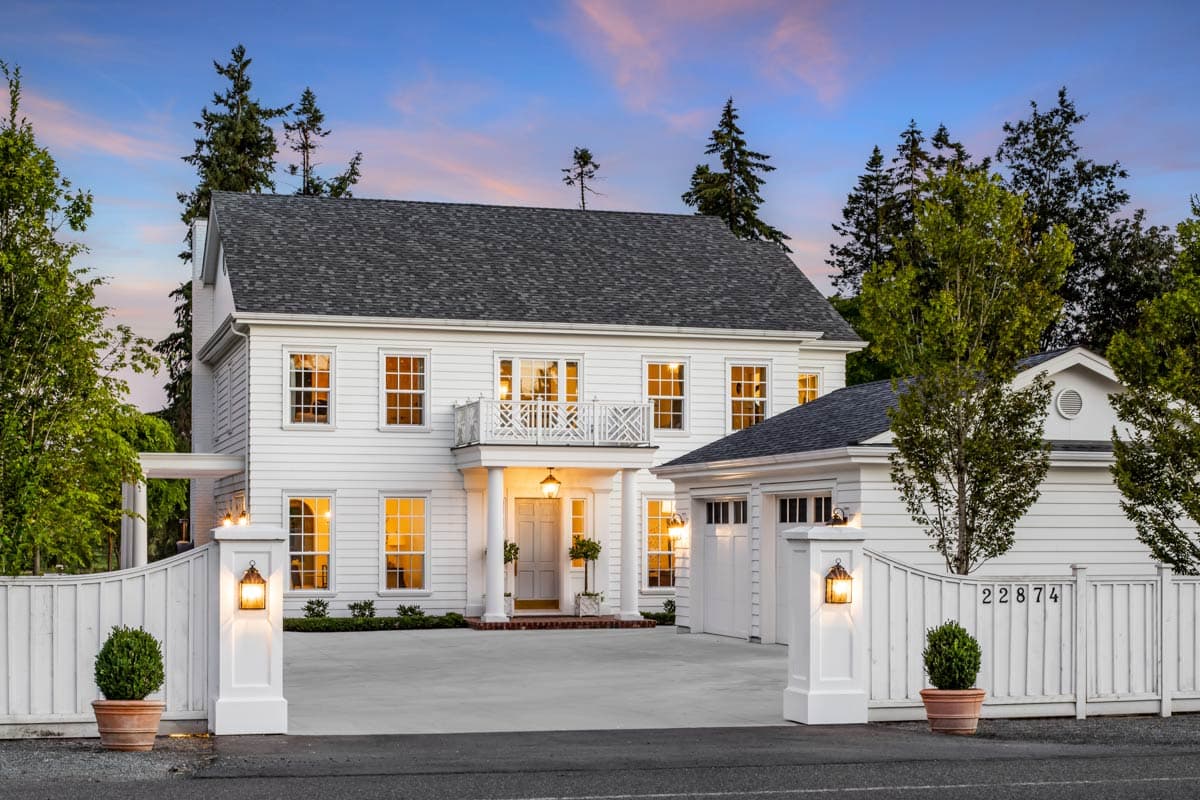

  • Get the matching detached 2-car garage (shown in photos) with garage plan 270090AF.

What's Included

  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges
  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Framing - layouts with beam sizes and locations
  • Electrical plan
  • Plumbing Details
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Energy calculations - handled locally when required
  • Renderings, photography, or marketing imagery
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,631 sq. ft.

1st Floor

2,100 sq. ft.

2nd Floor

1,531 sq. ft.

Optional Lower Level

2,100 sq. ft.

Porch, Front

82 sq. ft.

Deck & Porch

367 sq. ft.

Covered Patio

96 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 0"

Depth

60' 0"

Max Ridge Height

32' 4"

Ceiling Heights

Lower Level

8'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Colonial

Traditional

Special Features

Formal Dining

Game/Rec Room

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - Upstairs

Mudroom

Outdoor Fireplace

Playroom

Walk-in Pantry

Plan Collections

Canadian House Plans

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,631 sq. ft.

1st Floor

2,100 sq. ft.

2nd Floor

1,531 sq. ft.

Optional Lower Level

2,100 sq. ft.

Porch, Front

82 sq. ft.

Deck & Porch

367 sq. ft.

Covered Patio

96 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 0"

Depth

60' 0"

Max Ridge Height

32' 4"

Ceiling Heights

Lower Level

8'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Colonial

Traditional

Special Features

Formal Dining

Game/Rec Room

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - Upstairs

Mudroom

Outdoor Fireplace

Playroom

Walk-in Pantry

Plan Collections

Canadian House Plans

Photo Gallery
