Plan 52541WM

Traditional Narrow-Lot House Plan with Upstairs Master Suite

Heated S.F.
1,357
Beds
2 - 3
Baths
3
Stories
2

Floor Plan

Plan 52541WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52541WM

M-F 9am-5pm EST |

1-203-761-8500

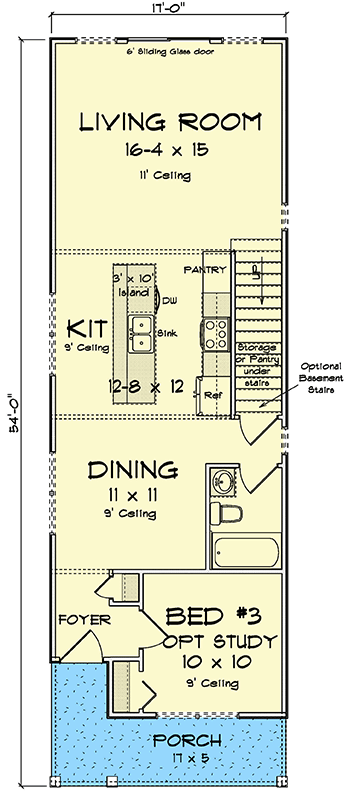

Main Level

Plan 52541WM: Traditional Narrow-Lot House Plan with Upstairs Master Suite - Floor Plan - Main Level - Traditional

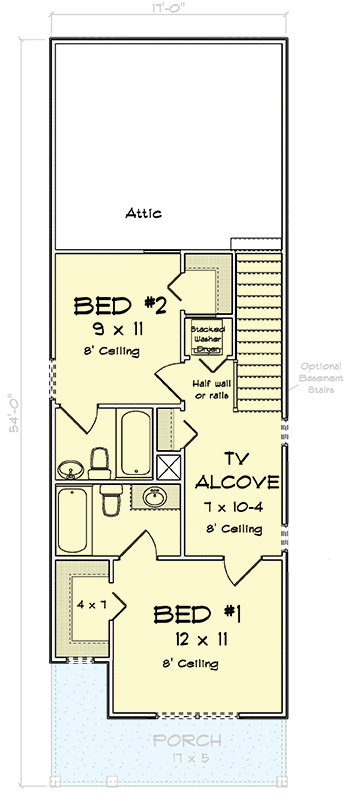

2nd Floor

Plan 52541WM: Traditional Narrow-Lot House Plan with Upstairs Master Suite - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This traditional-style home offers 1,357 square feet of heated living space with 2 or 3 bedrooms, 3 full baths, and a compact footprint that fits narrow lots.

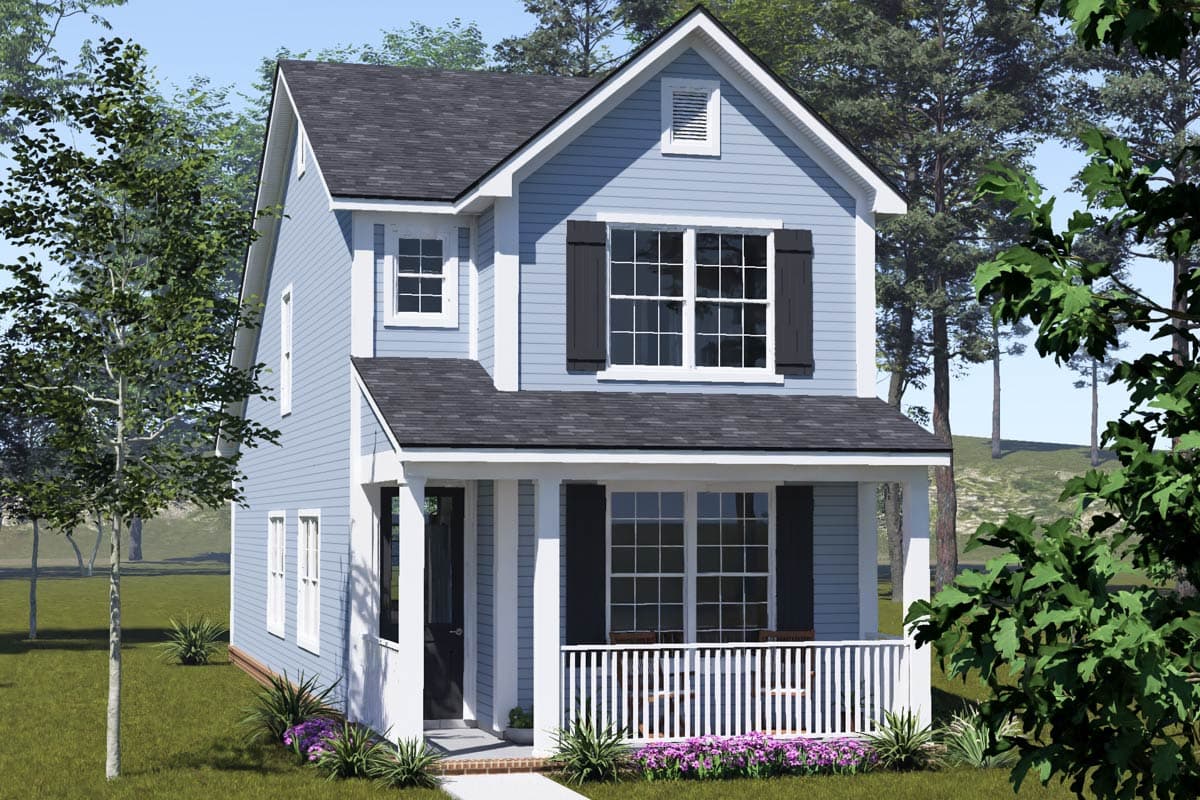

  • A welcoming front porch invites you inside, where ample windows and a thoughtful open flow ensure abundant natural light throughout the main living areas.

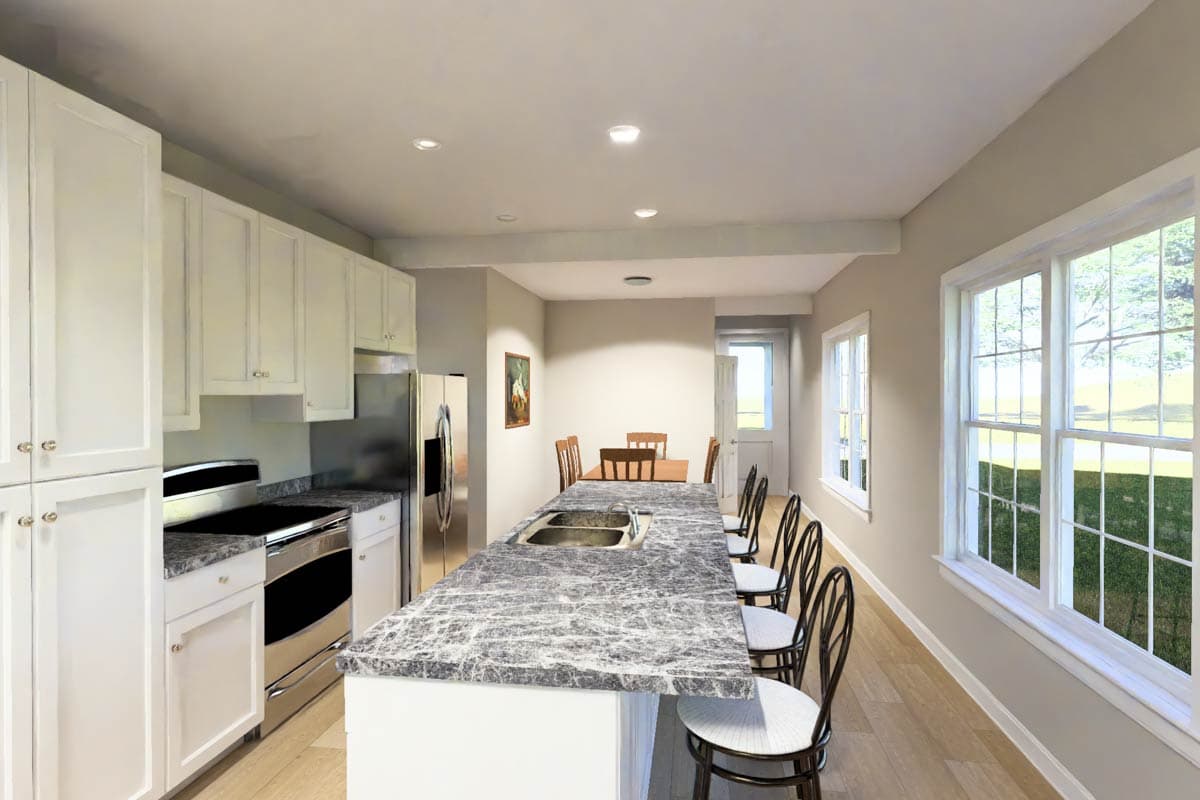

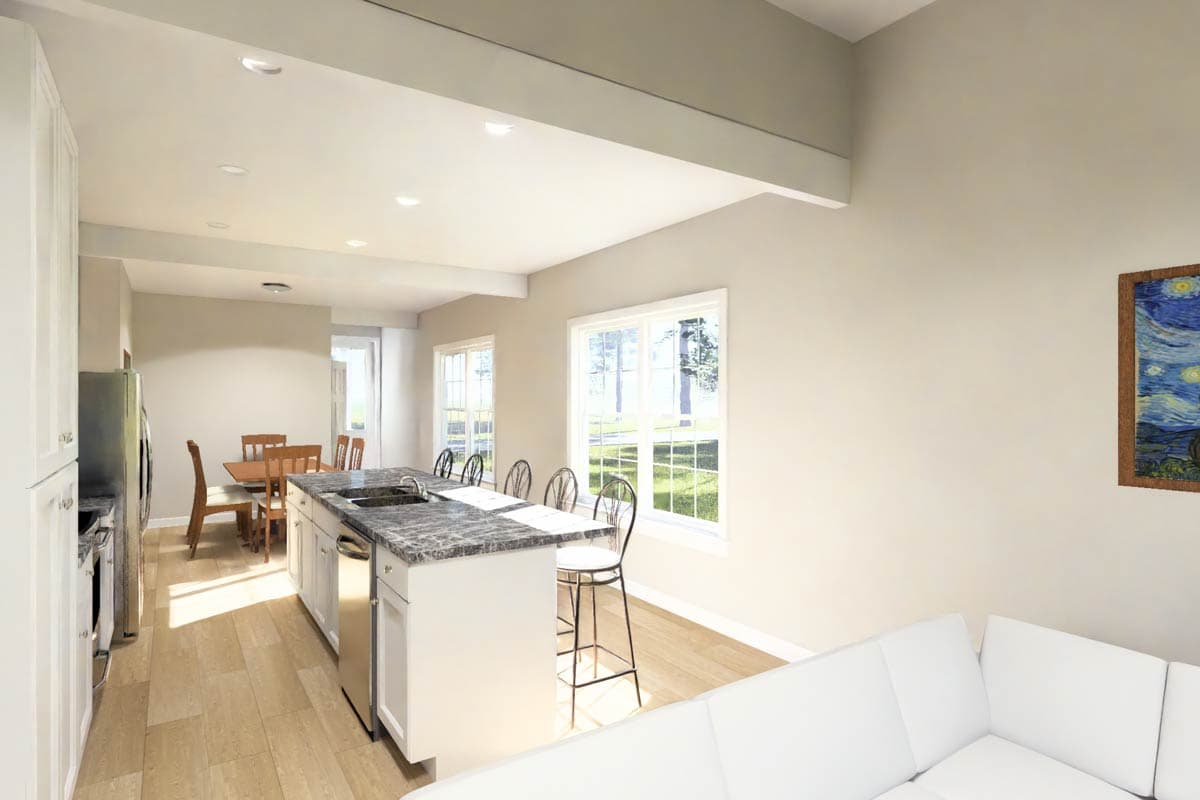

  • The kitchen serves as the central gathering spot, featuring an island for easy meal prep and entertaining, a dedicated pantry, and seamless sightlines to dining and living spaces.

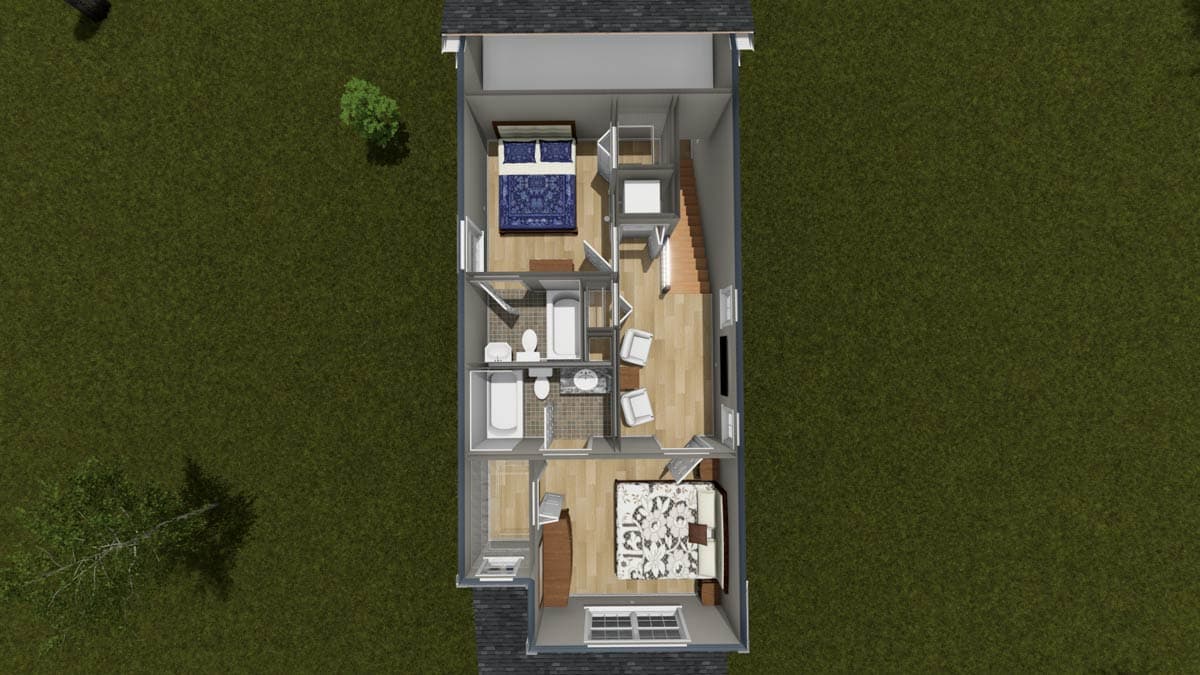

  • Upstairs, the bedrooms are thoughtfully clustered, with a private wing for the master suite, while a flexible loft area provides options for a home office or third bedroom.
  • The drop zone area near the entry helps keep everyday essentials organized and the living spaces clutter-free.
  • The front porch becomes an outdoor extension of the home, perfect for relaxing with a morning coffee or visiting with neighbors.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,357 sq. ft.

1st Floor

816 sq. ft.

2nd Floor

541 sq. ft.

Porch, Front

102 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

17' 0"

Depth

54' 0"

Max Ridge Height

26' 3"

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Loft

Master Suite - Upstairs
