Plan 135039GRA Traditional Ranch with Loft and Expansive Lower Level

Traditional Ranch with Loft and Expansive Lower Level

Plan 135039GRA

  • 2,270

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Enjoy the intuitive floor plan provided by this traditional ranch home that features a bonus level above the garage, as well as an expansive lower level.
  • Step inside to find a formal dining room to the right of the foyer and a great room warmed by a fireplace straight ahead. The square-shaped kitchen features an adjoining breakfast nook and a pantry tucked beneath the stairwell in the neighboring hallway.
  • Privately situated behind double garage, you will find the master suite, along with the master bathroom that hosts a garden tub in a boxed-bay window. Bedrooms 2 and 3 across the home share a full bath.
  • Utilize the second level above the garage as a home office or flex space.
  • Retreat to the lower level to find additional living space divided into a recreation room, workout room, playroom, hobby area, and fourth bedroom.

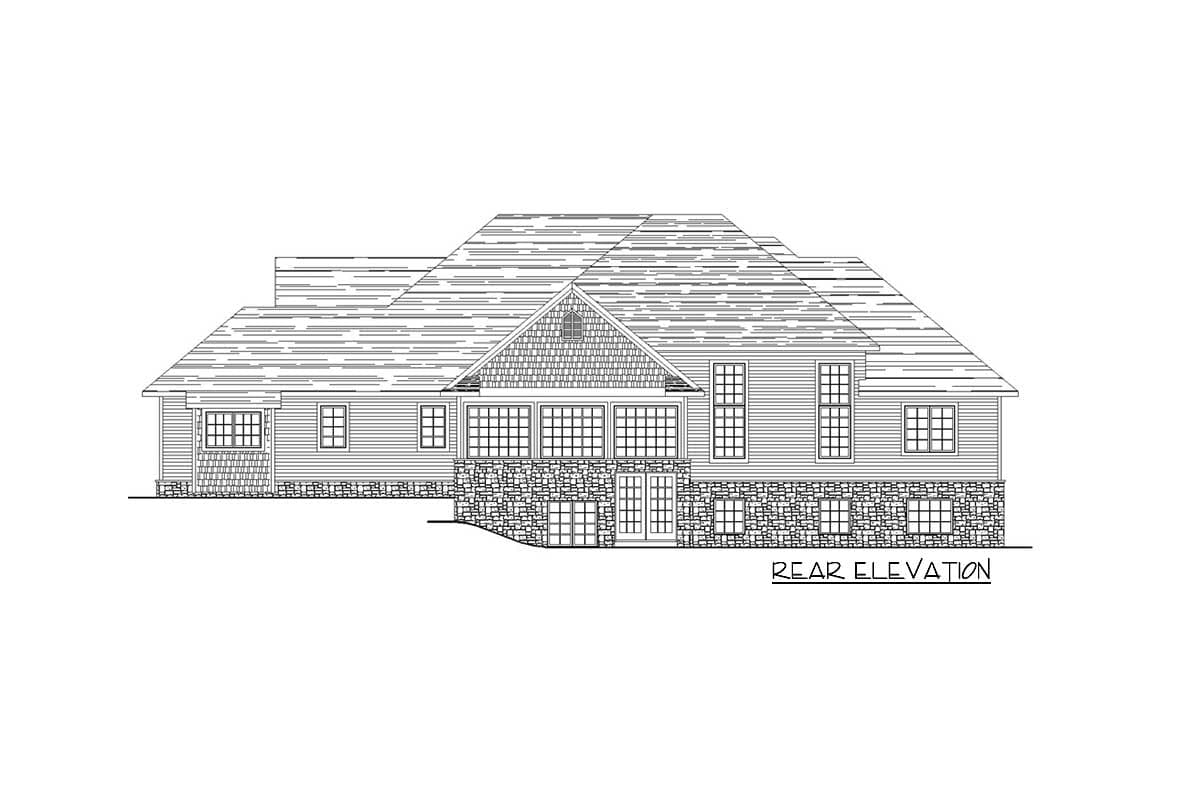

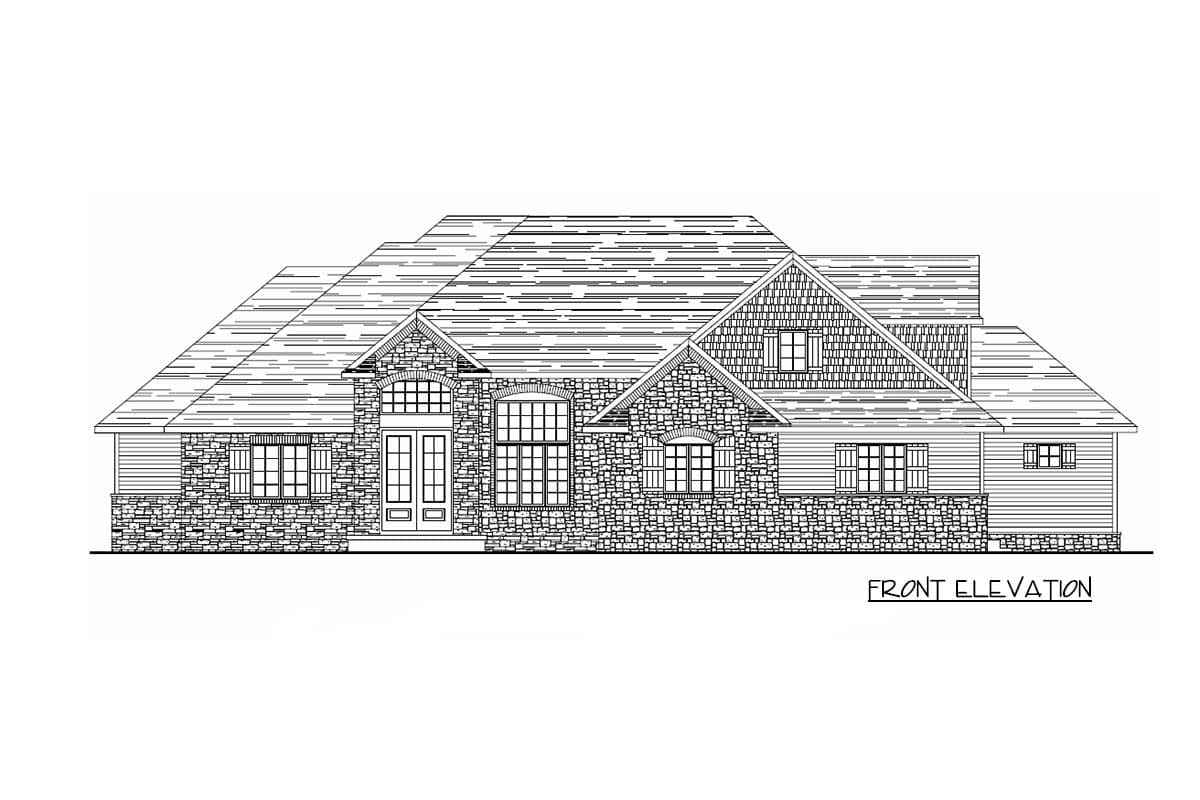

  • All elevations
  • First Floor Plan
  • Basement Floor plan
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • First Floor Electrical
  • Basement Electrical
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

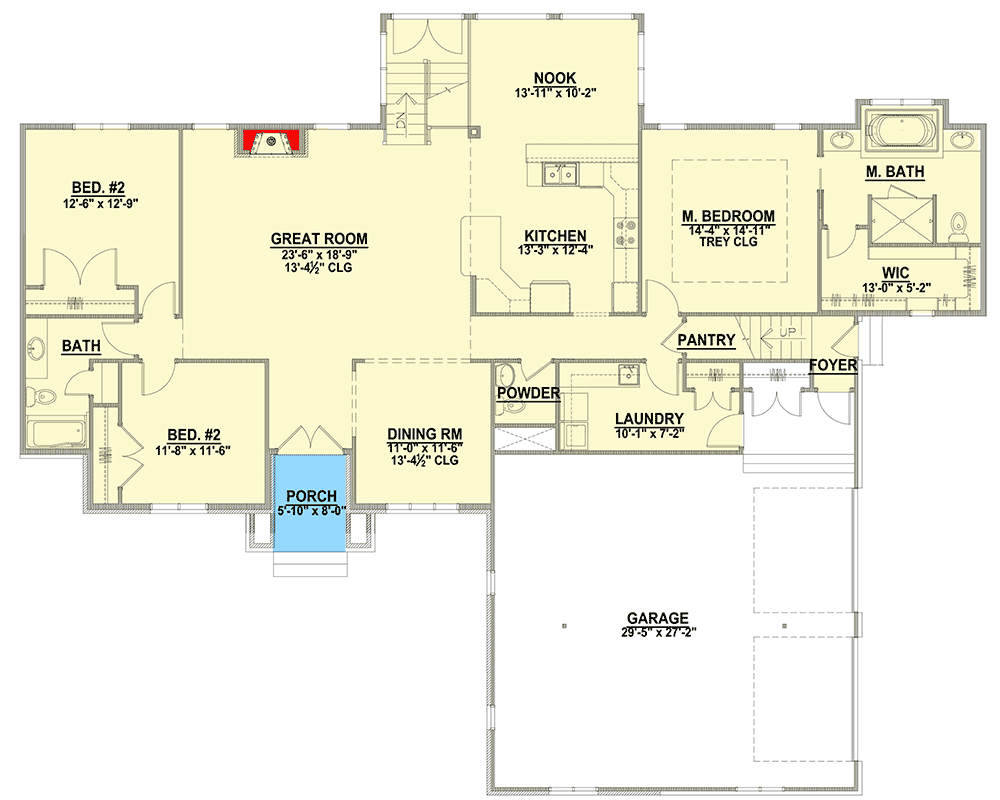

Traditional Ranch with Loft and Expansive Lower Level - 135039GRA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

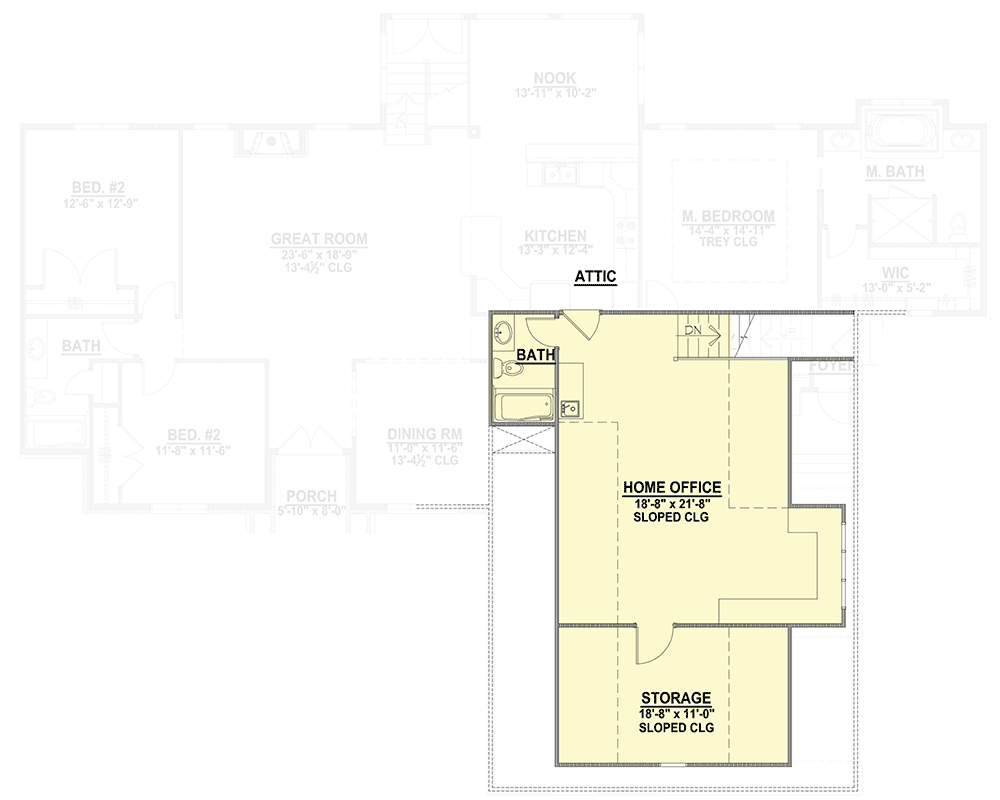

Traditional Ranch with Loft and Expansive Lower Level - 135039GRA floor plan - Loft
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Traditional Ranch with Loft and Expansive Lower Level - 135039GRA floor plan - Lower Level

Plan details

Traditional Ranch with Loft and Expansive Lower Level

  • 2,270

    Heated s.f.

  • 3 - 5

    Beds

  • 4 +

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,050
  • 5 Sets $1,200
  • CAD - Single-Build $2,100
  • View all purchase option online

About This Plan

  • Enjoy the intuitive floor plan provided by this traditional ranch home that features a bonus level above the garage, as well as an expansive lower level.
  • Step inside to find a formal dining room to the right of the foyer and a great room warmed by a fireplace straight ahead. The square-shaped kitchen features an adjoining breakfast nook and a pantry tucked beneath the stairwell in the neighboring hallway.
  • Privately situated behind double garage, you will find the master suite, along with the master bathroom that hosts a garden tub in a boxed-bay window. Bedrooms 2 and 3 across the home share a full bath.
  • Utilize the second level above the garage as a home office or flex space.
  • Retreat to the lower level to find additional living space divided into a recreation room, workout room, playroom, hobby area, and fourth bedroom.

Floor Plans

  • Main Level

  • Loft

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,270 sq. ft.
  • 1st Floor: 2,270 sq. ft.
  • Porch, Front: 59 sq. ft.
  • Loft: 746 sq. ft.
  • Basement Unfinished: 2,270 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 0"
  • Depth: 63' 6"
  • Max ridge height: 24' 11"

Garage

  • Type: Attached
  • Area: 894 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
