Plan 62524DJ

Traditional Style Home Plan with an Open Great Room

Heated S.F.

2,317

Beds

4

Baths

3.5

Stories

2

Cars

2

What's Included

Floor Plan

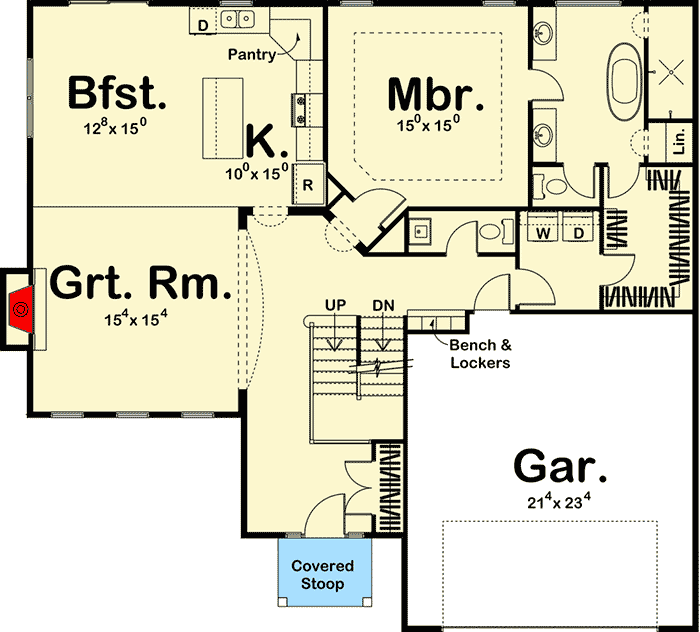

Main Level

Reverse Floor Plan

Traditional Style Home Plan with an Open Great Room - 62524DJ floor plan - Main Level

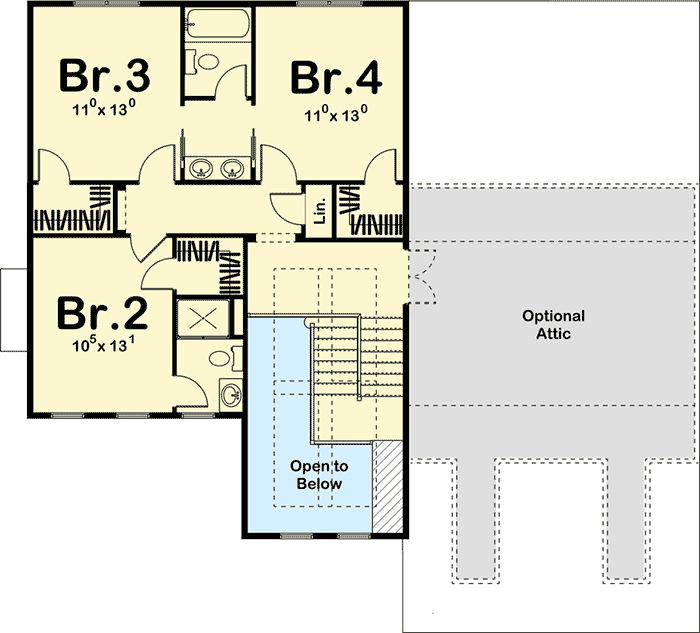

2nd Floor

Reverse Floor Plan

Traditional Style Home Plan with an Open Great Room - 62524DJ floor plan - 2nd Floor

Plan Details

A marvelous open great room awaits you in this lovely Traditional home plan.
The wide arched entry makes it possible to see the hall and open rail staircase.
Sliding glass doors in the dining/breakfast room lead to the backyard.
The L-shaped kitchen has a walk-in pantry and an island for extra counter and storage space.
A beautiful tray ceiling tops the first floor master suite with its private bathroom.
Note the door in the master closet that opens directly into the laundry room - a wonderful convenience.
Bedroom 2 also has a private bathroom and each bedroom on the second floor features a walk-in closet.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section
Cabinets Elevations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,317 sq. ft.

1st Floor:

1,508 sq. ft.

2nd Floor:

809 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

3

Half bathrooms:

1

Foundation Type

Standard Foundations:

Basement

Optional Foundations:

Walkout, Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

52' 0"

Depth:

47' 0"

Max Ridge Height:

29' 10"

Garage

Type:

Attached

Area:

506 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch:

6 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
