Plan 52566WM

Traditional Three Bedroom Duplex House Plan with Private Garages

Heated S.F.
2,962
Units
2
Width
Depth

Floor Plan

Plan 52566WM

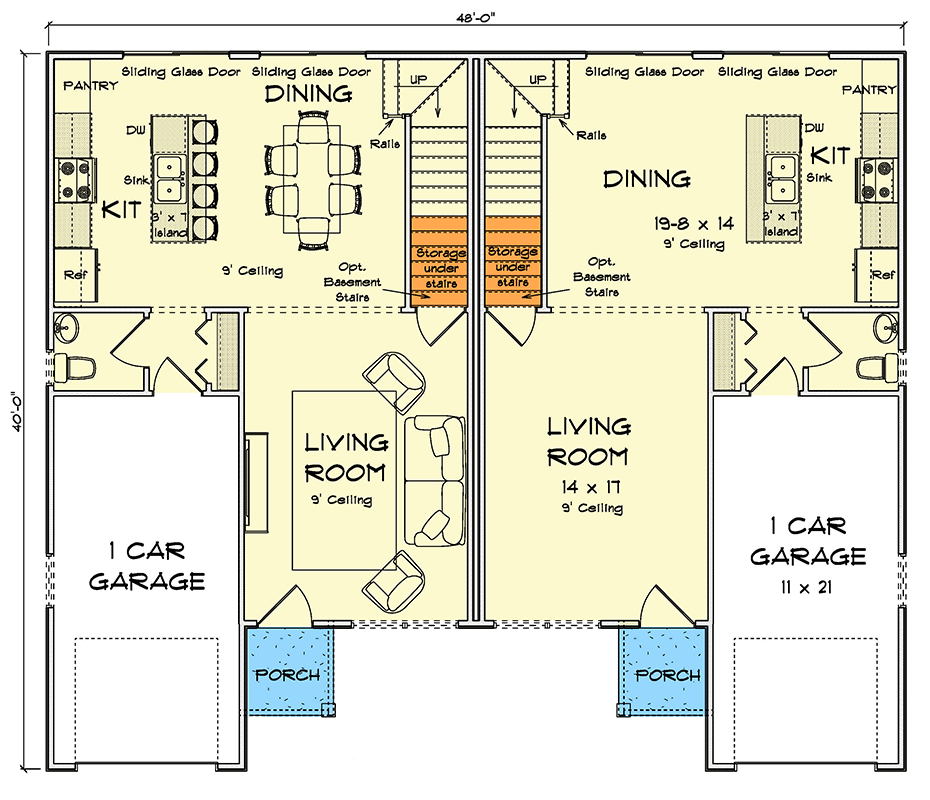

Floor Plan 1

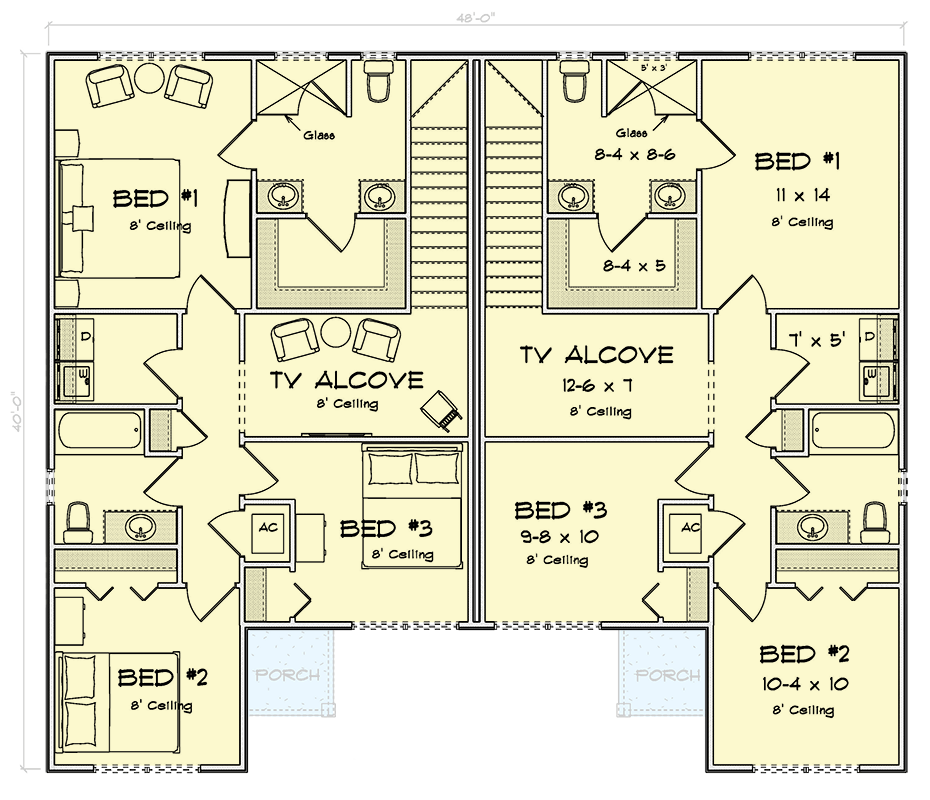

Floor Plan 2

Plan 52566WM

M-F 9am-5pm EST |

1-203-761-8500

Plan 52566WM: Traditional Three Bedroom Duplex House Plan with Private Garages - Floor Plan - - Traditional

Plan 52566WM: Traditional Three Bedroom Duplex House Plan with Private Garages - Floor Plan - - Traditional

Plan Details

  • This traditional duplex offers 1,481 square feet of heated space per unit, featuring three bedrooms, two and a half baths, and a 231 square foot garage.

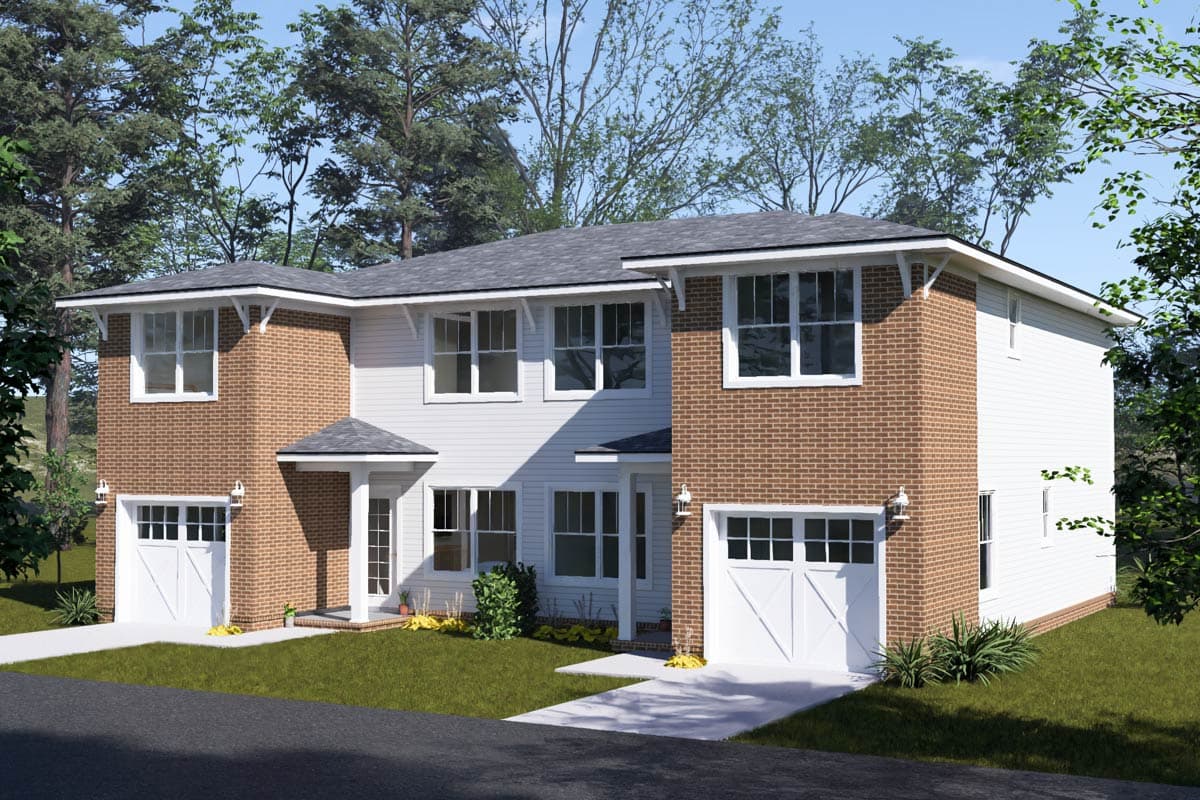

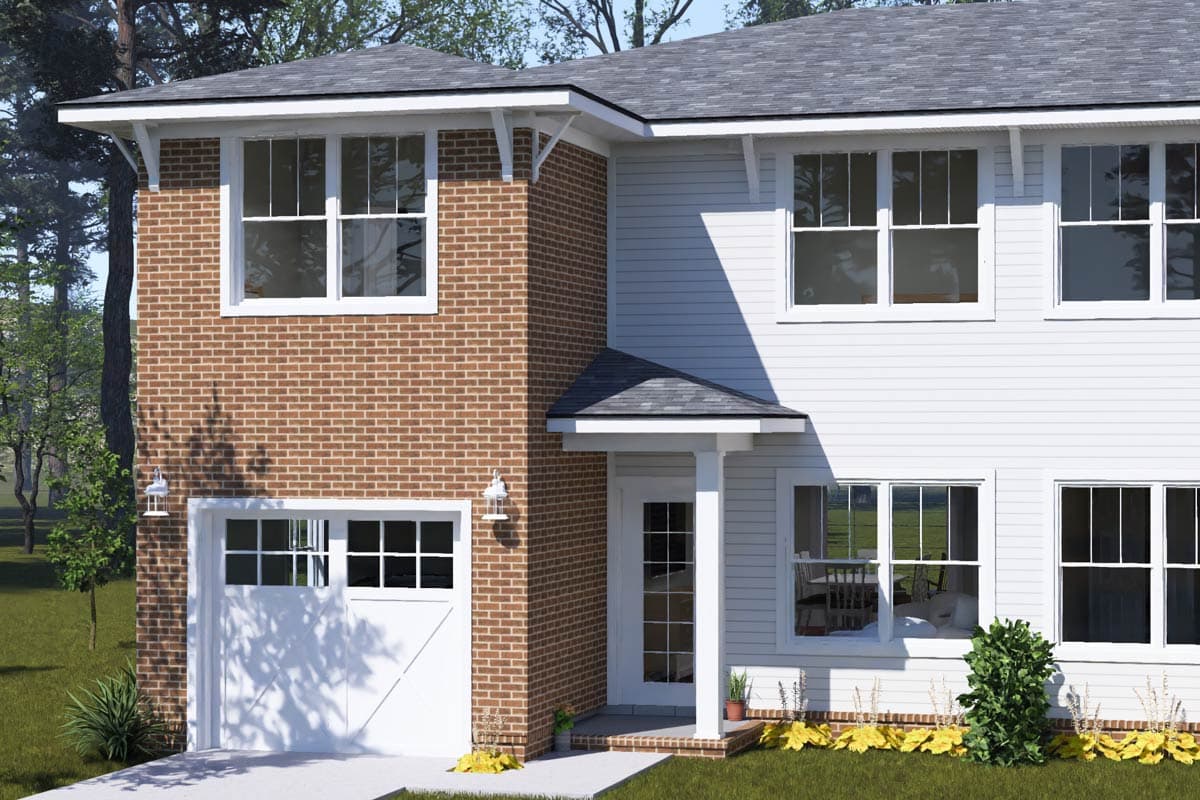

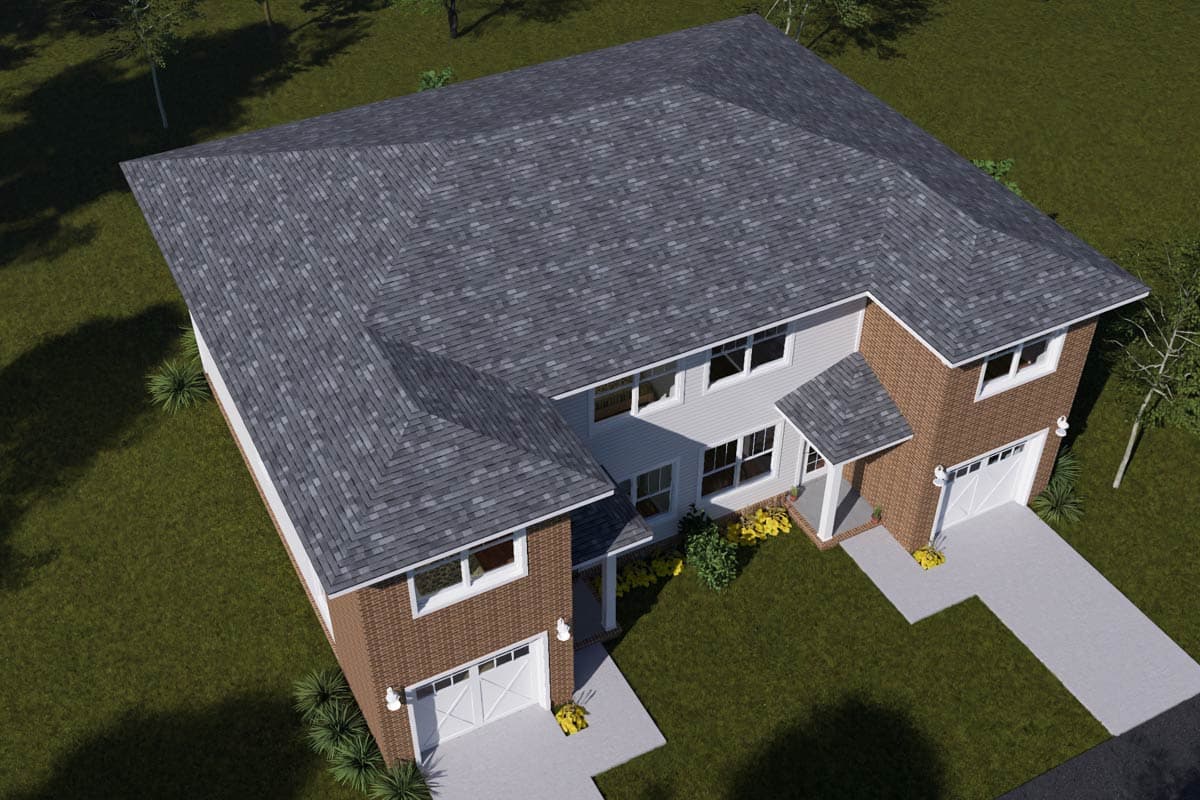

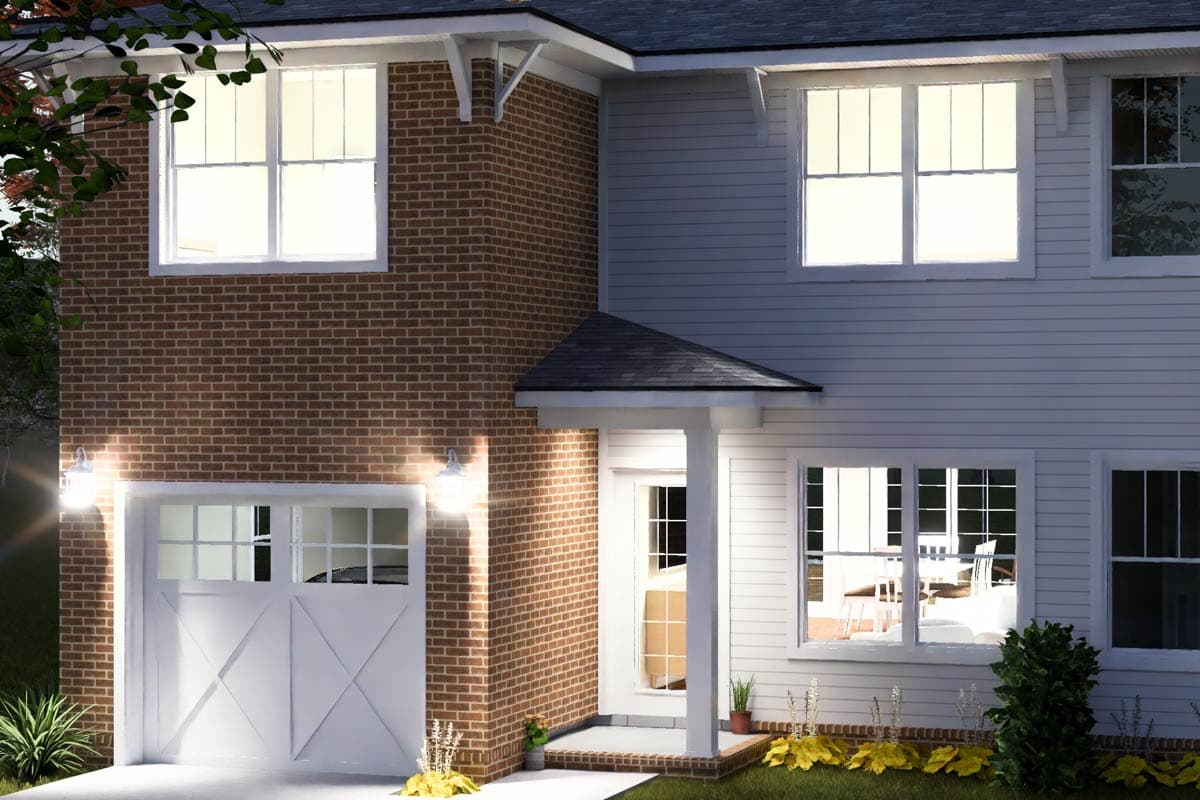

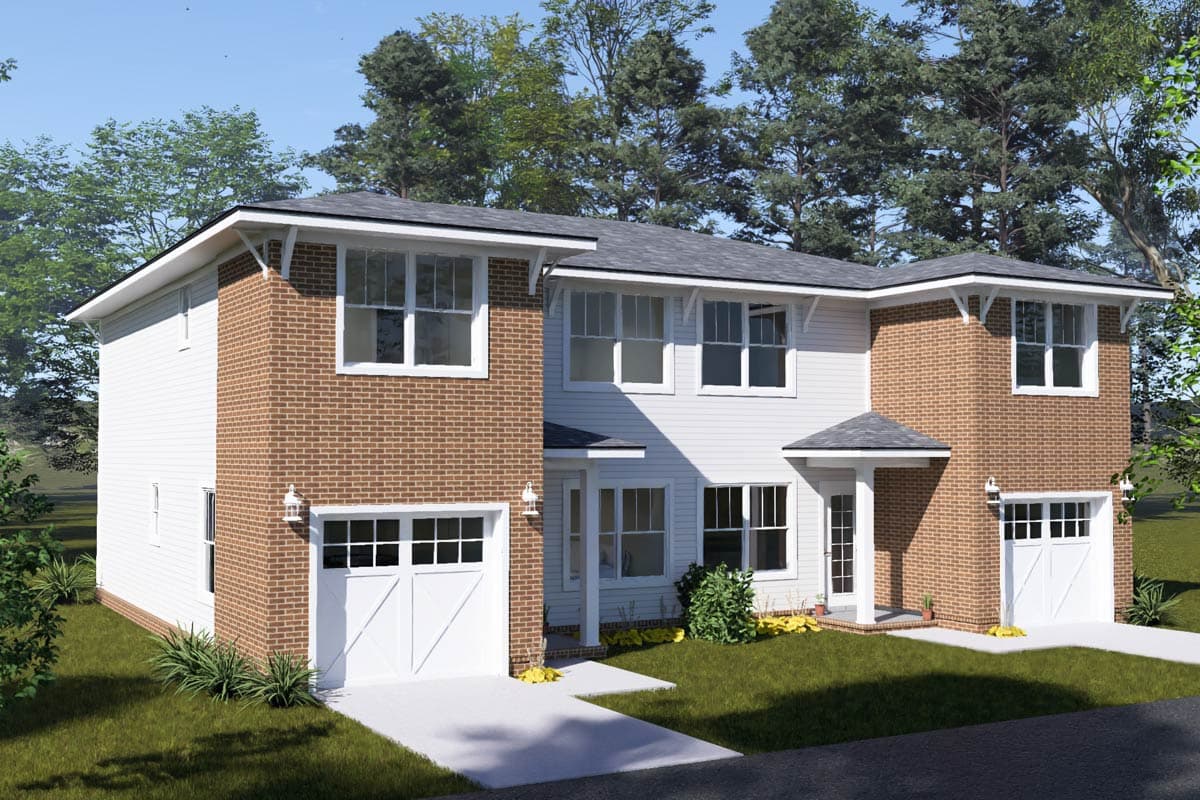

  • The charming exterior combines classic brick and siding, creating a timeless street presence that welcomes residents home through a covered front porch.

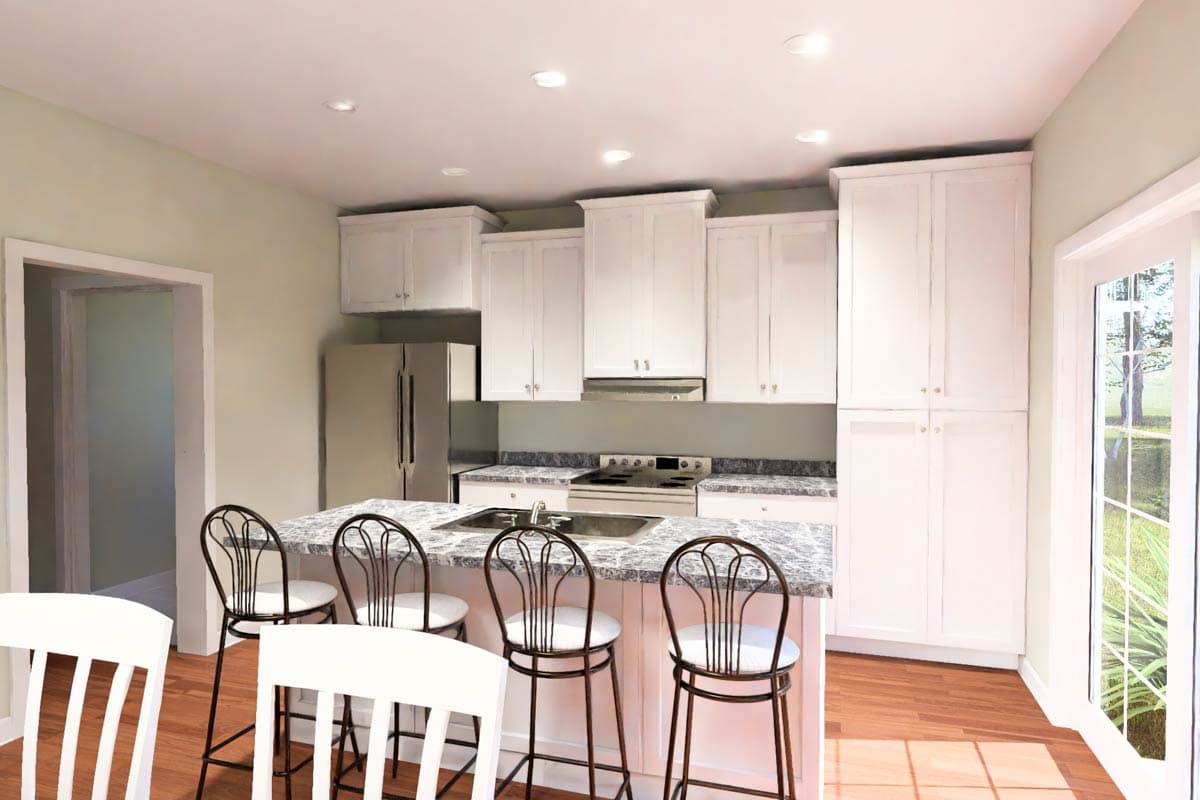

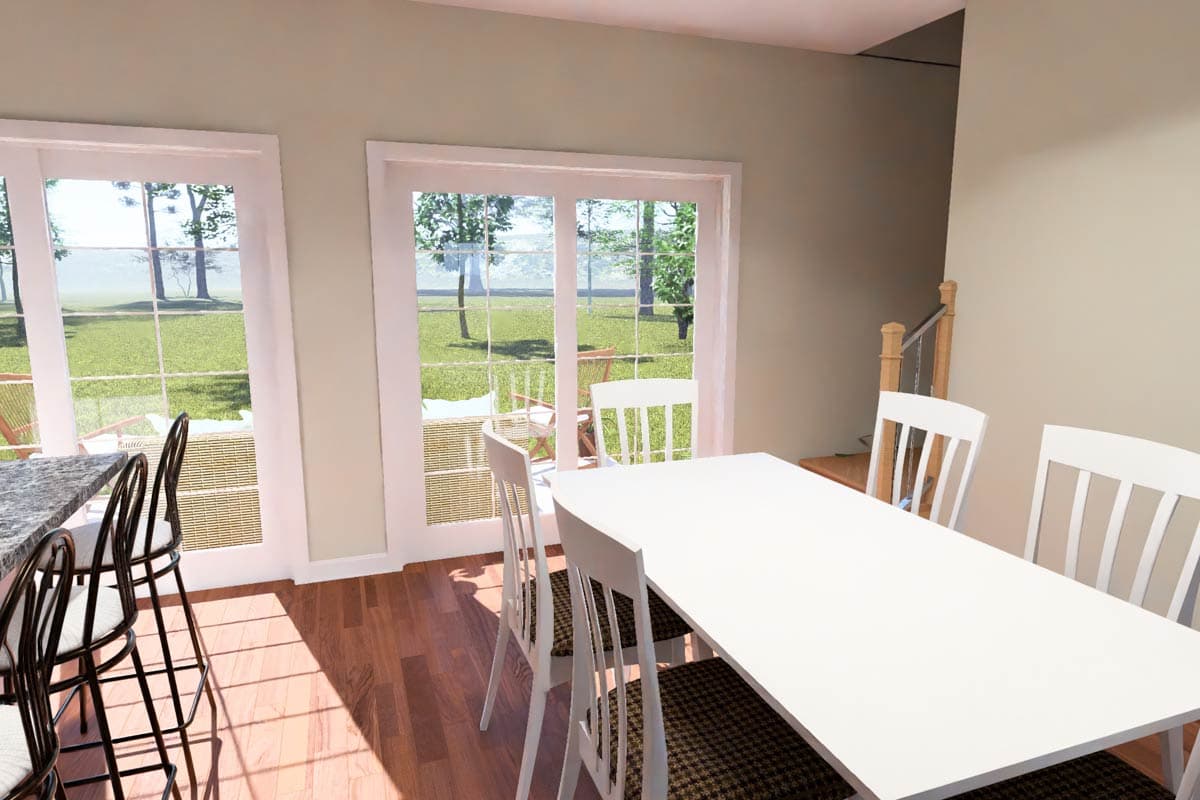

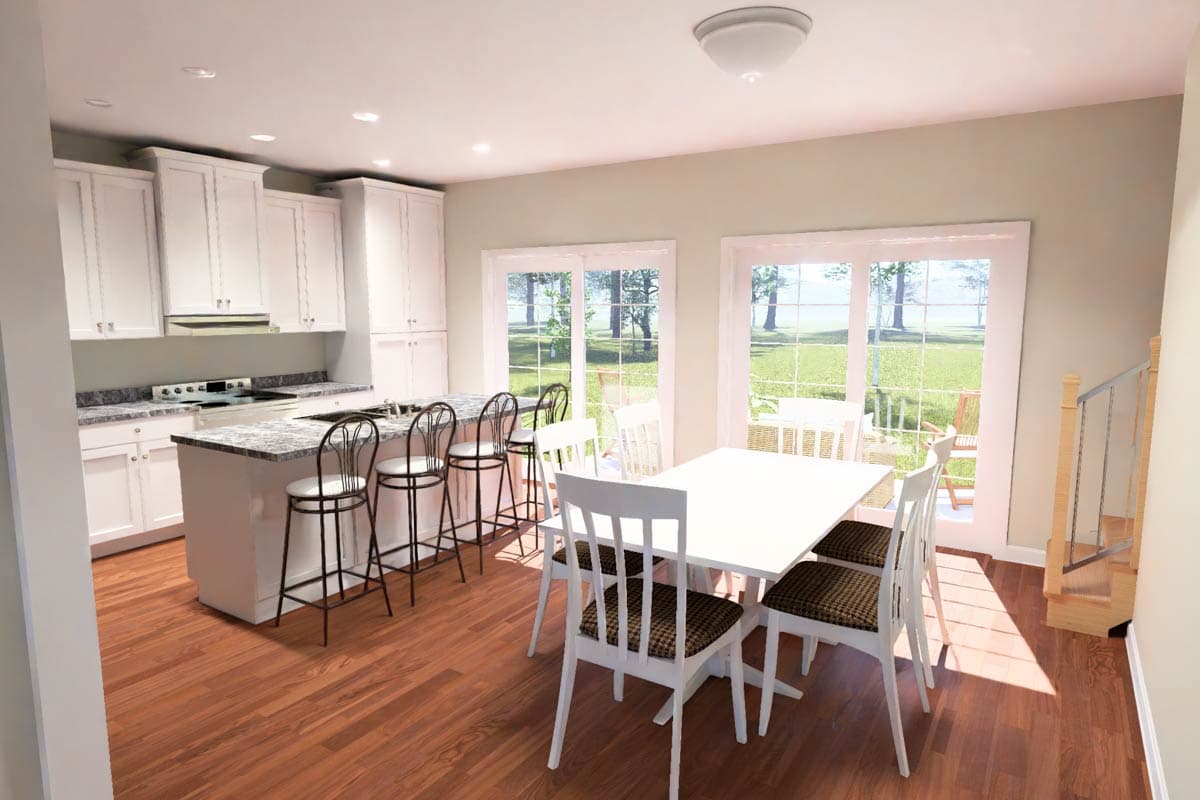

  • Inside, the main level provides a functional mudroom that connects seamlessly to the open living areas, designed for comfort and ease of movement.

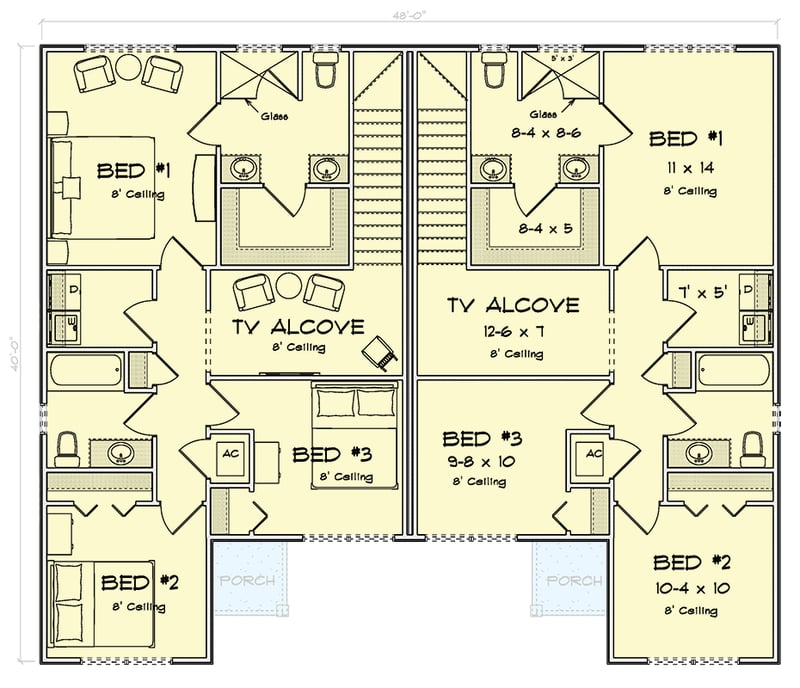

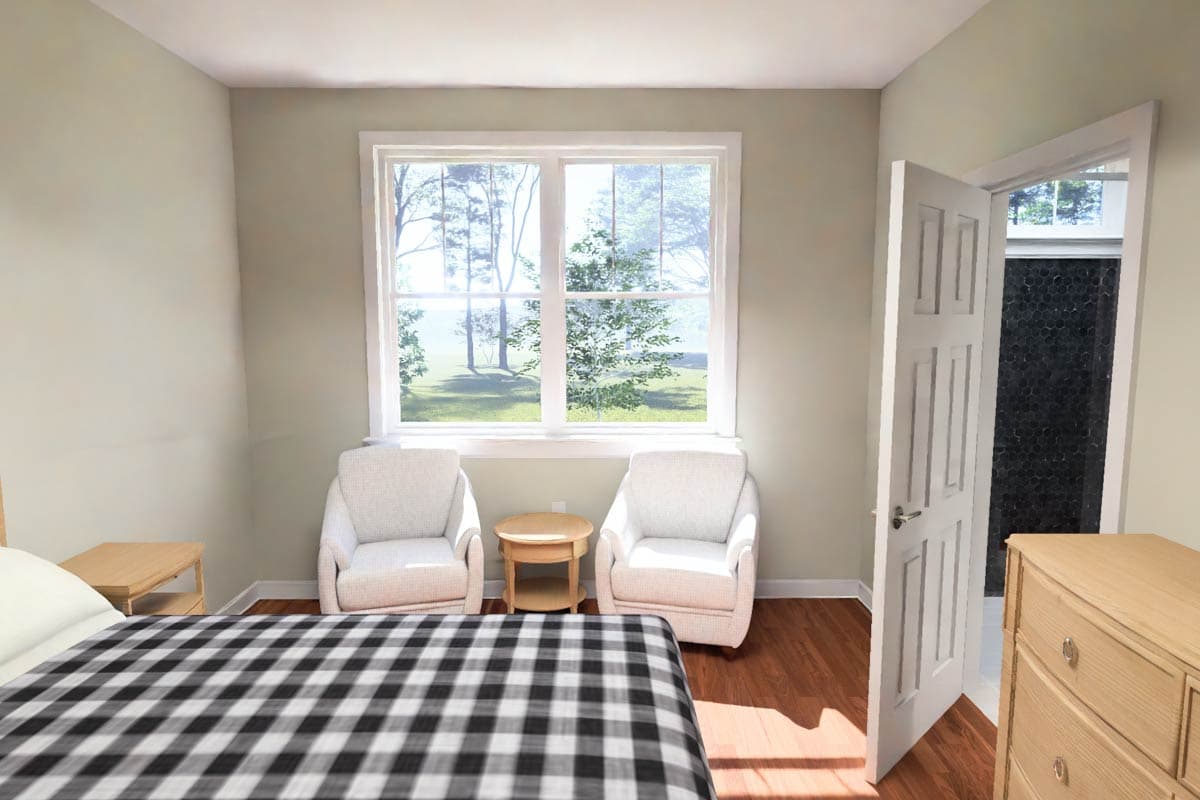

  • Upstairs, the expansive master suite serves as a private sanctuary, while two additional bedrooms and a versatile loft area offer flexible space for family or home offices.
  • The split-bedroom design ensures peace and quiet by separating the primary suite from the secondary living quarters.
  • Each unit includes a dedicated garage and a cozy front porch, providing both convenience and a lovely spot to enjoy the outdoors.
Unit A & B
Heated Area
1,481Sq. Ft.
625 Sq. Ft. 1st
856 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Standard
231 Sq. Ft.
Dimensions
48'width
20'depth
Unfinished Areas
231 Sq. Ft. Garage
25 Sq. Ft. Porch, Front

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,962 sq. ft.

1st Floor

1,250 sq. ft.

2nd Floor

1,712 sq. ft.

Porch, Front

50 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 0"

Depth

40' 0"

Max Ridge Height

23' 10"

Garage

Type

Standard, Attached

Area

462 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Traditional

Special Features

Bedrooms - Split

Loft

Master Suite - Upstairs

Mudroom

Square Footage Breakdown

Total Heated Area

2,962 sq. ft.

1st Floor

1,250 sq. ft.

2nd Floor

1,712 sq. ft.

Porch, Front

50 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 0"

Depth

40' 0"

Max Ridge Height

23' 10"

Garage

Type

Standard, Attached

Area

462 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Traditional

Special Features

Bedrooms - Split

Loft

Master Suite - Upstairs

Mudroom
