Plan 89861AH

Traditional Two Bedroom with Open Floor Plan

Traditional Two Bedroom with Open Floor Plan

Plan 89861AH

  • 1,680

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • VIDEO: See this house plan from every angle in our YouTube video.
  • Traditional in style but high on detail, this ranch home will blend easily into any neighborhood.
  • With two bedrooms and a den, this home will please many buyers with families who also need an at-home work environment.
  • The open floor plan includes a kitchen with a central island that has direct access to the adjacent great and dining rooms, and a screened porch is accessed through patio doors off the back of the home.
  • The master suite pleases with a tray ceiling, walk-in closet and direct laundry access.
  • The primary roof pitch is 8:12. The secondary roof pitch is 6:12.
  • A two-stall garage completes this plan.
  • Related Plans: Need the plan reversed? Check out plan 89597AH. Get an office and 3-car garage with plan 89724AH.



Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

Plan details



Traditional Two Bedroom with Open Floor Plan

  • 1,680

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $918
  • 8 Sets $959
  • Reproducible Set $1,148
  • PDF - single-use $1,148
  • CAD $1,811
  • View all purchase option online

About This Plan

  • VIDEO: See this house plan from every angle in our YouTube video.
  • Traditional in style but high on detail, this ranch home will blend easily into any neighborhood.
  • With two bedrooms and a den, this home will please many buyers with families who also need an at-home work environment.
  • The open floor plan includes a kitchen with a central island that has direct access to the adjacent great and dining rooms, and a screened porch is accessed through patio doors off the back of the home.
  • The master suite pleases with a tray ceiling, walk-in closet and direct laundry access.
  • The primary roof pitch is 8:12. The secondary roof pitch is 6:12.
  • A two-stall garage completes this plan.
  • Related Plans: Need the plan reversed? Check out plan 89597AH. Get an office and 3-car garage with plan 89724AH.



Floor Plans

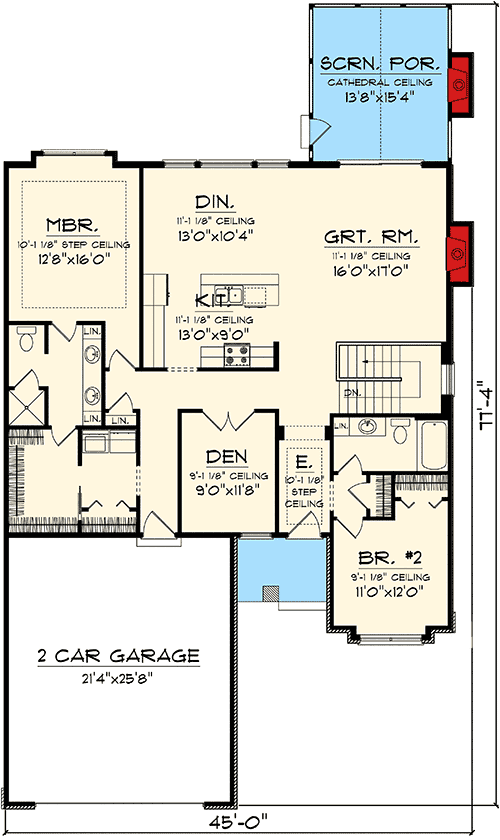

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,680 sq. ft.
  • 1st Floor: 1,680 sq. ft.
  • Porch, Front: 60 sq. ft.
  • Screened Porch: 210 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 0"
  • Depth: 77' 4"
  • Max ridge height: 21' 0"

Garage

  • Type: Attached
  • Area: 572 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
