Traditional Two-Story

Plan 80542PM

  • 1,152

    HEATED S.F.

  • 3

    BEDS

  • 2

    BATHS

  • 2

    FLOORS

About this Plan

  • A petite square, this two story Traditional home is 24' by 24', designed to fit on a small lot.
  • The brick exterior and steep hip roof give the home a handsome look.
  • On the main floor, the living and dining rooms are open to each other and the U-shaped kitchen is compact and efficient.
  • There is no wasted space, as the laundry room and powder room are combined.
  • All three bedrooms on the second floor share a large hall bathroom with both a soaking tub and a shower.

See What's Included in this Plan...

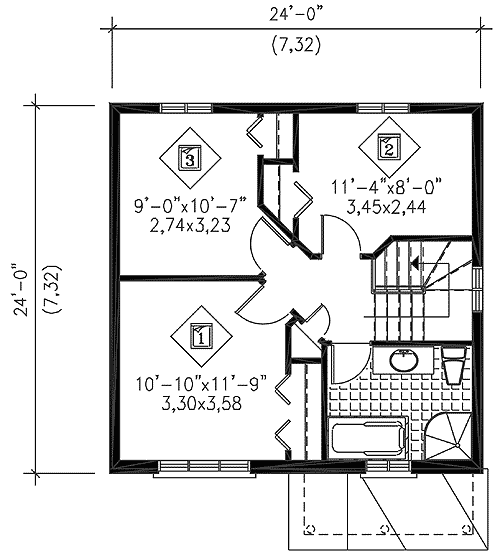

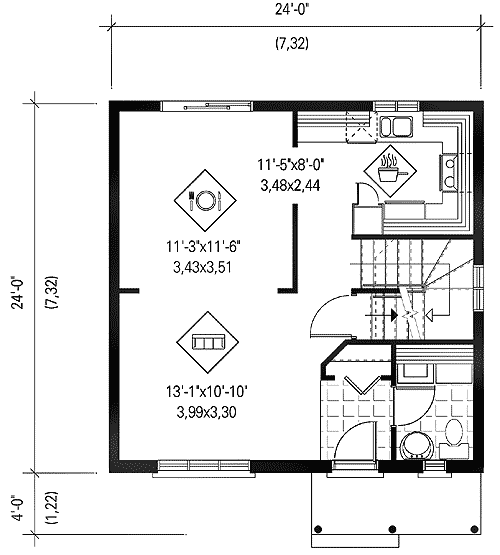

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,152 sq. ft.
  • 1st Floor: 576 sq. ft.
  • 2nd Floor: 576 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Dimensions

  • Width: 24' 0"
  • Depth: 24' 0"
  • Max ridge height: 30' 4"

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
