Transitional 2-Story Home Plan with Steam Room in Gym

Plan 666155RAF

  • 7,132

    Heated s.f.

  • 6

    Beds

  • 6.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • Rear-sloping lots work well for this Transitional, two-story home plan that presents thin, vertical siding and stone accents on the front facade.
  • The main level consists of a formal dining room and office framing the foyer, a bedroom suite behind the double garage, and an open living space that extends onto a weather deck.
  • An eating bar at the kitchen island invites you to enjoy casual meals or conversation and access to the walk-in pantry from the garage assists when unloading groceries.
  • Four bedroom suites and a bonus room can be found upstairs, including the master suite with a vaulted ceiling, 5-fixture bath, and sizable closet.
  • The lower level will be utilized by all with its family room, kitchenette, flex space, and home gym with a steam room.

Plans include:

  • Cover Sheet
  • General notes
  • Foundation Plan
  • Fully dimensioned floor plans
  • Elevations
  • Building cross sections
  • Roof Plan

What is NOT included in the plans:
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

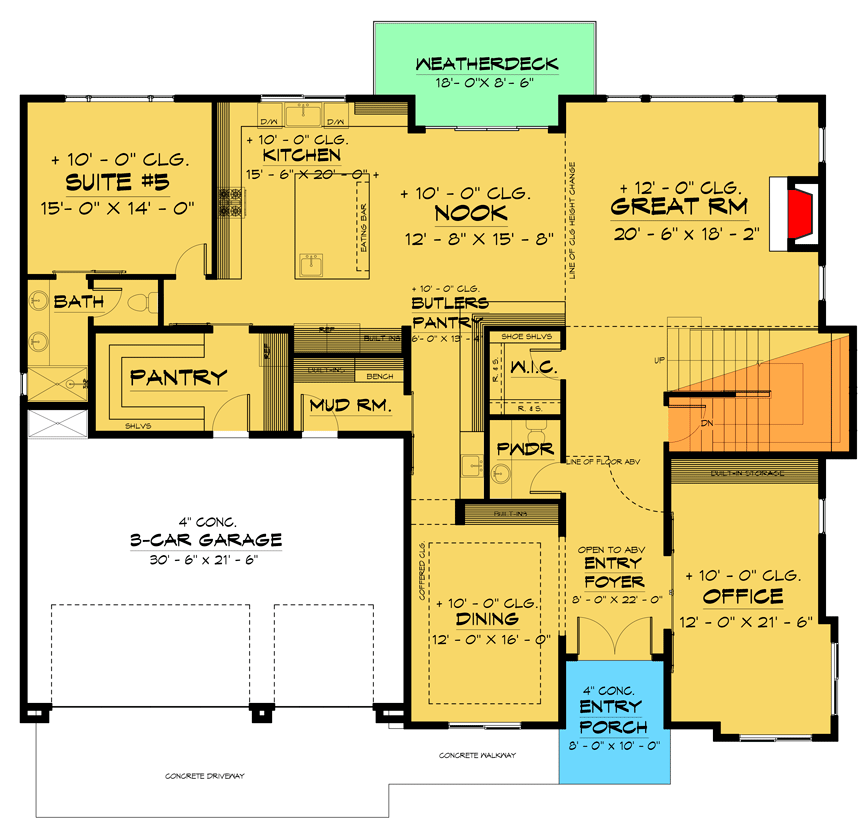

Transitional 2-Story Home Plan with Steam Room in Gym - 666155RAF floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

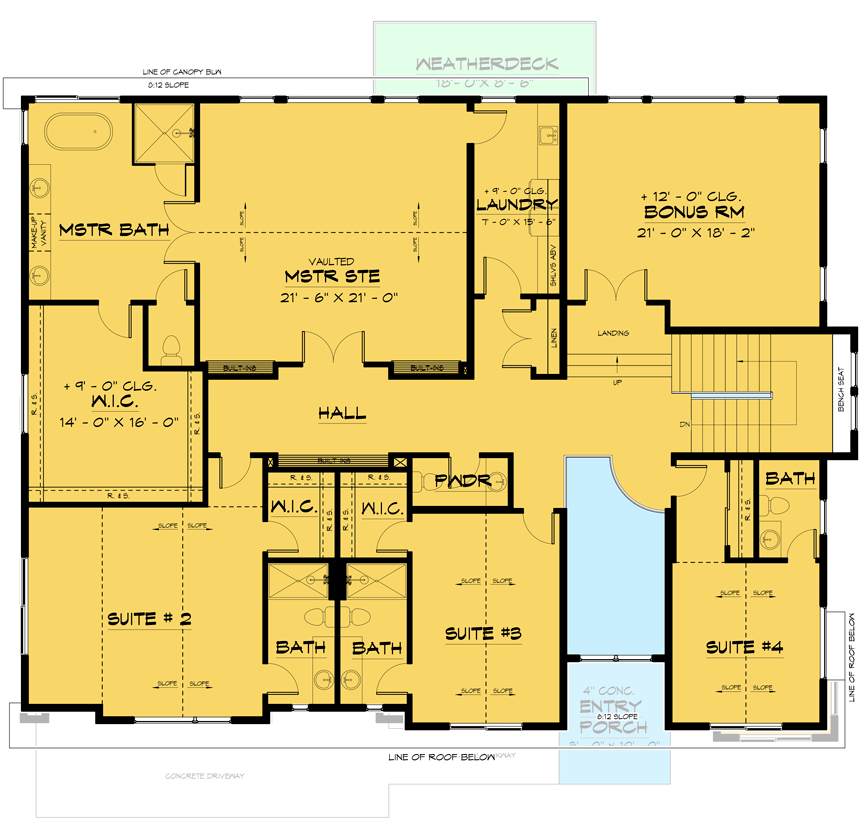

Transitional 2-Story Home Plan with Steam Room in Gym - 666155RAF floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

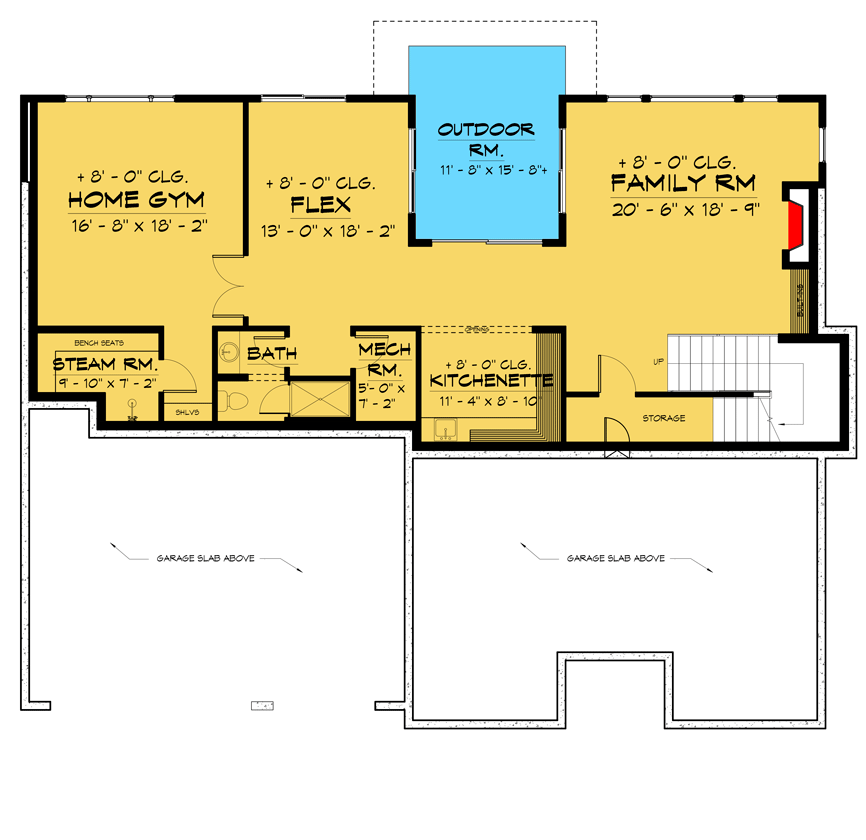

Transitional 2-Story Home Plan with Steam Room in Gym - 666155RAF floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 7,132 sq. ft.
  • Lower Level: 1,719 sq. ft.
  • 1st Floor: 2,393 sq. ft.
  • 2nd Floor: 3,020 sq. ft.
  • Covered Patio: 187 sq. ft.
  • Deck: 137 sq. ft.
  • Porch, Front: 85 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 6"
  • Depth: 51' 2"
  • Max ridge height: 29' 5"

Garage

  • Type: Attached
  • Area: 695 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style
