Plan 70834MK
Transitional 4-Bed House Plan with Vaulted Outdoor Living Room - 2998 Sq Ft
Heated S.F.
2,998
Beds
3 - 4
Baths
3.5 - 4.5
Stories
1
Cars
2
Floor Plan

Plan 70834MK

Main Level
slide image 0

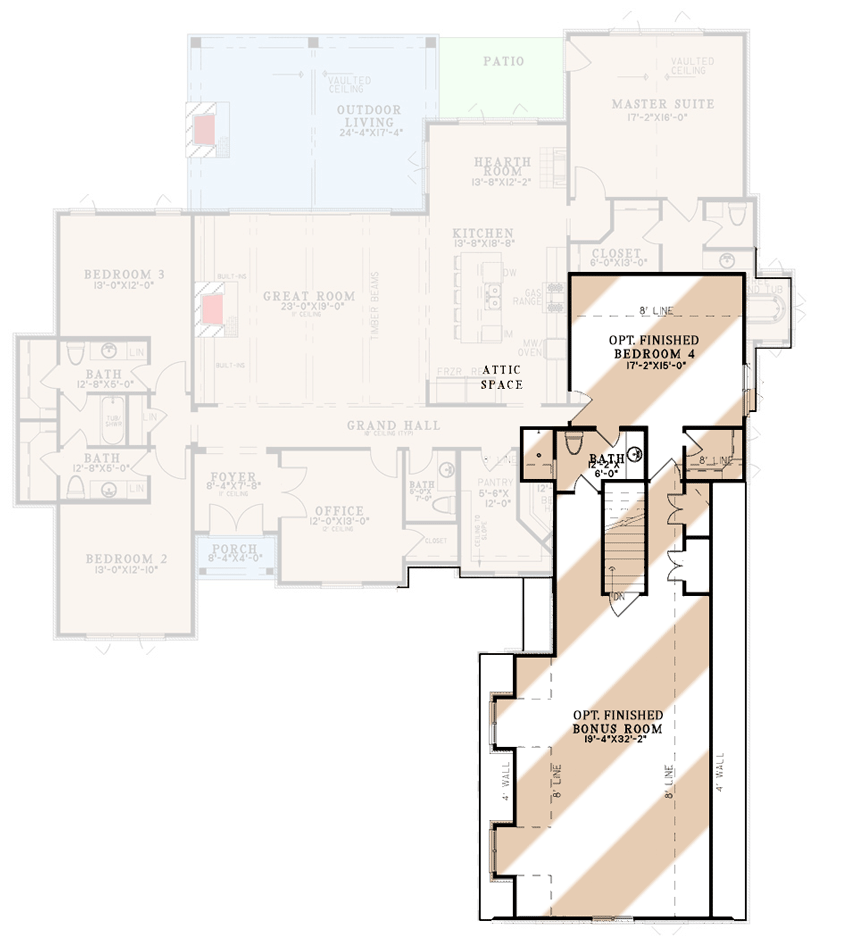

Bonus Level
slide image 1

Plan 70834MK

1-800-854-7852

1-262-521-4596

Main Level

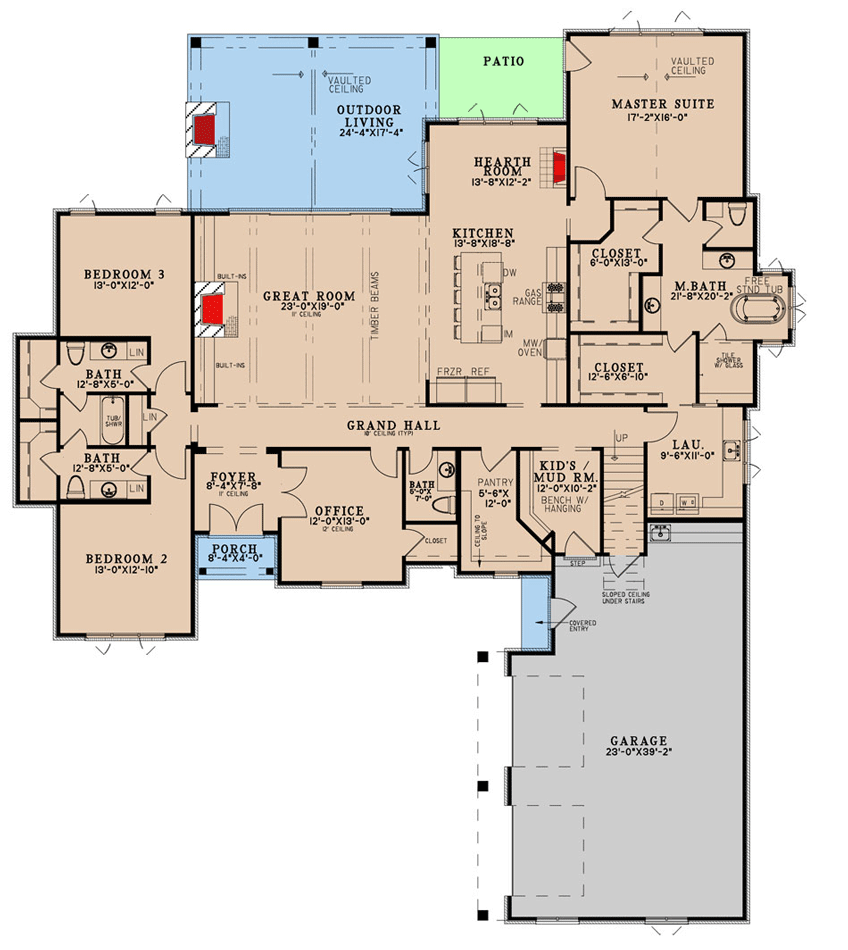

floor plan image Main Level
Bonus Level
floor plan image Bonus Level
Plan Details
  • Steeply pitched gables flank the covered entry and shed dormers sit above the 2-car courtyard garage on this 4-bed 2988 square foot Transitional house plan.
  • The spacious great room is open to the kitchen and features a fireplace and a vaulted ceiling with exposed timber beams. The kitchen provides a large eat-at island bar and plenty of counter space plus a walk-in pantry. Eat informally in the hearth room, at the island or outside in the vaulted outdoor living room with fireplace.
  • A home office sits behind a pair of French doors in the foyer giving you a great work-from-home space.
  • The master suite has a vaulted ceiling and access to the patio. The master bath boasts dual vanities, a free-standing tub, a glass shower with a seat, and a huge walk-in closet and has access to the laundry room.
  • You'll appreciate the clutter-reducing kid's nook with its bench and hanging space and the laundry room that has convenient access to the outside.
  • Across the home, two beds - each with walk-in closets - share a Jack and Jill bath. You'll find the fourth bedroom upstairs as well as bonus expansion.
  • The oversized 2-car garage has shop space with a sink in back.
  • Related Plans: Get an alternate version with house plans 70515MK and 60618ND.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,998 sq. ft.

1st Floor

2,998 sq. ft.

Bonus

1,233 sq. ft.

Porch, Combined

469 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

77' 0"

Depth

88' 2"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

892 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

Square Footage Breakdown

Total Heated Area

2,998 sq. ft.

1st Floor

2,998 sq. ft.

Bonus

1,233 sq. ft.

Porch, Combined

469 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

77' 0"

Depth

88' 2"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

892 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick
