Plan 490038NAH
Transitional Contemporary Home Plan for Sloped Lot
Heated S.F.
3,319
Beds
3-4
Baths
2 - 3
Stories
2-3
Cars
2
What's Included
Floor Plan
PRINT PLANS

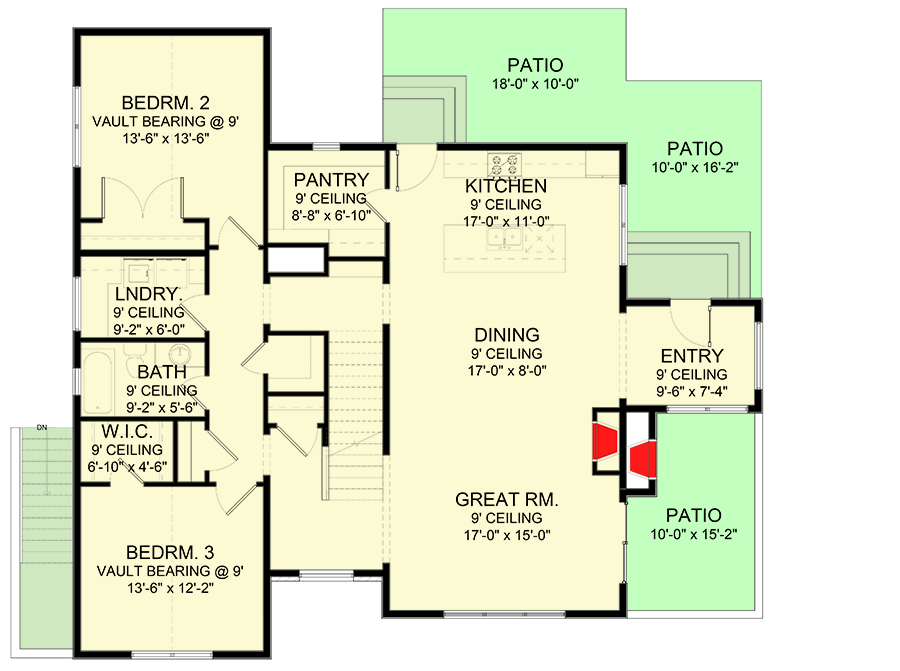

Main Level
Reverse Floor Plan
Transitional Contemporary Home Plan for Sloped Lot - 490038NAH floor plan - Main Level

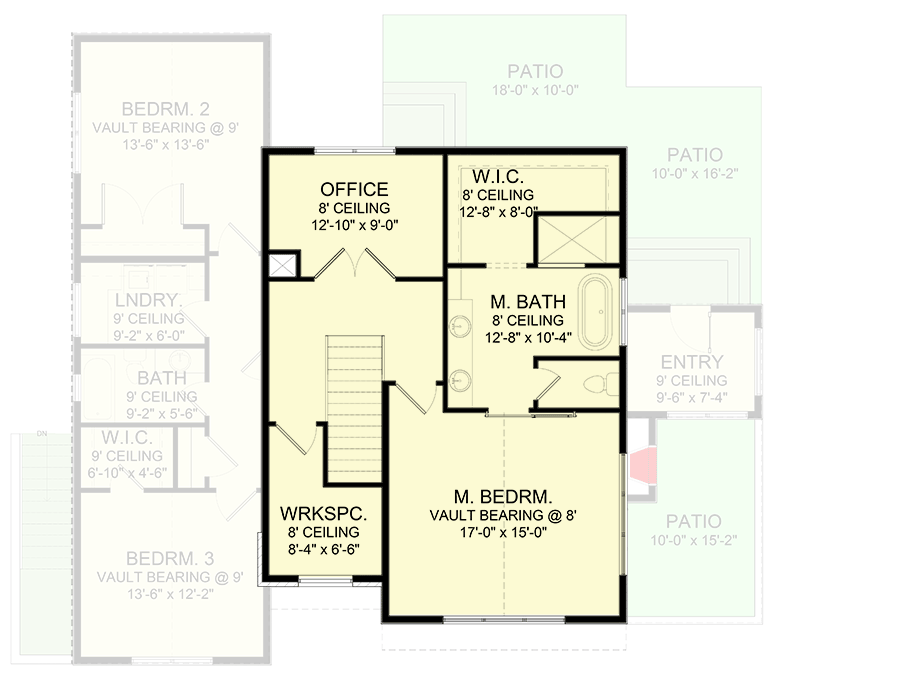

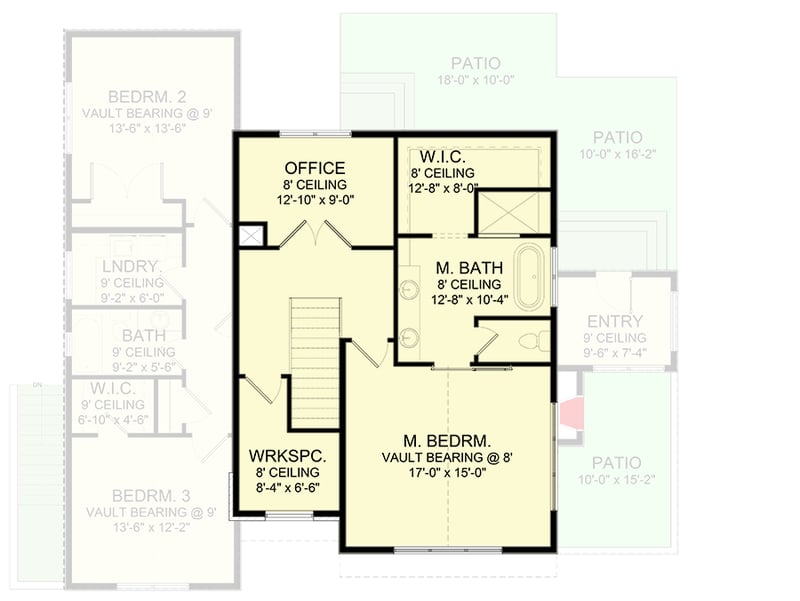

2nd Floor
Reverse Floor Plan
Transitional Contemporary Home Plan for Sloped Lot - 490038NAH floor plan - 2nd Floor

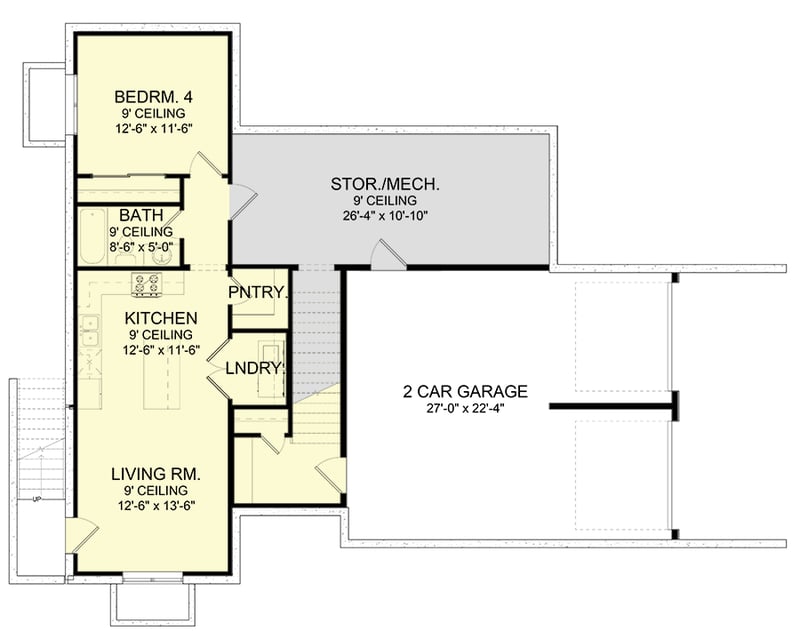

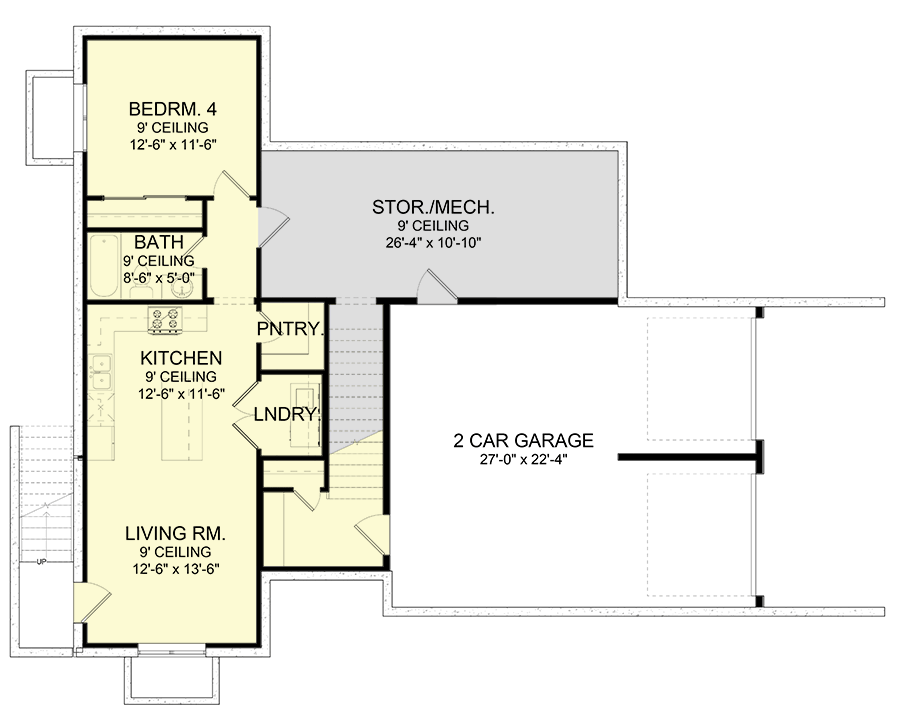

Ground Level
Reverse Floor Plan
Transitional Contemporary Home Plan for Sloped Lot - 490038NAH floor plan - Ground Level

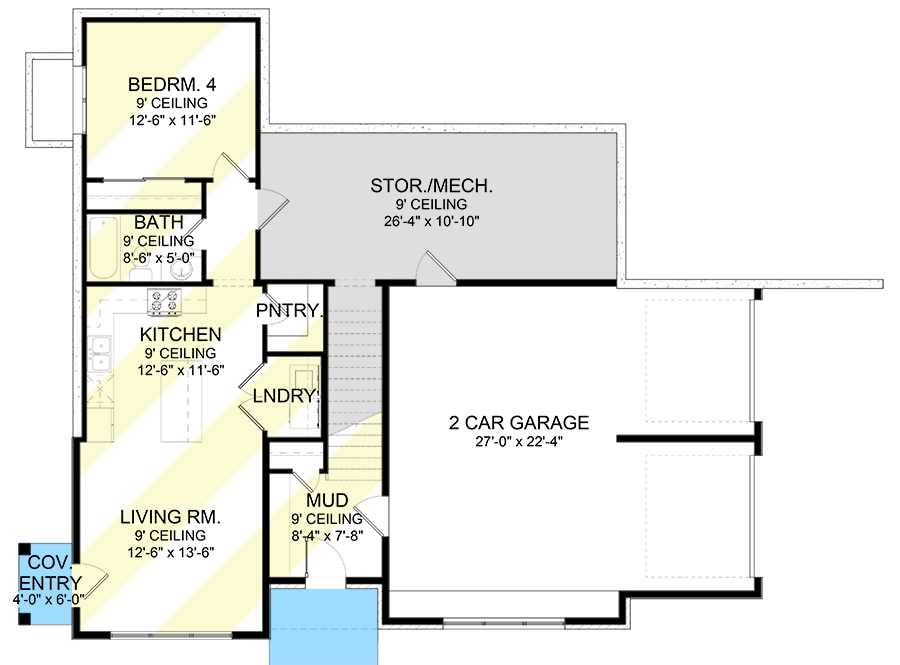

Optional Walkout Level
Reverse Floor Plan
Transitional Contemporary Home Plan for Sloped Lot - 490038NAH floor plan - Optional Walkout Level
Plan Details
  • This beautiful transitional plan is ideal for a lot with a slope! Drive into the 2-car garage in the basement with direct access to the stairs leading to the main floor.
  • With an open concept design, the kitchen, dining, and living room are all lined up to maximize views and natural light.
  • The rooftop deck with outdoor fireplace is a perfect place to entertain and expand your party to the outdoors.
  • The main floor has 2 bedrooms with vaulted ceilings, along with a bathroom, laundry, and HUGE pantry.
  • The upper level becomes an oasis for the primary suite, along with 2 office spaces that can easily convert to a nursery if needed.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
