Plan 93167EL Transitional Craftsman Plan with Gated Motor Court and Main-Level Owner's Suite

3,993 4-5 3.5 - 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Transitional Craftsman Plan with Gated Motor Court and Main-Level Owner's Suite

Plan 93167EL

  • 3,993

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A gated motor court leads to three garage bays along the left side of this Transitional Craftsman home plan.
  • Front and rear porches surround the central, open living space that boasts a grand fireplace, while the heart of the home offers ample workspace, a large range, and walk-in pantry that will delight any style of chef.
  • The owner's suite is paired with a deluxe ensuite with two closets and shares the right side of the main level with a study.
  • Upstairs, discover a junior master suite with a sitting nook, along with two additional bedrooms that share a Jack-and-Jill bathroom.
  • A bonus room above the garage includes a full bath and is included in the total square footage.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

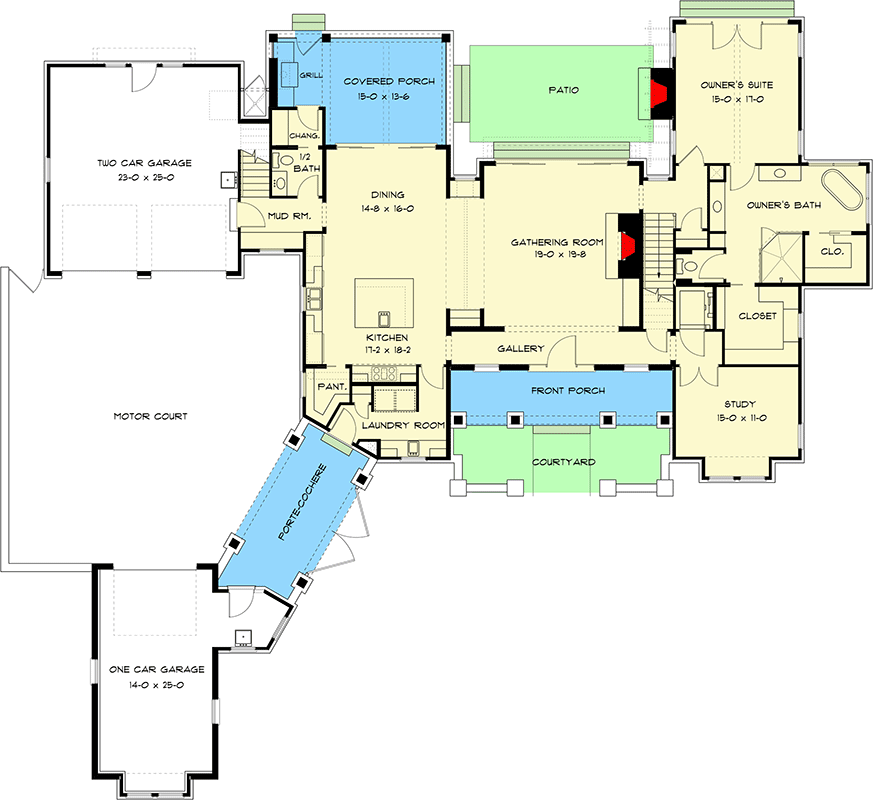

Transitional Craftsman Plan with Gated Motor Court and Main-Level Owner's Suite - 93167EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

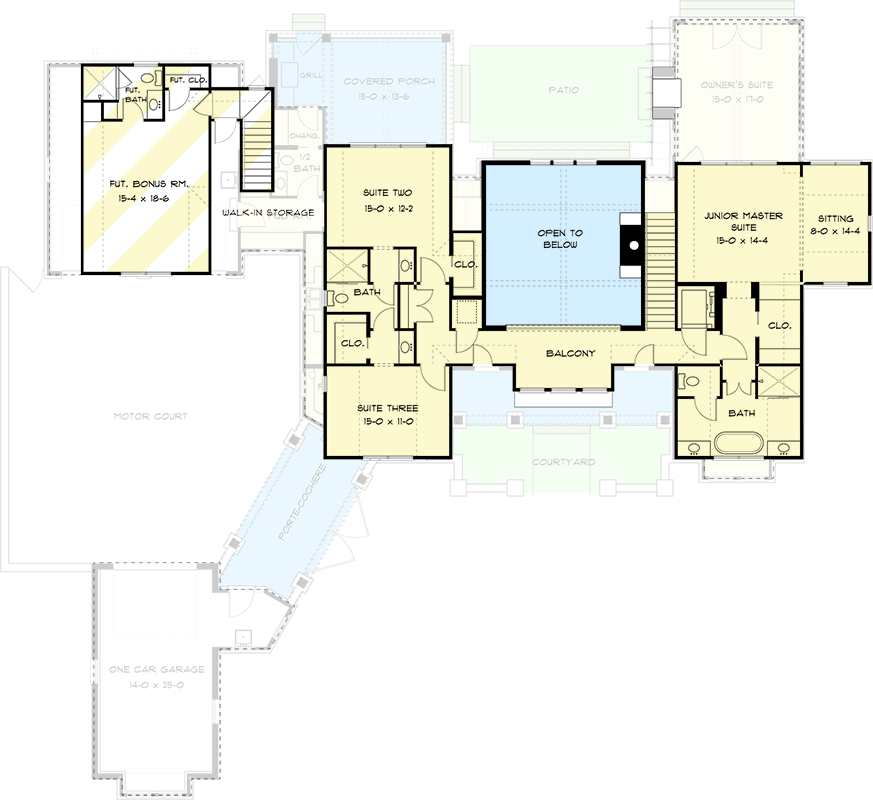

Transitional Craftsman Plan with Gated Motor Court and Main-Level Owner's Suite - 93167EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,993 sq. ft.
  • 1st Floor: 2,473 sq. ft.
  • 2nd Floor: 1,520 sq. ft.
  • Porch, Rear: 271 sq. ft.
  • Porch, Front: 197 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 106' 6"
  • Depth: 92' 8"
  • Max ridge height: 27' 4"

Garage

  • Type: Attached
  • Area: 1073 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Transitional Craftsman Plan with Gated Motor Court and Main-Level Owner's Suite

  • 3,993

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,600
  • CAD+PDF - Single-Build $1,900
  • PDF - Unlimited Build $2,450
  • CAD - Unlimited Build $2,750
  • View all purchase option online

About This Plan

  • A gated motor court leads to three garage bays along the left side of this Transitional Craftsman home plan.
  • Front and rear porches surround the central, open living space that boasts a grand fireplace, while the heart of the home offers ample workspace, a large range, and walk-in pantry that will delight any style of chef.
  • The owner's suite is paired with a deluxe ensuite with two closets and shares the right side of the main level with a study.
  • Upstairs, discover a junior master suite with a sitting nook, along with two additional bedrooms that share a Jack-and-Jill bathroom.
  • A bonus room above the garage includes a full bath and is included in the total square footage.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,993 sq. ft.
  • 1st Floor: 2,473 sq. ft.
  • 2nd Floor: 1,520 sq. ft.
  • Porch, Rear: 271 sq. ft.
  • Porch, Front: 197 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 106' 6"
  • Depth: 92' 8"
  • Max ridge height: 27' 4"

Garage

  • Type: Attached
  • Area: 1073 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
