Plan 65691BS Transitional European Home Plan for Coastal Living

2,813 3 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Transitional European Home Plan for Coastal Living

Plan 65691BS

  • 2,813

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Wooden brackets support deep overhangs provided by the hip and valley roof on this Transitional European home plan.
  • The foyer leads directly into the great room that seamlessly flows onto the outdoor living space through a multi-paneled sliding door. Easily move into the kitchen and dining area, where you'll find plenty of workspace and a walk-in pantry.
  • A quiet study shares the left side of the main level with the master suite. A tray ceiling tops the homeowner's serene space and is paired with a 5-fixture ensuite and two walk-in closets.
  • The remaining two bedrooms can be found upstairs, each with a pair of french doors that lead to a covered balcony.
  • Extra space in the 2-car garage is always appreciated and can be used for storage or lawn supplies.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

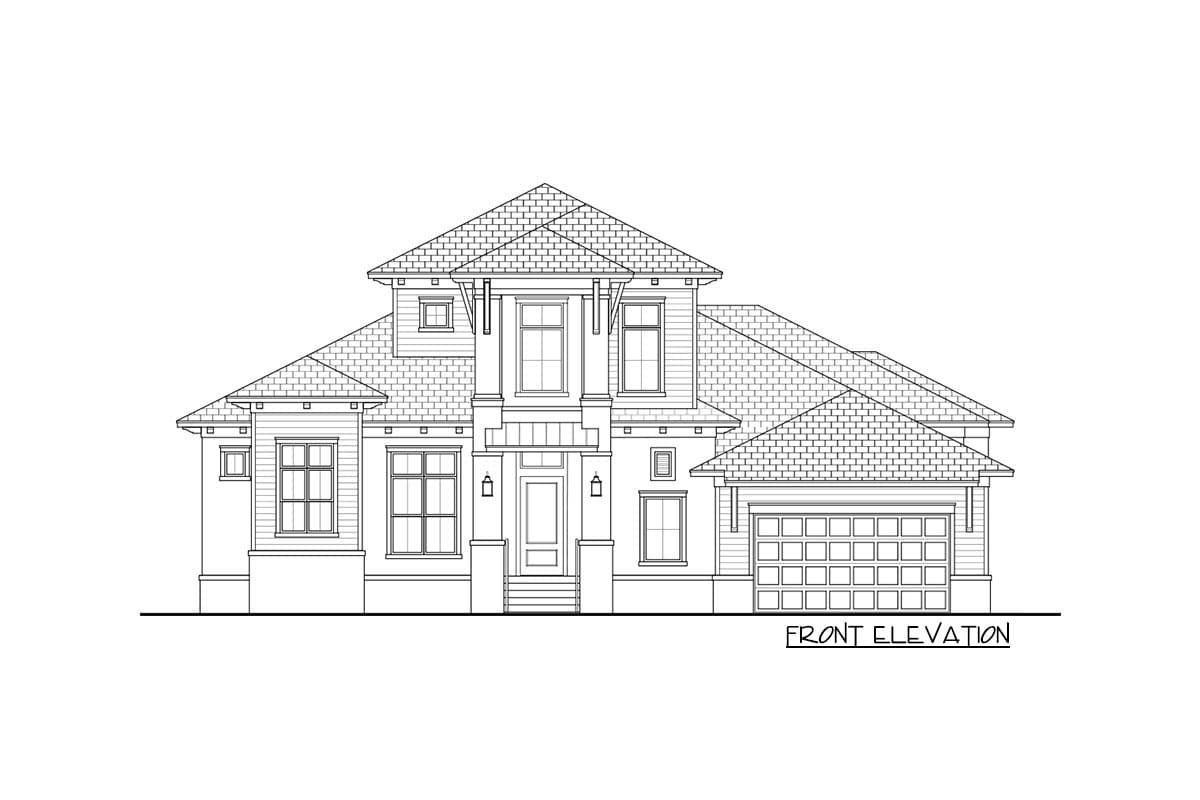

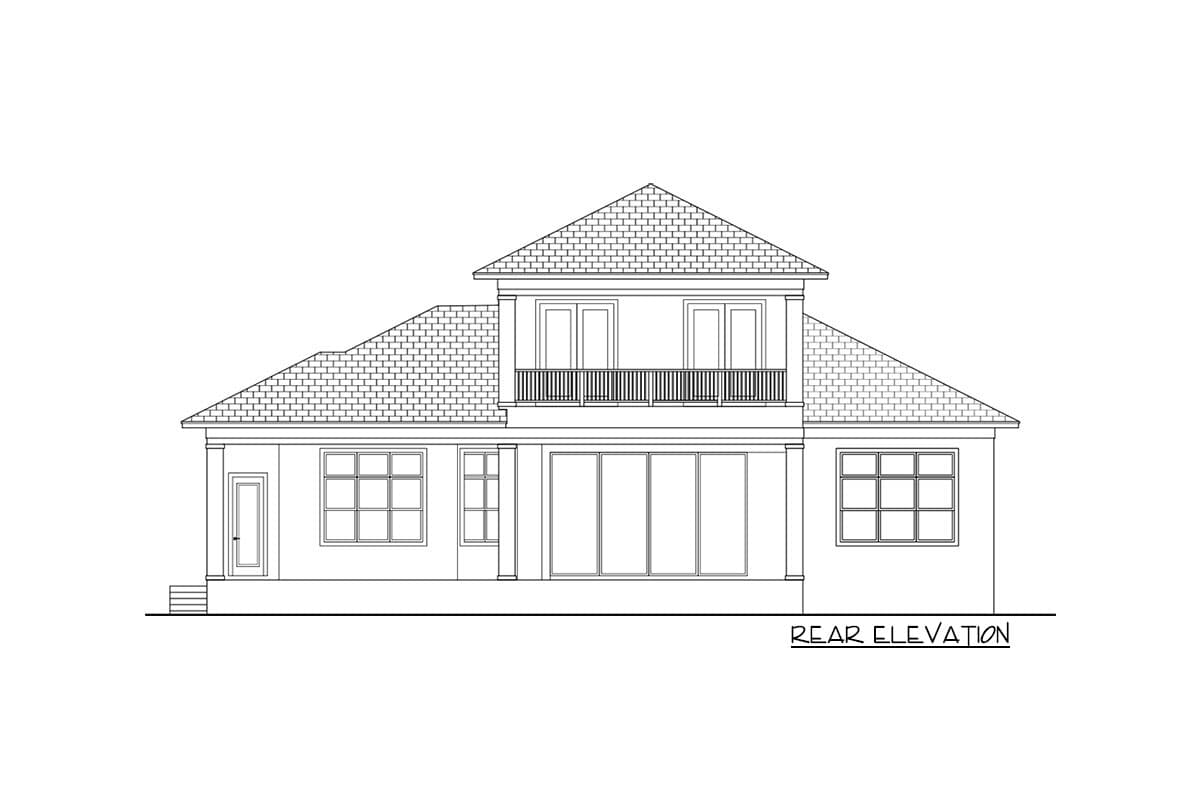

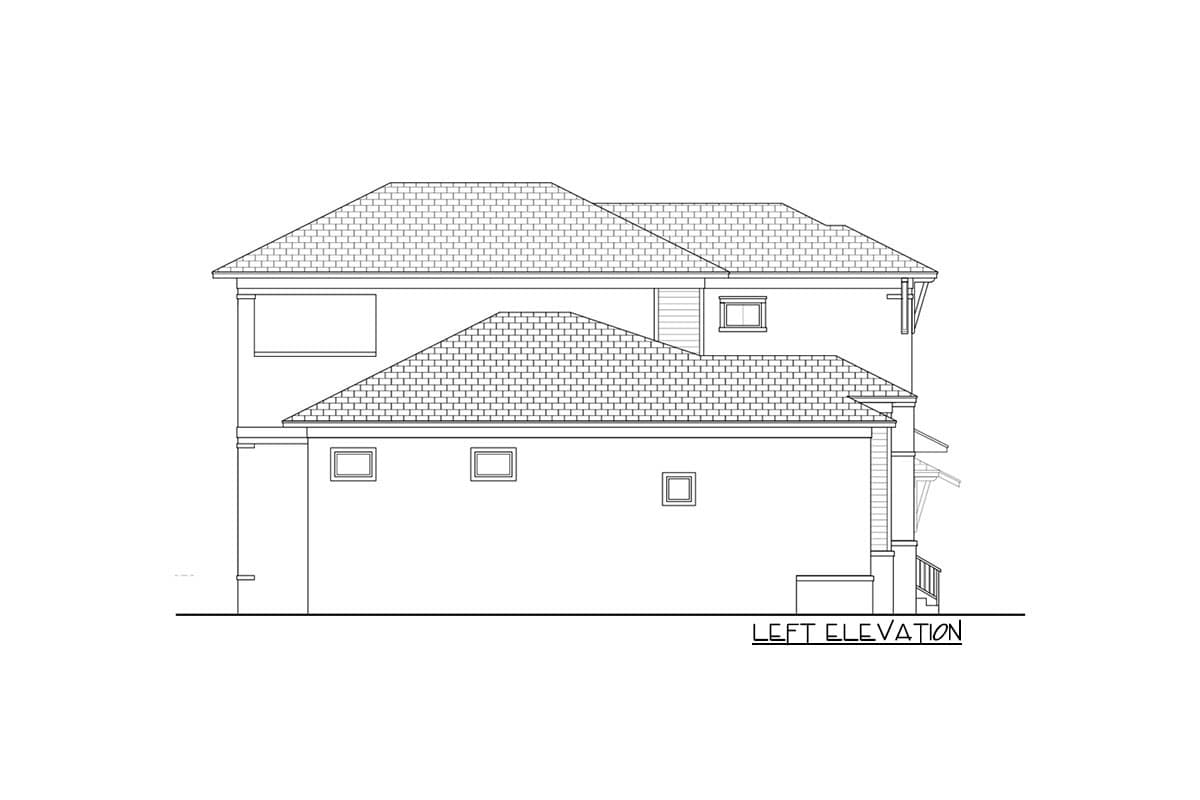

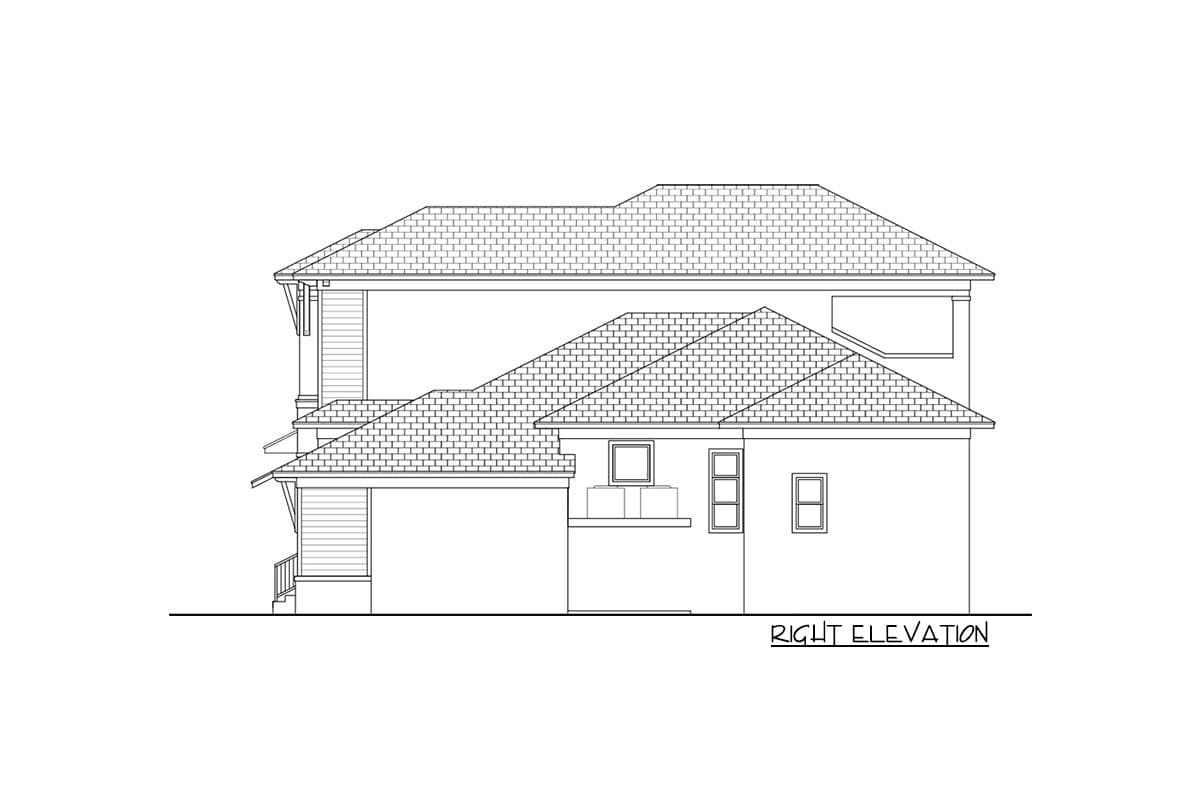

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

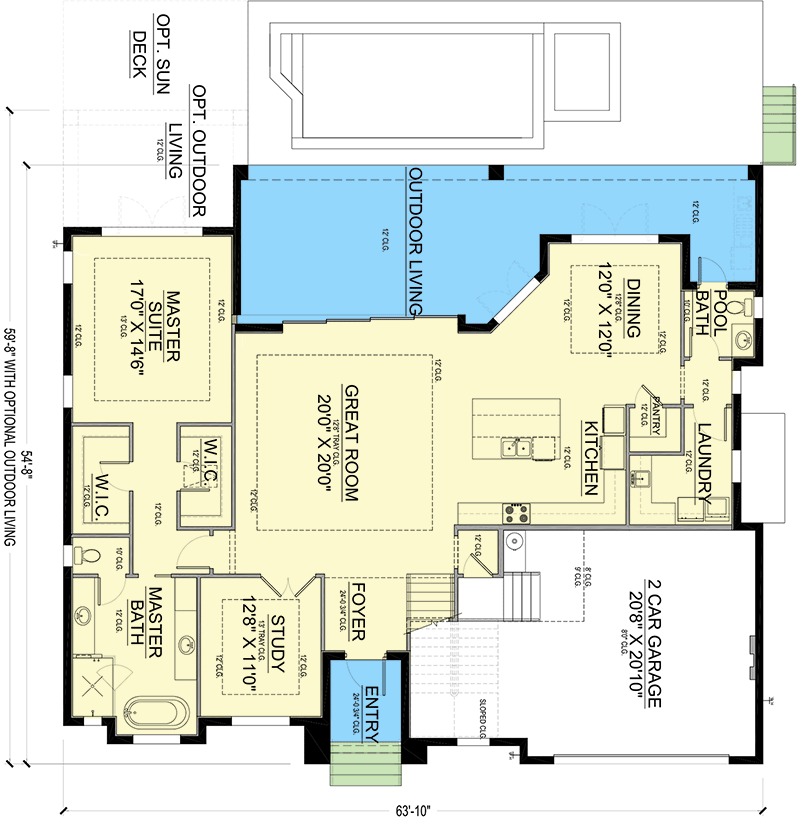

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional European Home Plan for Coastal Living - 65691BS floor plan - Main Level

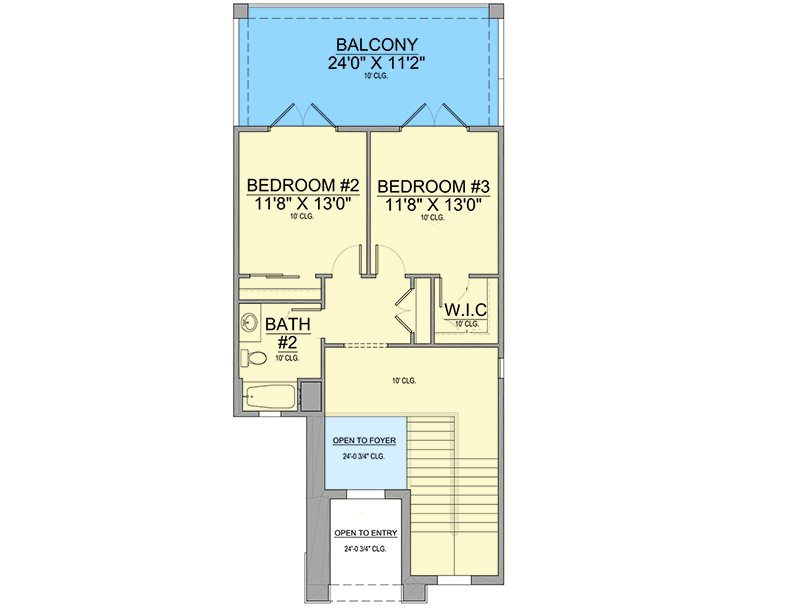

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional European Home Plan for Coastal Living - 65691BS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,813 sq. ft.
  • 1st Floor: 2,036 sq. ft.
  • 2nd Floor: 777 sq. ft.
  • Lanai: 546 sq. ft.
  • Balcony / Veranda: 275 sq. ft.
  • Entry: 74 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 63' 10"
  • Depth: 54' 8"
  • Max ridge height: 31' 10"

Garage

  • Type: Attached
  • Area: 623 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Transitional European Home Plan for Coastal Living

  • 2,813

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $2,813
  • PDF - Single-Build $2,813
  • View all purchase option online

About This Plan

  • Wooden brackets support deep overhangs provided by the hip and valley roof on this Transitional European home plan.
  • The foyer leads directly into the great room that seamlessly flows onto the outdoor living space through a multi-paneled sliding door. Easily move into the kitchen and dining area, where you'll find plenty of workspace and a walk-in pantry.
  • A quiet study shares the left side of the main level with the master suite. A tray ceiling tops the homeowner's serene space and is paired with a 5-fixture ensuite and two walk-in closets.
  • The remaining two bedrooms can be found upstairs, each with a pair of french doors that lead to a covered balcony.
  • Extra space in the 2-car garage is always appreciated and can be used for storage or lawn supplies.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,813 sq. ft.
  • 1st Floor: 2,036 sq. ft.
  • 2nd Floor: 777 sq. ft.
  • Lanai: 546 sq. ft.
  • Balcony / Veranda: 275 sq. ft.
  • Entry: 74 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 63' 10"
  • Depth: 54' 8"
  • Max ridge height: 31' 10"

Garage

  • Type: Attached
  • Area: 623 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 65691BS
View this and more for this plan by visiting www.architechtecturaldesigns.com/65691BS
|
