Transitional European Home Plan with Option to Finish Basement

Plan 81772AB

  • 4,016

    Heated s.f.

  • 5-7

    Beds

  • 3.5+ - 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • Filled with lavish features, this Transitional European home plan allows you to expand the living space by 2,299 sq ft when you finish the basement level.
  • The angled 4-car garage with drive-thru capabilities opens into a catchall mudroom with easy access to the kitchen through a walk-in pantry. A coat closet and powder bath are conveniently located nearby.
  • Two-story ceilings allow plenty of natural light to fill the great room and foyer, which opens to the dining area and gourmet kitchen. The rear deck is partially covered to allow outdoor activities, rain or shine.
  • Three bedrooms occupy the right side of the main level, including the master suite with a shortcut to the laundry room through the master closet. Upstairs, bedrooms 4 and 5 share a Jack-and-Jill bathroom, along with a play and bunk room.
  • The generous basement is designed to provide a large gathering space that opens to a patio, craft room, exercise space, 6th bedroom, and a spa.

Plans include the following:

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

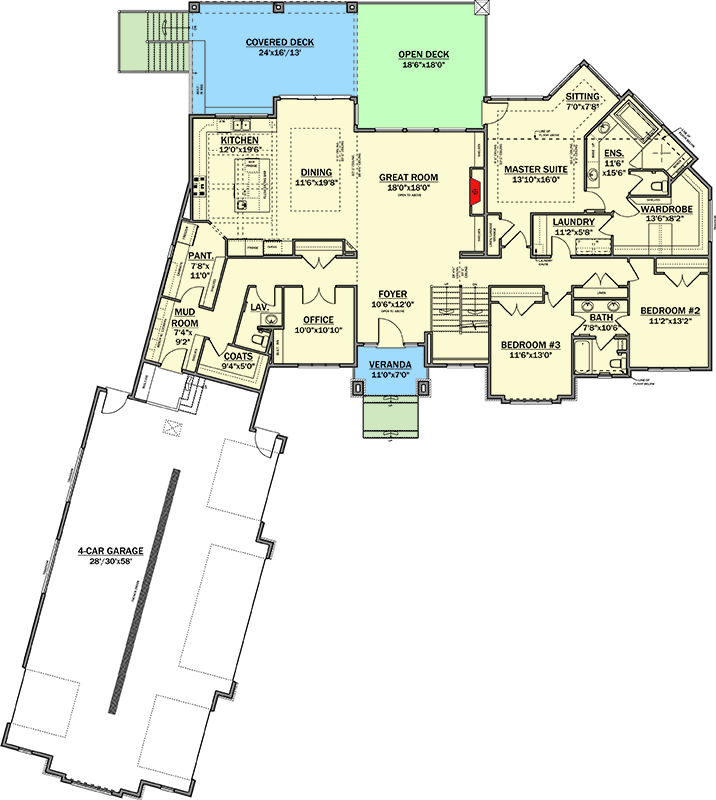

Transitional European Home Plan with Option to Finish Basement - 81772AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

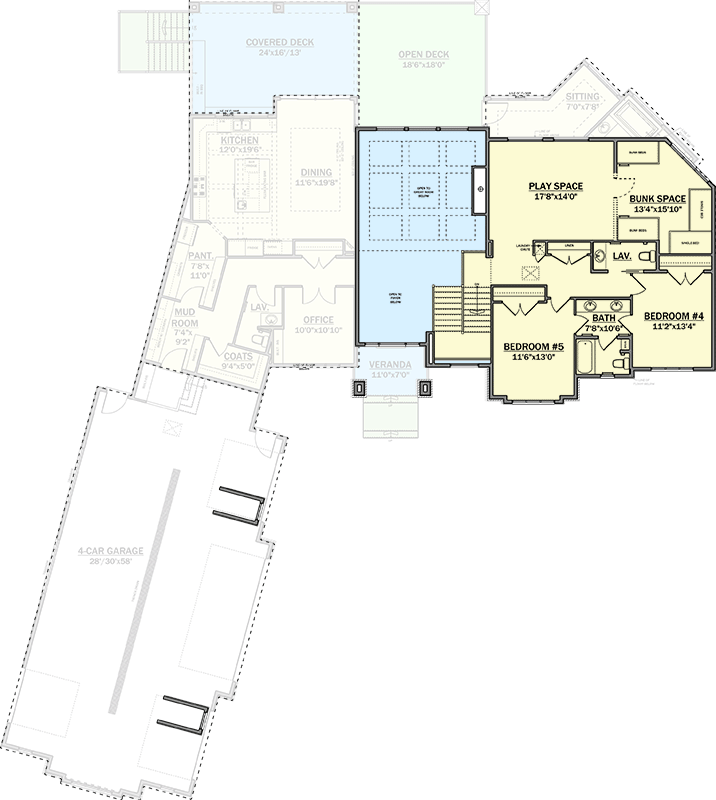

Transitional European Home Plan with Option to Finish Basement - 81772AB floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

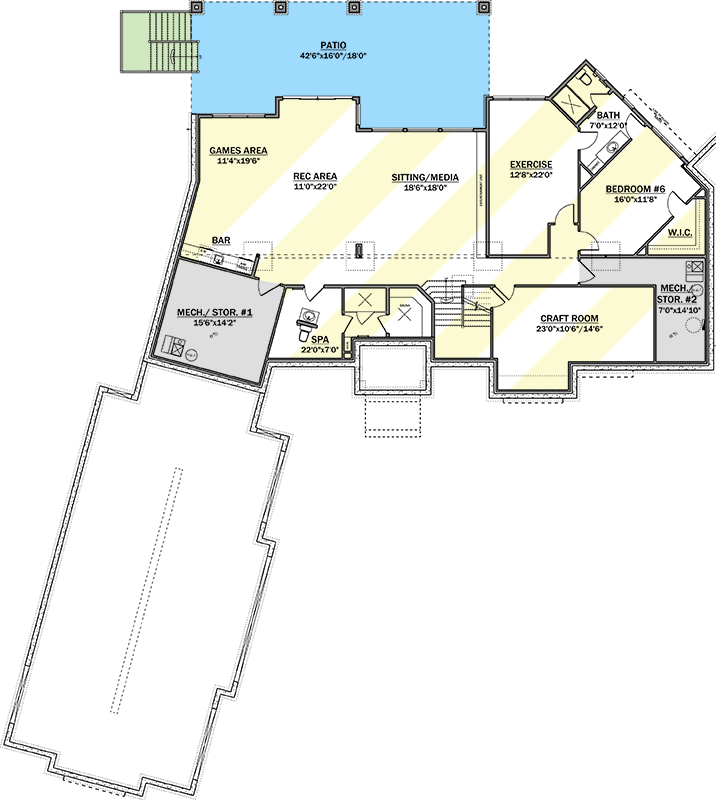

Transitional European Home Plan with Option to Finish Basement - 81772AB floor plan - Lower Level
