Plan 100376GHR

Exclusive

Transitional Farmhouse Multifamily Plan with Distinct Residential Units

Heated S.F.
3,204
Units
4
Width
Depth

Floor Plan

Plan 100376GHR

Main Level
Main Level
2nd Level
2nd Level

Plan 100376GHR

M-F 9am-5pm EST |

1-203-761-8500

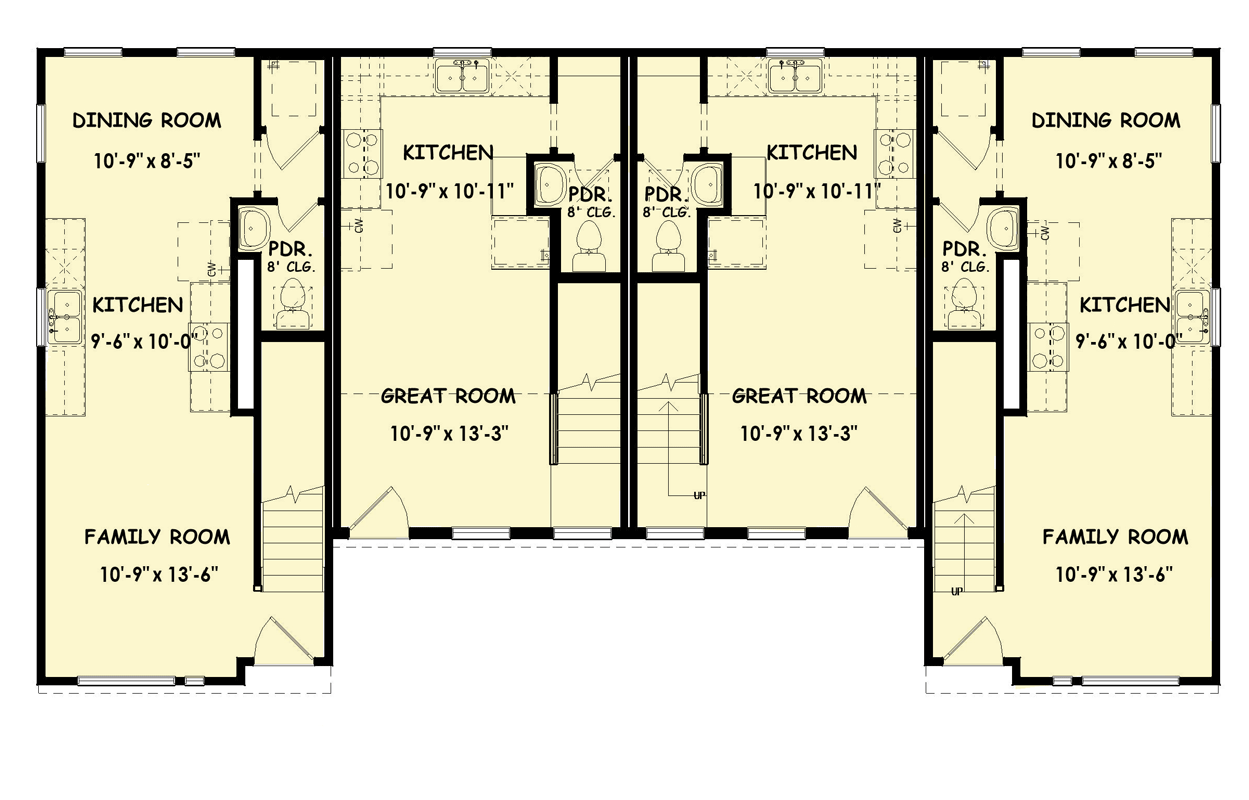

Main Level

Plan 100376GHR: Transitional Farmhouse Multifamily Plan with Distinct Residential Units - Floor Plan - Main Level - Modern Farmhouse, Transitional

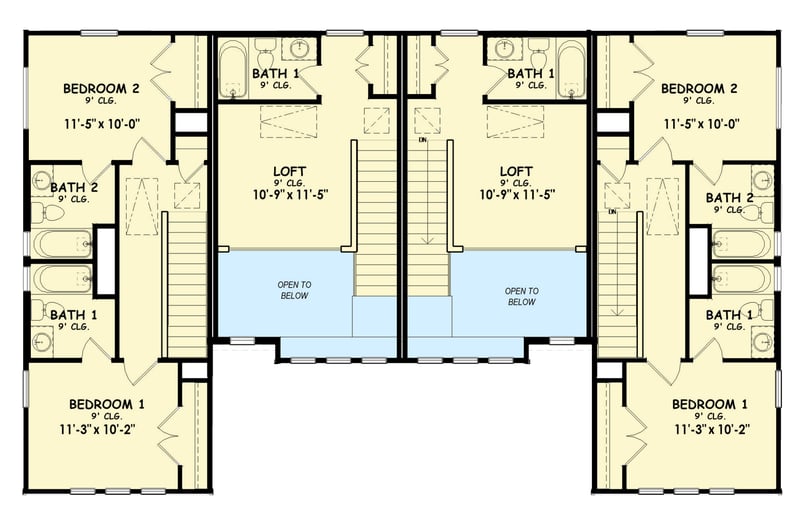

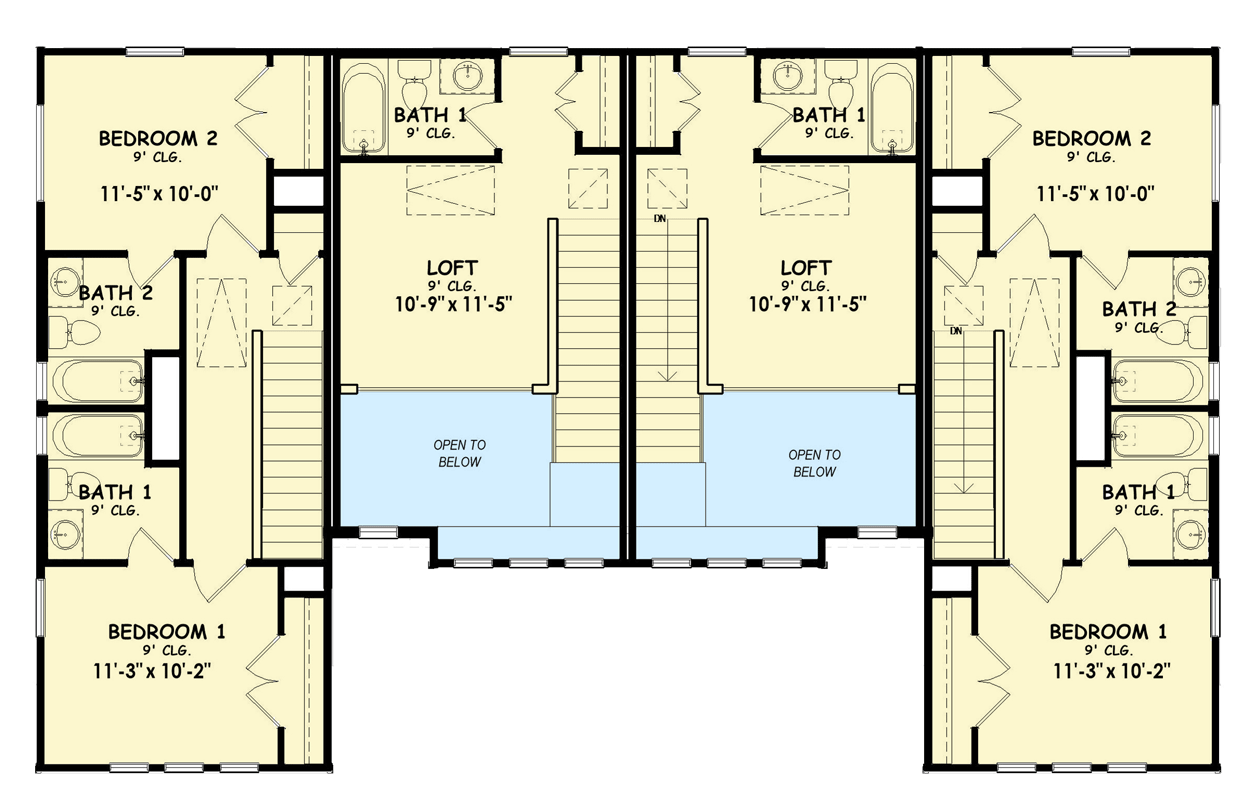

2nd Level

Plan 100376GHR: Transitional Farmhouse Multifamily Plan with Distinct Residential Units - Floor Plan - 2nd Level - Modern Farmhouse, Transitional

Plan Details

  • This Transitional farmhouse duplex features a clean aesthetic with vertical siding and a striking roofline, offering two distinct living arrangements, four in total, within a single structure.
  • The first type of unit encompasses 995 square feet across two levels, providing two bedrooms and two full baths along with a convenient half bath.
  • The second type offers a compact 607 square feet of living space, efficiently designed with one bedroom, one full bath, and a half bath.
  • Each residences prioritize a functional layout that maximizes interior square footage, ensuring a comfortable living experience in a contemporary setting.
  • The exterior design is defined by high-contrast window frames and deep roof pitches, creating a sophisticated curb appeal suitable for urban or suburban settings.
  • Residents will enjoy the charm of a front porch entrance, providing a welcoming transition from the sidewalk to the private interior living spaces.
Unit A & D
Heated Area
995Sq. Ft.
495 Sq. Ft. 1st
500 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
15'width
35'depth
Unfinished Areas
60 Sq. Ft. Porch, Front
Unit B & C
Heated Area
607Sq. Ft.
375 Sq. Ft. 1st
232 Sq. Ft. 2nd
Beds
1Beds
Baths
1Full Bath
1Half Bath
Dimensions
15'width
35'depth

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

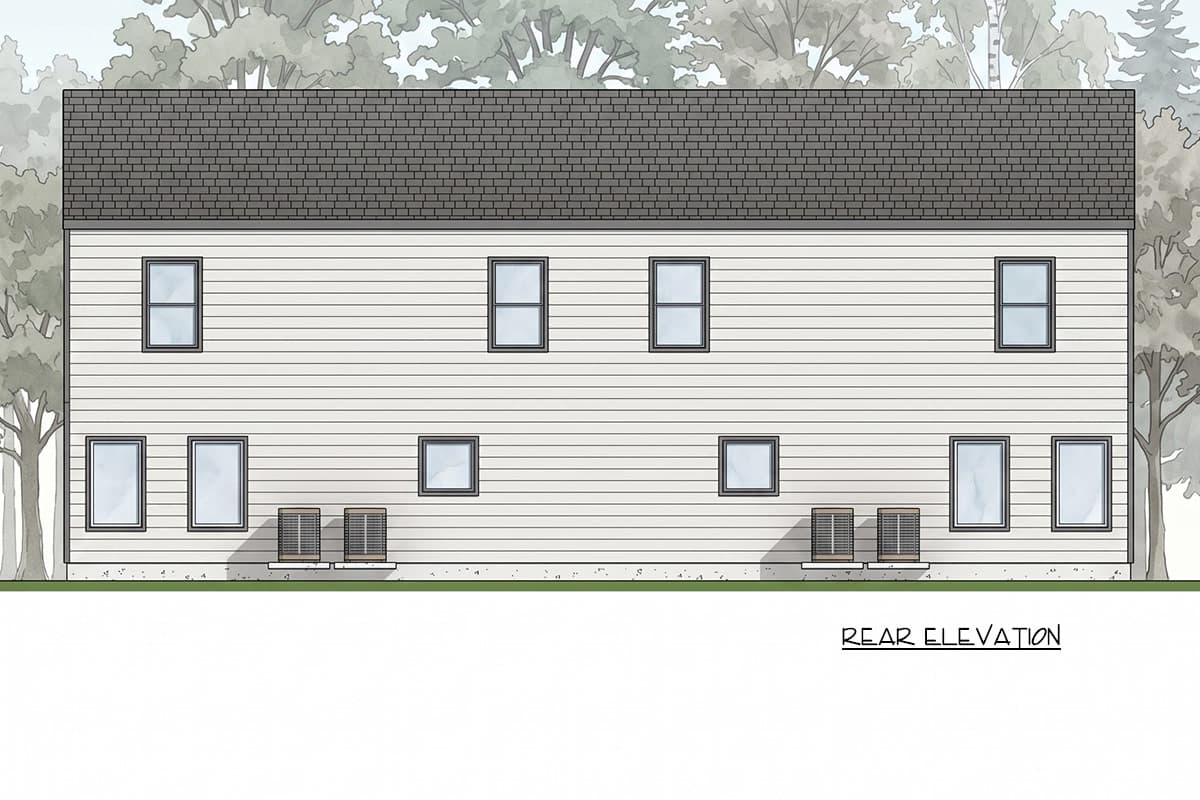

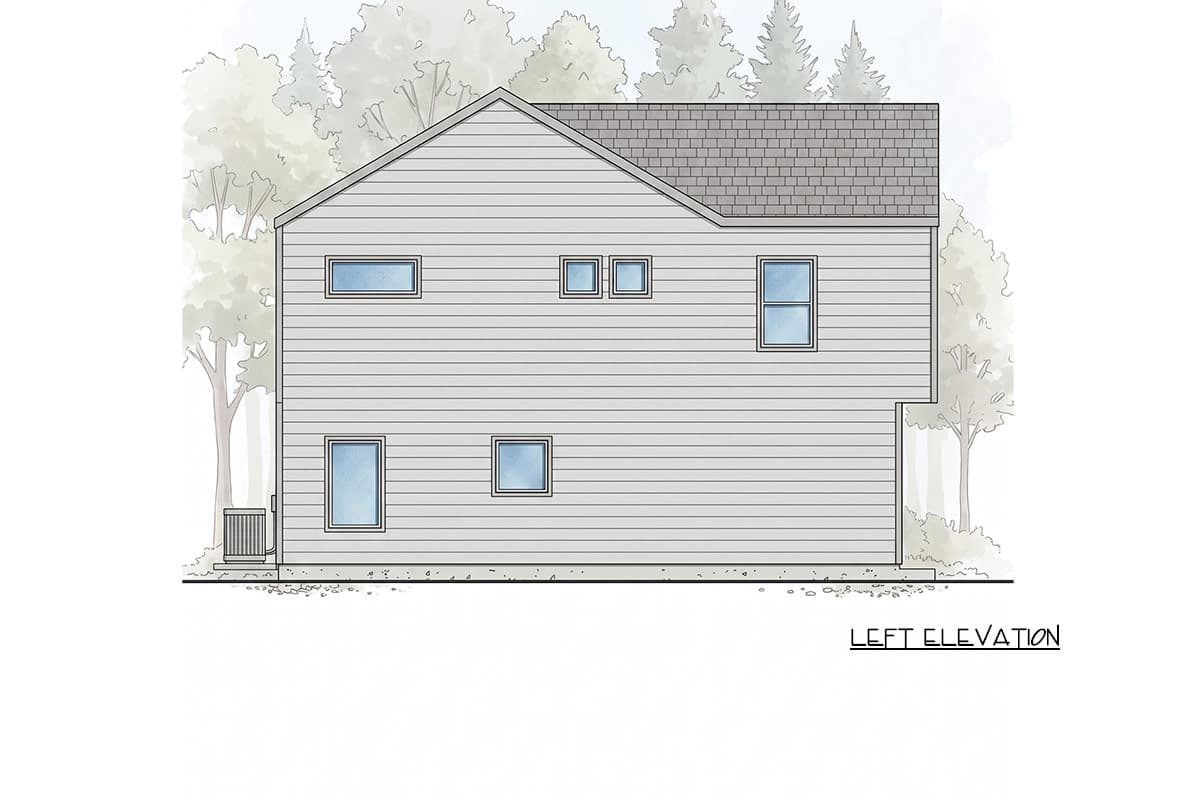

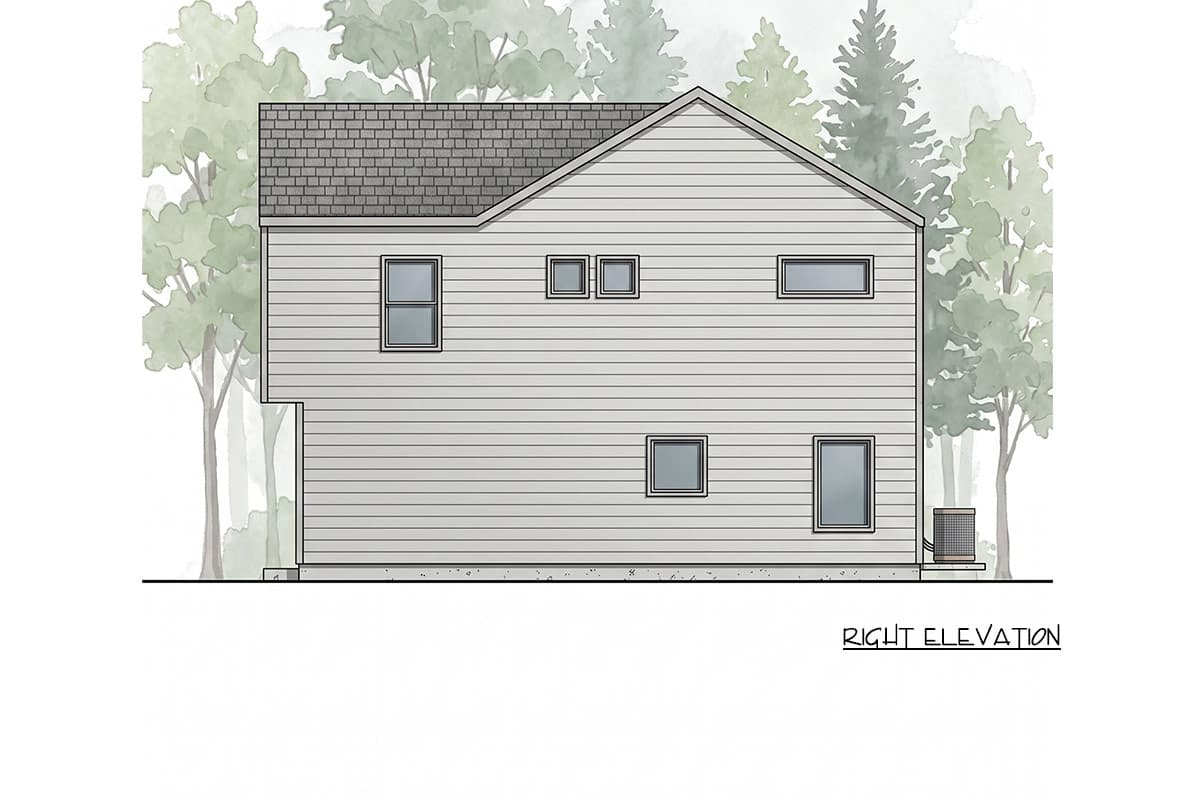

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,204 sq. ft.

1st Floor

1,740 sq. ft.

2nd Floor

1,464 sq. ft.

Porch, Front

120 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 6"

Depth

35' 0"

Max Ridge Height

26' 11"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Modern Farmhouse

Transitional

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - Upstairs

Plan Collections

Exclusive

Unlimited Build License

Square Footage Breakdown

Total Heated Area

3,204 sq. ft.

1st Floor

1,740 sq. ft.

2nd Floor

1,464 sq. ft.

Porch, Front

120 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 6"

Depth

35' 0"

Max Ridge Height

26' 11"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Modern Farmhouse

Transitional

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - Upstairs

Plan Collections

Exclusive

Unlimited Build License
