Transitional Farmhouse Plan Under 3500 Square Feet with Flex Room and Screened Porch

Plan 260024RVC

  • 3,485

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A shed dormer with three windows are flanked by steeply-pitched gables on this two-story Transitional farmhouse plan, which delivers 4 to 5 bedrooms, 4.5 baths, and 3,485 square feet of heated living.
  • The mudroom is framed by the double garage and formal foyer, creating a single storage spot for shoes and outdoor gear. A flex room with vaulted ceiling off the foyer can make a great home office or guest bedroom.
  • Around the corner, discover an open kitchen and dining room with a cased opening leading to the vaulted family room with sliding door access to a large screened porch.
  • The master suite has screened porch access and a divided walk-in closet through the 5-fixture bath. A large laundry room is conveniently located near the suite.
  • Upstairs, three bedrooms share two baths - one of them a Jack and Jill - and a homework station gives the kids a semi-private space outside their rooms to get work done.

This house plan includes the follow details:


Title sheet with general notes
Elevations
Foundation plan
Detailed floor plans
Roof framing plan
Cross sections & details
Interior trim details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

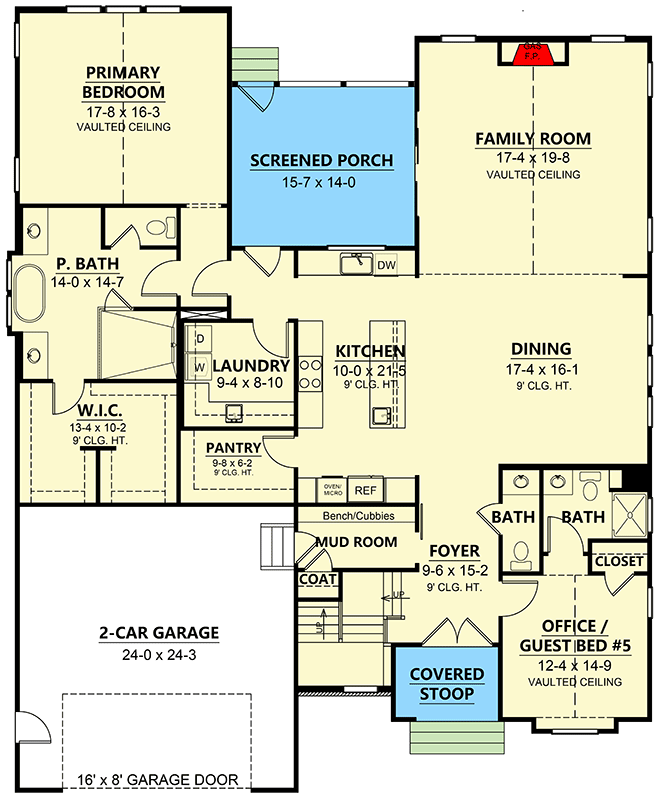

Transitional Farmhouse Plan Under 3500 Square Feet with Flex Room and Screened Porch - 260024RVC floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

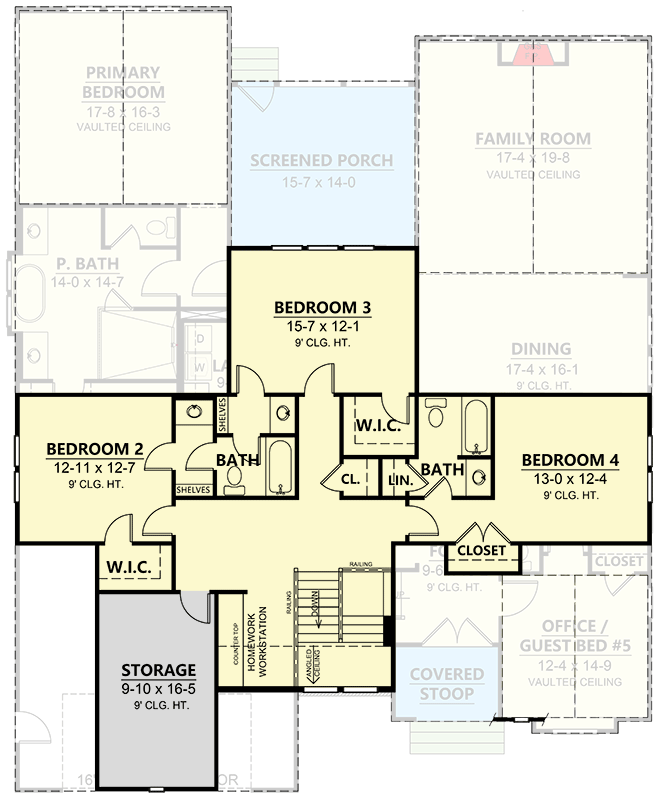

Transitional Farmhouse Plan Under 3500 Square Feet with Flex Room and Screened Porch - 260024RVC floor plan - 2nd Floor

Plan details

Transitional Farmhouse Plan Under 3500 Square Feet with Flex Room and Screened Porch

  • 3,485

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • CAD + PDF - Single Build $2,395
  • PDF - Unlimited Build $2,395
  • CAD + PDF - Unlimited Build $2,750
  • View all purchase option online

About This Plan

  • A shed dormer with three windows are flanked by steeply-pitched gables on this two-story Transitional farmhouse plan, which delivers 4 to 5 bedrooms, 4.5 baths, and 3,485 square feet of heated living.
  • The mudroom is framed by the double garage and formal foyer, creating a single storage spot for shoes and outdoor gear. A flex room with vaulted ceiling off the foyer can make a great home office or guest bedroom.
  • Around the corner, discover an open kitchen and dining room with a cased opening leading to the vaulted family room with sliding door access to a large screened porch.
  • The master suite has screened porch access and a divided walk-in closet through the 5-fixture bath. A large laundry room is conveniently located near the suite.
  • Upstairs, three bedrooms share two baths - one of them a Jack and Jill - and a homework station gives the kids a semi-private space outside their rooms to get work done.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,485 sq. ft.
  • 1st Floor: 2,383 sq. ft.
  • 2nd Floor: 1,103 sq. ft.
  • Screened Porch: 218 sq. ft.
  • Porch, Front: 56 sq. ft.
  • Bonus: 172 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 54' 8"
  • Depth: 66' 8"
  • Max ridge height: 31' 1"

Garage

  • Type: Attached
  • Area: 577 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 16 on 12
  • Framing Type: Stick And Truss
