Transitional House Plan Under 2100 Square Feet with 3 Upstairs Bedrooms and Laundry

Plan 90348PD

  • 2,043

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • All three bedrooms - plus laundry - are located on the second floor of this 2,043 Transitional house plan with 2-car garage and a covered porch in back.
  • The foyer is accessible from the front door as well as the mudroom from the garage. Take two steps up and discover an open floor plan with stairs going up and down on your left.
  • The fireplace in the living room is visible from behind the large kitchen island. A large pantry gives you great storage and sliding doors open to the back porch.
  • NOTE: Please allow 20 business days for plan delivery.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

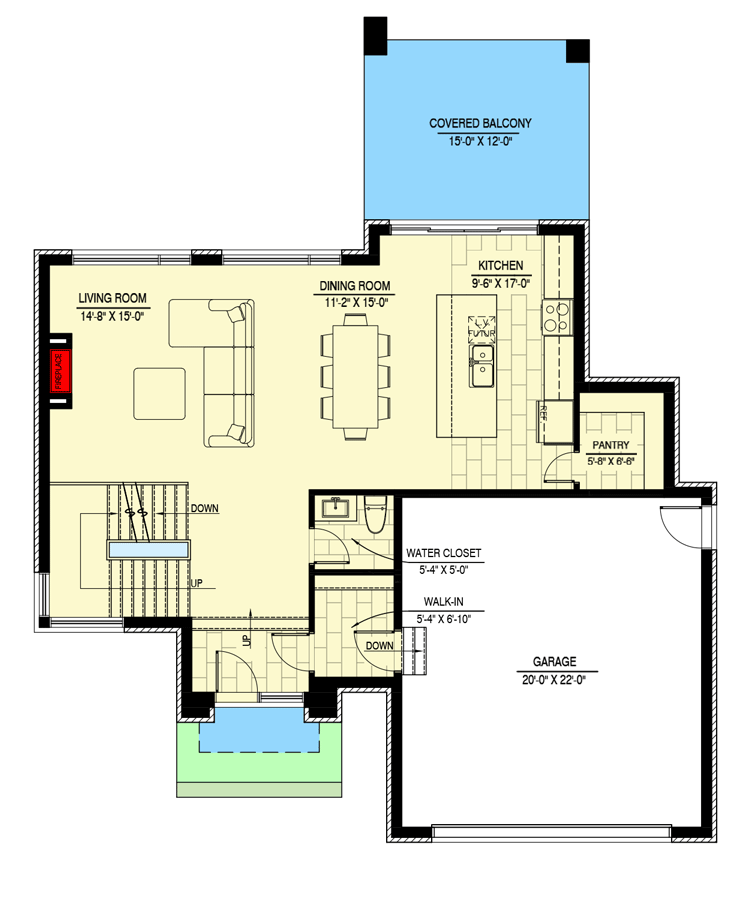

Transitional House Plan Under 2100 Square Feet with 3 Upstairs Bedrooms and Laundry - 90348PD floor plan - Main Level

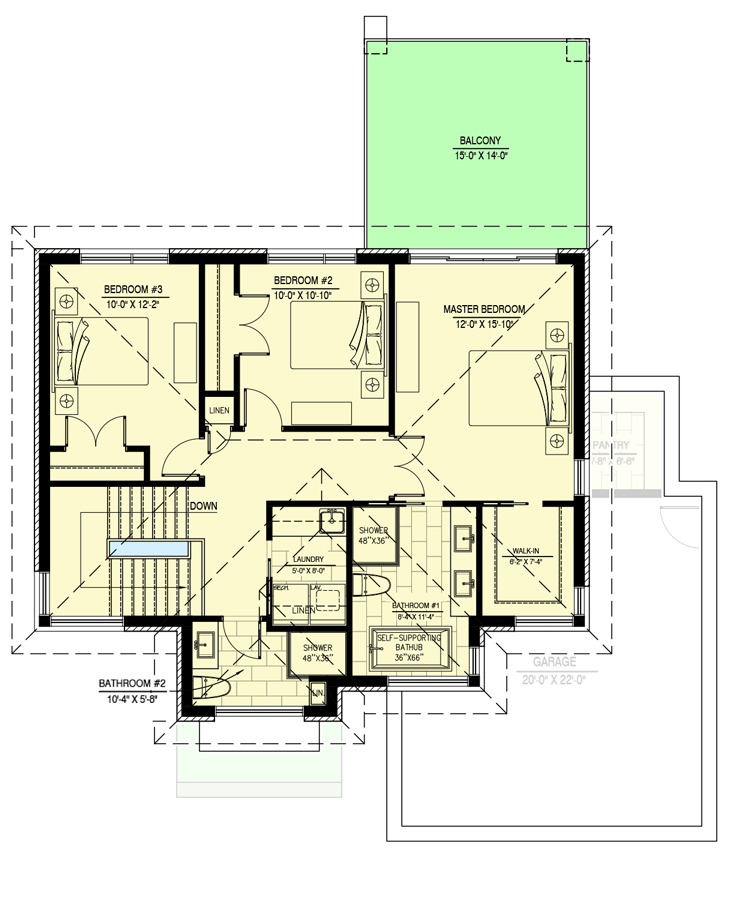

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional House Plan Under 2100 Square Feet with 3 Upstairs Bedrooms and Laundry - 90348PD floor plan - 2nd Floor
