Transitional House Plan with 5 Bedrooms and a Safe Room - 4774 Sq Ft
Heated S.F.
4,774
Beds
5
Baths
4.5
Stories
2
Cars
6
Tour
What's Included
Plan Details
  • This 5 bed, 4.5 bath Transitional house plan gives you 4,774 square feet of heated living and 2,128 square feet of garage space with enough parking for 6 cars. The exterior of the house is a blend of contemporary and old world charm.
  • The foyer welcomes you with its high ceilings and abundant natural light and is open to the great room 14' ceilings, a fireplace and large glass doors. Adjacent to the great room is a sunlit office.
  • The expansive kitchen has space for large appliances, ample cabinet space, and a generous island for meal preparation and casual dining. A walk-in pantry with a second refrigerator and a servery with a second range complete the kitchen experience.
  • Each bedroom has ample closet space and large windows. The bathrooms are appointed with soaking tubs, walk-in showers, and generously sized vanities.
  • Safety and security are paramount, which is why this modern cottage includes designated safe rooms strategically located throughout the house. These fortified spaces offer peace of mind during inclement weather or unforeseen emergencies.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional House Plan with 5 Bedrooms and a Safe Room - 4774 Sq Ft

  • 4,774

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 6

    Car garage

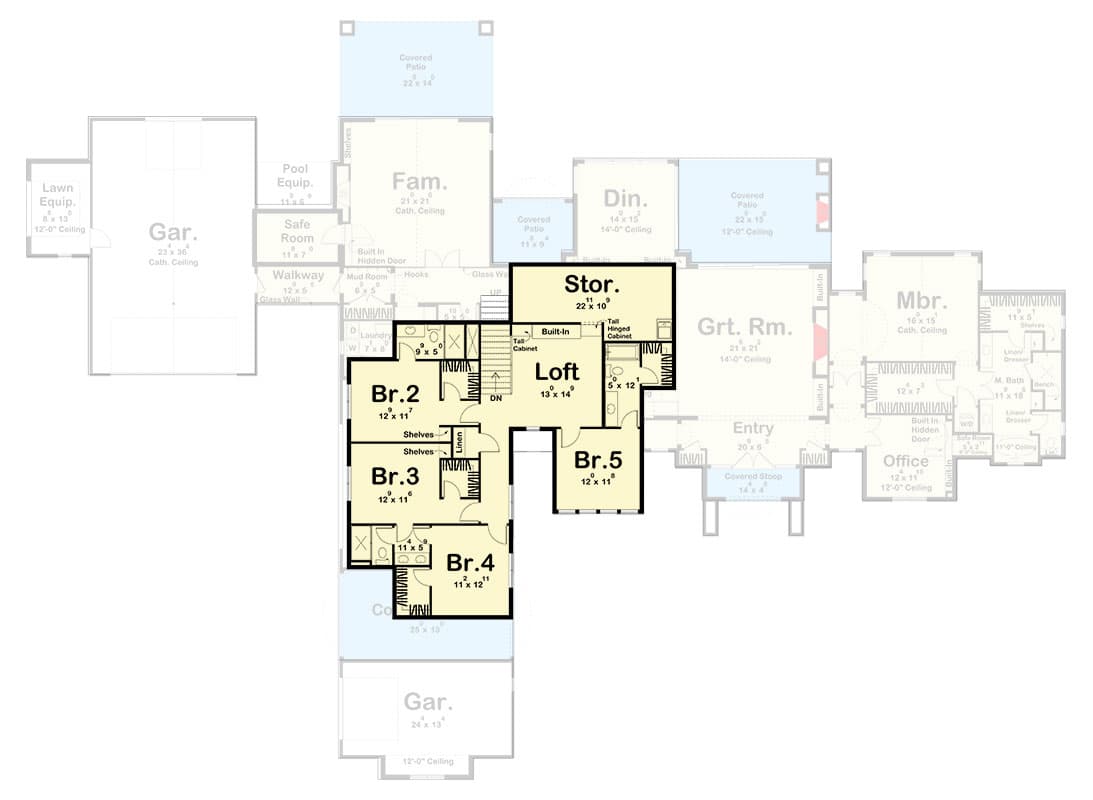

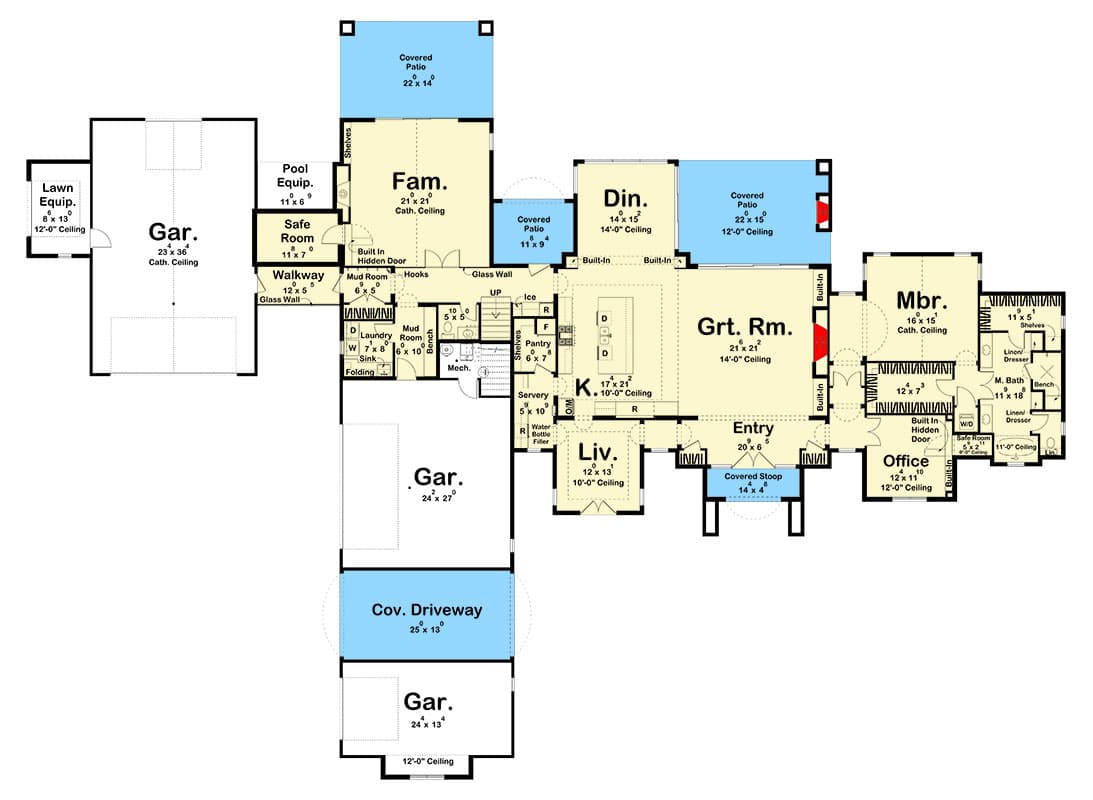

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,774 sq. ft.
  • 1st Floor: 3,426 sq. ft.
  • 2nd Floor: 1,348 sq. ft.

Dimensions

  • Width: 149' 4"
  • Depth: 109' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 2128 sq. ft.
  • Count: 6 Cars
  • Entry Location: Courtyard, Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 12 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site
