Plan 36665TX
Transitional House Plan with an Abundance of Lanai Space
Heated S.F.
4,418
Beds
4
Baths
4.5+
Stories
2
Cars
3
What's Included
Plan Details
  • This elegant estate house plan offers luxury inside and out from its stucco and stone façade, stone chimney and hip rooflines.

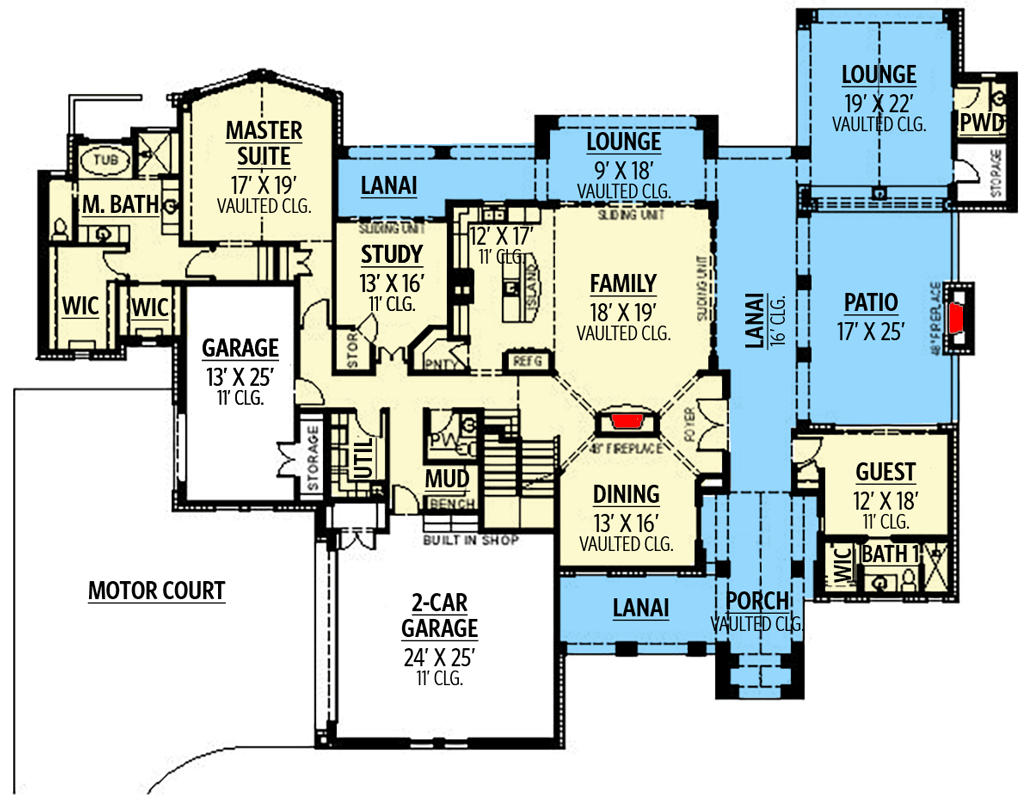

  • Enter the double French doors to the foyer and take in the view of the fireplace under vaulted ceilings between the elegant dining and expansive family room. The family room has two sets of sliding doors: one to the side lanai and one to the rear vaulted lounge.
  • The family room is seamlessly separated from the gourmet kitchen with pantry by a seating island with sink and counter space. Adjacent to the kitchen is the study with a storage closet and sliding door onto the rear lanai, a utility room, powder room, and mud room with a bench leading to the two-car, side-entry garage with built-in shop.
  • The back hall next to the study leads to the owner’s suite with vaulted ceiling and boasts two large walk-in closets with built ins, a luxurious spa bath complete with separate glass shower and tub, and his and hers vanities. Beyond the porch leading to the rear lanai is a guest room with full bath and walk-in closet.
  • Also off the lanai is a patio with a fireplace and a vaulted lounge with storage and powder room. The lanai wraps around two-and-a-half sides, separating the patios and lounges to the outer edges with large decorative columns, creating a perfect spot for al fresco with family and friends.  Stairs between the mud room and dining room lead to the second floor plan.

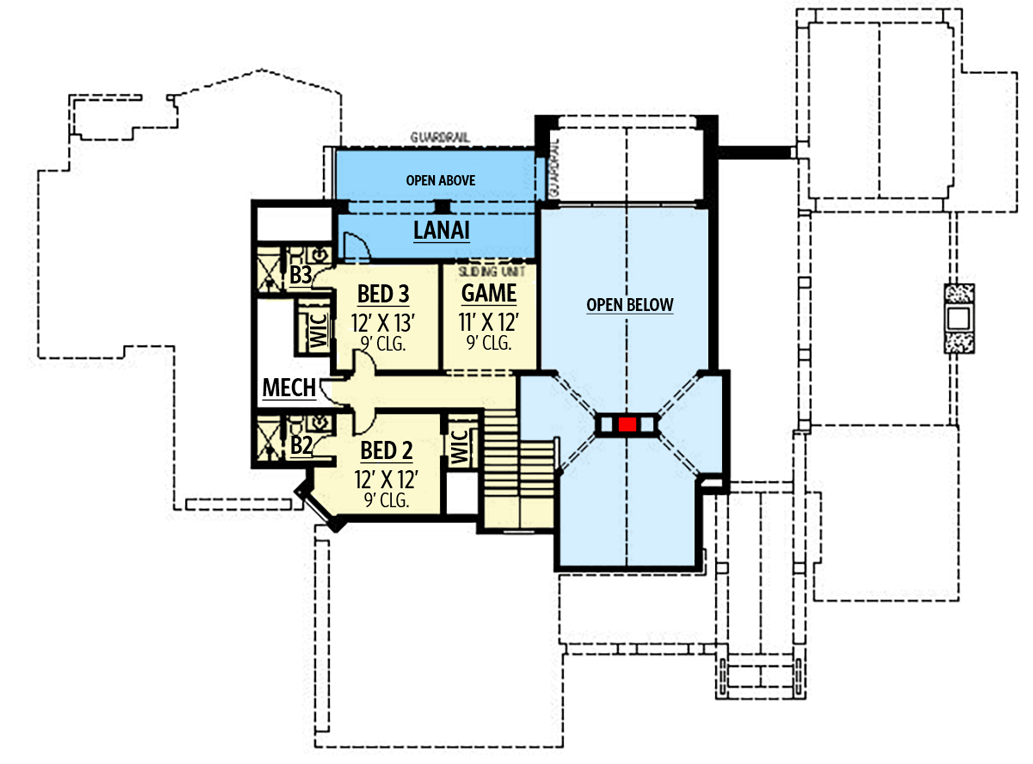

  • Upstairs, two family bedrooms, each with full baths and walk-in closets, one of which has access to the lanai, share space with a mechanical room, and a game room with a sliding door onto the lanai that is open above and has guardrails.
  • The two-car garage has a motor court that also leads to the one-car, side-entry garage with storage and access to the hall near the utility and mud rooms.
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

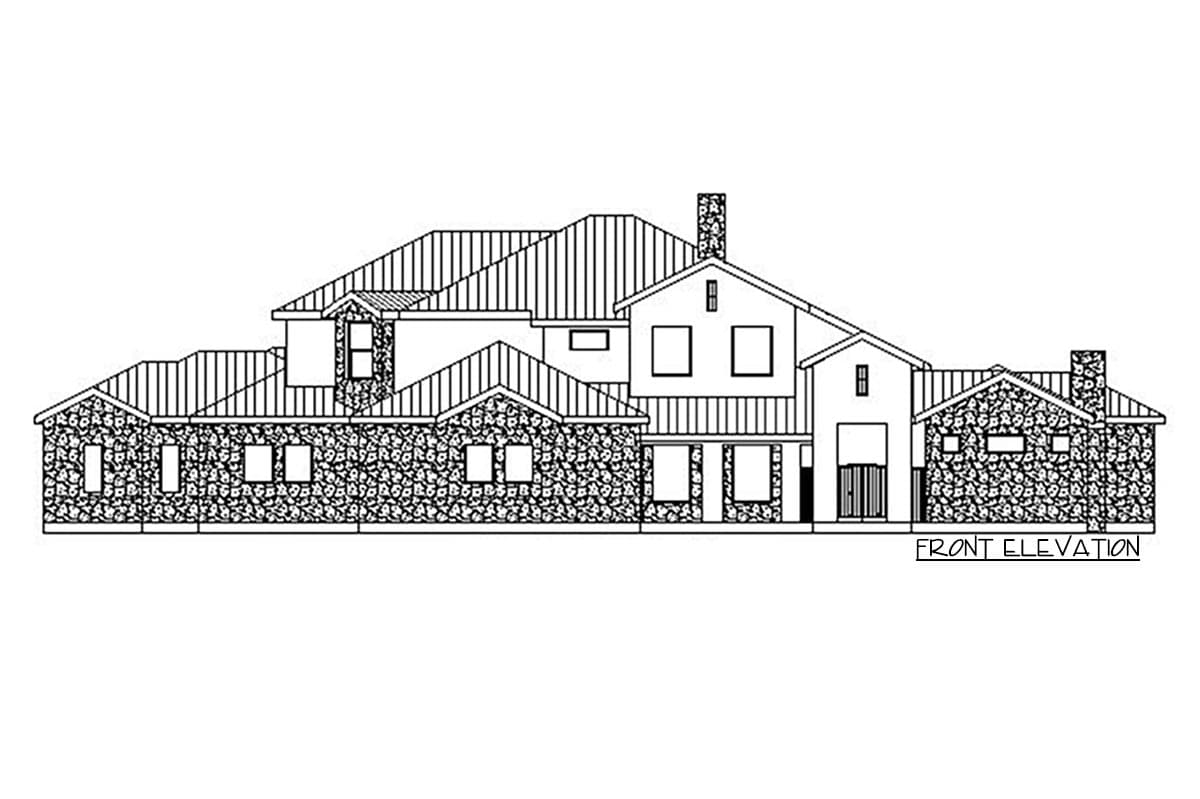

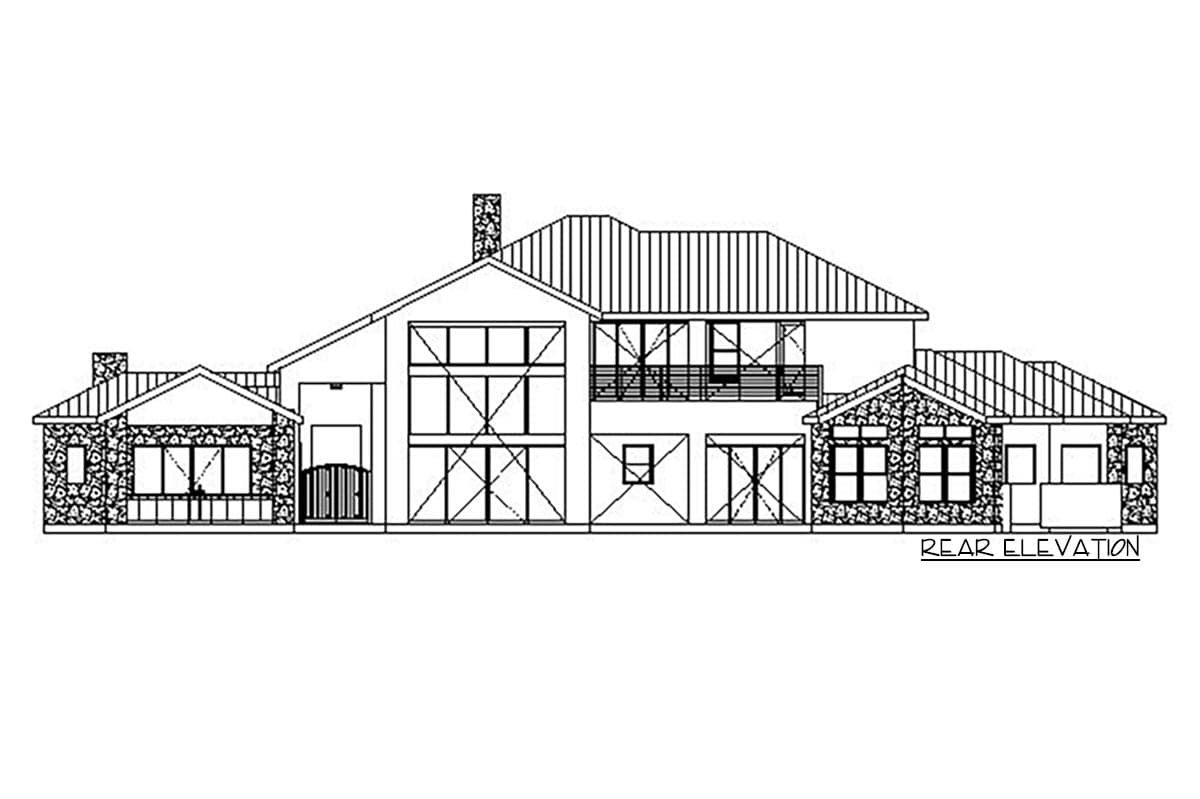

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

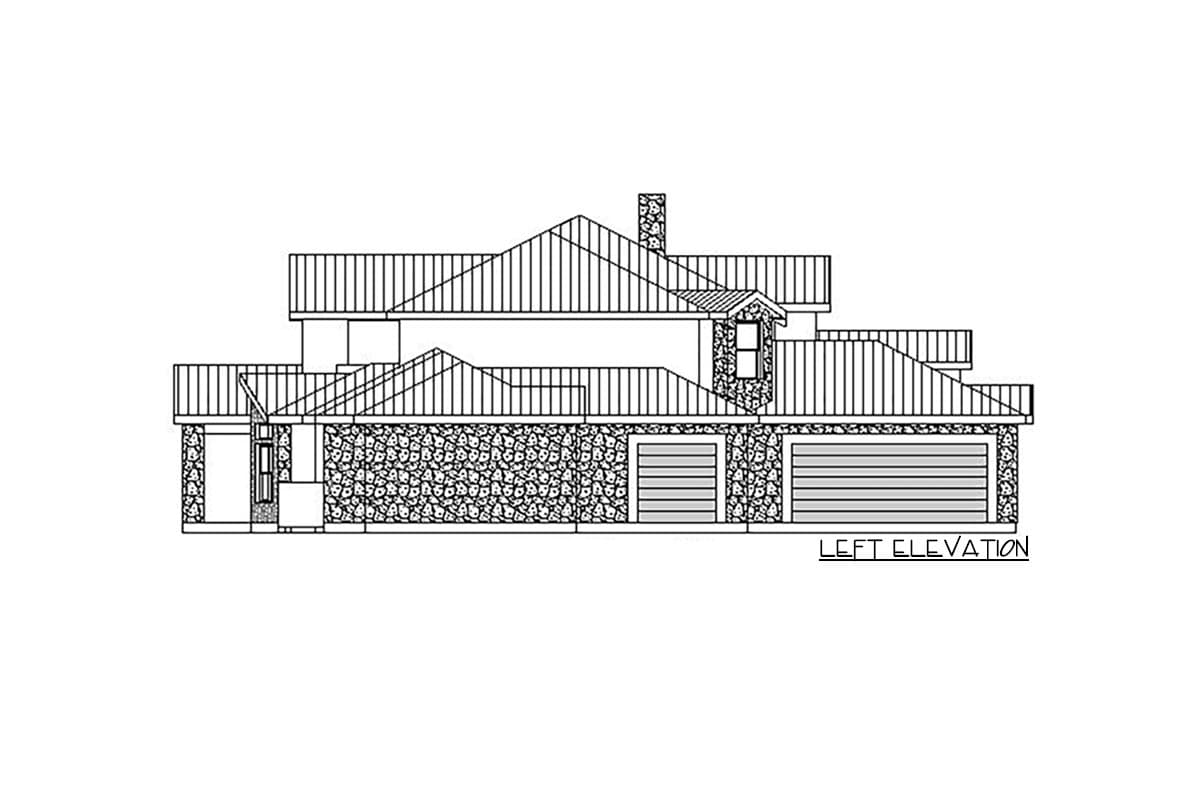

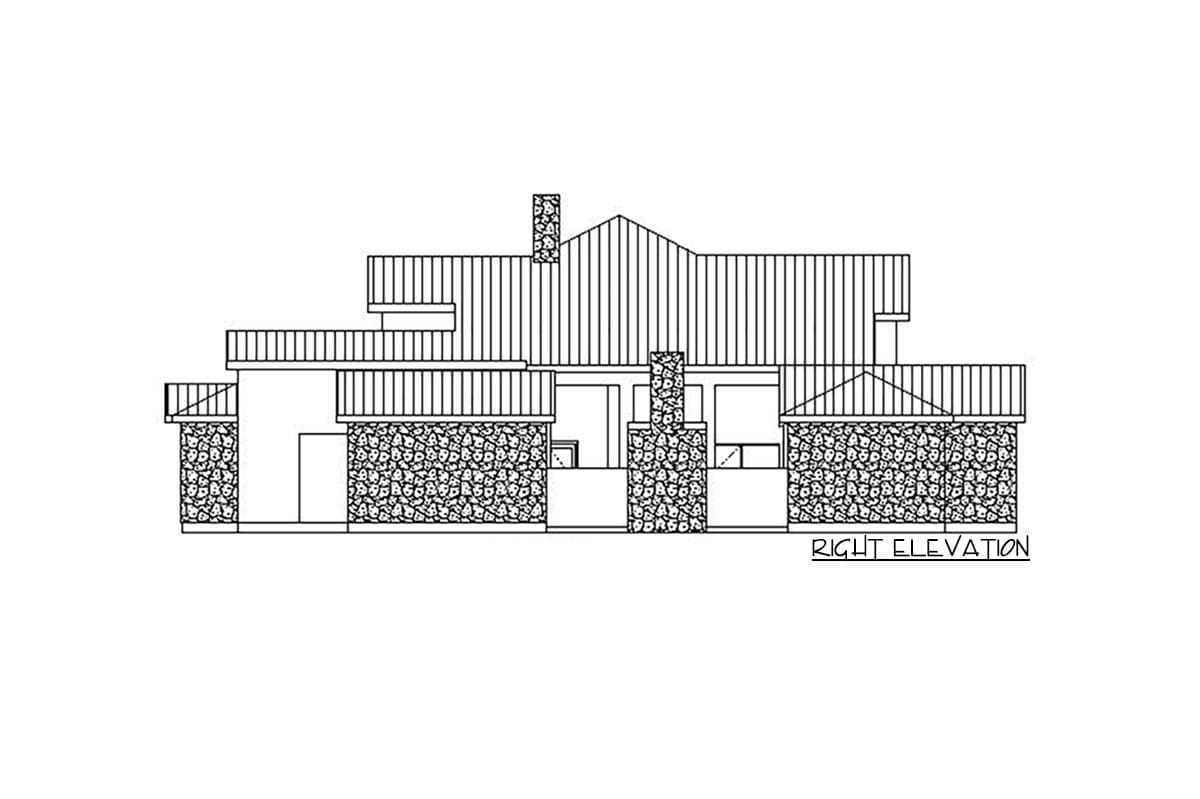

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional House Plan with an Abundance of Lanai Space

  • 4,418

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,418 sq. ft.
  • 1st Floor: 2,611 sq. ft.
  • 2nd Floor: 1,807 sq. ft.

Dimensions

  • Width: 113' 0"
  • Depth: 86' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 990 sq. ft.
  • Count: 3 Cars

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
