Plan 22679DR
Transitional House Plan with Cathedral Ceiling Living Room - 1612 Sq Ft
Heated S.F.
1,612
Beds
4
Baths
2
Stories
1
What's Included
Plan Details
  • This transitional house plan gives you 4 beds, 2 baths and 1,612 square feet of heated living space. The exterior is a combination of stone and siding - both horizontal and vertical - and a covered entry has a graceful curved opening greeting your guests to your home.
  • The living room has a fireplace and a 12'8" cathedral ceiling. The room opens to the kitchen and dining rooms giving you a great combined space made for entertaining.
  • Bedrooms line the right side of the home with laundry convenient to all of them.
  • A patio in back - accessible through sliding doors from the dining room - gives you a great fresh air space to enjoy.
What's Included

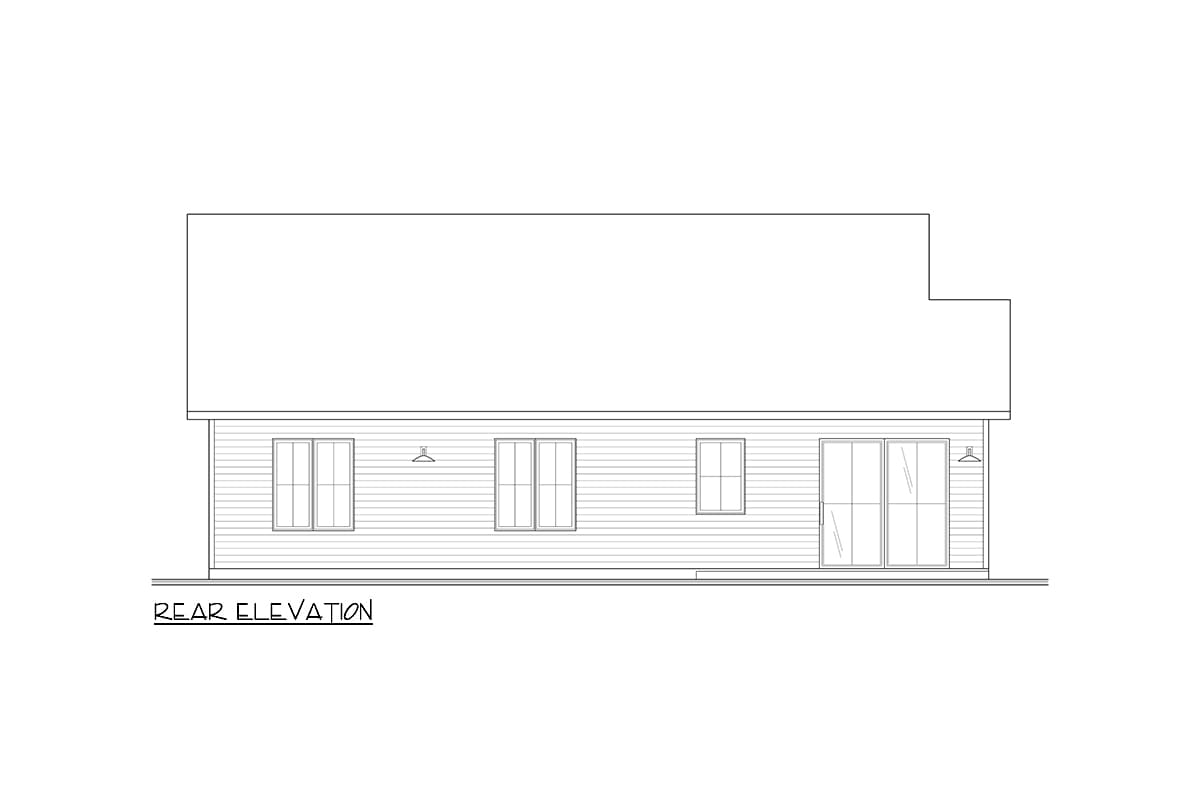

  • Elevations
  • Foundation Plan

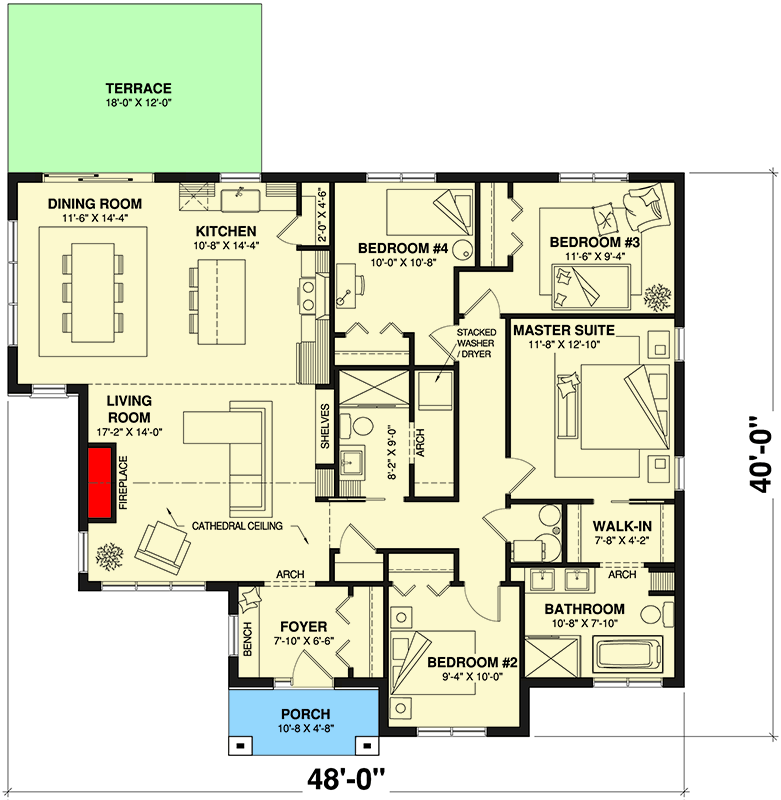

  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional House Plan with Cathedral Ceiling Living Room - 1612 Sq Ft

  • 1,612

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,612 sq. ft.
  • 1st Floor: 1,612 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 40' 0"
  • Max ridge height: 21' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
