Transitional House Plan with Main Floor Master and Guest Suite

Plan 710412BTZ

  • 2,906

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This transitional design offers a fresh, modern appearance to a traditional form. The exterior has a mix of brick and board and batten and has wood beams around the covered entry.
  • The main level is the hub of activity centered around an open concept living-dining area as well as the kitchen. The living room has an 11'-high beamed tray ceiling with a fireplace.
  • The master suite is conveniently located on the main floor and has a beamed 10' ceiling with a large window grouping on the back wall, a spa-like bath and a large walk-in closet. The main floor also has a guest suite with many uses such as a home work space or study.
  • Upstairs, you'll find your secondary sleeping spaces for siblings and their sleep over friends. The optional bonus room can be finished, giving you 439 square feet of additional space that can be used for a variety of functions.
  • Related Plan: Get an alternate exterior with house plan 710348BTZ.

The plans include the following:

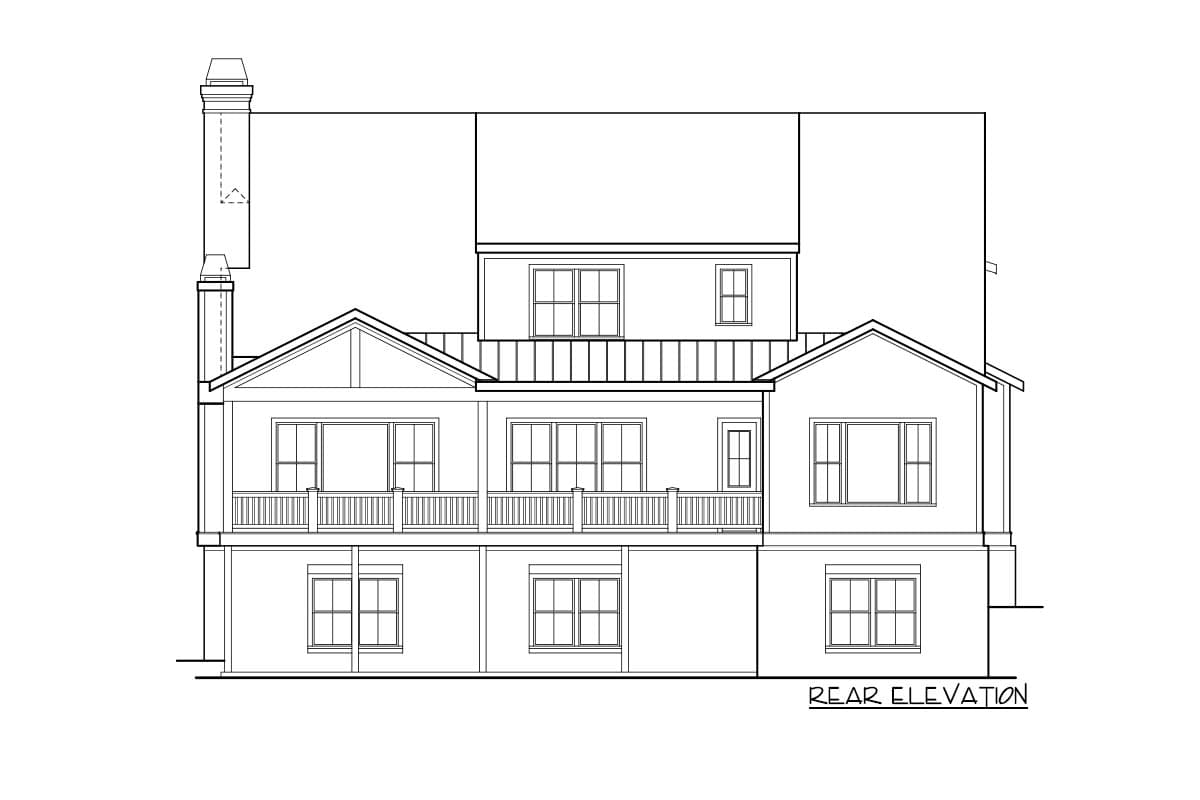

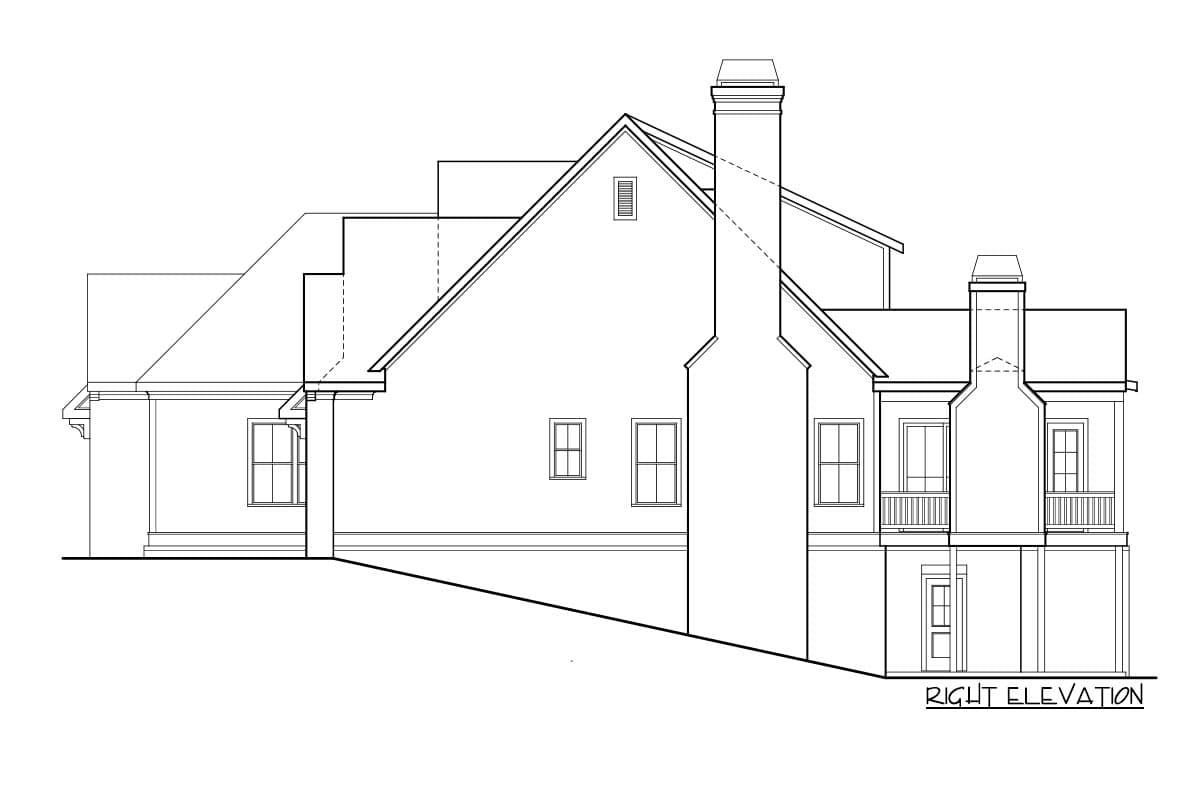

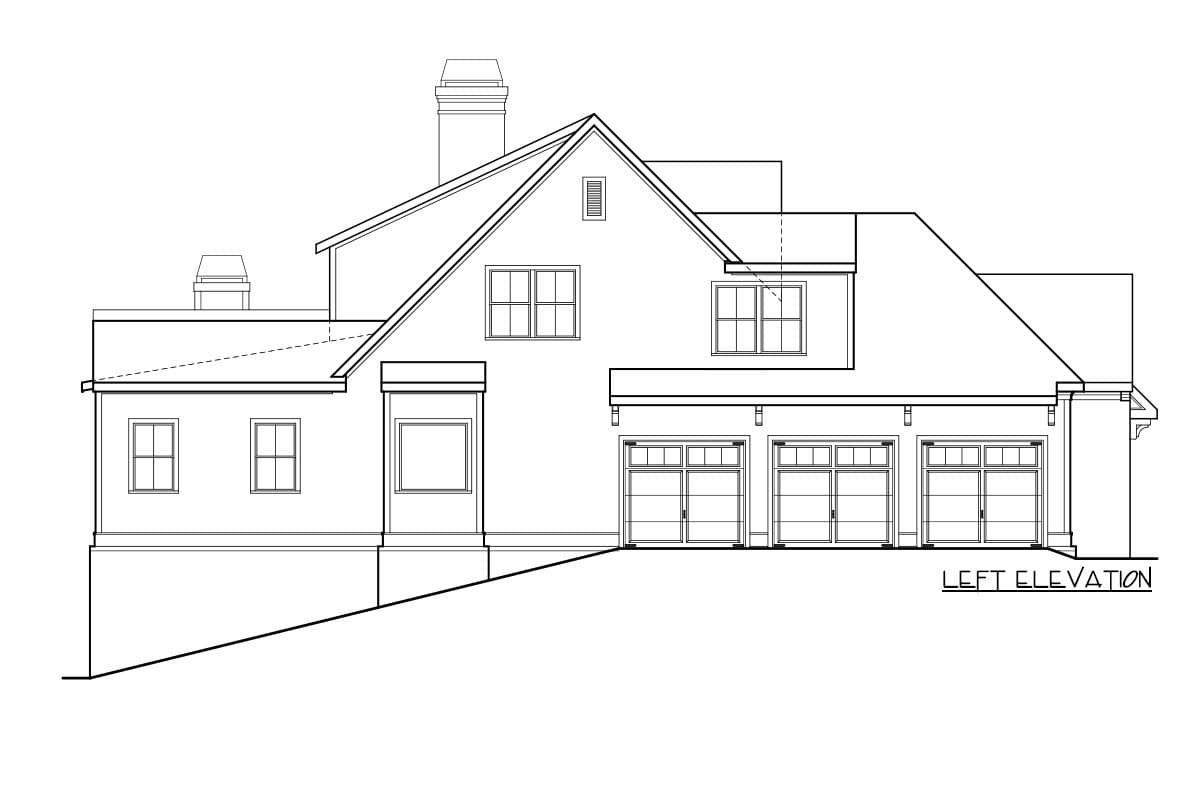

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

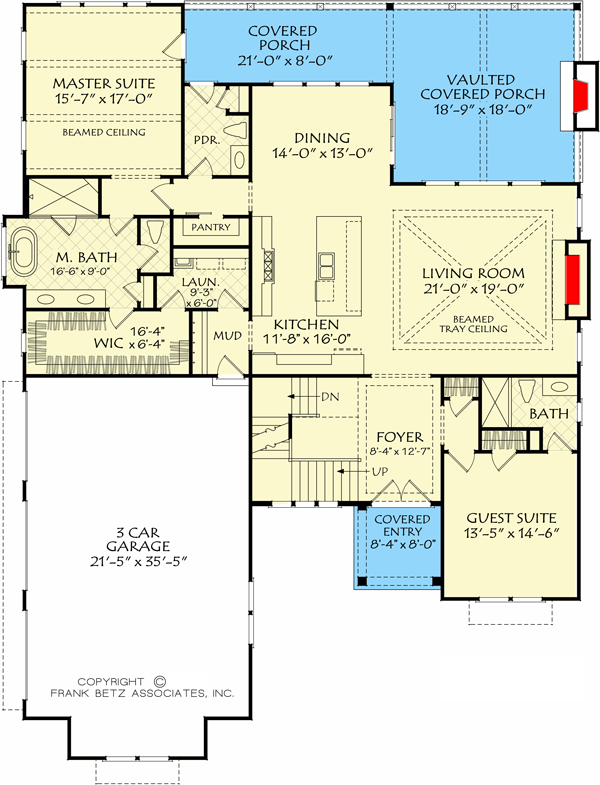

Transitional House Plan with Main Floor Master and Guest Suite - 710412BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

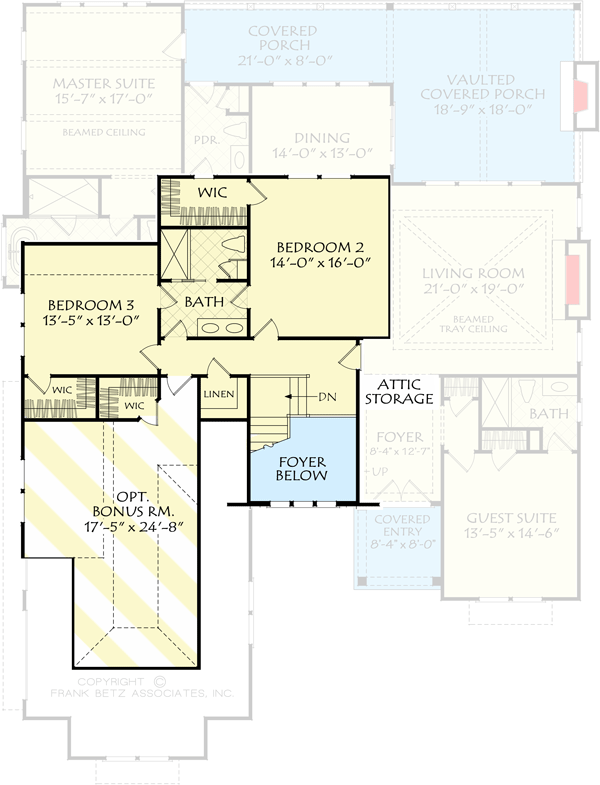

Transitional House Plan with Main Floor Master and Guest Suite - 710412BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,906 sq. ft.
  • 1st Floor: 2,176 sq. ft.
  • 2nd Floor: 730 sq. ft.
  • Porch, Rear: 506 sq. ft.
  • Porch, Front: 67 sq. ft.
  • Bonus: 439 sq. ft.
  • Basement Unfinished: 2,176 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 59' 0"
  • Depth: 76' 0"
  • Max ridge height: 30' 10"

Garage

  • Type: Attached
  • Area: 844 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Transitional House Plan with Main Floor Master and Guest Suite

  • 2,906

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • PDF - Unlimited Build $2,295
  • 5 Sets + PDF $2,375
  • PDF - Unlimited Build + 5-sets $2,575
  • CAD - Unlimited Build $4,145
  • View all purchase option online

About This Plan

  • This transitional design offers a fresh, modern appearance to a traditional form. The exterior has a mix of brick and board and batten and has wood beams around the covered entry.
  • The main level is the hub of activity centered around an open concept living-dining area as well as the kitchen. The living room has an 11'-high beamed tray ceiling with a fireplace.
  • The master suite is conveniently located on the main floor and has a beamed 10' ceiling with a large window grouping on the back wall, a spa-like bath and a large walk-in closet. The main floor also has a guest suite with many uses such as a home work space or study.
  • Upstairs, you'll find your secondary sleeping spaces for siblings and their sleep over friends. The optional bonus room can be finished, giving you 439 square feet of additional space that can be used for a variety of functions.
  • Related Plan: Get an alternate exterior with house plan 710348BTZ.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,906 sq. ft.
  • 1st Floor: 2,176 sq. ft.
  • 2nd Floor: 730 sq. ft.
  • Porch, Rear: 506 sq. ft.
  • Porch, Front: 67 sq. ft.
  • Bonus: 439 sq. ft.
  • Basement Unfinished: 2,176 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 59' 0"
  • Depth: 76' 0"
  • Max ridge height: 30' 10"

Garage

  • Type: Attached
  • Area: 844 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
