Plan 623548DJ

Transitional Ranch House Plan with Gourmet Kitchen and Covered Porches

Name: Plan 623548DJ: Transitional Ranch House Plan with Gourmet Kitchen and Covered Porches
Brand: Architectural Designs
SKU: 623548DJ
Price: 1899.0 USD
Availability: InStock

Heated S.F.

3,242

Beds

Baths

2.5

Stories

Cars

Tour

Floor Plan

Main Level

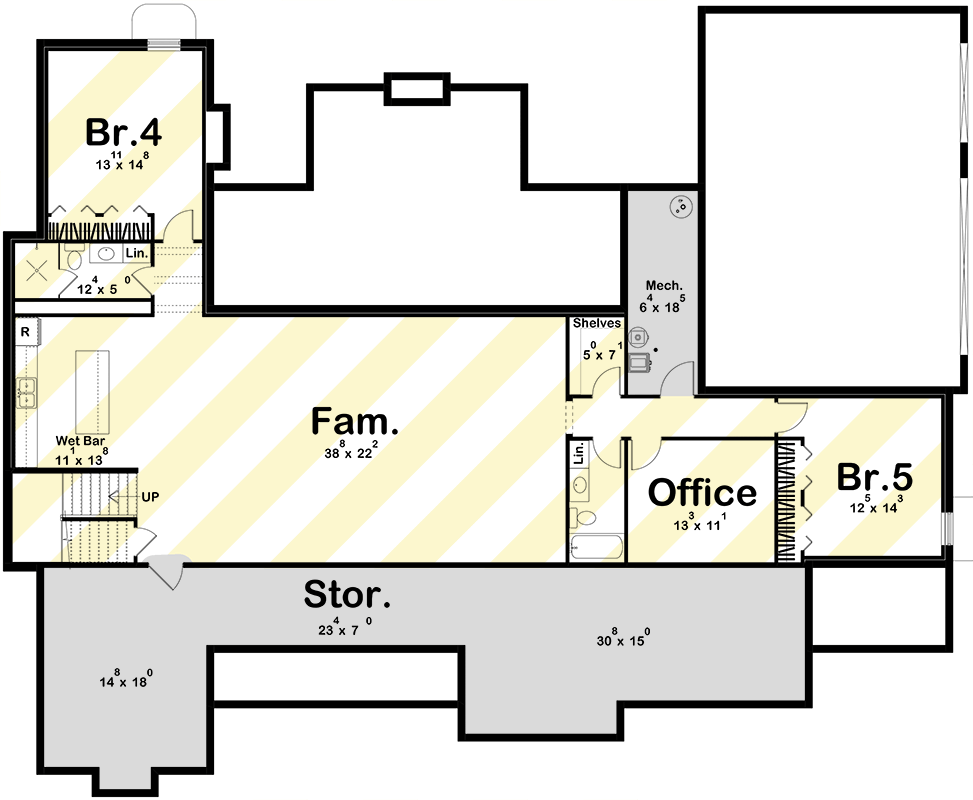

Optional Lower Level Layout ($ Paid Option)

Plan Details

This 3,242 sq. ft. Transitional Ranch house plan offers three bedrooms, two full bathrooms, a convenient half bath, and an attached 838 sq. ft., three-car garage, all within a sophisticated single-story layout.
Upon entering, guests are welcomed into an elegant entry foyer that opens directly into the grand great room, featuring soaring cathedral ceilings and a seamless open-concept design that encourages effortless entertaining and daily living.
The gourmet kitchen, boasting an expansive island and a spacious butler's walk-in pantry, flows effortlessly into the great room and connects to the rear covered porch, creating a harmonious indoor-outdoor living experience. A formal dining room, complete with a wet bar, offers an ideal setting for intimate dinners or festive gatherings.
The private primary suite, a luxurious retreat with a cathedral ceiling, features a spa-inspired bathroom, a generous walk-in closet, and direct access to the main-level laundry room for ultimate convenience. Two additional bedrooms are thoughtfully situated on the opposite side of the home, providing privacy and each enjoying access to a full shared bathroom, with one secondary bedroom also featuring its own charming covered porch.
A practical mudroom with built-in bench and hooks provides a functional transition from the three-car garage to the main living areas, while a dedicated living room near the entry offers a versatile space perfect for a home office or a quiet reading nook.
Embrace outdoor living on the expansive rear covered porch, complete with an inviting outdoor fireplace, perfect for al fresco dining and evening relaxation. A welcoming covered porch graces the front entry, and a private covered porch extends from one of the secondary bedrooms, offering tranquil personal retreats.
The optional 2,006 sq. ft. lower level significantly expands the home's living possibilities, featuring a spacious family room, a second wet bar, a dedicated home office, two additional bedrooms, and a full bathroom, providing ample space for guests, recreation, or a private sanctuary.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
