Transitional Ranch House Plan with Home Office and Workshop

Name: Plan 774001MWK: Transitional Ranch House Plan with Home Office and Workshop
Brand: Architectural Designs
SKU: 774001MWK
Price: 1255.0 USD
Availability: InStock

Heated S.F.

2,463

Beds

Baths

2.5

Stories

Cars

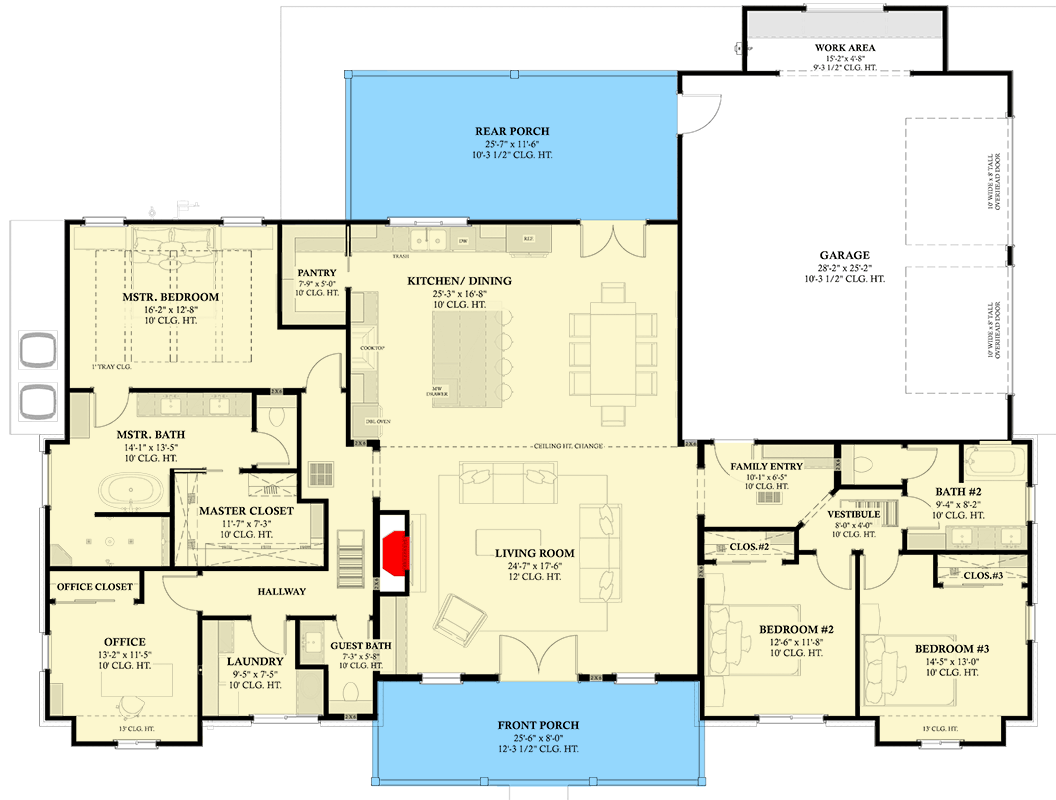

Floor Plan

Main Level

Plan Details

This 2,463 sq. ft. Transitional ranch house plan offers three bedrooms, two full bathrooms, and one half bath, complemented by a spacious 714 sq. ft. two-car side-entry garage.
Step inside from the inviting front porch into a bright living room, where a 12-foot ceiling creates an immediate sense of grandeur. On the far left of the home, a private office is strategically secluded, providing a quiet retreat for productivity or used as a guest or 4th bedroom.
The living room flows seamlessly into the expansive kitchen and dining area, designed for both everyday living and lively gatherings. The gourmet kitchen features a substantial island and a convenient butler's walk-in pantry, ensuring culinary ease, with a generous area for a table.
The luxurious primary suite, privately situated on one side of the home, boasts a spacious bedroom with a tray ceiling and an opulent ensuite bathroom featuring a large soaking tub, separate shower, and dual vanities, all connecting directly to an ample master closet. Two additional bedrooms, located on the opposite side of the home, share a well-appointed full bathroom, offering a desirable split-bedroom layout.
Adjacent to the two-car garage, a dedicated 73 sq. ft. work area provides an ideal space for DIY projects, hobbies, or additional storage, keeping creative endeavors organized and accessible.
Enjoy outdoor living with both a generous front porch, perfect for greeting guests, and an expansive 516 sq. ft. rear covered porch, offering a serene setting for al fresco dining or relaxation overlooking your backyard.
The Kitchen and Bath areas were designed by CKBD designers (Certified Kitchen and Bath Designer) with a focus on workflow/circulation and expert cabinet design and layout.

What's Included

Cover Sheet: Rendered exterior view with designer details, site address, and purchaser information.

Roof Plan: Bird’s-eye view showing roof geometry, slopes/pitches, roof materials, and location of roof ventilation.

Detailed Floor Plan: Fully dimensioned layout with room names, ceiling heights, dimensions to window/door locations, appliance locations, and general construction notes.

Exterior Elevations: Detailed 2D views of all sides showing materials, roof pitches, door/window types, floor/ceiling heights, and notes highlighting key exterior features.

Framing and Foundation Plans: Joist sizing, direction, and spacing; beam locations; footing layout; and framing/foundation notes, including framing/foundation section details.

Mechanical/Electrical/Plumbing Plan (suggested): HVAC layout denoting locations of registers, ducts, thermostat, and equipment. Electrical plan denoting locations of outlets, switches, lighting, and detectors. Plumbing layout denoting locations of water, gas, and sewer elements. All with general notes.

Cabinet Plan: Cabinet layout with dimensions, appliance types/locations, and interior elevation callouts.

Interior Elevations: Dimensioned interior views showing cabinetry design, closet configurations, and other walls with key features. All elevations boast extensive notes.

Window and Door Schedules: Complete list of all doors and windows with sizes, types, glass requirements, header heights, manufacturers, and quantities.

3D Perspective Renderings: Color 3D exterior and interior renderings for added context.

What's Not Included

Architectural or Engineering Stamp
Site Plan / Survey Layout
Final framing and foundation designs including engineered details such as anchor types, bracket/hanger types, final beam sizes/types, and other structural specifications. Final structural design must be provided by a licensed professional in your area.
Energy calculations
