Plan 246003DLR
EXCLUSIVE
Transitional Ranch Plan with Over 2,000 Square Feet
Heated S.F.
2,099
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details

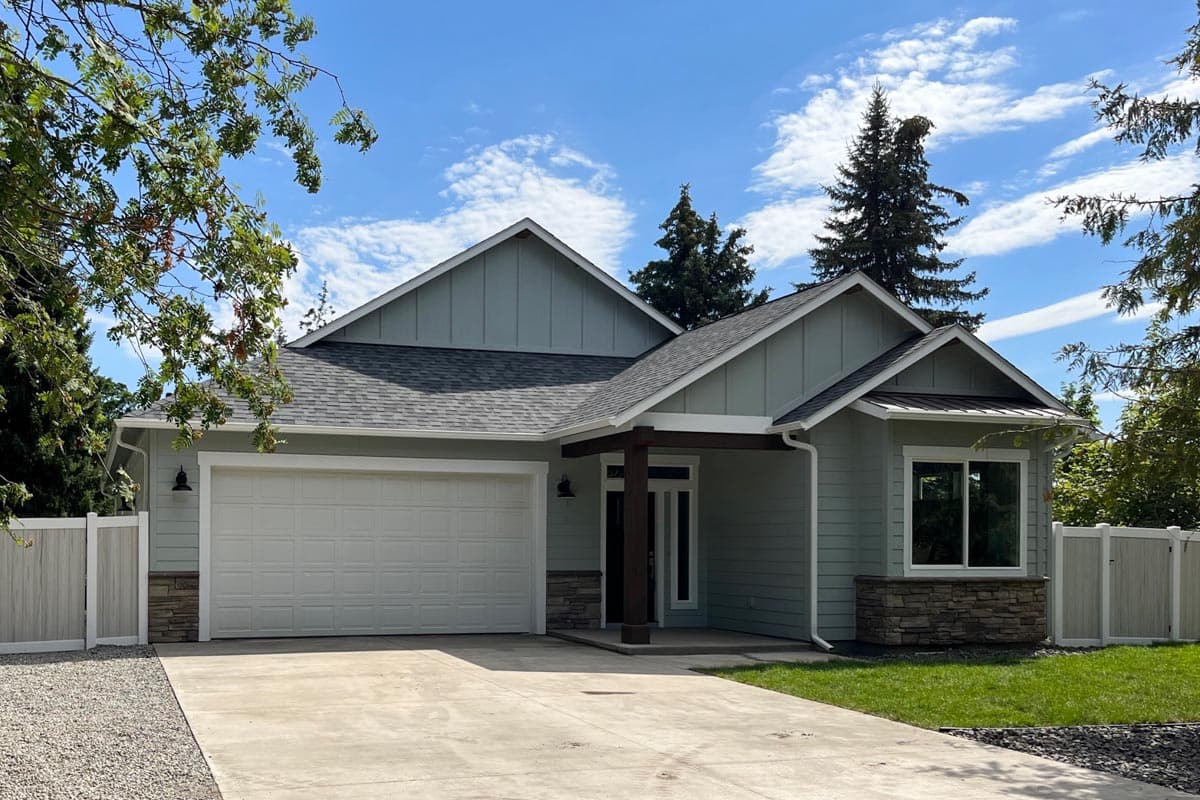

  • Stone accents on this Transitional Ranch home plan add texture and character to the exterior, while inside, you enjoy the comforts of one-level living.
  • A covered porch welcomes you inside, where you will find two family bedrooms separated by a full bath in the nearby hallway.
  • Combining the kitchen, dining area, and great room helps bring the family together and a covered patio spans the width of the rear elevation making it accessible from the living space and master bedroom.

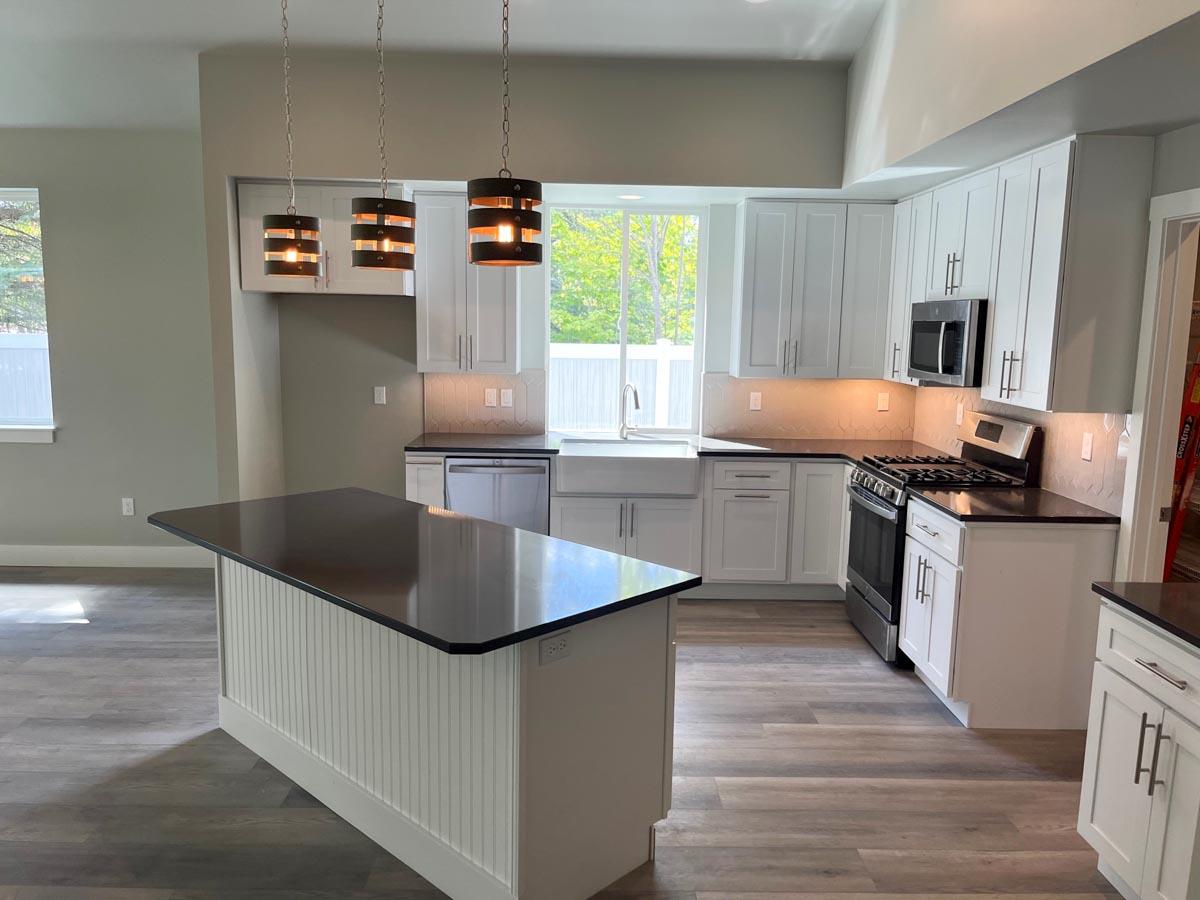

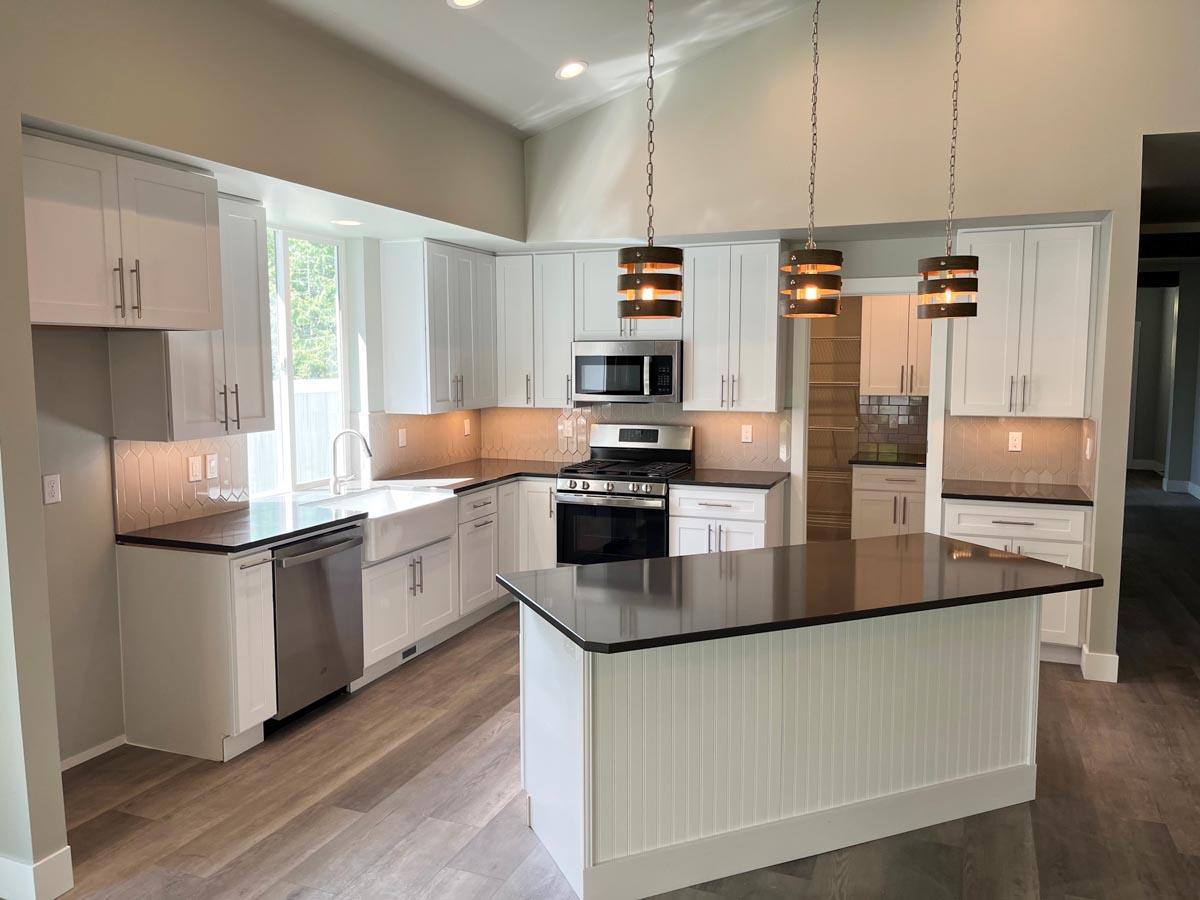

  • A pie-shaped island anchors the kitchen and includes a breakfast bar, and the adjacent pantry sits within arm's reach with plenty of storage space.
  • Set apart from the secondary bedrooms for privacy, you will find the vaulted master bedroom tucked behind the double garage with a pass-thru closet that connects to the laundry room.
What's Included
  • Floor plans
  • Foundation plan
  • Floor framing plan
  • Roof framing plan
  • Cross Sections

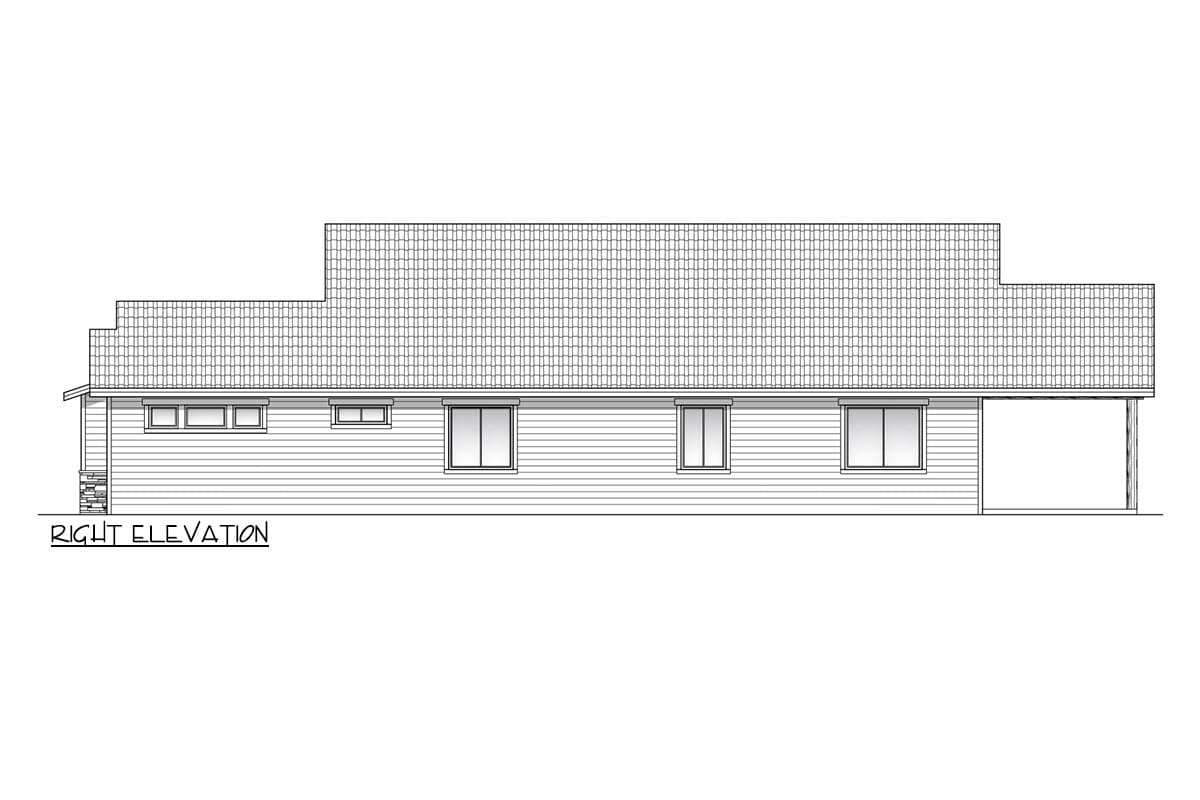

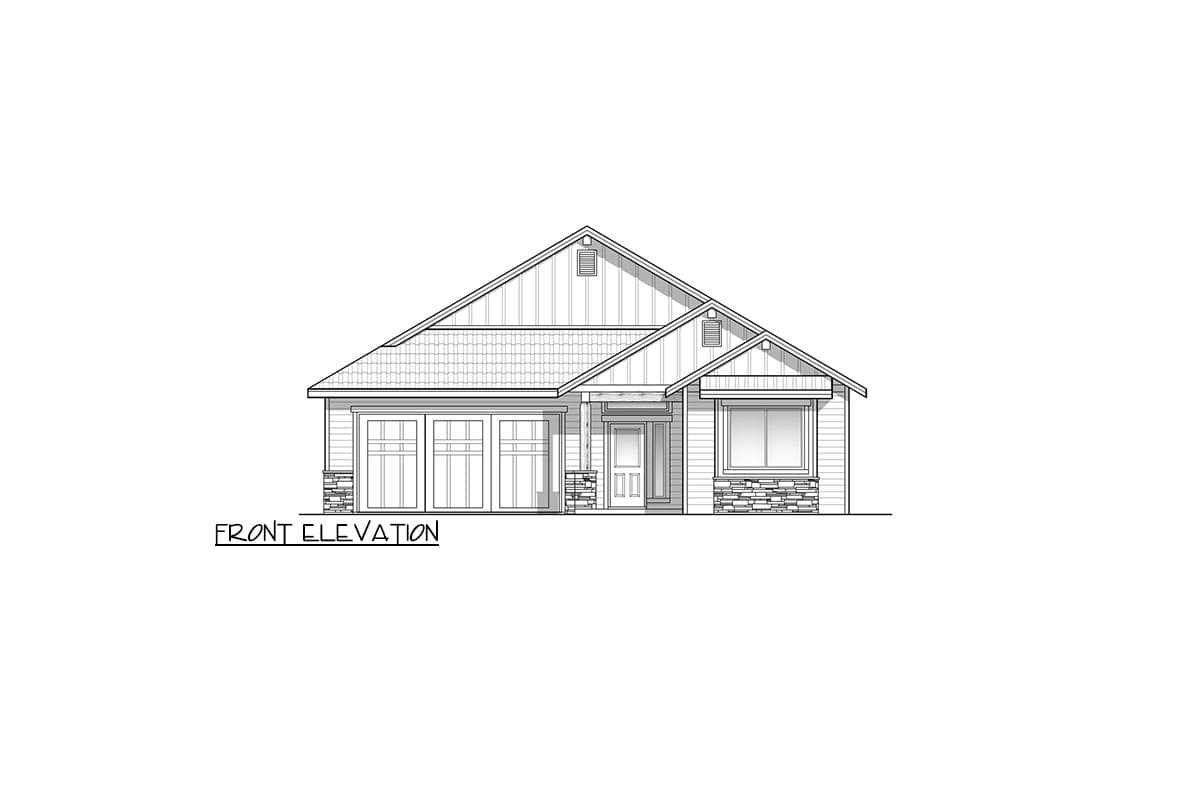

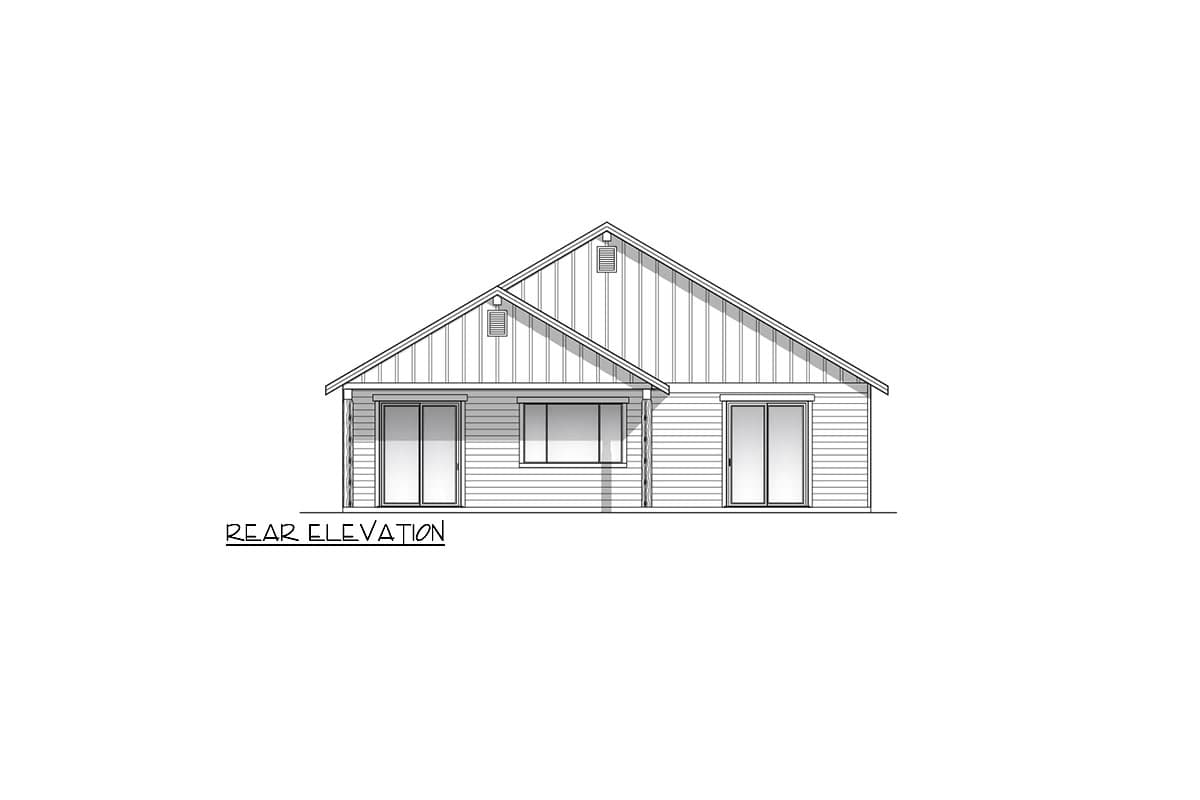

  • Exterior Elevations
  • Exterior Elevations
  • Electrical Plan and notes
  • Detail Page
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional Ranch Plan with Over 2,000 Square Feet

  • 2,099

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

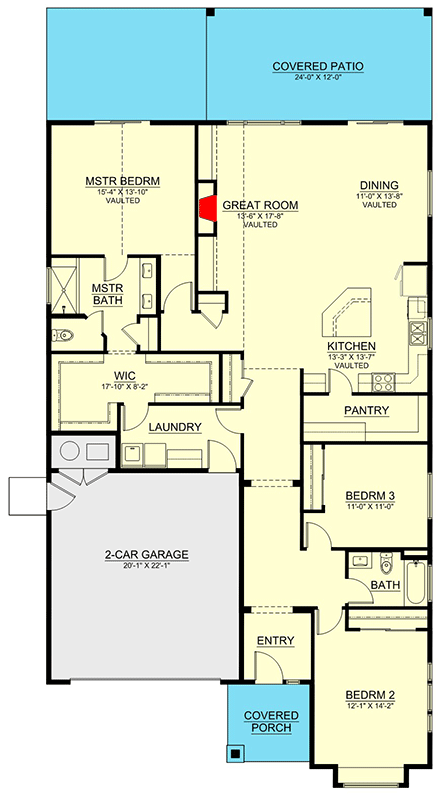

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,099 sq. ft.
  • 1st Floor: 2,099 sq. ft.

Dimensions

  • Width: 41' 0"
  • Depth: 83' 0"
  • Max ridge height: 22' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 496 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
