Plan 737025LVL Transitional Style House Plan With Multi-generational Suite

Transitional Style House Plan With Multi-generational Suite

Plan 737025LVL

  • 3,319

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This sophisticated look hits the sweet spot between traditional elegance and contemporary style.
  • It has the added benefit of having a first floor in-law suite so you can take advantage of multi-generational living.
  • The open layout suits today's modern families and offers sweeping views.
  • A large lawn equipment and storage room adds an extra 200 square feet.
  • Upstairs, four big bedrooms have easy access to the leisure room and the handy nearby laundry room.

This house plan includes the following:

Cover sheet
Foundation plan
Floor plans
Roof framing plan
Building section and typical wall sections
Elevations
General construction details


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

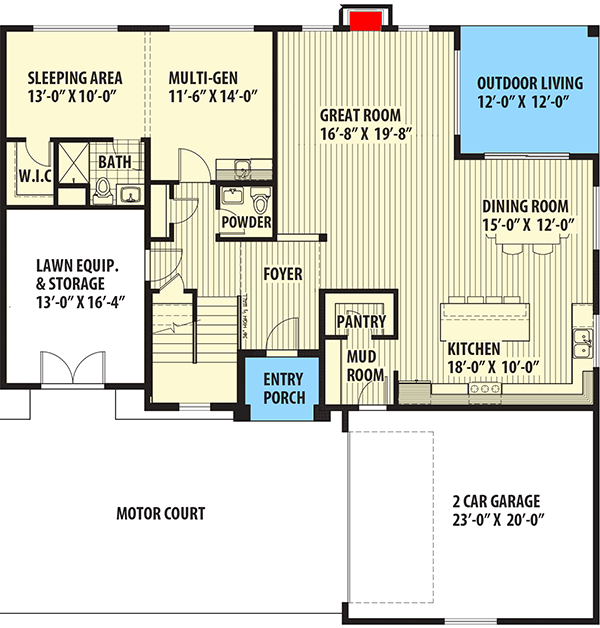

Transitional Style House Plan With Multi-generational Suite - 737025LVL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

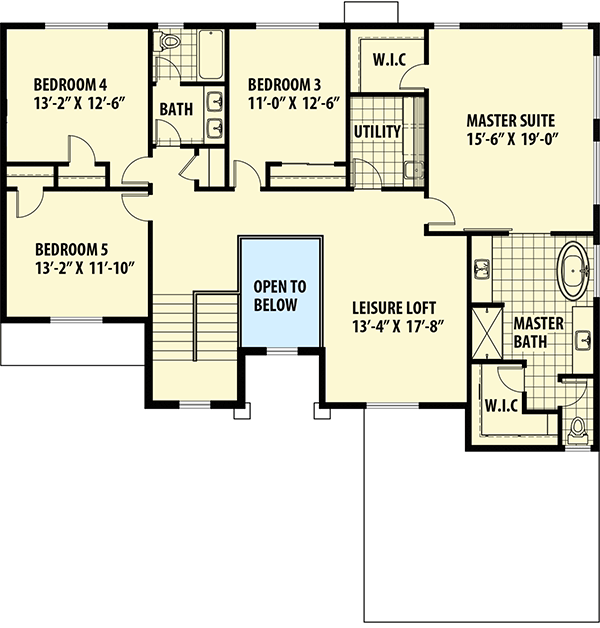

Transitional Style House Plan With Multi-generational Suite - 737025LVL floor plan - 2nd Floor

Plan details

Transitional Style House Plan With Multi-generational Suite

  • 3,319

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,675
  • CAD - Single-Build $2,050
  • View all purchase option online

About This Plan

  • This sophisticated look hits the sweet spot between traditional elegance and contemporary style.
  • It has the added benefit of having a first floor in-law suite so you can take advantage of multi-generational living.
  • The open layout suits today's modern families and offers sweeping views.
  • A large lawn equipment and storage room adds an extra 200 square feet.
  • Upstairs, four big bedrooms have easy access to the leisure room and the handy nearby laundry room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,319 sq. ft.
  • 1st Floor: 1,571 sq. ft.
  • 2nd Floor: 1,748 sq. ft.
  • Covered Patio: 144 sq. ft.
  • Porch, Front: 42 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 56' 0"
  • Max ridge height: 27' 5"

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
