Triplex House Plan - 3 Bed Units - 1075 Sq Ft - Architectural Designs
Heated S.F.
3,225
Units
3
Width
143' 6"
Depth
41' 6"
Cars
3
What's Included
Plan Details
  • This one-story triplex house plan gives you side-by-side-by-side 3 bed, 1.5 bath units each with 1075 square feet of heated living.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes.
  • Our vast collection of multi-family home plans, encompasses various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
Unit A
1,075 Sq. Ft.
1075 Sq. Ft. 1st Floor
3 Beds
1 Full Bath
1 Half Bath
1 Vehicle
Attached
306 Sq. Ft.
47' 10" w 41' 6" d 17' h
Unit B
1,075 Sq. Ft.
1075 Sq. Ft. 1st Floor
3 Beds
1 Full Bath
1 Half Bath
1 Vehicle
Attached
306 Sq. Ft.
47' 10" w 41' 6" d 17' h
Unit C
1,075 Sq. Ft.
1075 Sq. Ft. 1st Floor
3 Beds
1 Full Bath
1 Half Bath
1 Vehicle
Attached
306 Sq. Ft.
47' 10" w 41' 6" d 17' h
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Triplex House Plan - 3 Bed Units - 1075 Sq Ft - Architectural Designs

  • 3,225

    Heated s.f.

  • 3

    Units

  • 143' 6"

    Width

  • 41' 6"

    Depth

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,225 sq. ft.
  • 1st Floor: 3,225 sq. ft.

Dimensions

  • Width: 143' 6"
  • Depth: 41' 6"
  • Max ridge height: 17' 0"

Beds/Baths

  • Bedrooms: 9
  • Full bathrooms: 3
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 918 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Triplex House Plan - 3 Bed Units - 1075 Sq Ft - Architectural Designs

  • 3,225

    Heated s.f.

  • 3

    Units

  • 143' 6"

    Width

  • 41' 6"

    Depth

Triplex House Plan - 3 Bed Units - 1075 Sq Ft - Architectural Designs

  • 3,225

    Heated s.f.

  • 3

    Units

  • 143' 6"

    Width

  • 41' 6"

    Depth

Plan Details

Square Footage Breakdown

  • Total: 3,225 sq. ft.
  • 1st Floor: 3,225 sq. ft.

Dimensions

  • Width: 143' 6"
  • Depth: 41' 6"
  • Max ridge height: 17' 0"

Beds/Baths

  • Bedrooms: 9
  • Full bathrooms: 3
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 918 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

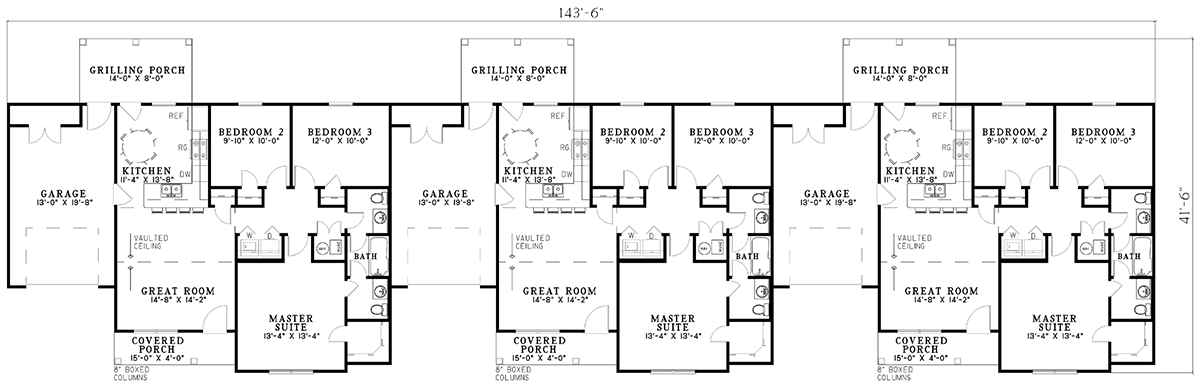

    Main Level
